Pinpoint Test B: DTC B1251 Or DTC B1253 - A/C In-Car Temperature Sensor Open Circuit Or Short To Ground

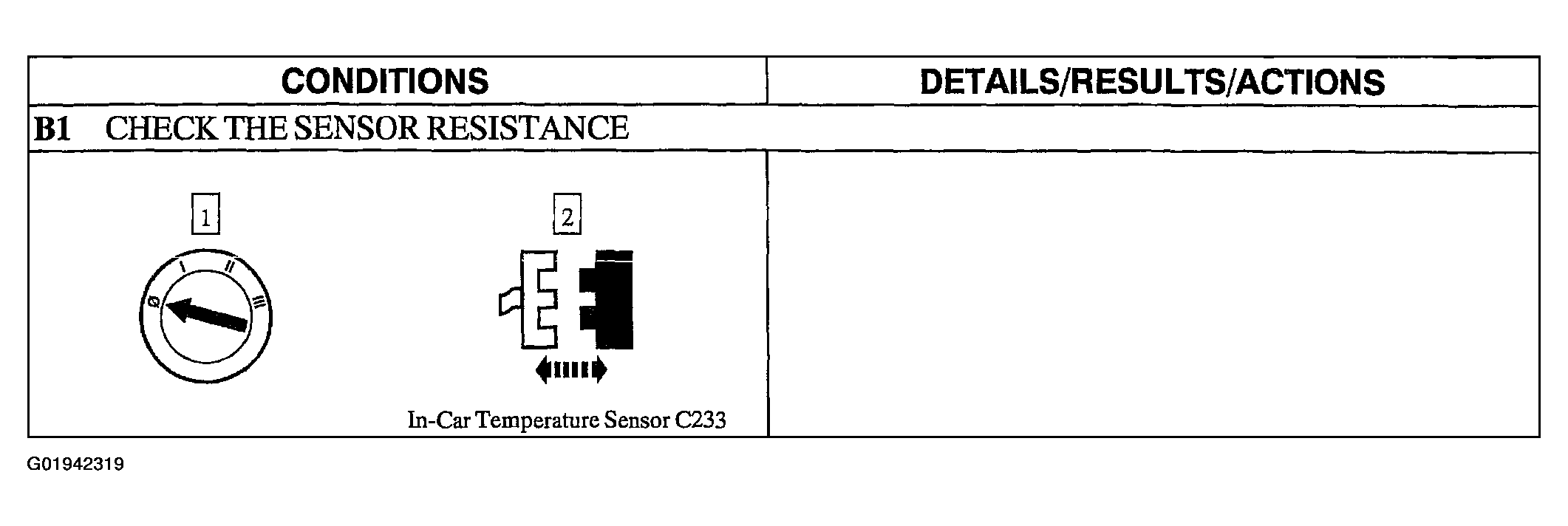

Fig 1: Pinpoint Test B: DTC B1251 Or DTC B1253 - A/C In-Car Temperature Sensor Open Circuit Or Short To Ground (Step B1)

Courtesy of FORD MOTOR CO.

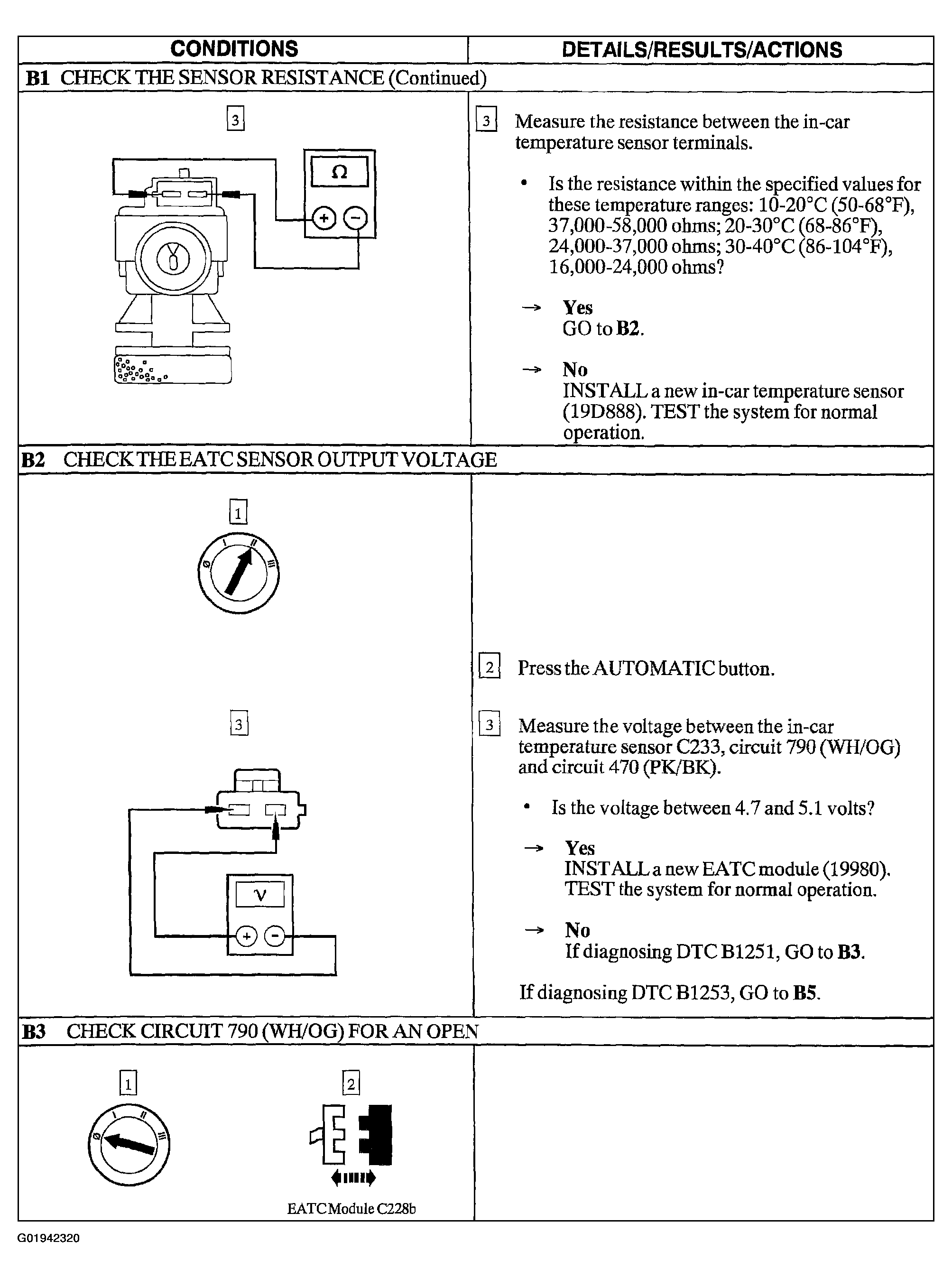

Fig 2: Pinpoint Test B: DTC B1251 Or DTC B1253 - A/C In-Car Temperature Sensor Open Circuit Or Short To Ground (Steps B1 Cont.-B3)

Courtesy of FORD MOTOR CO.

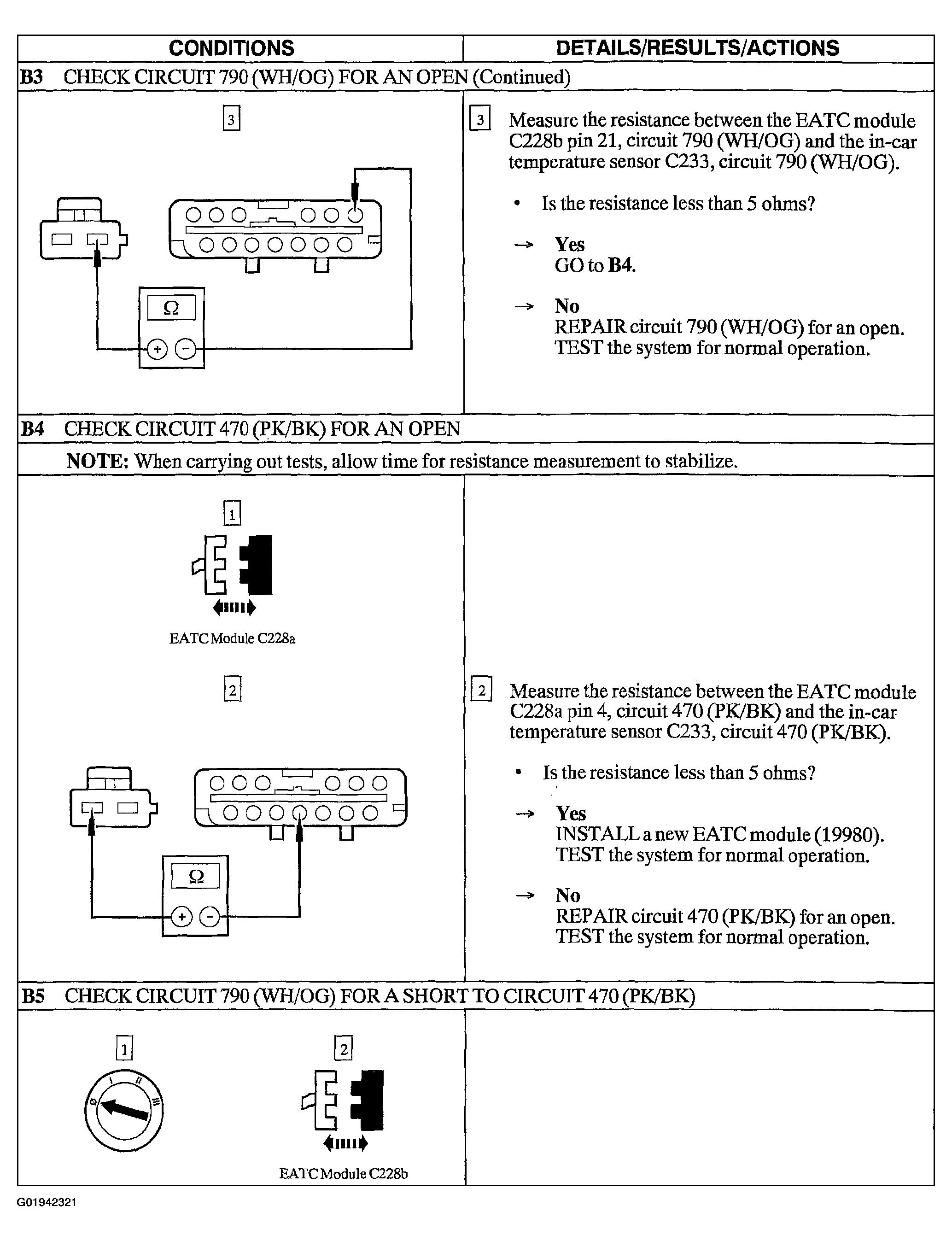

Fig 3: Pinpoint Test B: DTC B1251 Or DTC B1253 - A/C In-Car Temperature Sensor Open Circuit Or Short To Ground (Steps B3 Cont.-B5)

Courtesy of FORD MOTOR CO.

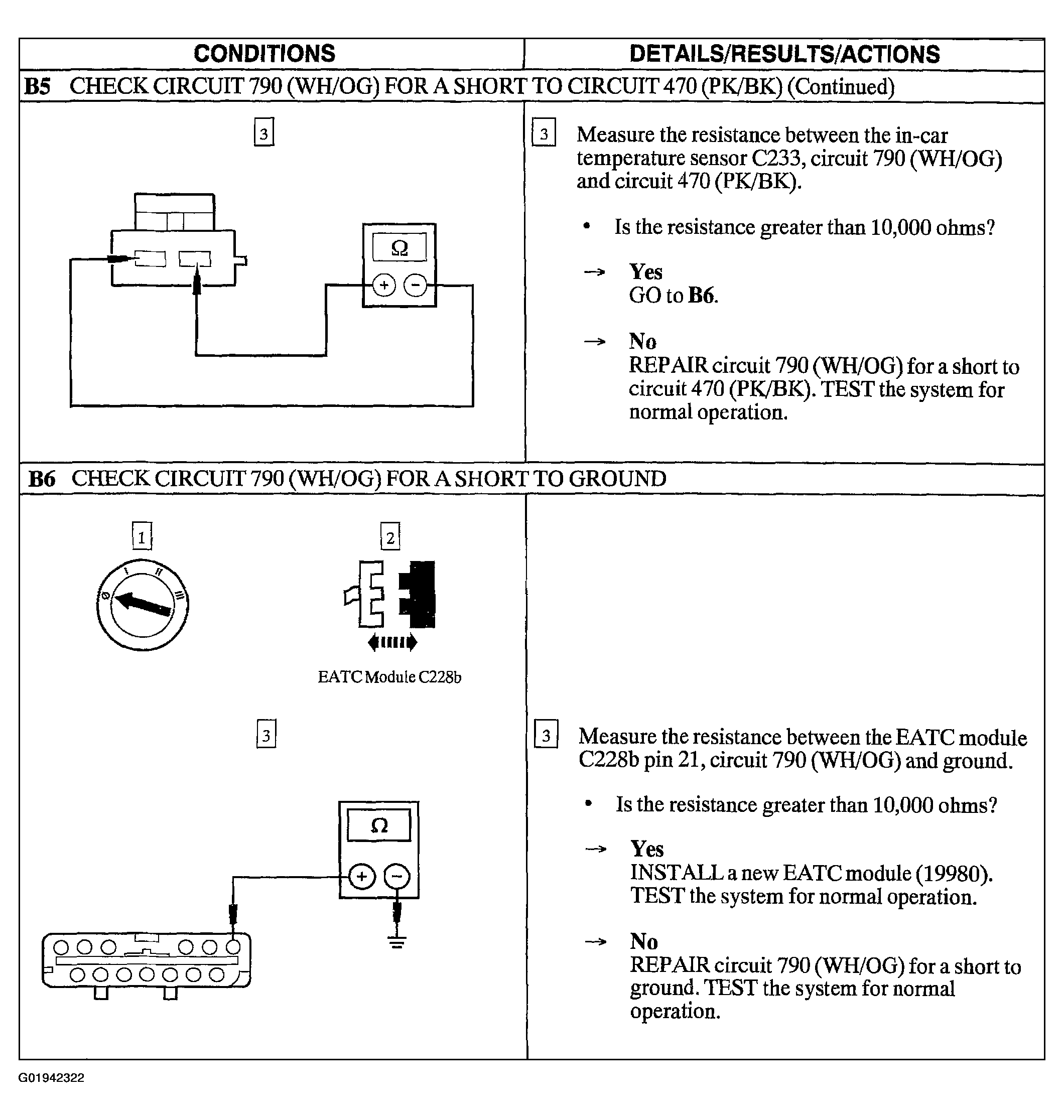

Fig 4: Pinpoint Test B: DTC B1251 Or DTC B1253 - A/C In-Car Temperature Sensor Open Circuit Or Short To Ground (Steps B5 Cont.-B6)

Courtesy of FORD MOTOR CO.
