Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly

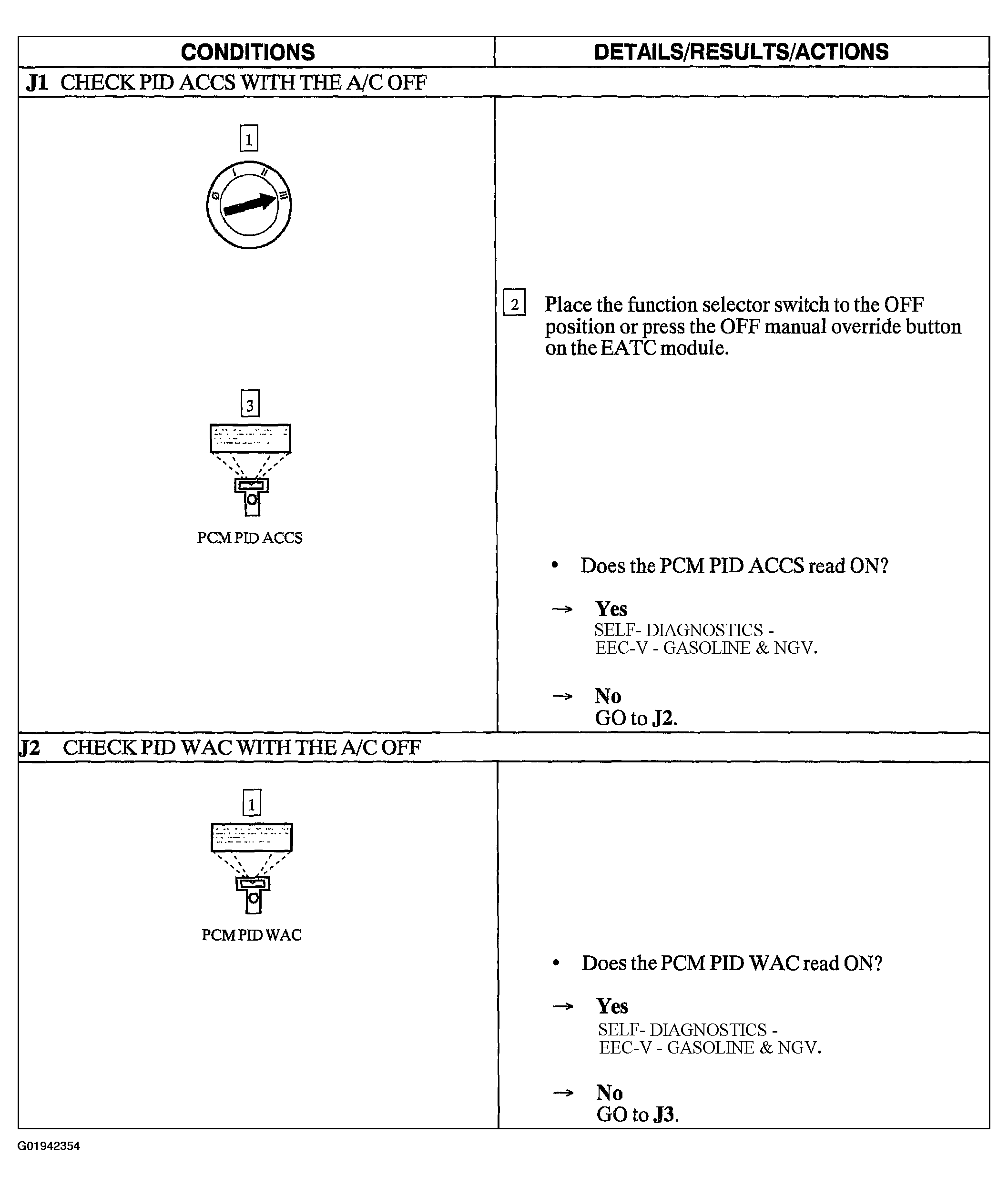

Fig 1: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J1-J2)

Courtesy of FORD MOTOR CO.

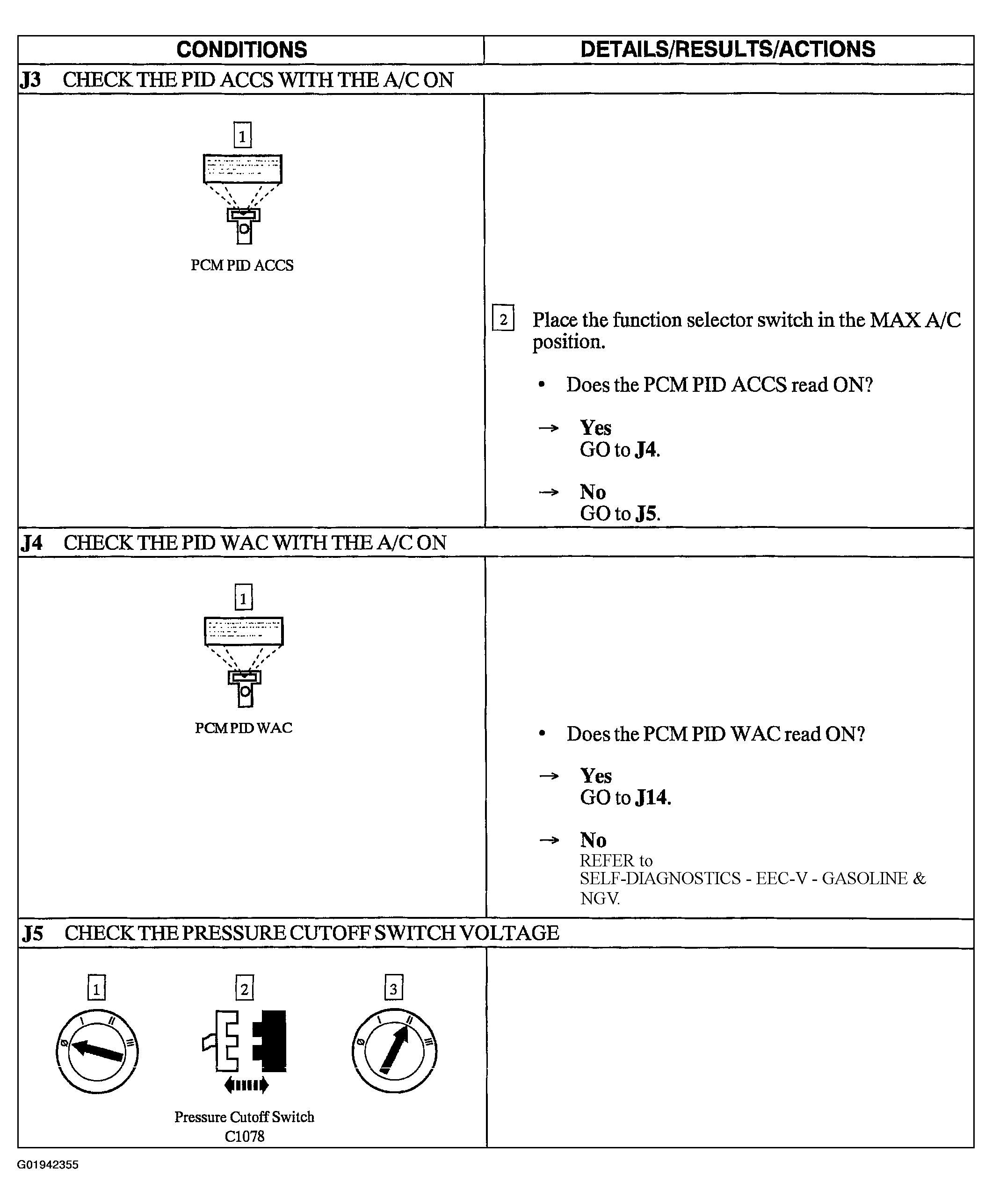

Fig 2: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J3-J5)

Courtesy of FORD MOTOR CO.

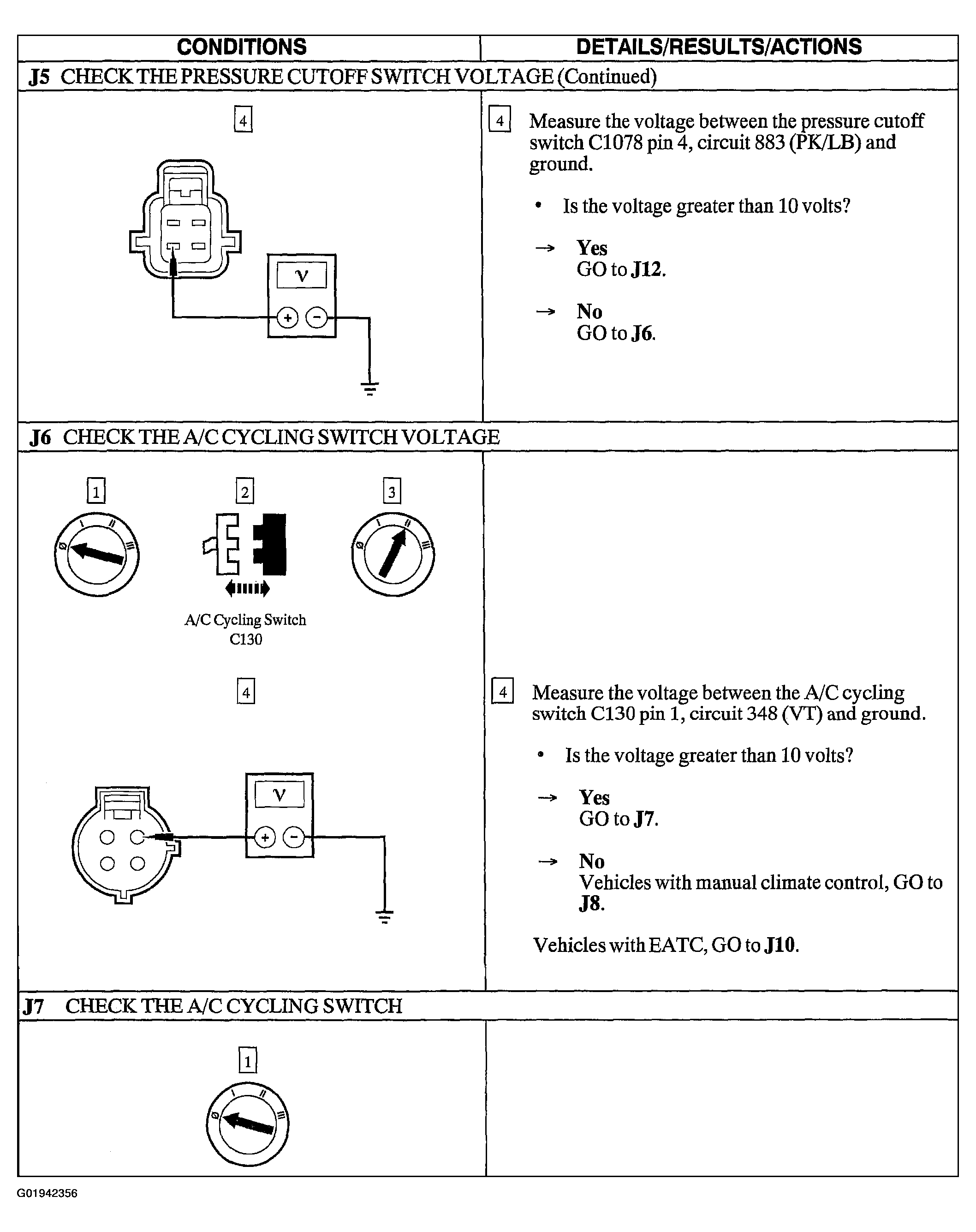

Fig 3: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J5 Cont.-J7)

Courtesy of FORD MOTOR CO.

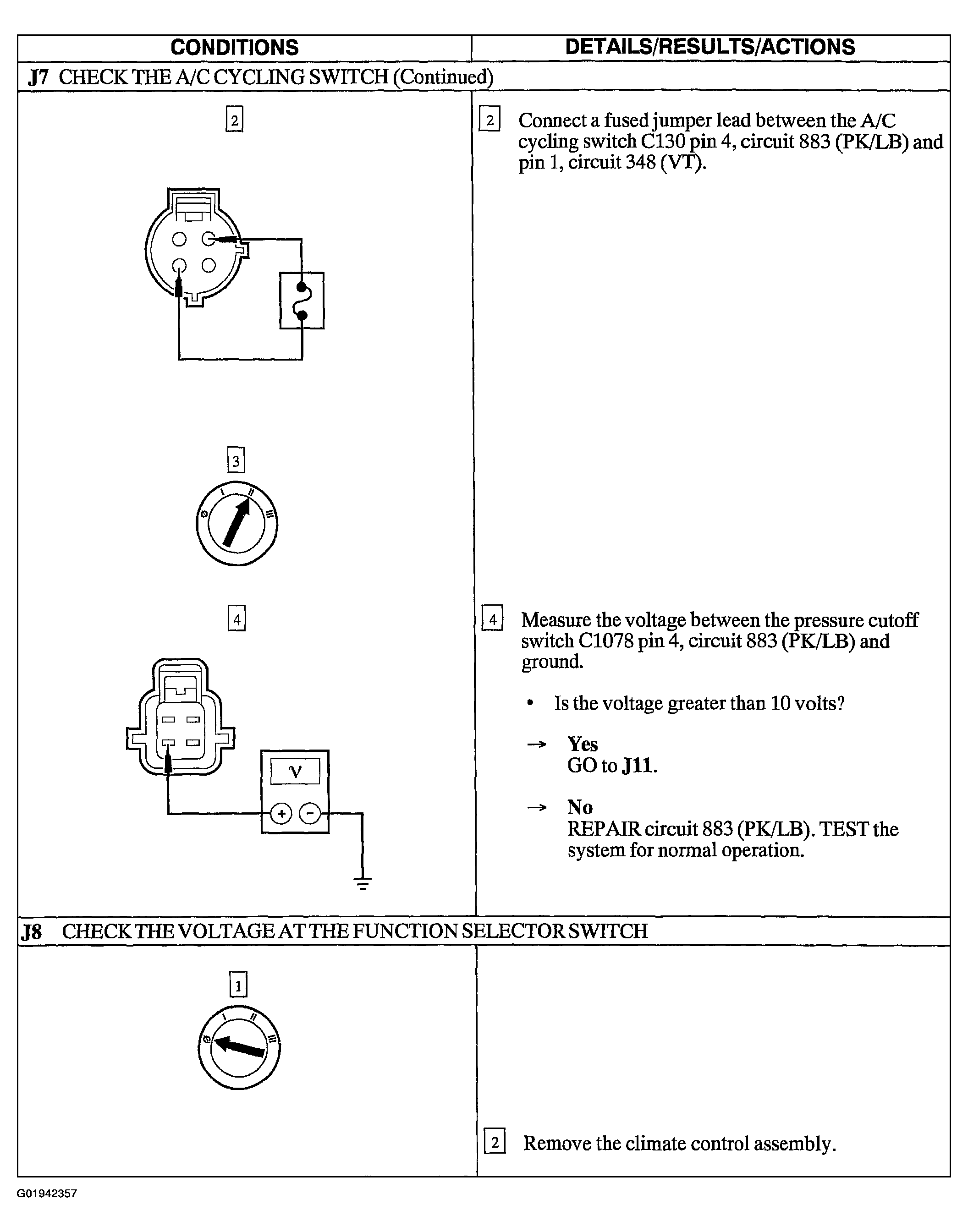

Fig 4: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J7 Cont.-J8)

Courtesy of FORD MOTOR CO.

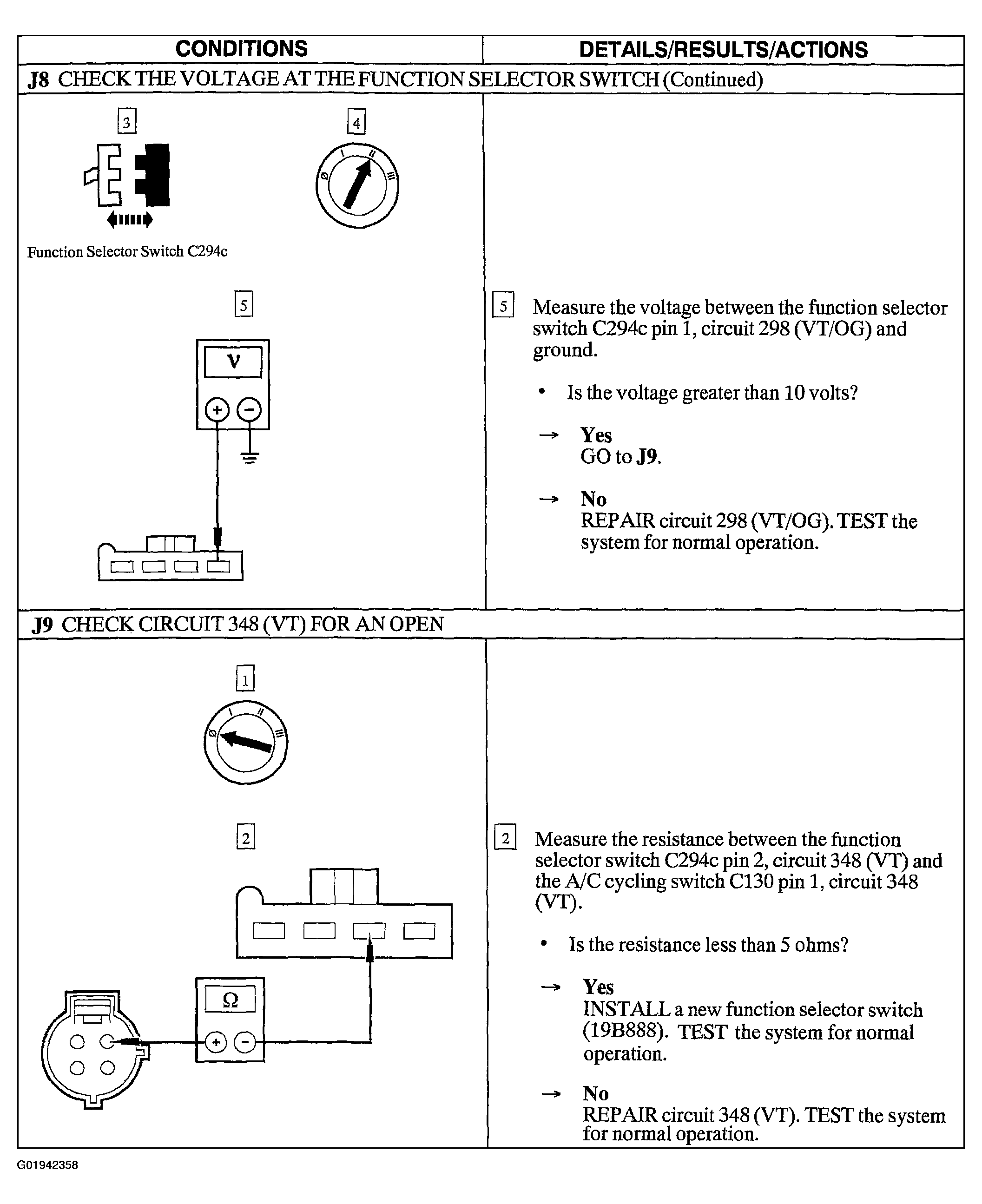

Fig 5: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J8 Cont.-J9)

Courtesy of FORD MOTOR CO.

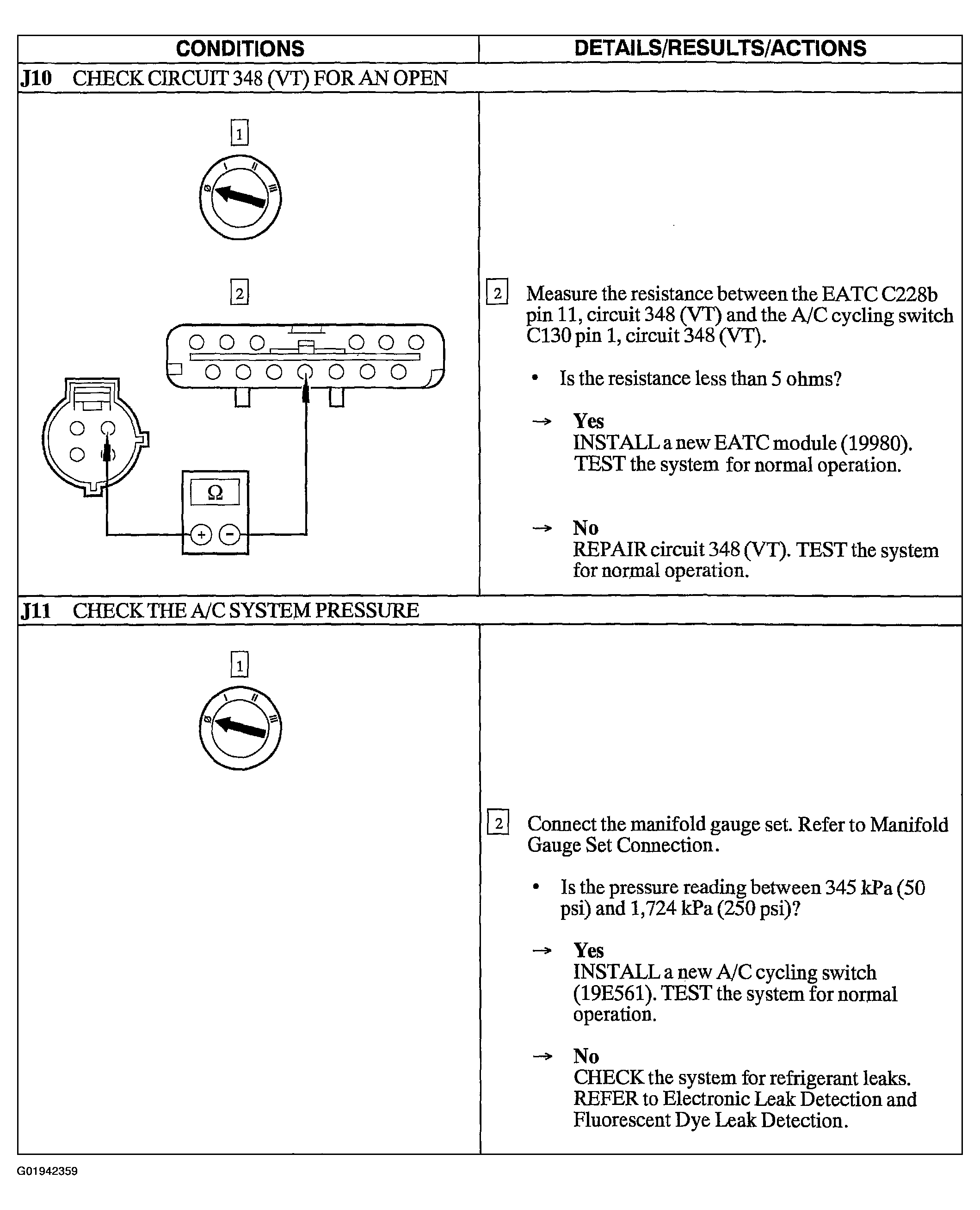

Fig 6: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J10-J11)

Courtesy of FORD MOTOR CO.

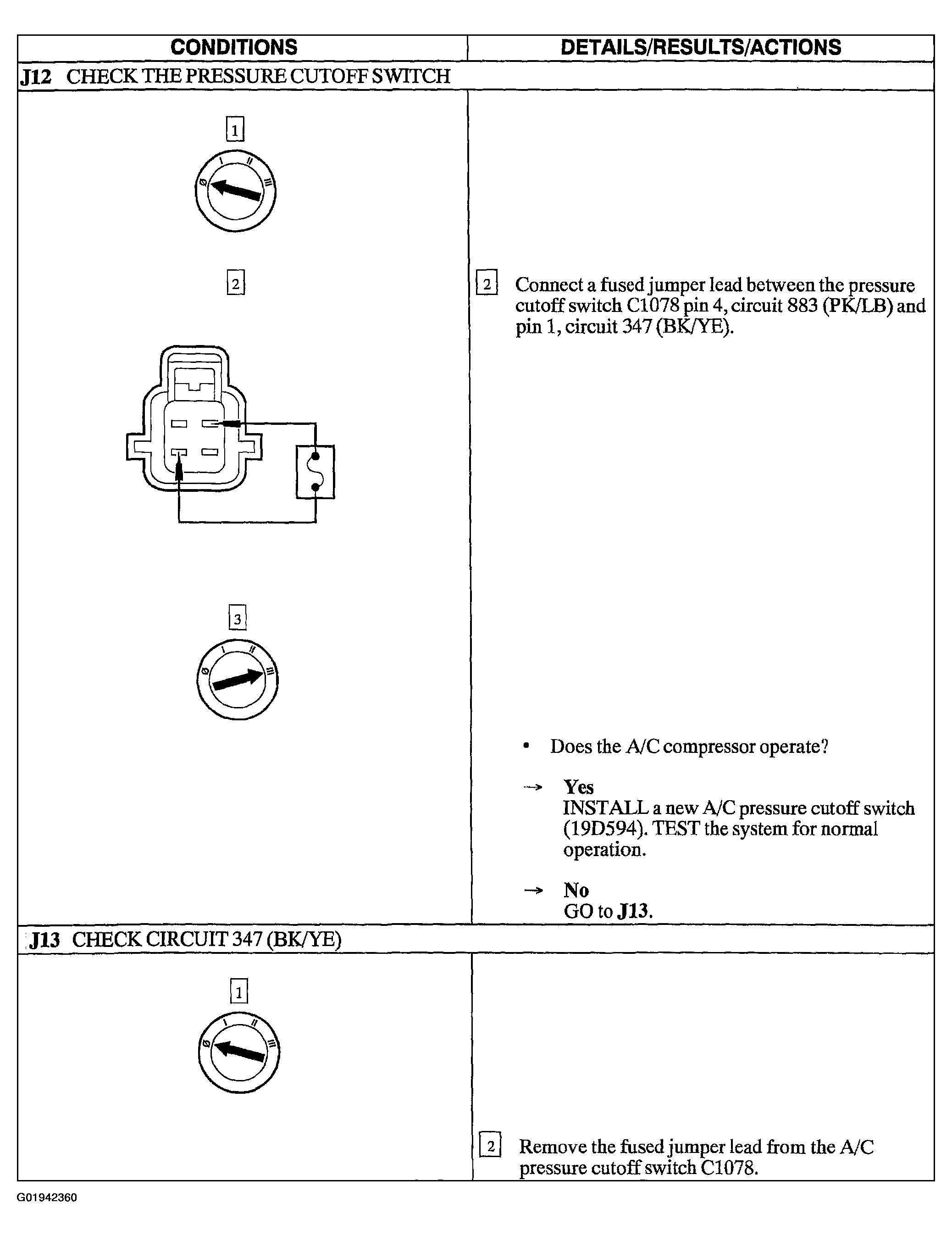

Fig 7: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J12-J13)

Courtesy of FORD MOTOR CO.

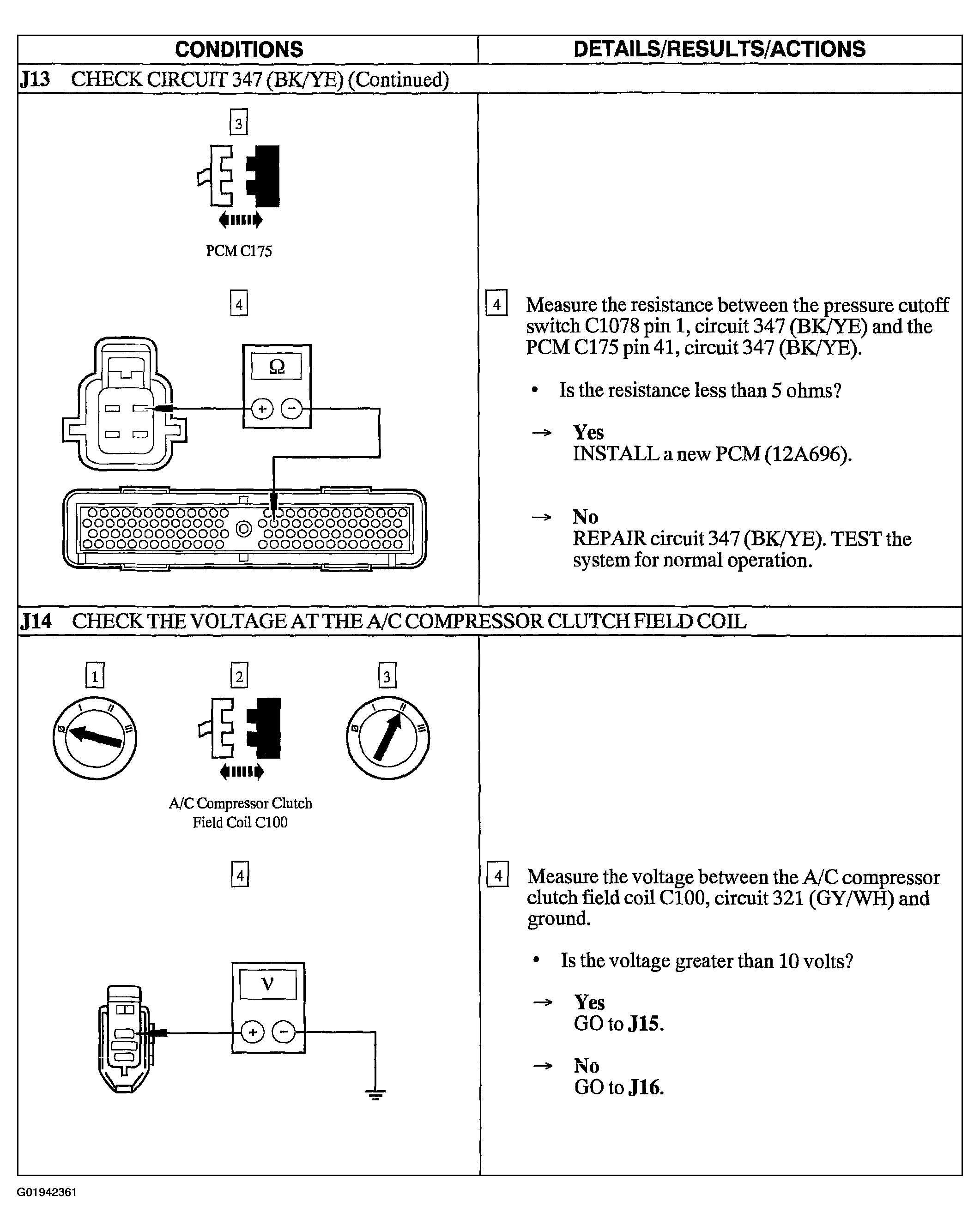

Fig 8: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J13 Cont.-J14)

Courtesy of FORD MOTOR CO.

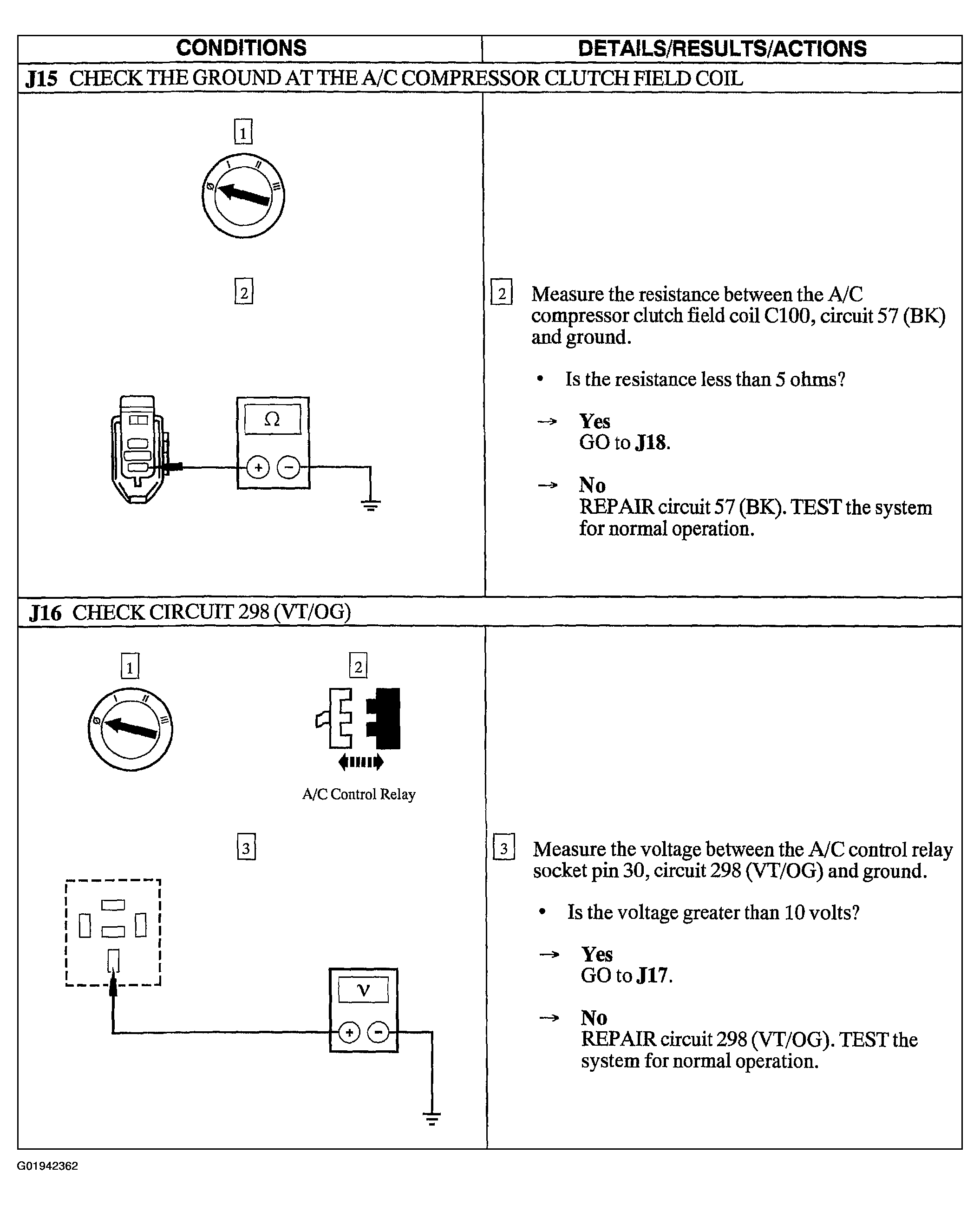

Fig 9: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J15-J16)

Courtesy of FORD MOTOR CO.

Fig 10: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J17-J19)

Courtesy of FORD MOTOR CO.

Fig 11: Pinpoint Test J: The Air Conditioning (A/C) Is Inoperative/Does Not Operate Correctly (Steps J19 Cont.-J20)

Courtesy of FORD MOTOR CO.
