Pinpoint Test K: The Air Conditioning (A/C) Is Always On

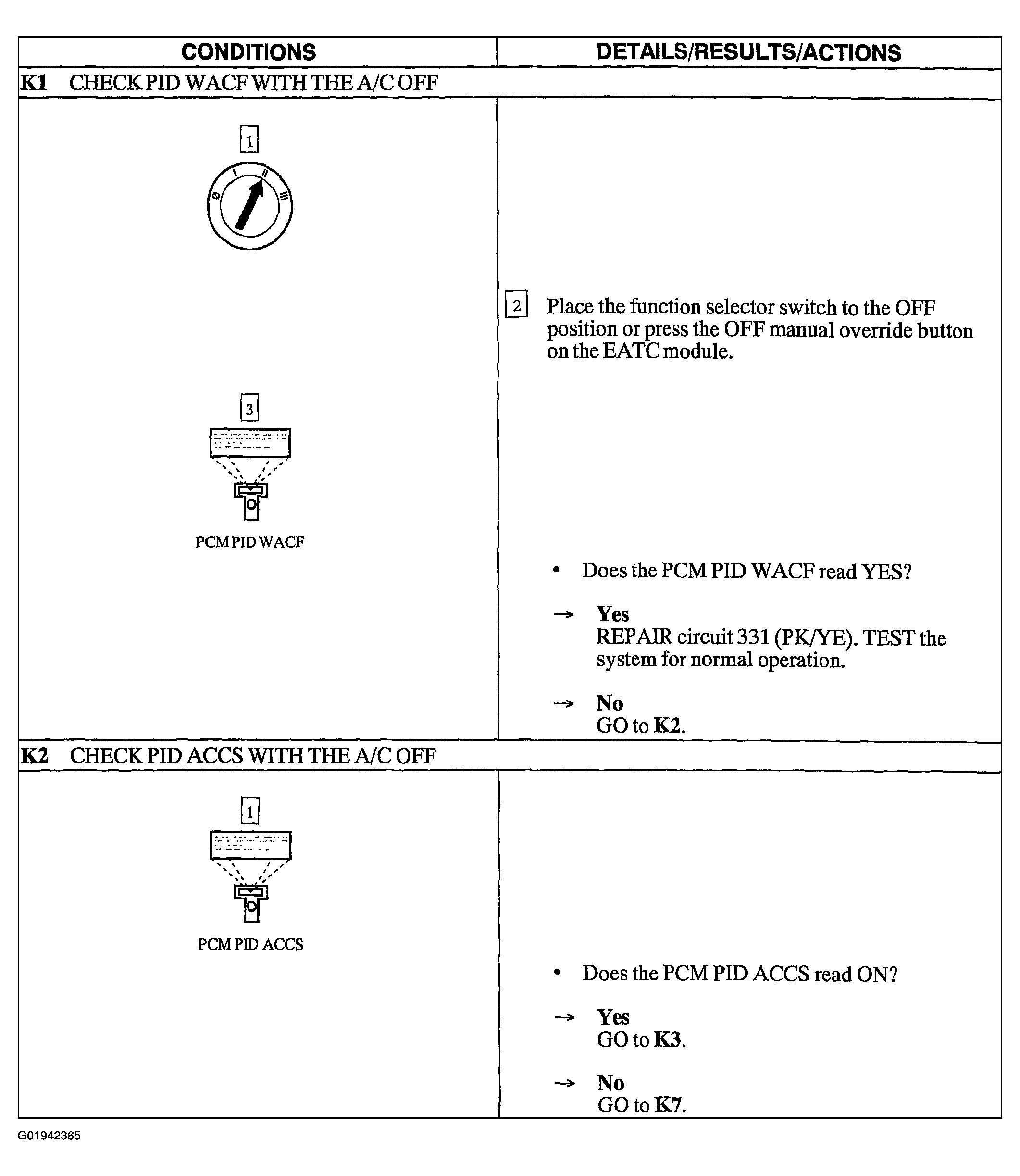

Fig 1: Pinpoint Test K: The Air Conditioning (A/C) Is Always On (Steps K1-K2)

Courtesy of FORD MOTOR CO.

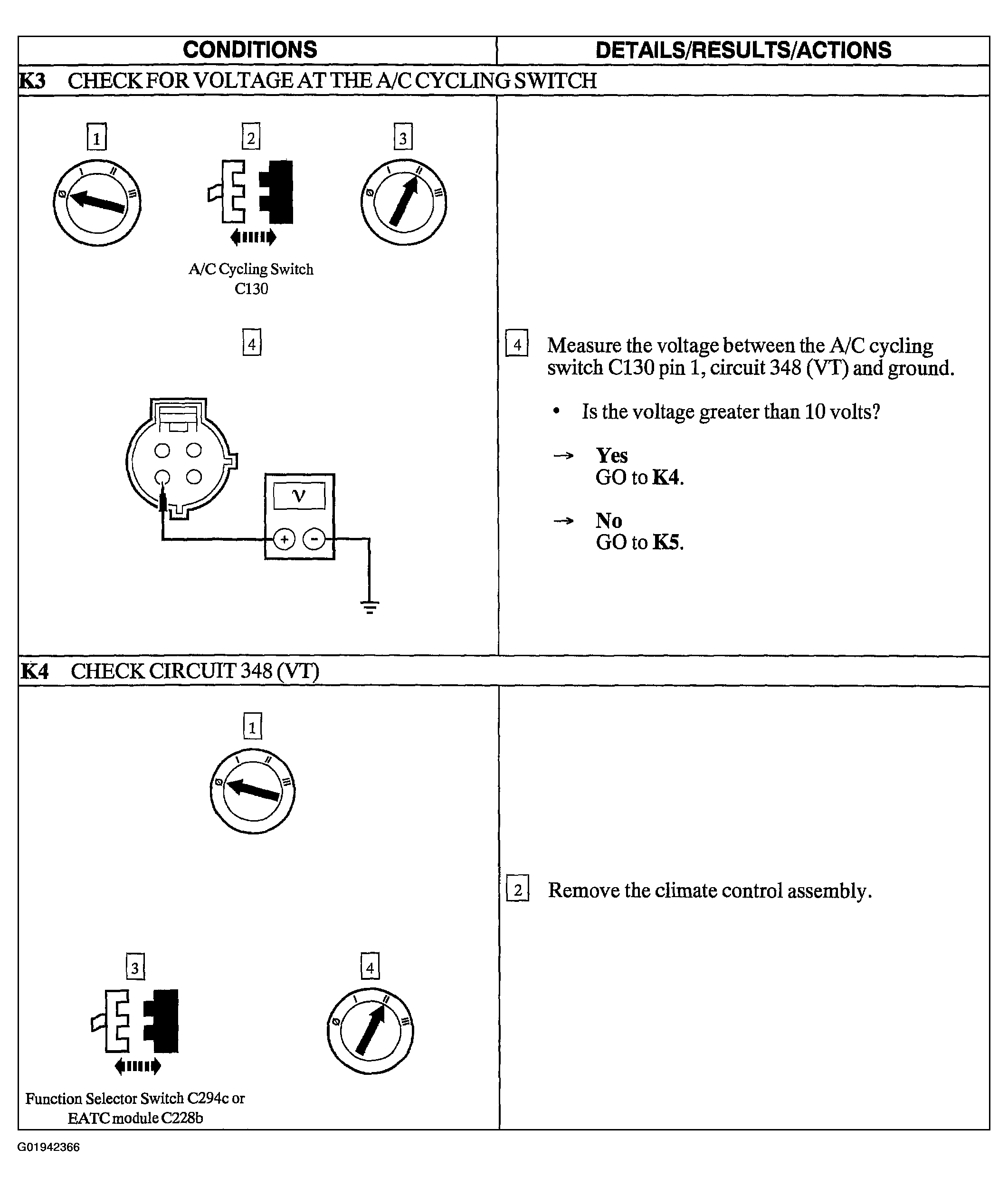

Fig 2: Pinpoint Test K: The Air Conditioning (A/C) Is Always On (Steps K3-K4)

Courtesy of FORD MOTOR CO.

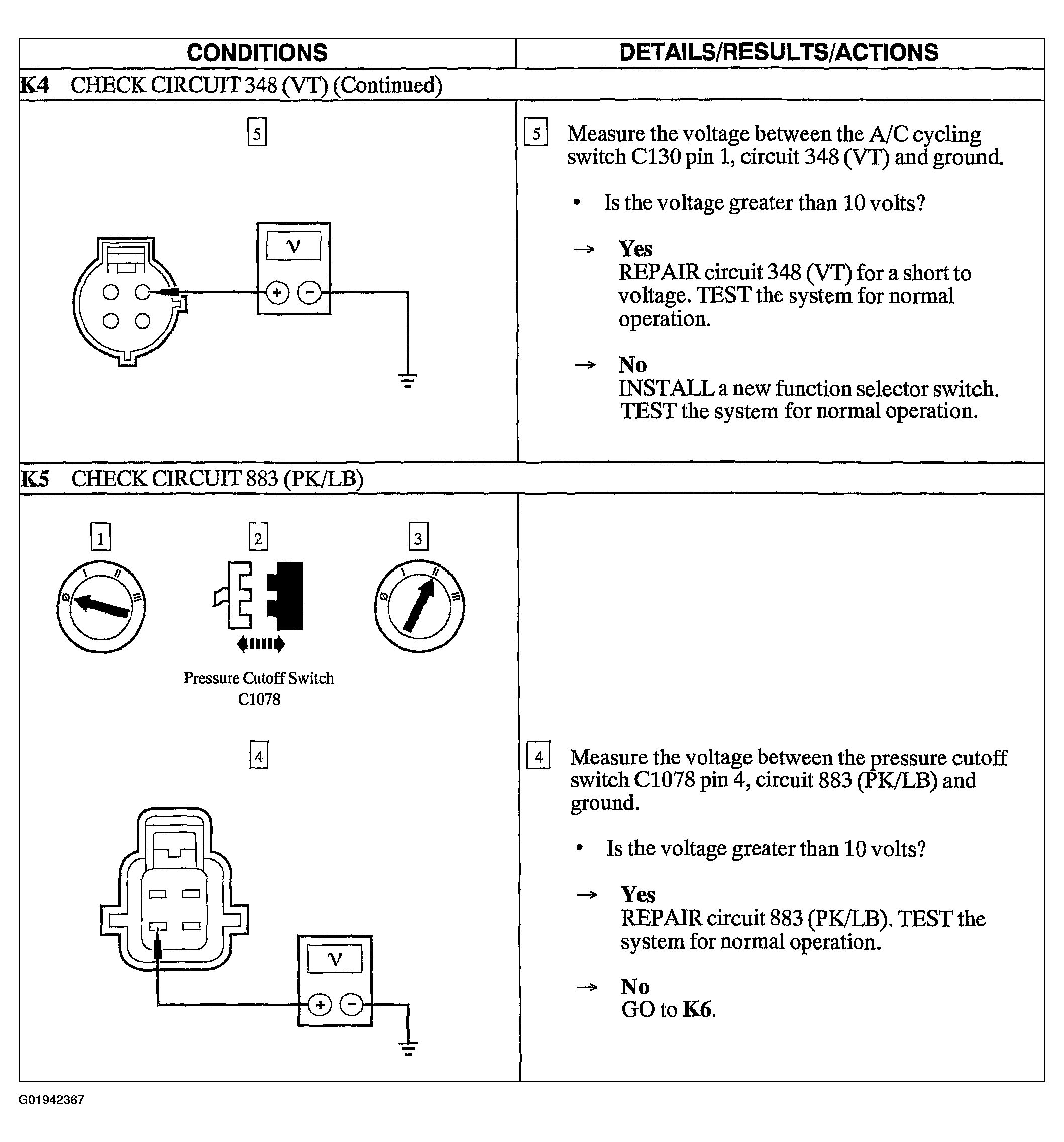

Fig 3: Pinpoint Test K: The Air Conditioning (A/C) Is Always On (Steps K4 Cont.-K5)

Courtesy of FORD MOTOR CO.

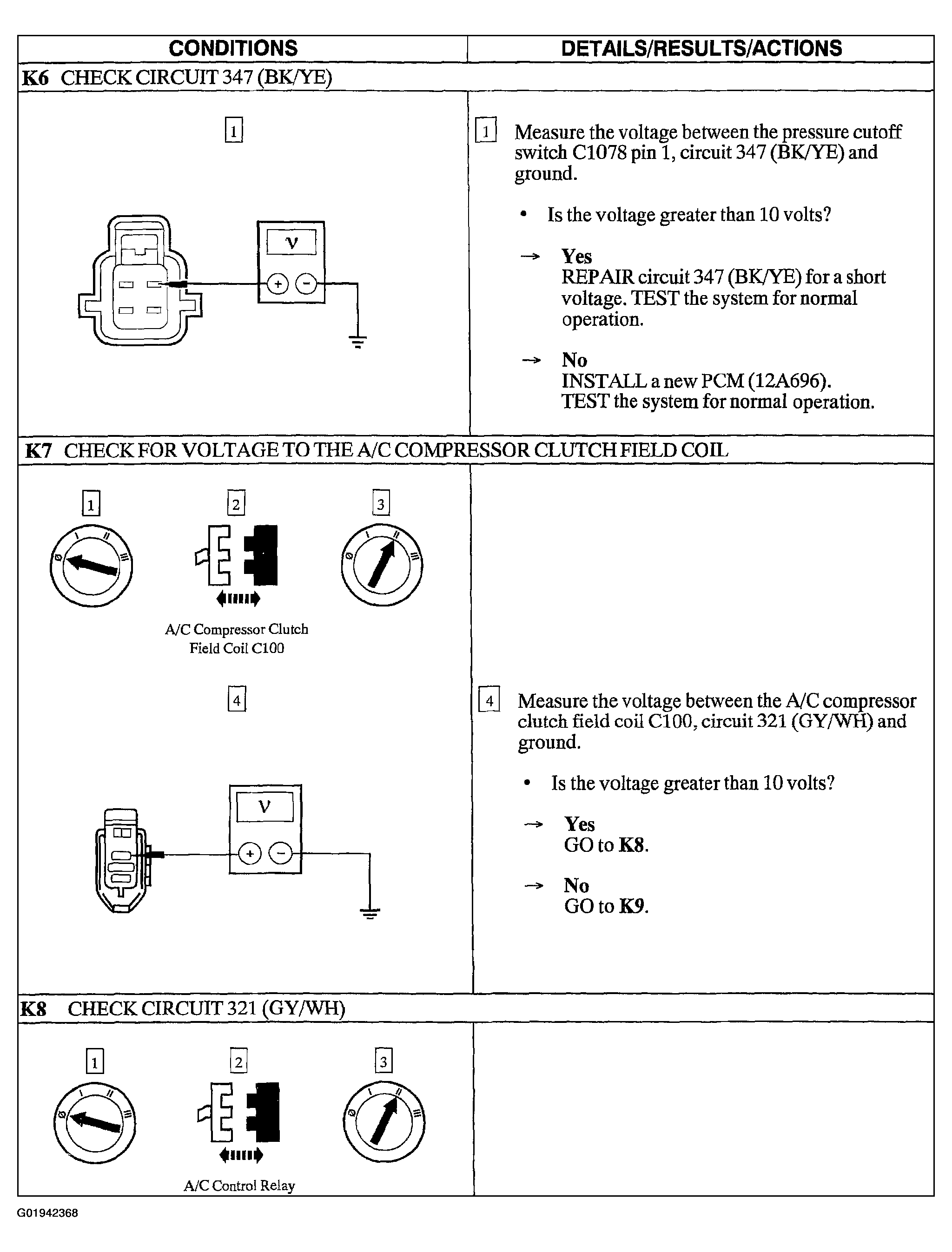

Fig 4: Pinpoint Test K: The Air Conditioning (A/C) Is Always On (Steps K6-K8)

Courtesy of FORD MOTOR CO.

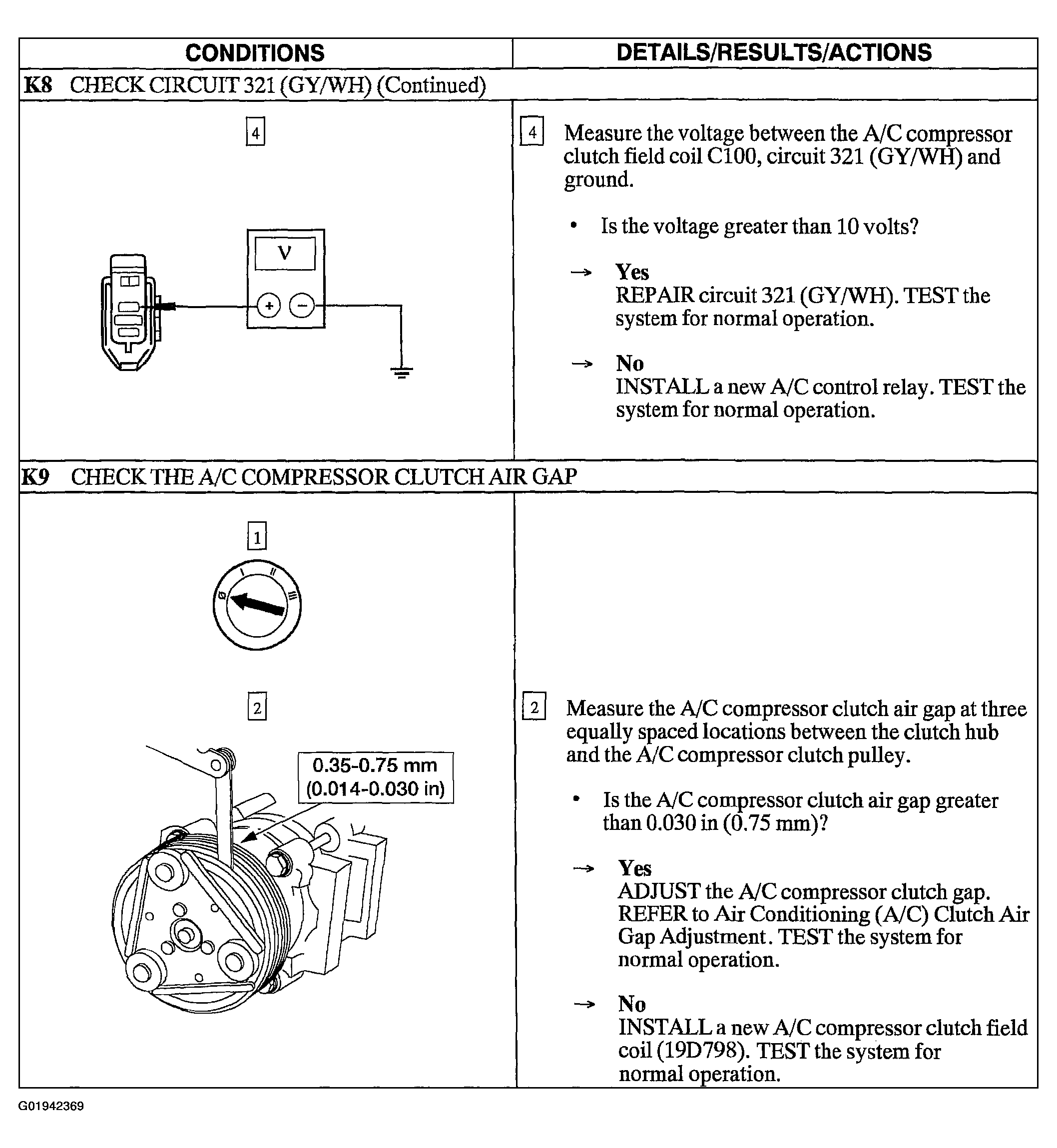

Fig 5: Pinpoint Test K: The Air Conditioning (A/C) Is Always On (Steps K8 Cont.-K9)

Courtesy of FORD MOTOR CO.
