Pinpoint Test L: Insufficient Air Conditioning (A/C) Cooling

NOTE: Make sure the heater control valve is operating correctly before carrying out this test.

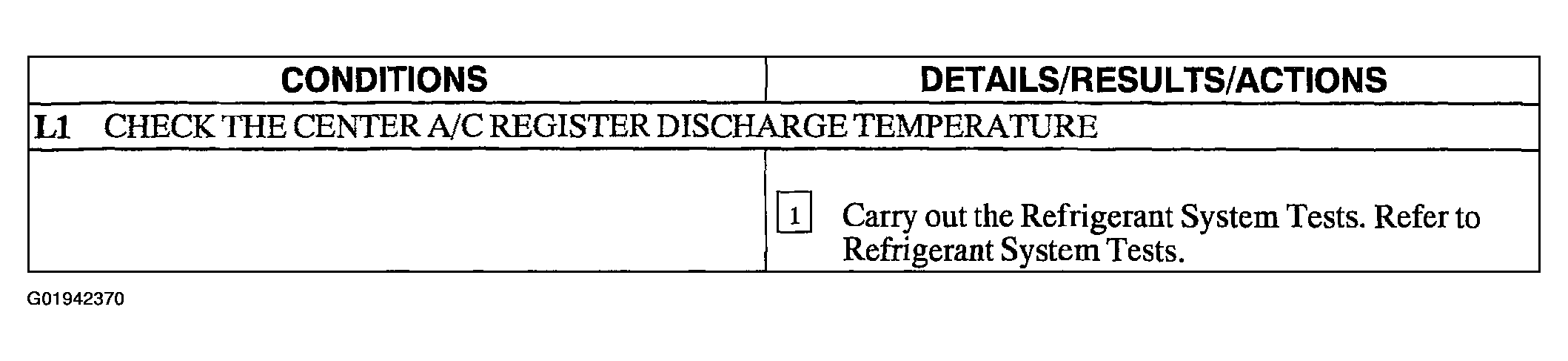

Fig 1: Pinpoint Test L: Insufficient Air Conditioning (A/C) Cooling (Step L1)

Courtesy of FORD MOTOR CO.

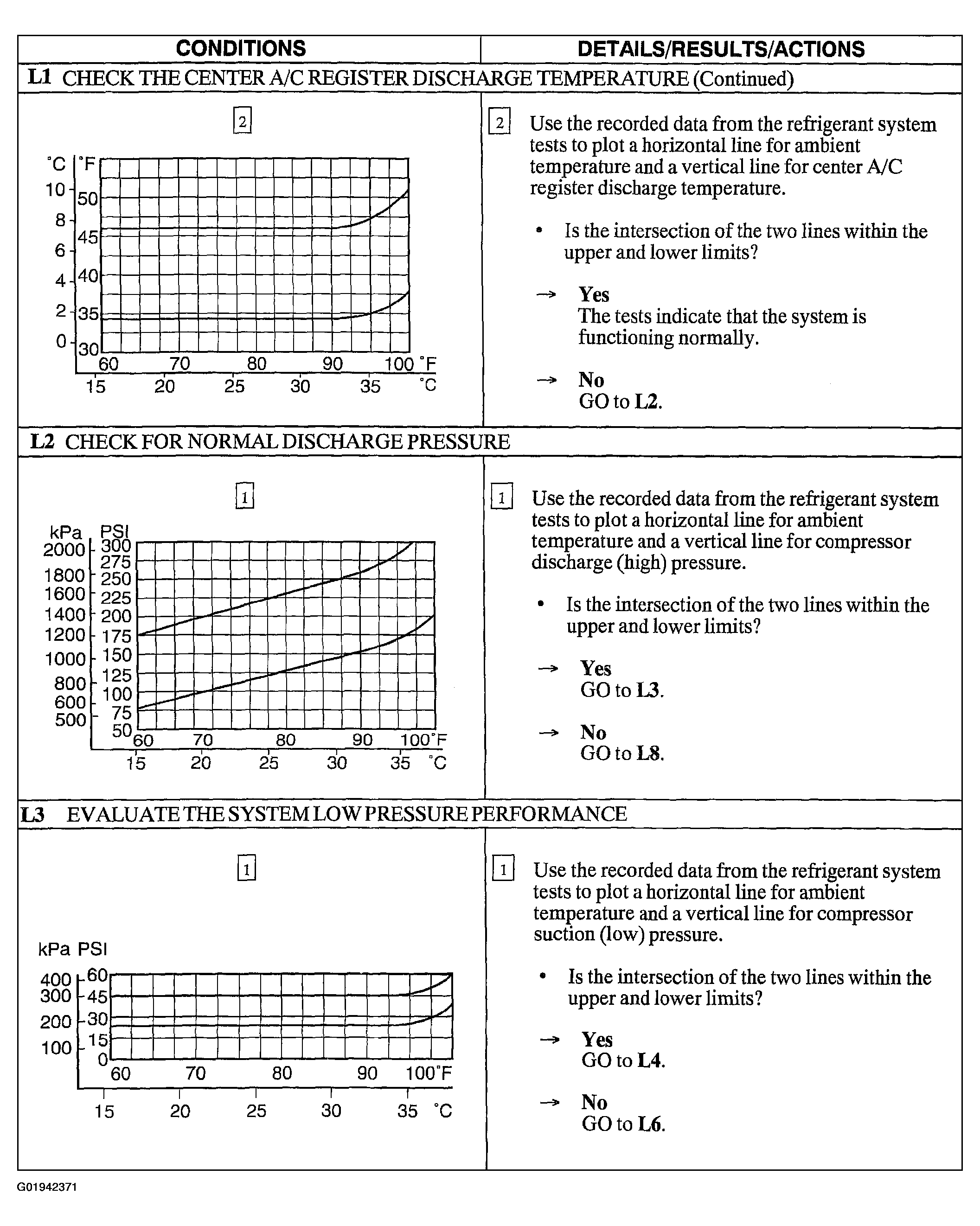

Fig 2: Pinpoint Test L: Insufficient Air Conditioning (A/C) Cooling (Steps L1 Cont.-L3)

Courtesy of FORD MOTOR CO.

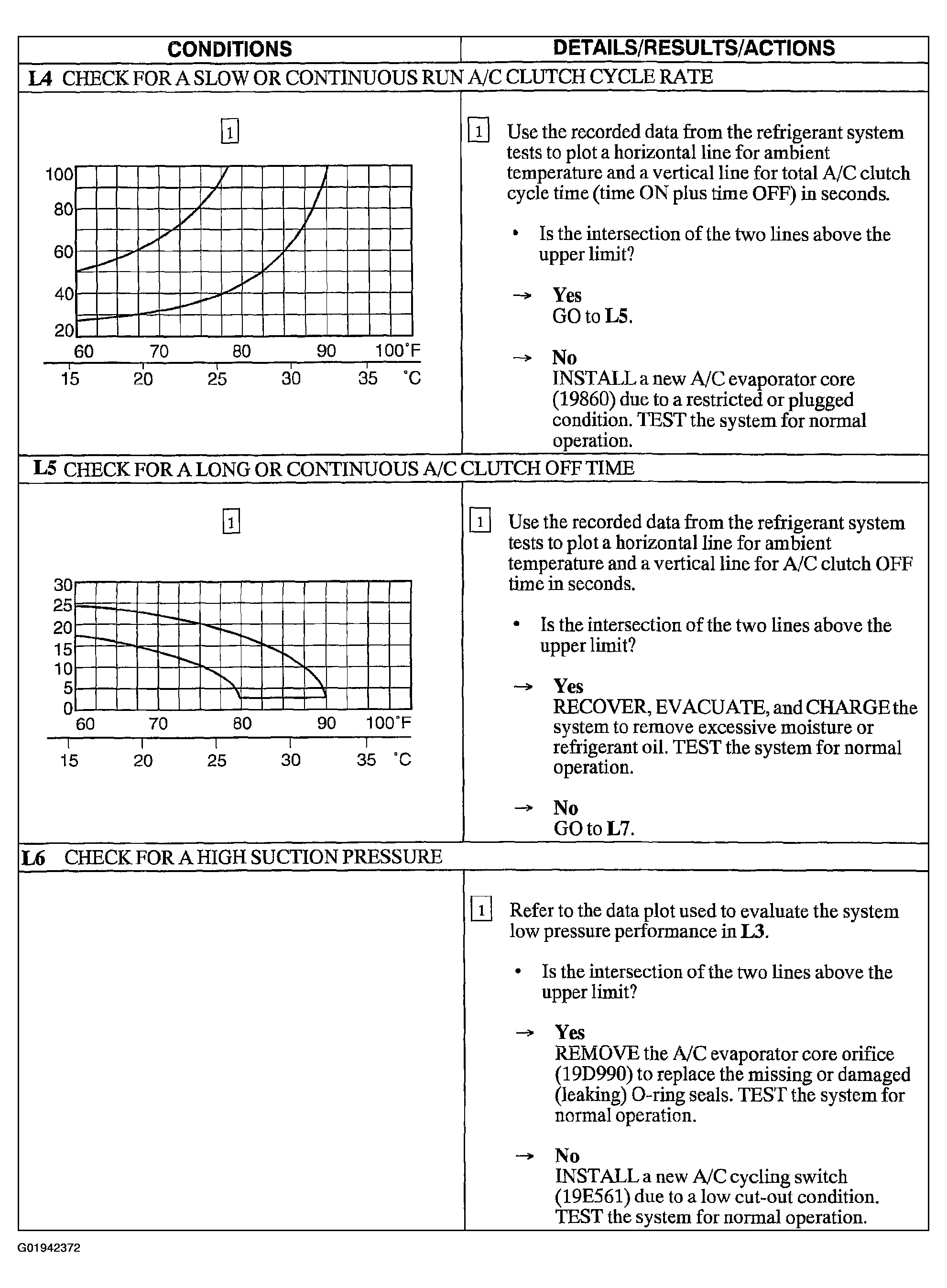

Fig 3: Pinpoint Test L: Insufficient Air Conditioning (A/C) Cooling (Steps L4-L6)

Courtesy of FORD MOTOR CO.

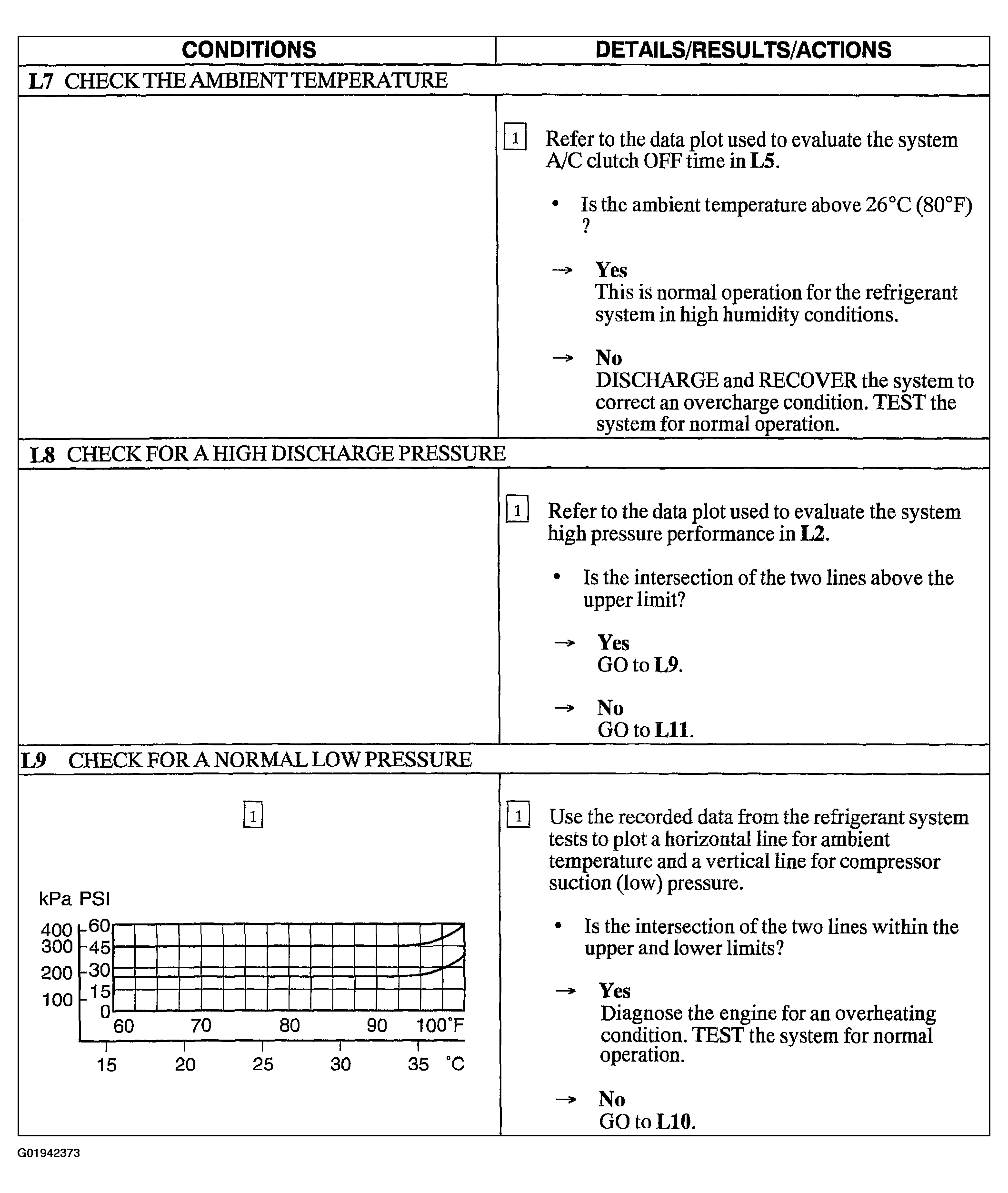

Fig 4: Pinpoint Test L: Insufficient Air Conditioning (A/C) Cooling (Steps L7-L9)

Courtesy of FORD MOTOR CO.

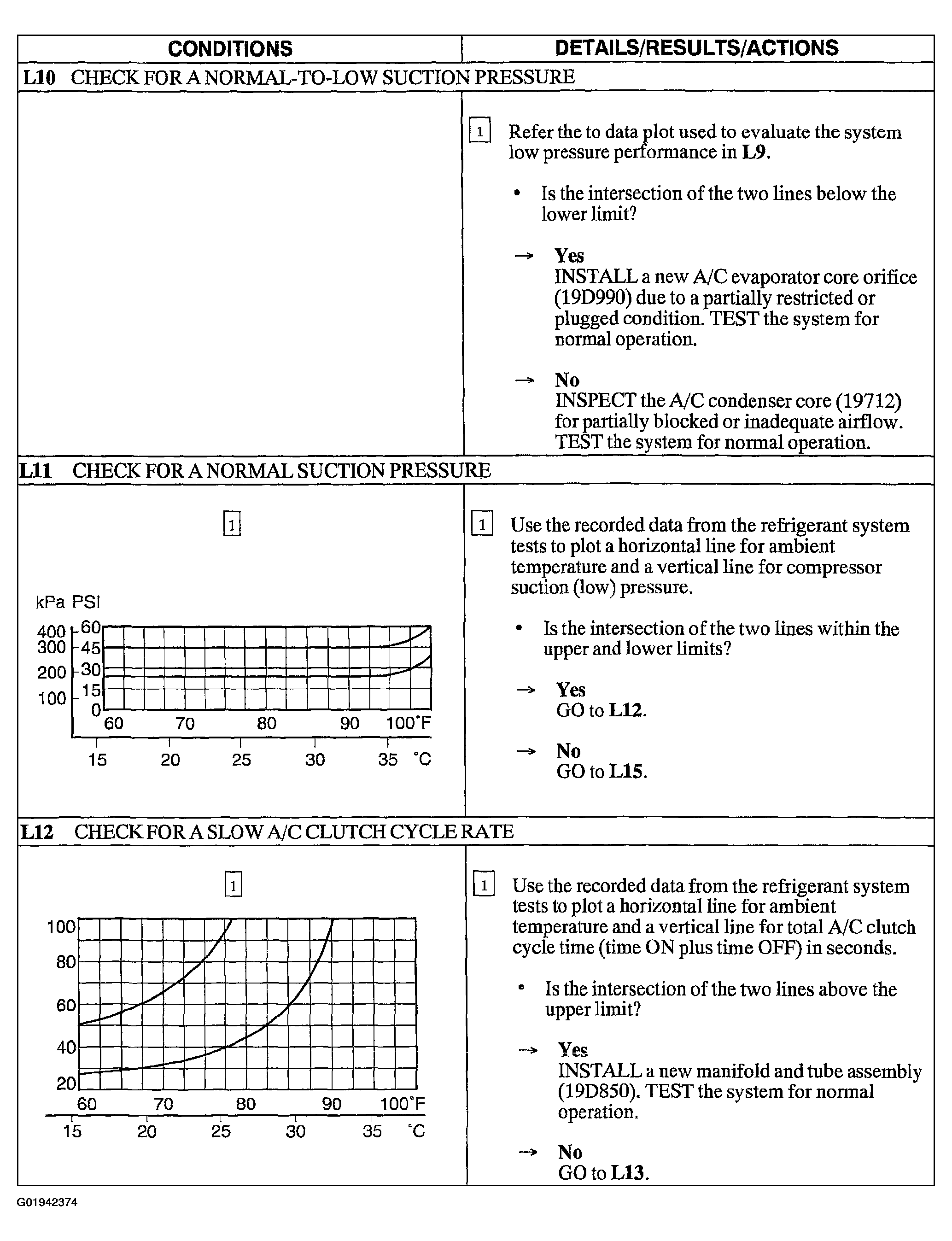

Fig 5: Pinpoint Test L: Insufficient Air Conditioning (A/C) Cooling (Steps L10-L12)

Courtesy of FORD MOTOR CO.

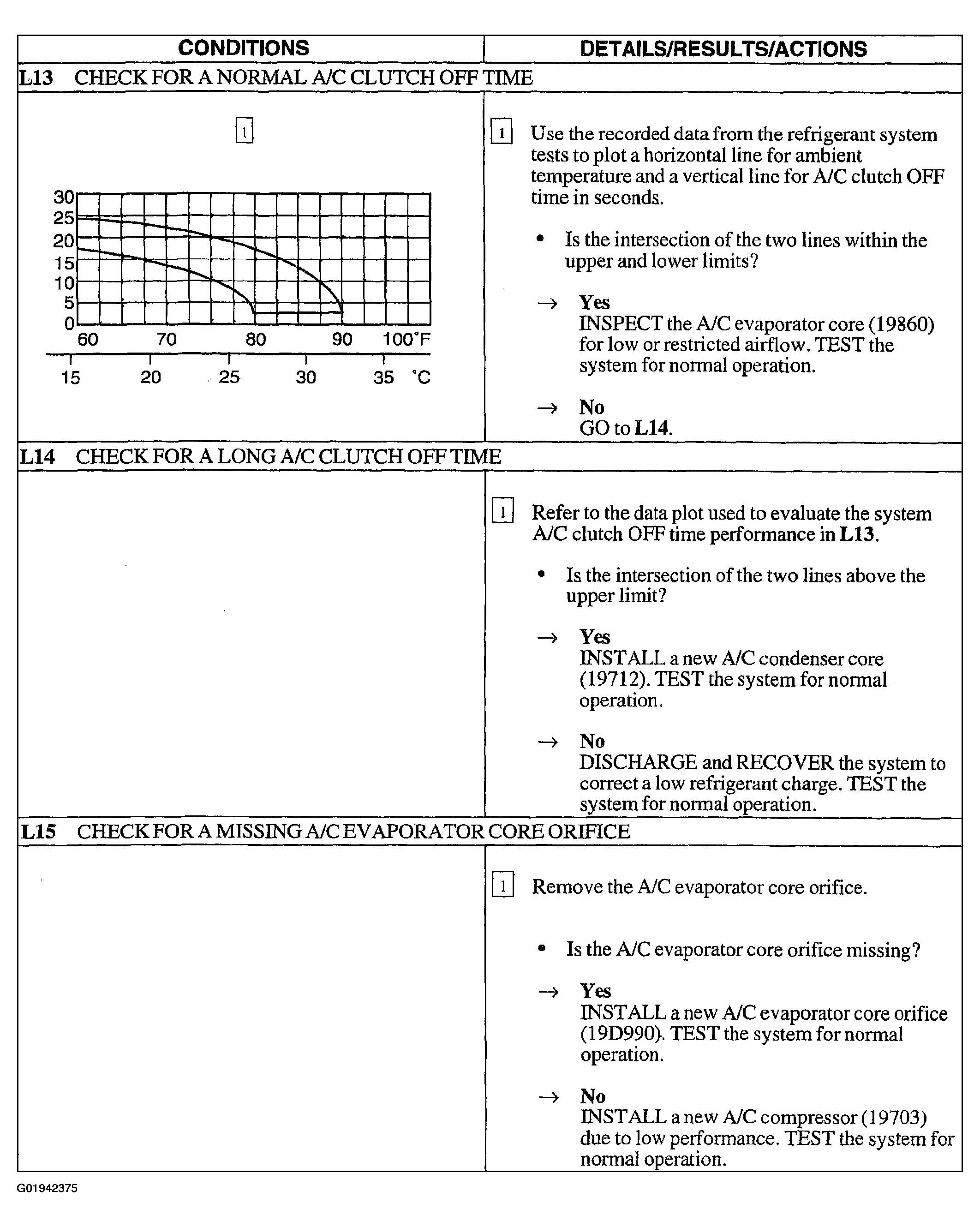

Fig 6: Pinpoint Test L: Insufficient Air Conditioning (A/C) Cooling (Steps L13-L15)

Courtesy of FORD MOTOR CO.
