Pinpoint Test M: No Operation In All Temperature Settings - Manual Climate Control

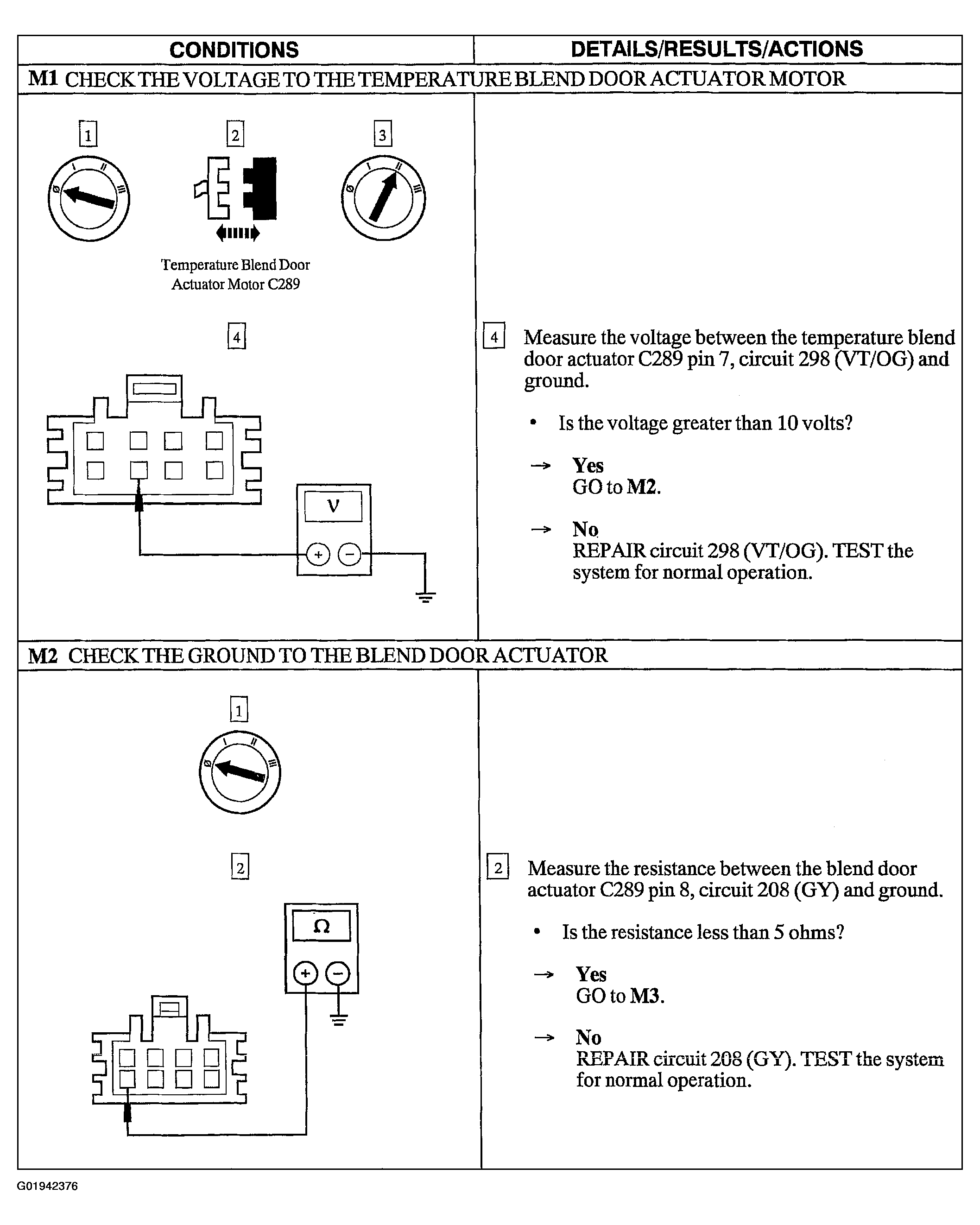

Fig 1: Pinpoint Test M: No Operation In All Temperature Settings - Manual Climate Control (Steps M1-M2)

Courtesy of FORD MOTOR CO.

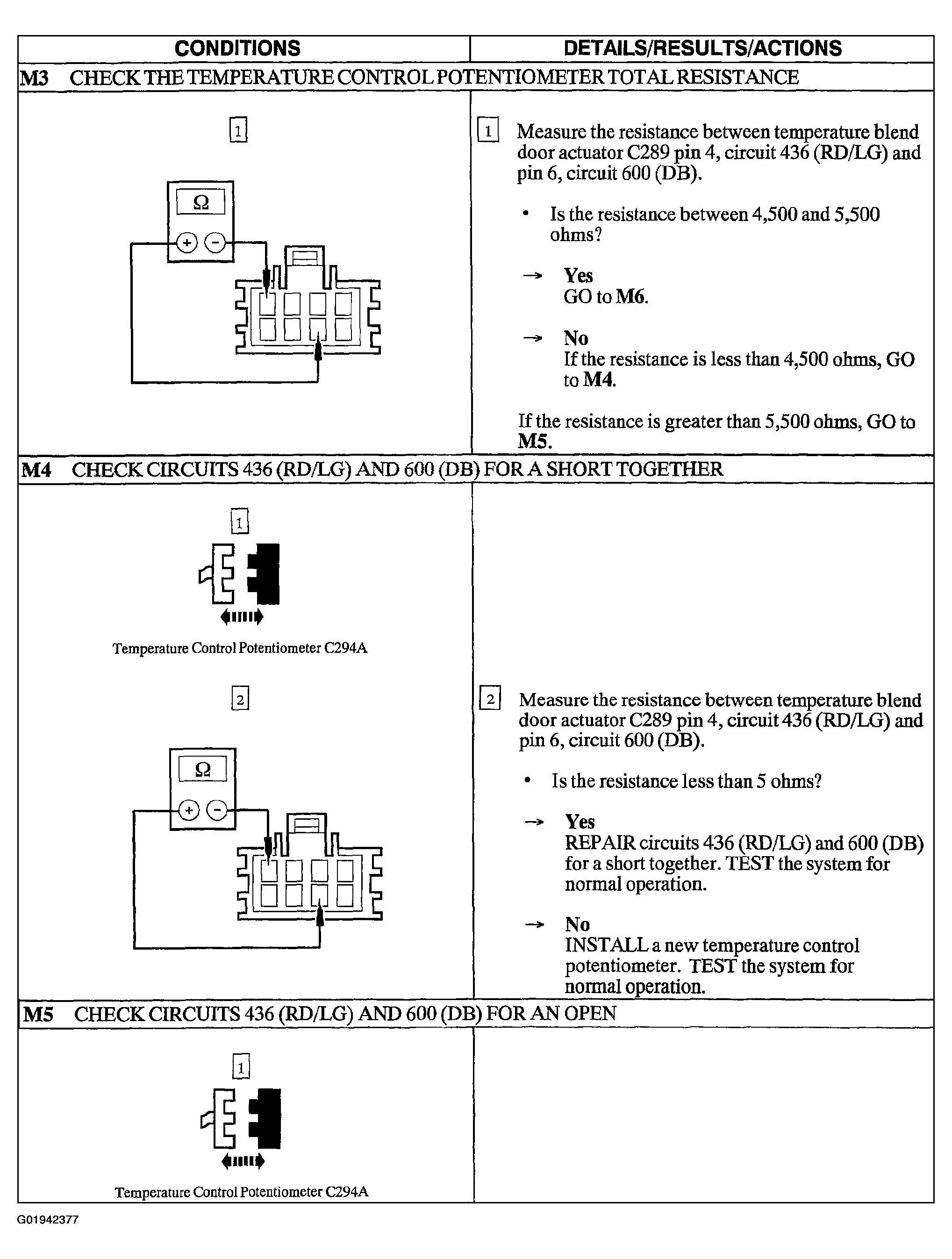

Fig 2: Pinpoint Test M: No Operation In All Temperature Settings - Manual Climate Control (Steps M3-M5)

Courtesy of FORD MOTOR CO.

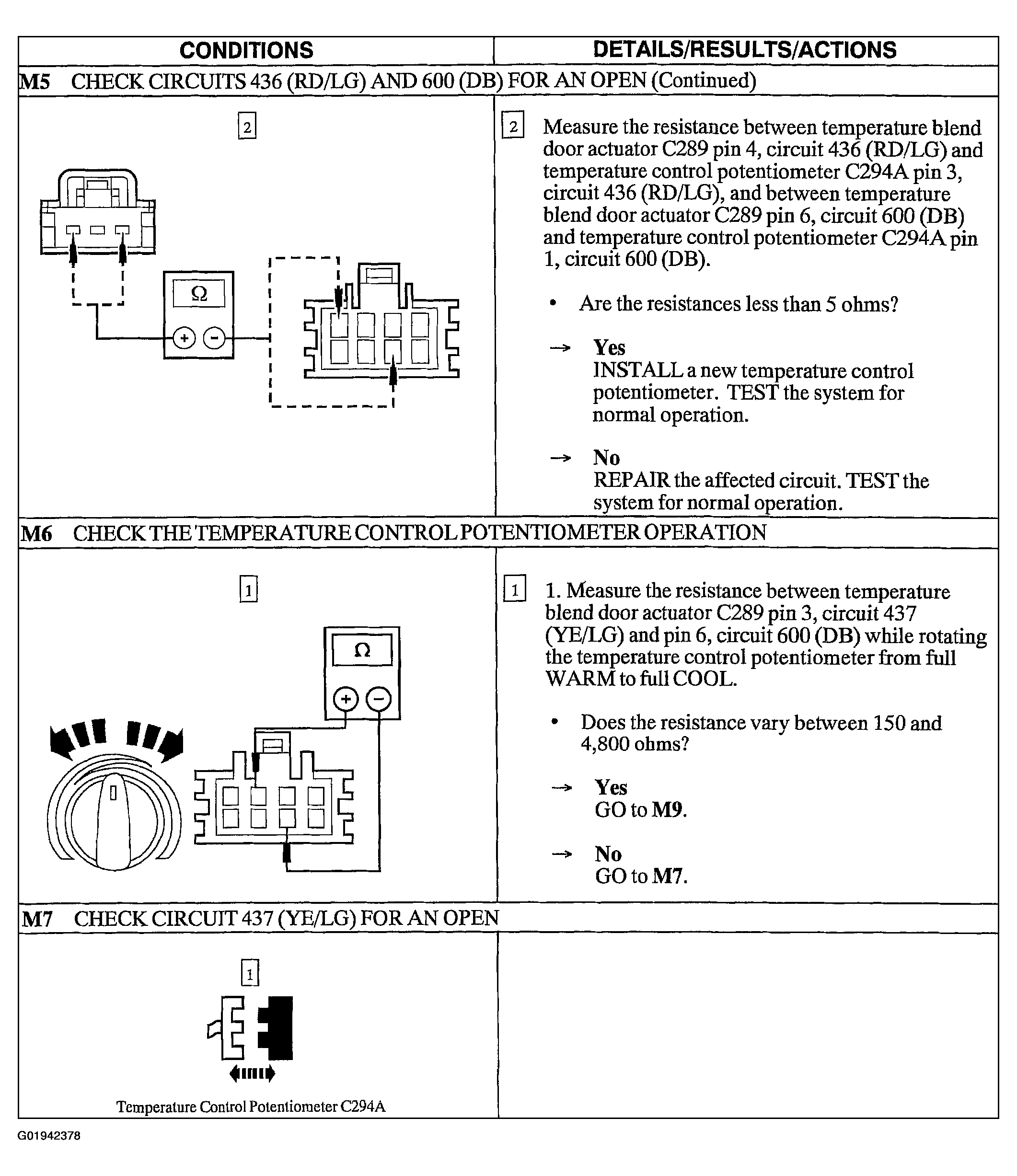

Fig 3: Pinpoint Test M: No Operation In All Temperature Settings - Manual Climate Control (Steps M5 Cont.-M7)

Courtesy of FORD MOTOR CO.

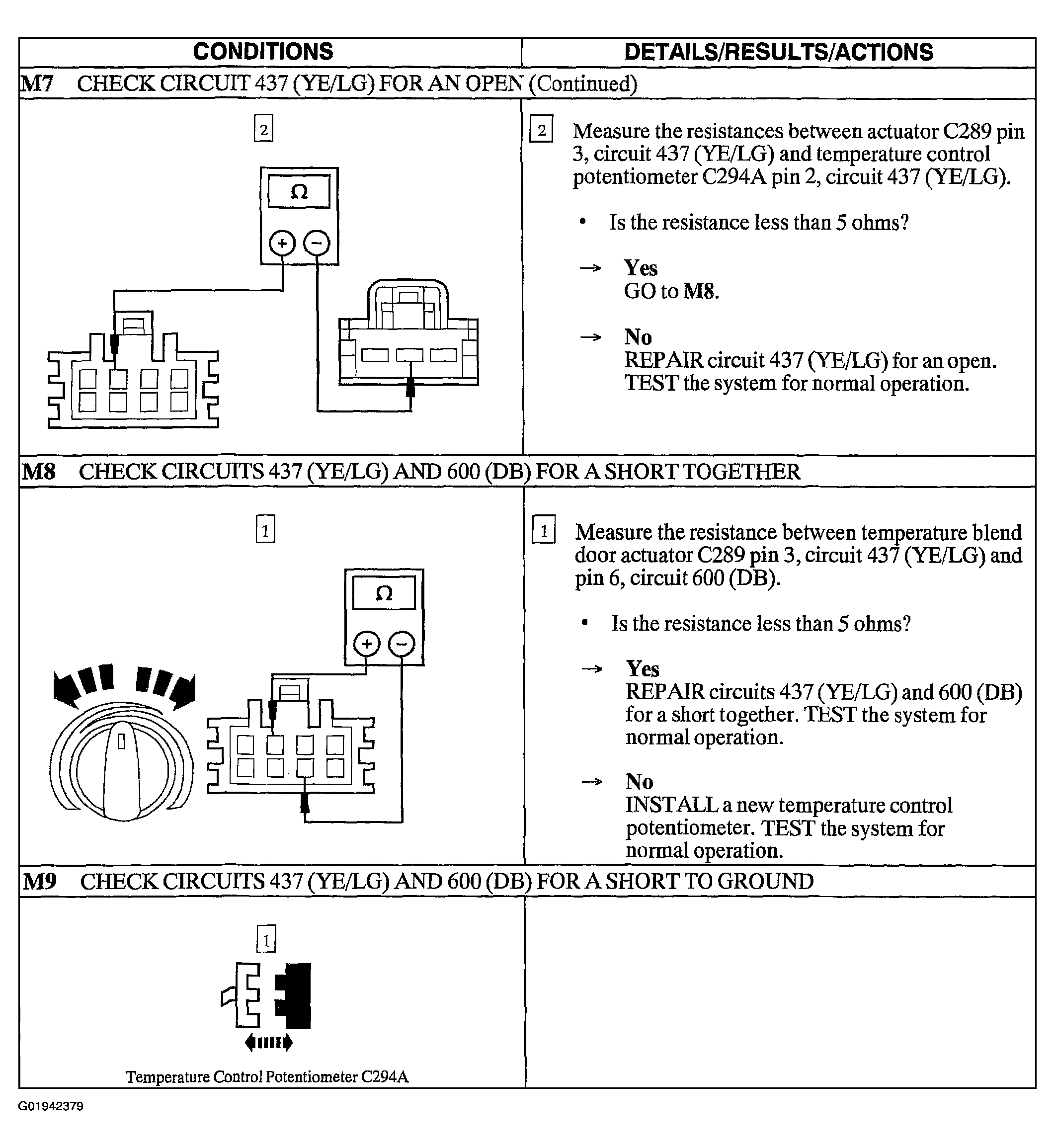

Fig 4: Pinpoint Test M: No Operation In All Temperature Settings - Manual Climate Control (Steps M7 Cont.-M9)

Courtesy of FORD MOTOR CO.

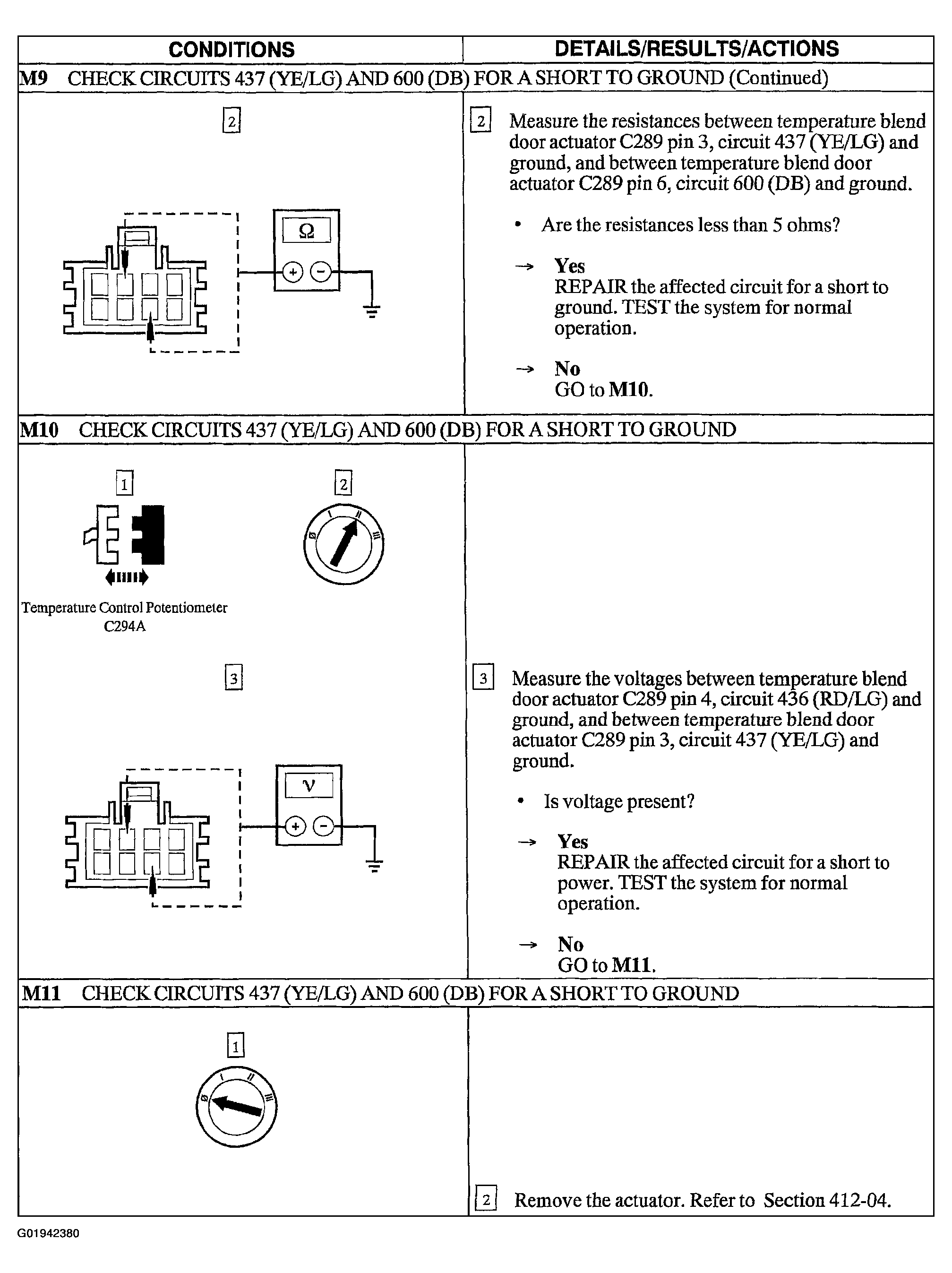

Fig 5: Pinpoint Test M: No Operation In All Temperature Settings - Manual Climate Control (Steps M9 Cont.-M11)

Courtesy of FORD MOTOR CO.

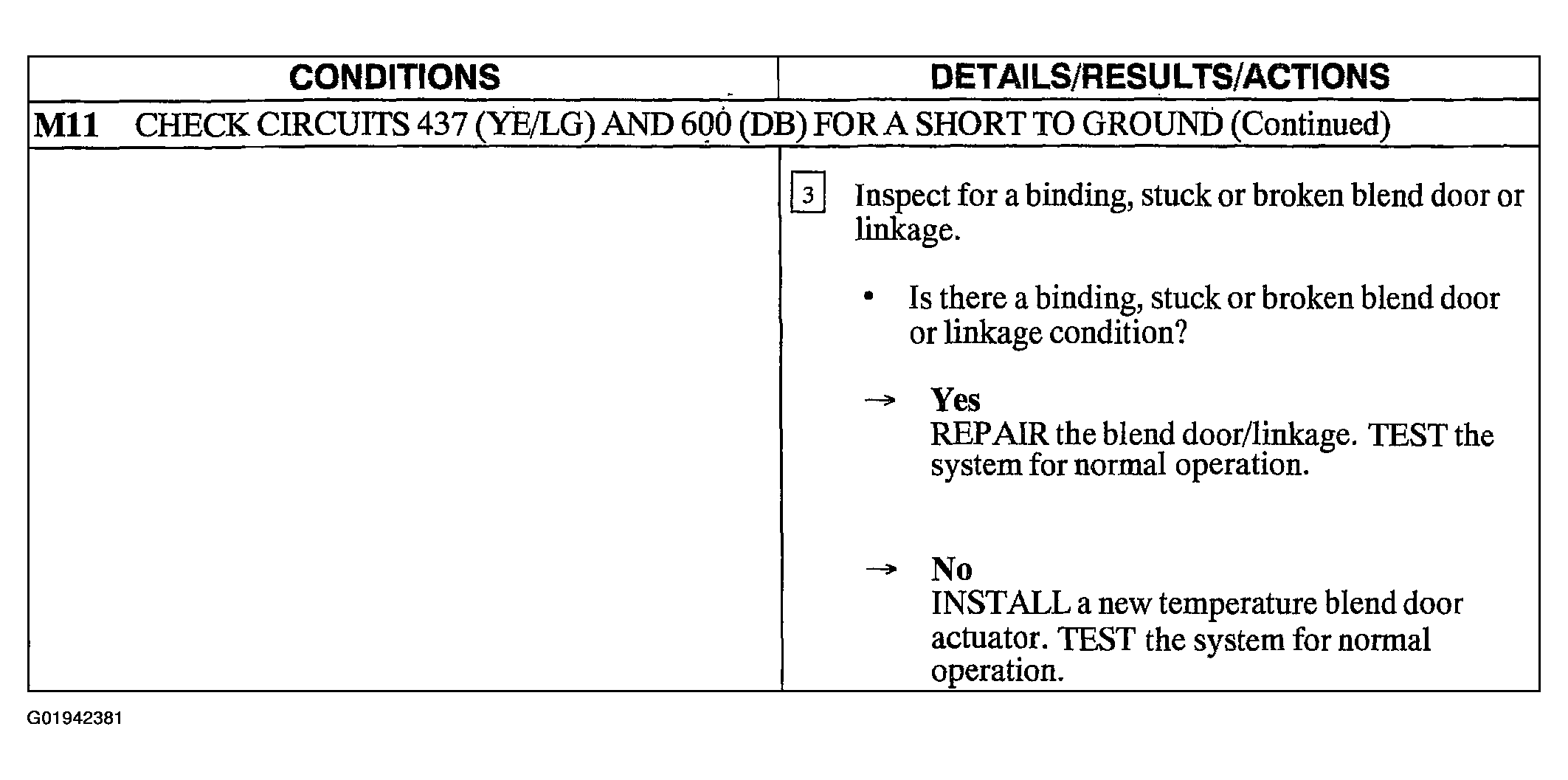

Fig 6: Pinpoint Test M: No Operation In All Temperature Settings - Manual Climate Control (Step M11 Cont.)

Courtesy of FORD MOTOR CO.
