Pinpoint Test O: The Blower Motor Is Inoperative - EATC

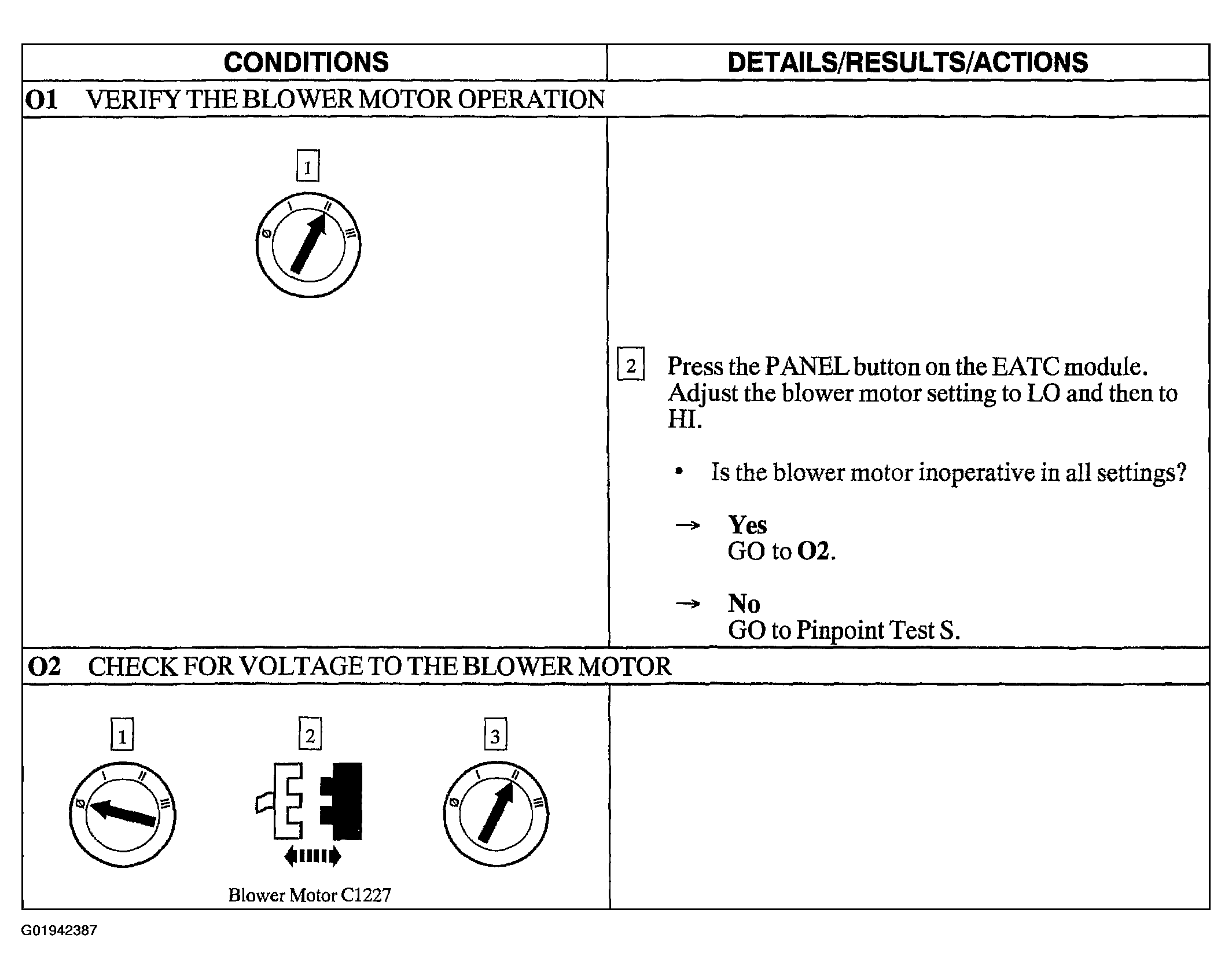

Fig 1: Pinpoint Test O: The Blower Motor Is Inoperative - EATC (Steps O1-O2)

Courtesy of FORD MOTOR CO.

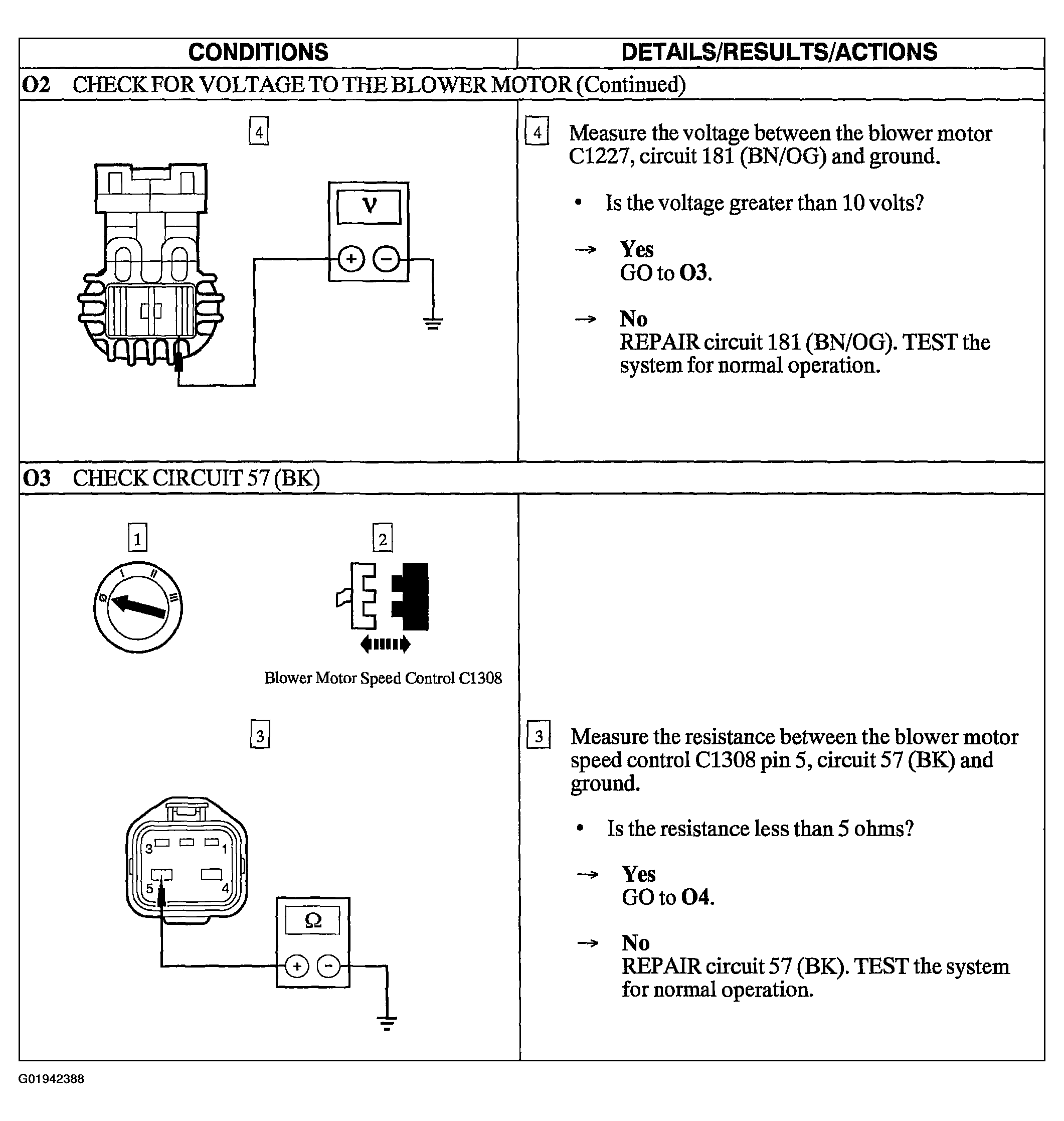

Fig 2: Pinpoint Test O: The Blower Motor Is Inoperative - EATC (Steps O2 Cont.-O3)

Courtesy of FORD MOTOR CO.

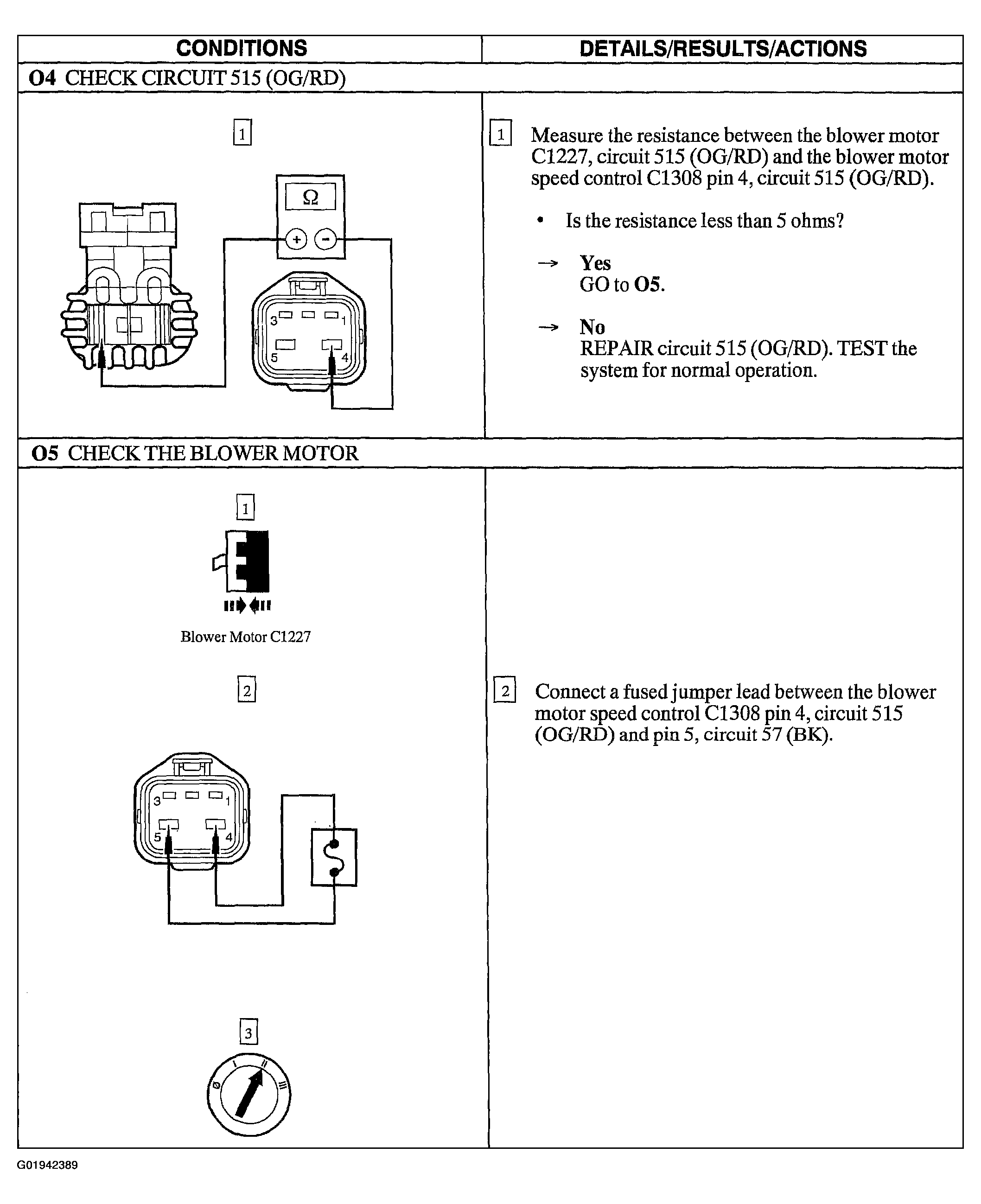

Fig 3: Pinpoint Test O: The Blower Motor Is Inoperative - EATC (Steps O4-O5)

Courtesy of FORD MOTOR CO.

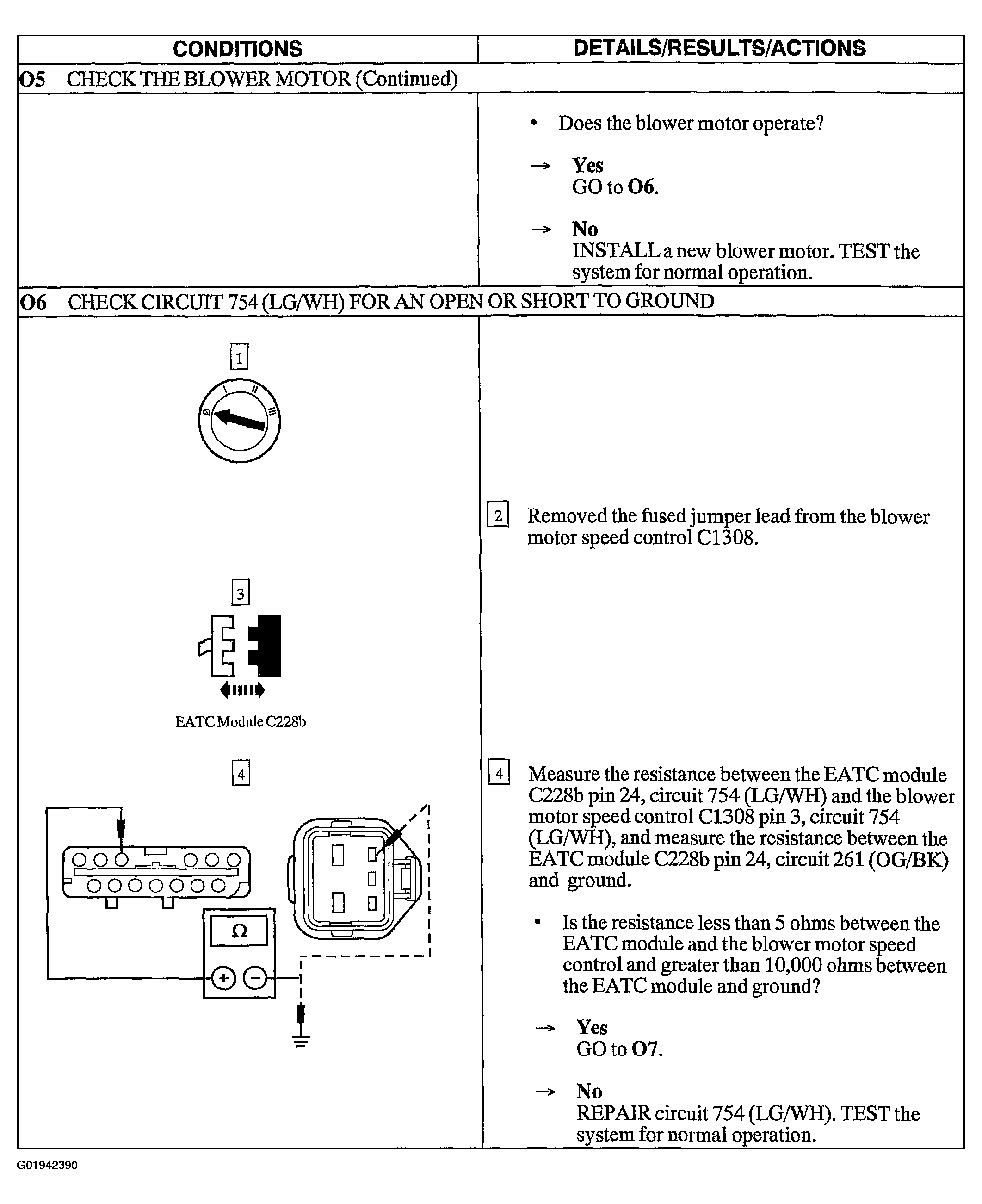

Fig 4: Pinpoint Test O: The Blower Motor Is Inoperative - EATC (Steps O5 Cont.-O6)

Courtesy of FORD MOTOR CO.

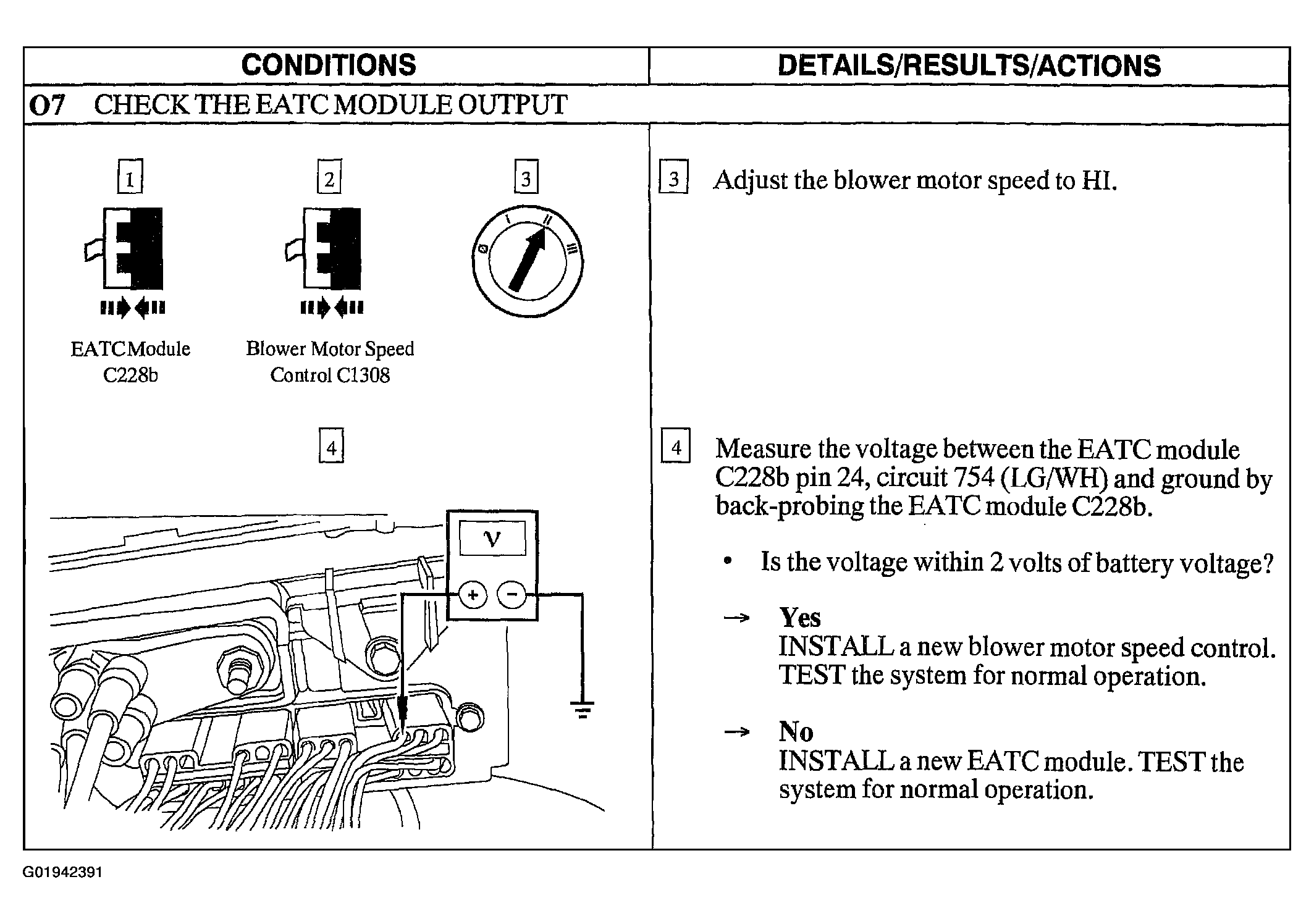

Fig 5: Pinpoint Test O: The Blower Motor Is Inoperative - EATC (Step O7)

Courtesy of FORD MOTOR CO.
