Pinpoint Test P: No Operation In High Blower Setting - Manual Climate Control

Fig 1: Pinpoint Test P: No Operation In High Blower Setting - Manual Climate Control (Step P1)
G01942392Courtesy of FORD MOTOR CO.

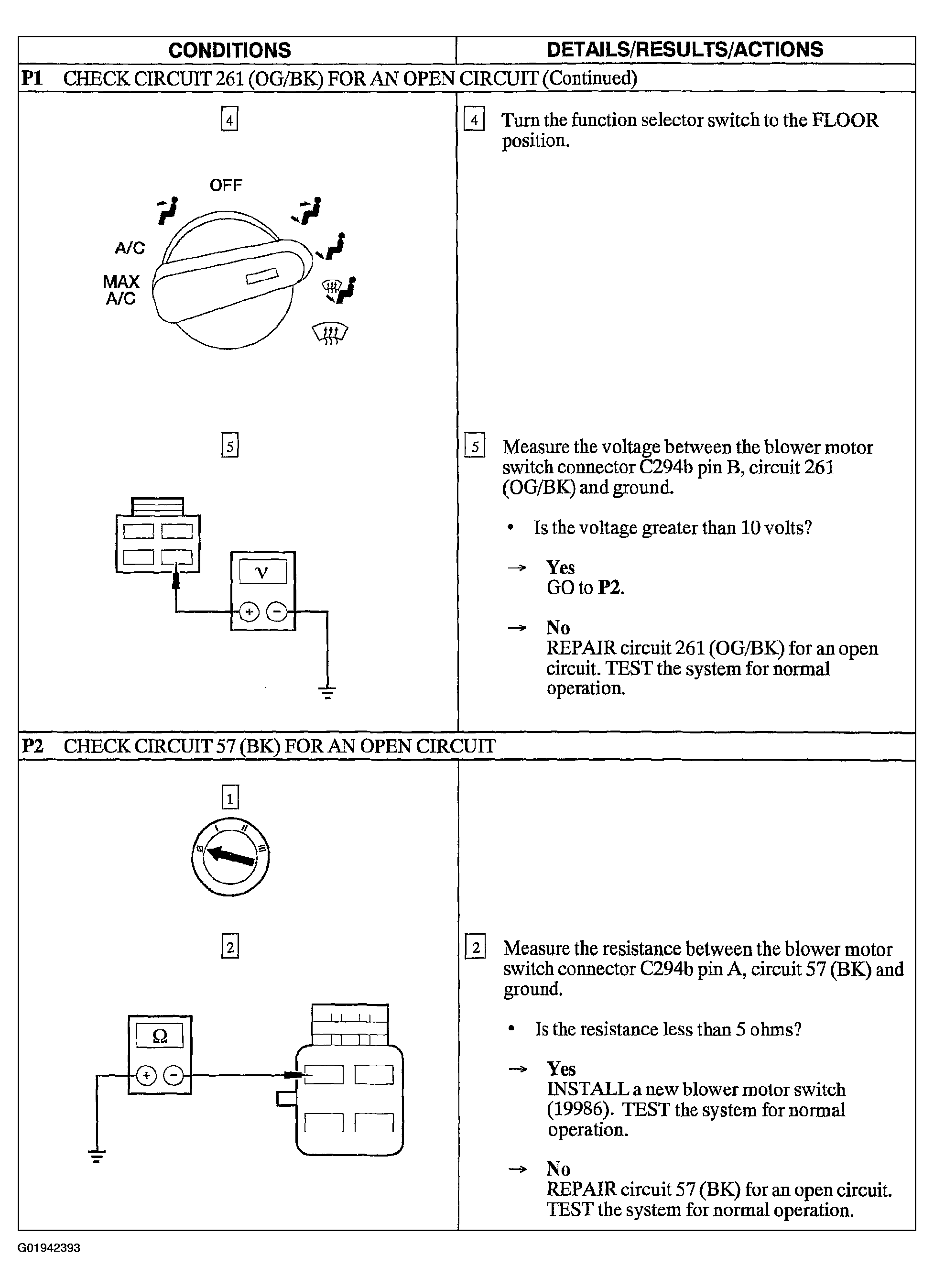

Fig 2: Pinpoint Test P: No Operation In High Blower Setting - Manual Climate Control (Steps P1 Cont.-P2)
G01942393Courtesy of FORD MOTOR CO.
