Heater Core - Bench Test
- Remove the heater core from the vehicle. For additional information, refer to HEATER CORE .
- Drain all of the coolant from the heater core.

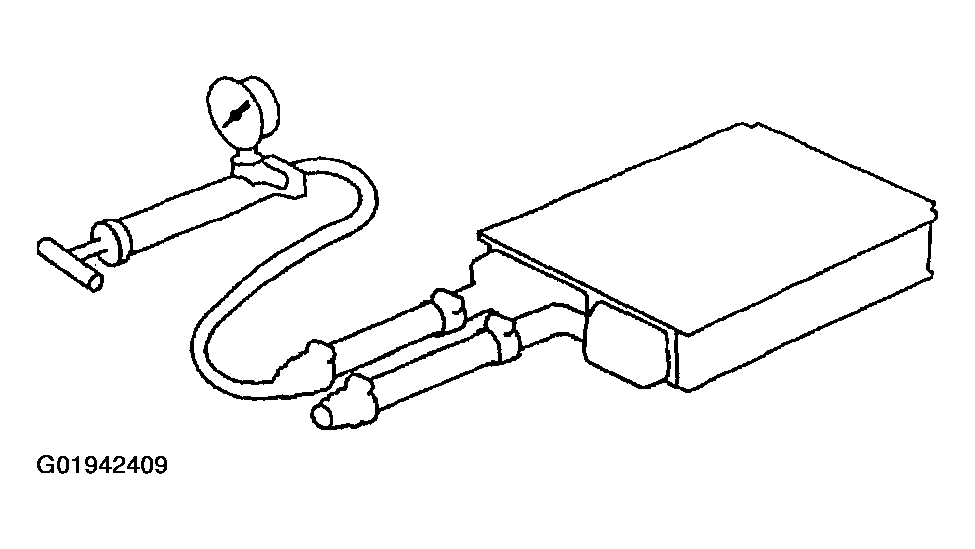

- Connect the 101 mm (4 inch) test heater hoses with plug and adapter to the core tubes. Then connect the radiator/heater core pressure tester to the adapter.
- Apply 241 kPa (35 psi) of air pressure to the heater core. Submerge the heater core in water.
- If a leak is observed, install a new heater core.
