Air Conditioning Line (Peanut) Fitting: Disconnect

CAUTION: Support the female fitting with a wrench to prevent the tubes from twisting.

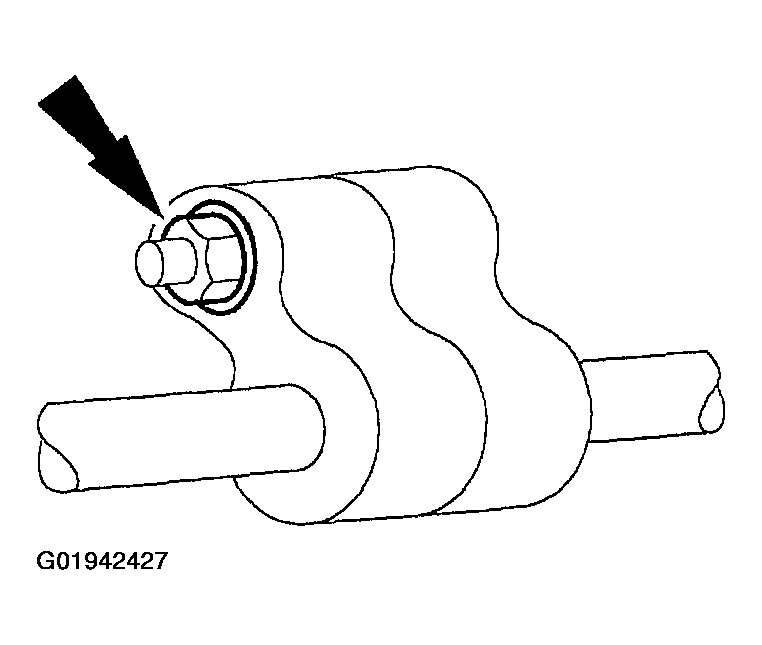

Fig 1: Identifying Peanut Fitting Nut

Courtesy of FORD MOTOR CO.

Remove the nut from the peanut fitting.
Pull the peanut fitting apart.

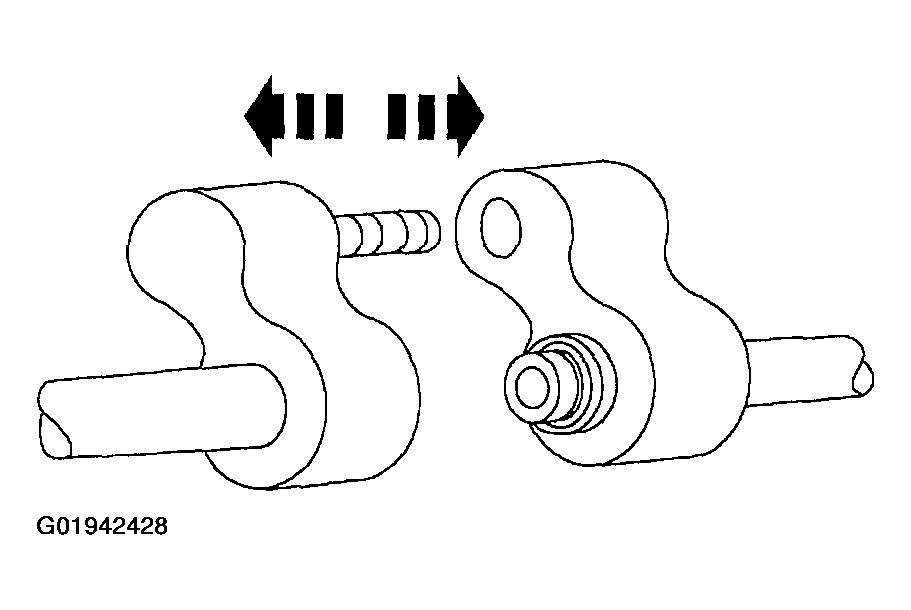

Fig 2: Separating Peanut Fitting
Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal tools to remove the O-ring seal. They can cause axial scratches across the O-ring seal groove, resulting in refrigerant leaks.

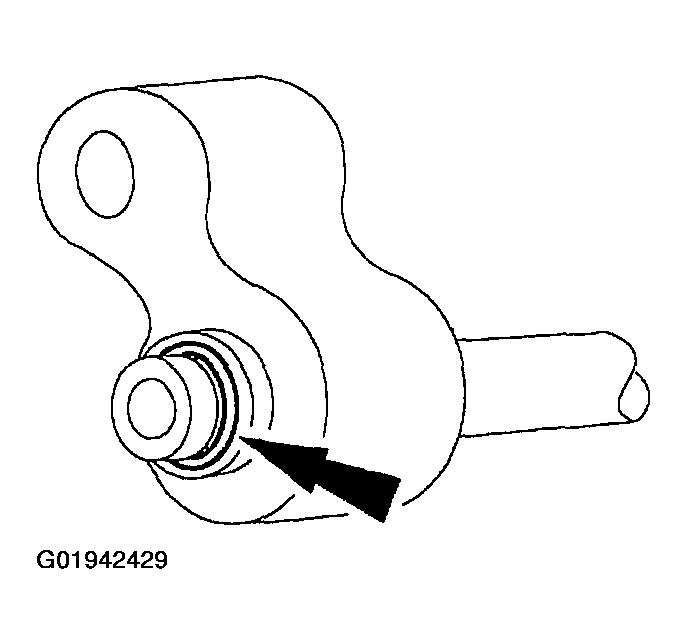

Fig 3: Identifying Peanut Fitting O-Ring Seal

Courtesy of FORD MOTOR CO.

Remove the O-ring seal with a non-metallic tool.
