Air Conditioning Line (Peanut) Fitting: Connect
- Clean all dirt or foreign material from the fittings.

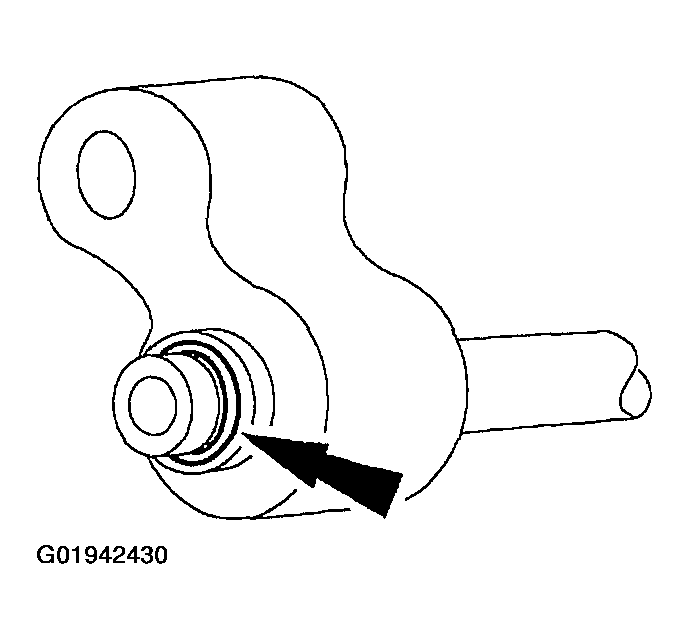

- Install the O-ring seal.
- Lubricate the O-ring seal with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.
- Lubricate the inside of the fittings with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.

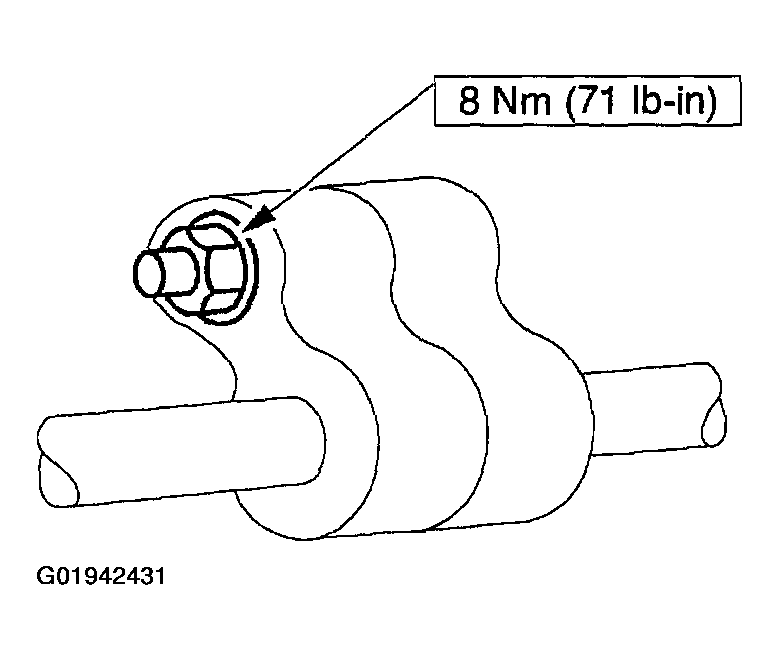

- Assemble the male and female fittings together.
CAUTION:
Use only the new O-ring seals. The use of any O-ring seals other than those specified in the Ford Master Parts Catalog may result in intermittent leakage during vehicle operation.
NOTE:
When correctly assembled, the male and female fittings should be flush.
