Air Conditioning (A/C) Clutch Air Gap Adjustment

  1. Check the A/C clutch air gap at three equally spaced places between the A/C clutch hub (2884) and the A/C clutch pulley (2E884).

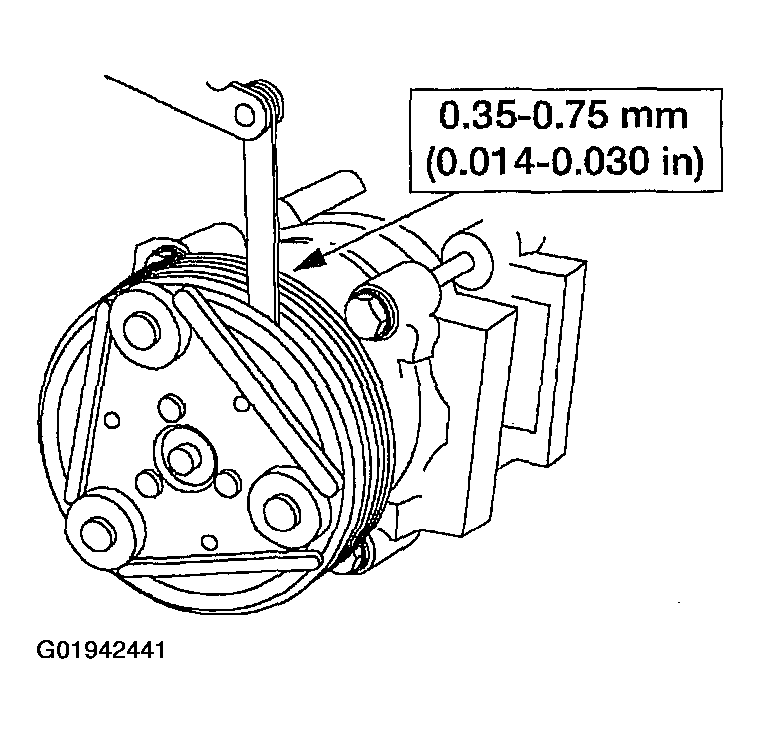

    Fig 1: Identifying Air Conditioning (A/C) Clutch Air Gap Adjustment
    G01942441Courtesy of FORD MOTOR CO.
  2. Remove the A/C clutch. Add or remove spacers between the A/C clutch and the compressor shaft until clearance is within specification. For additional information, refer to CLUTCH & CLUTCH FIELD COIL .
