Disassembly and Assembly

Remove the seat. For additional information, refer to FRONT SEAT .
Remove the front seat backrest. For additional information, refer to Front Seat Backrest .
Remove the seat track. For additional information, refer to SEAT TRACK .

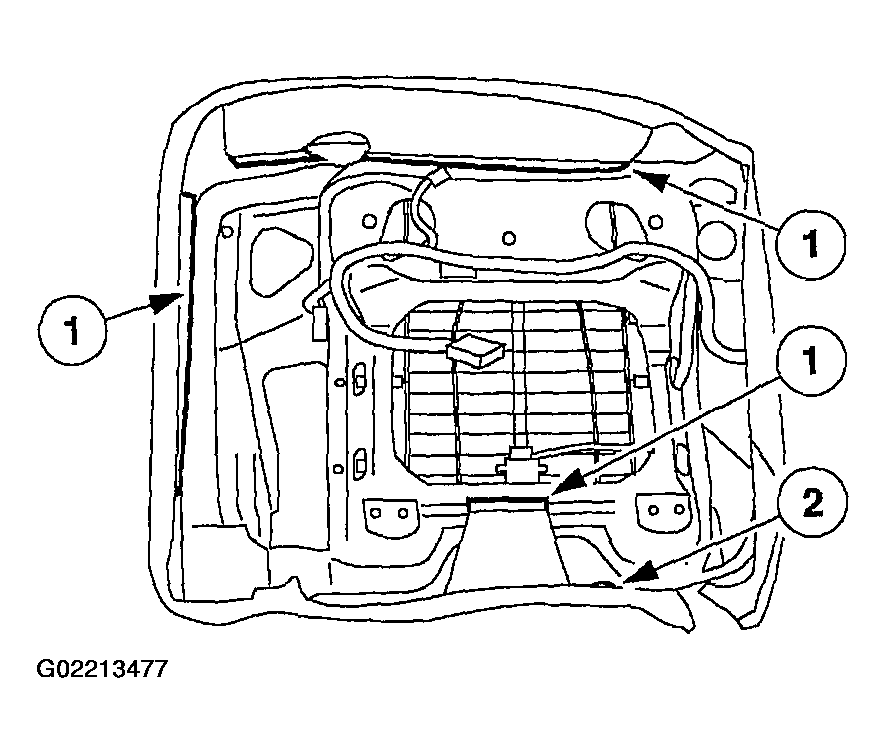

Release the retainers.
1. Release the J-clips.
2. Remove the pin-type retainer.

  Fig 1: Removing Pin-Type Retainer
  Courtesy of FORD MOTOR CO.
Remove the cover.

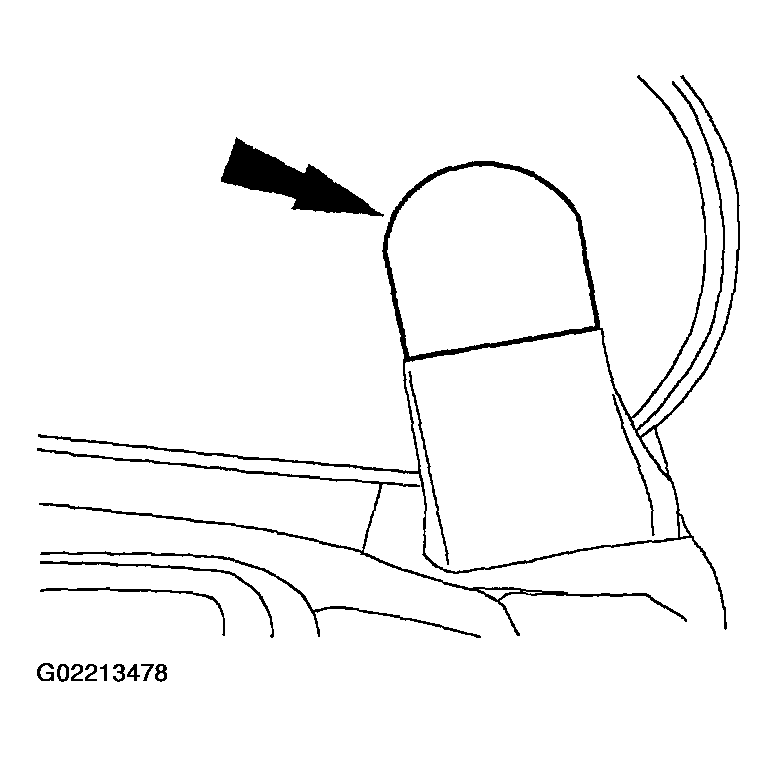

Fig 2: Removing Cover
Courtesy of FORD MOTOR CO.
Remove the retaining clip.

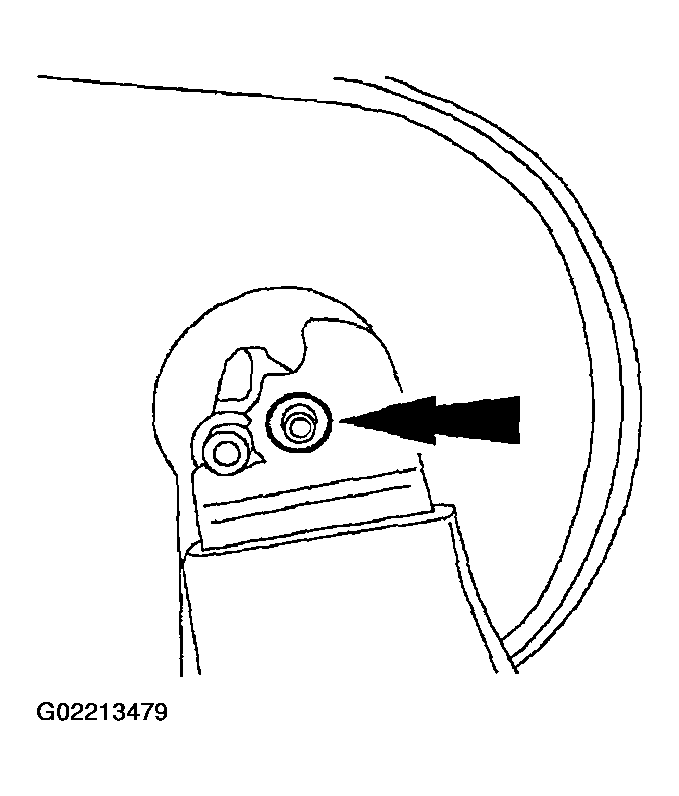

Fig 3: Removing Retaining Clip
Courtesy of FORD MOTOR CO.
Remove the pin.

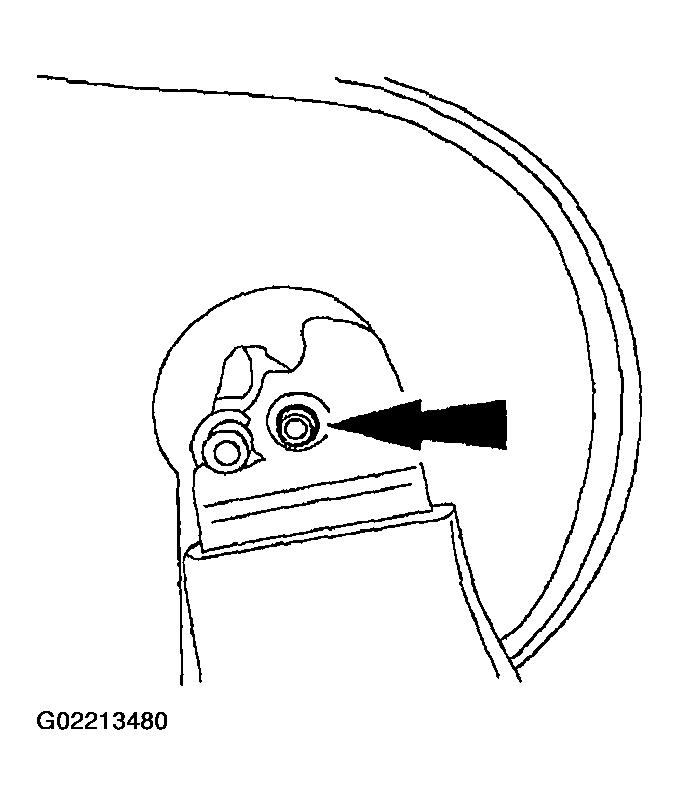

Fig 4: Removing Pin
Courtesy of FORD MOTOR CO.
Remove the armrest.
Remove the armrest cover trim (672A32).

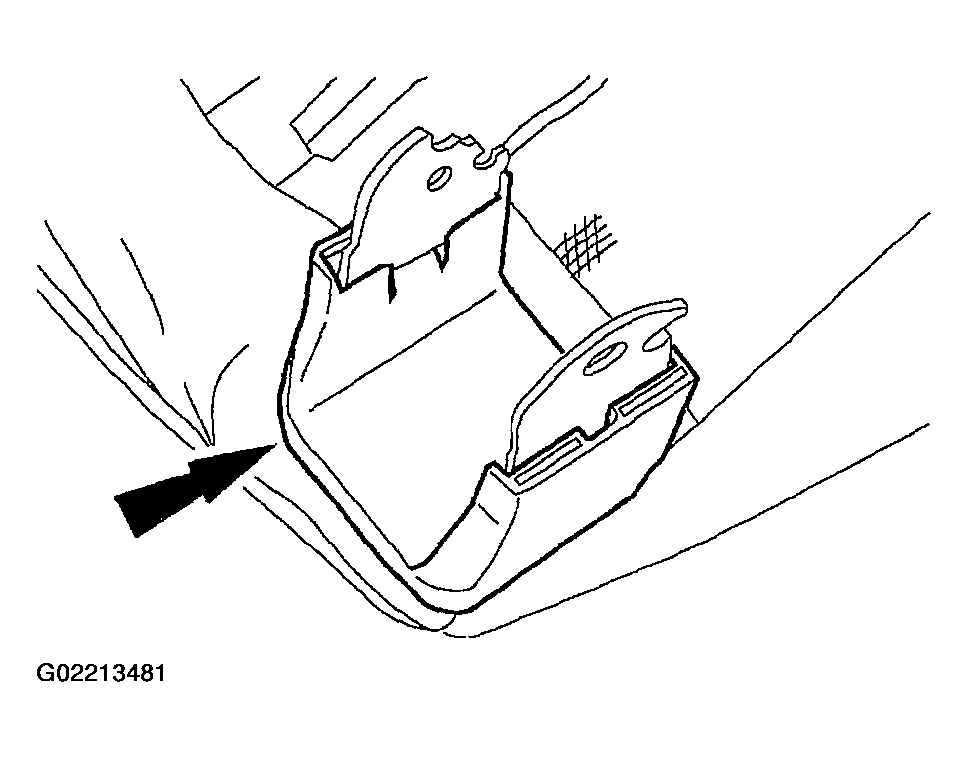

Fig 5: Removing Armrest Cover Trim
Courtesy of FORD MOTOR CO.
Remove the frame.

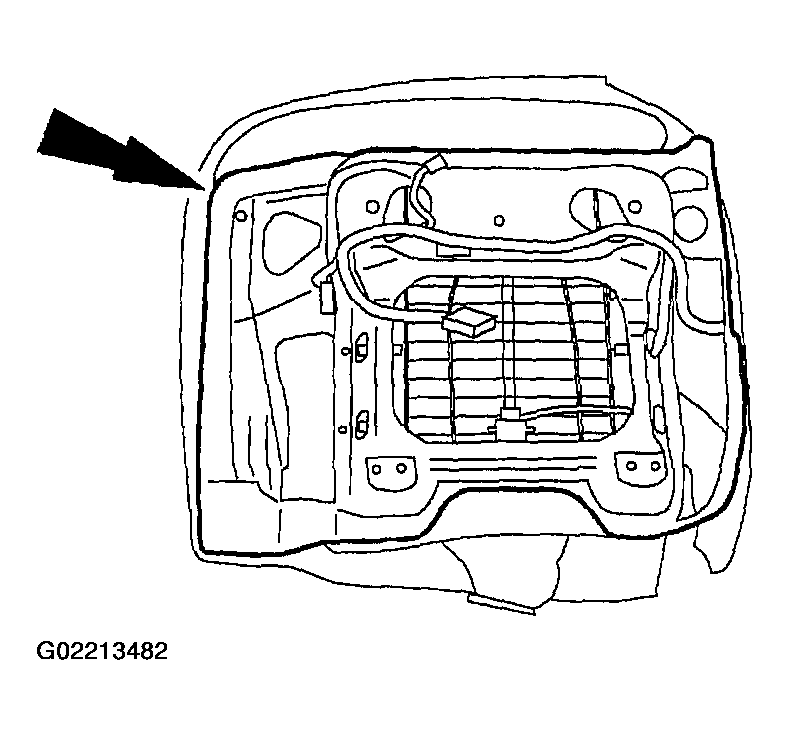

Fig 6: Removing Frame
Courtesy of FORD MOTOR CO.
Remove the bolts and armrest bracket.

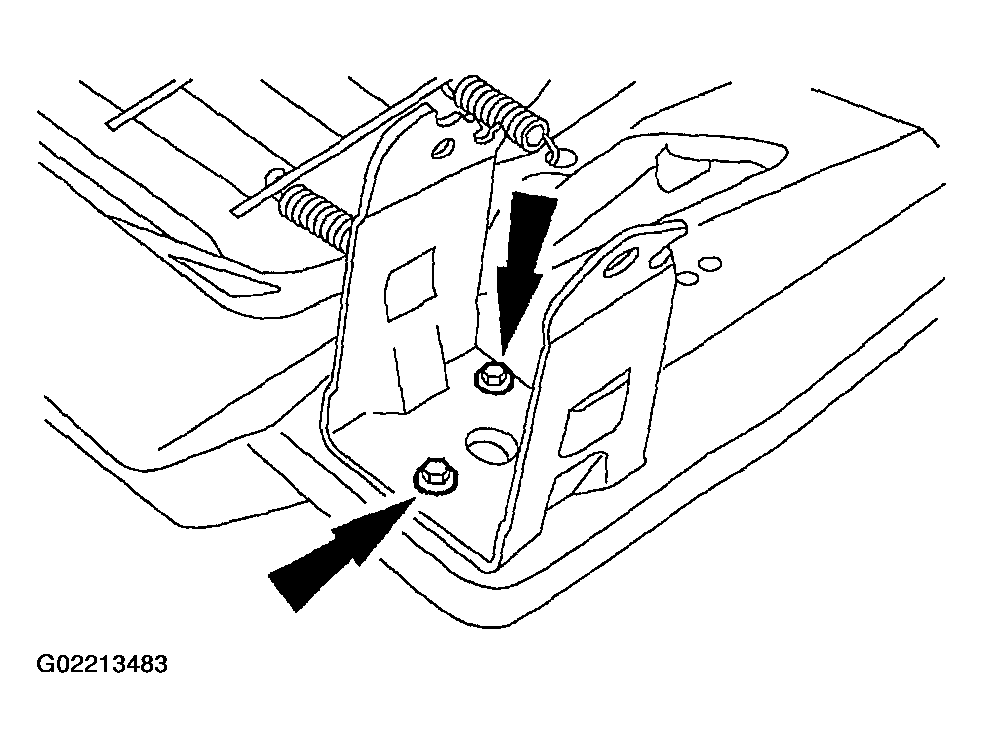

Fig 7: Removing Bolts And Armrest Bracket
Courtesy of FORD MOTOR CO.
Remove the seat trim cover.
To assemble, reverse the disassembly procedure.
Check the active restraint system for correct operation.
