Pinpoint Test G: DTC 28 - EVO Actuator Circuit Shorted

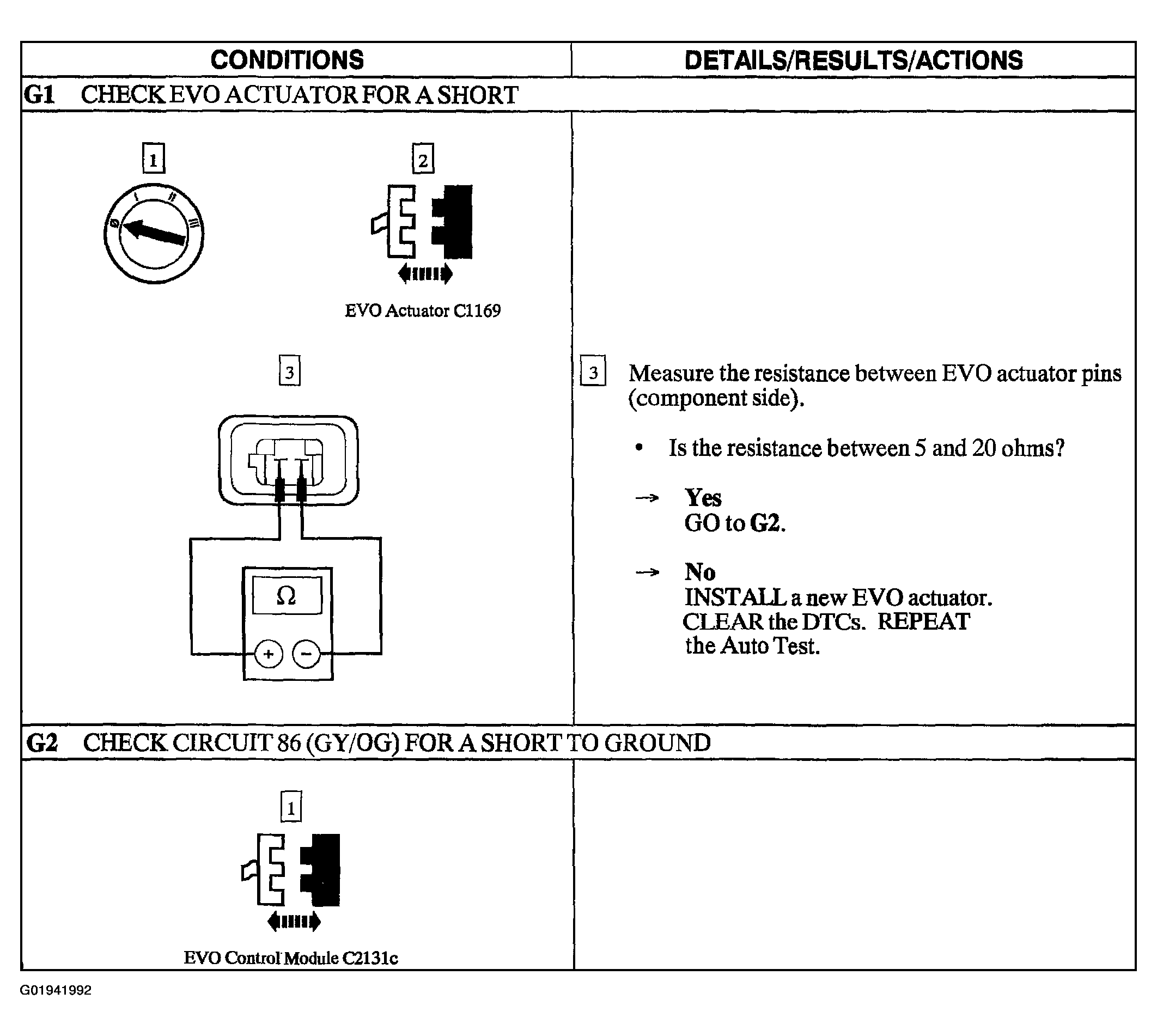

Fig 1: Pinpoint Test G: DTC 28 - EVO Actuator Circuit Shorted (Steps G1-G2)

Courtesy of FORD MOTOR CO.

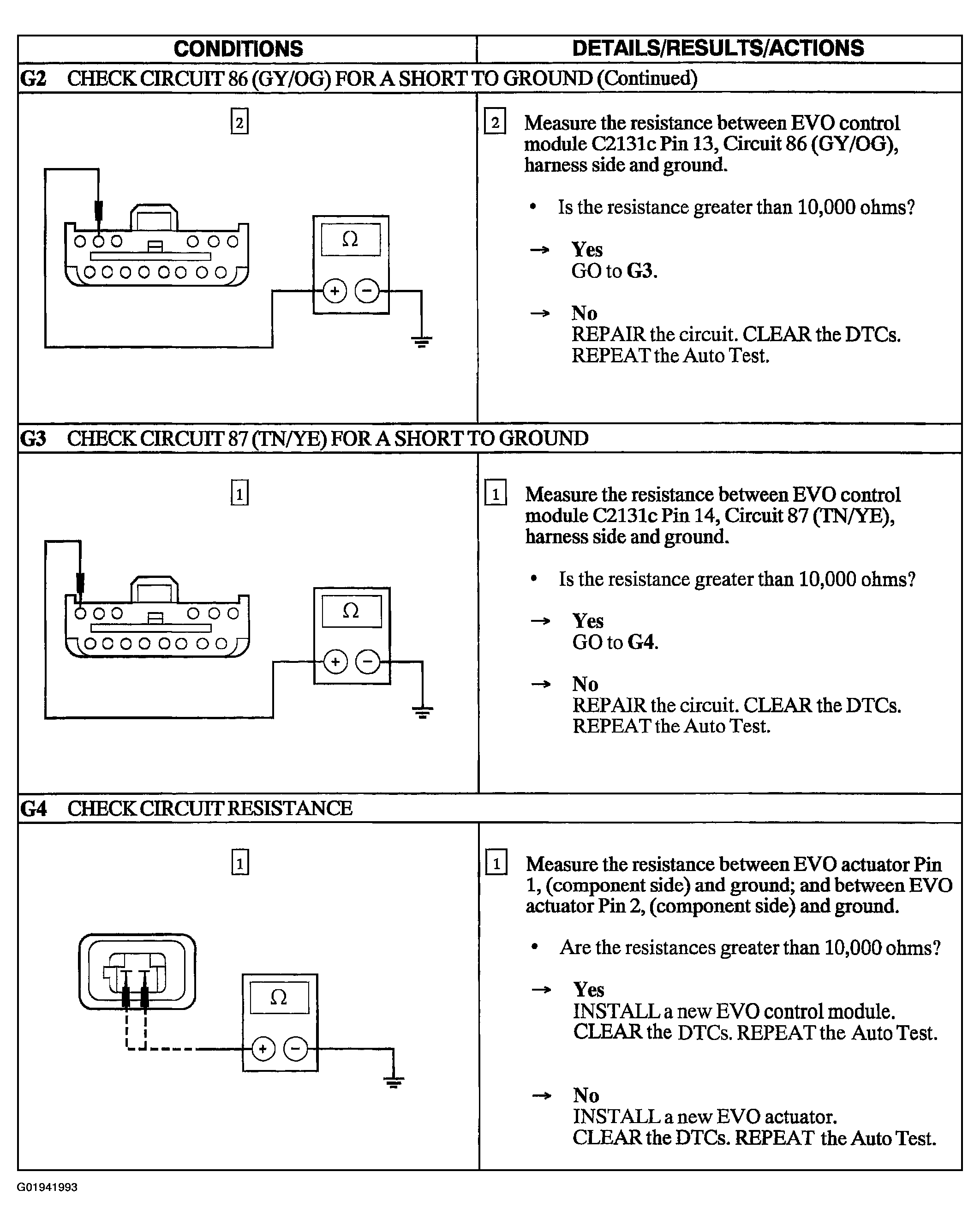

Fig 2: Pinpoint Test G: DTC 28 - EVO Actuator Circuit Shorted (Steps G2 Cont.-G4)

Courtesy of FORD MOTOR CO.
