Pinpoint Test B: The Washer Pump Is Inoperative - Runs Continuously

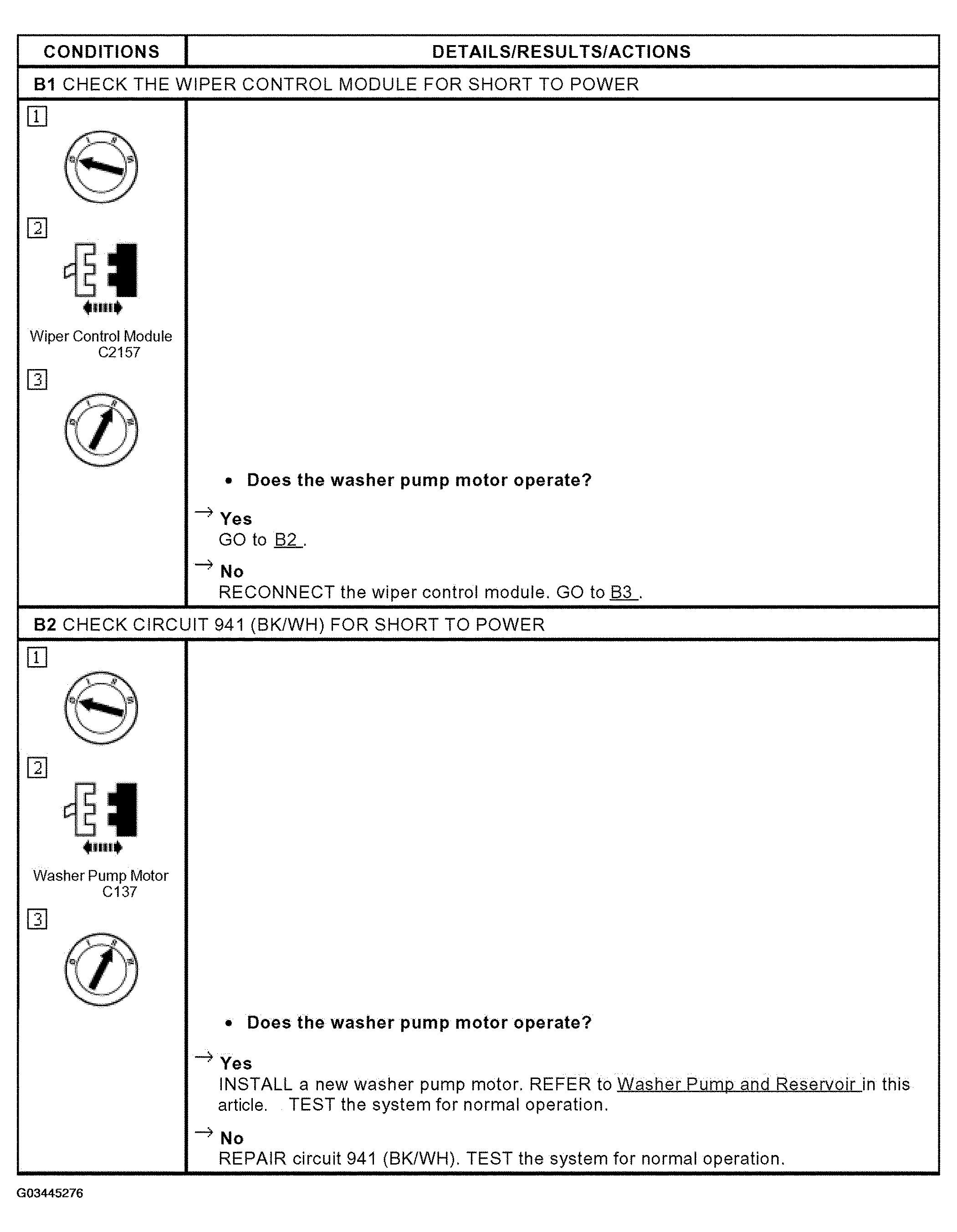

Fig 1: Pinpoint Test B: Washer Pump Is Inoperative - Runs Continuously (B1 - B2)
G03445276Courtesy of FORD MOTOR CO.

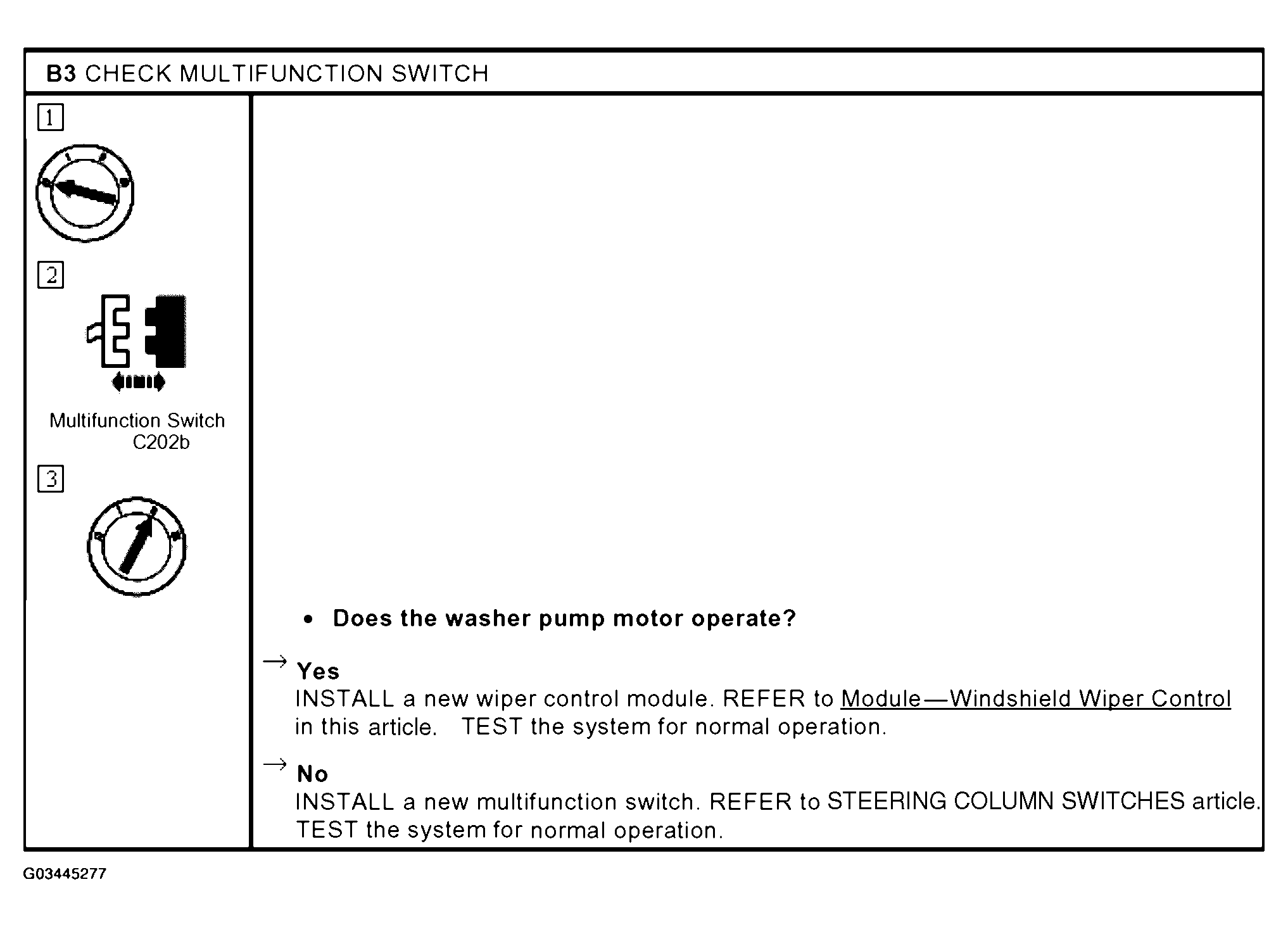

Fig 2: Pinpoint Test B: Washer Pump Is Inoperative - Runs Continuously (B3)
G03445277Courtesy of FORD MOTOR CO.
