Pinpoint Test D: The High Wiper Speeds Do Not Operate Correctly

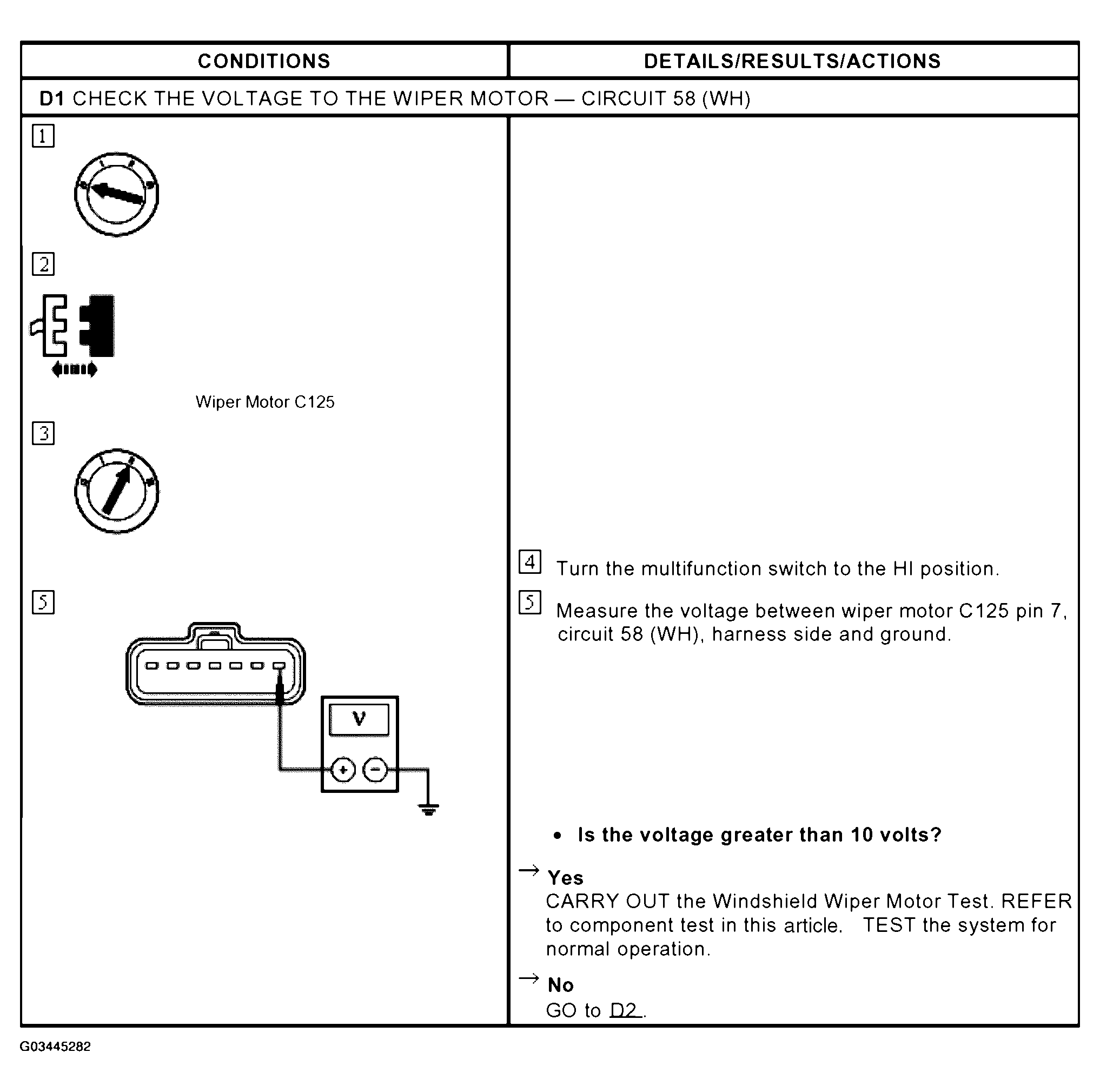

Fig 1: Pinpoint Test D: High Wiper Speeds Do Not Operate Correctly (D1)
G03445282Courtesy of FORD MOTOR CO.

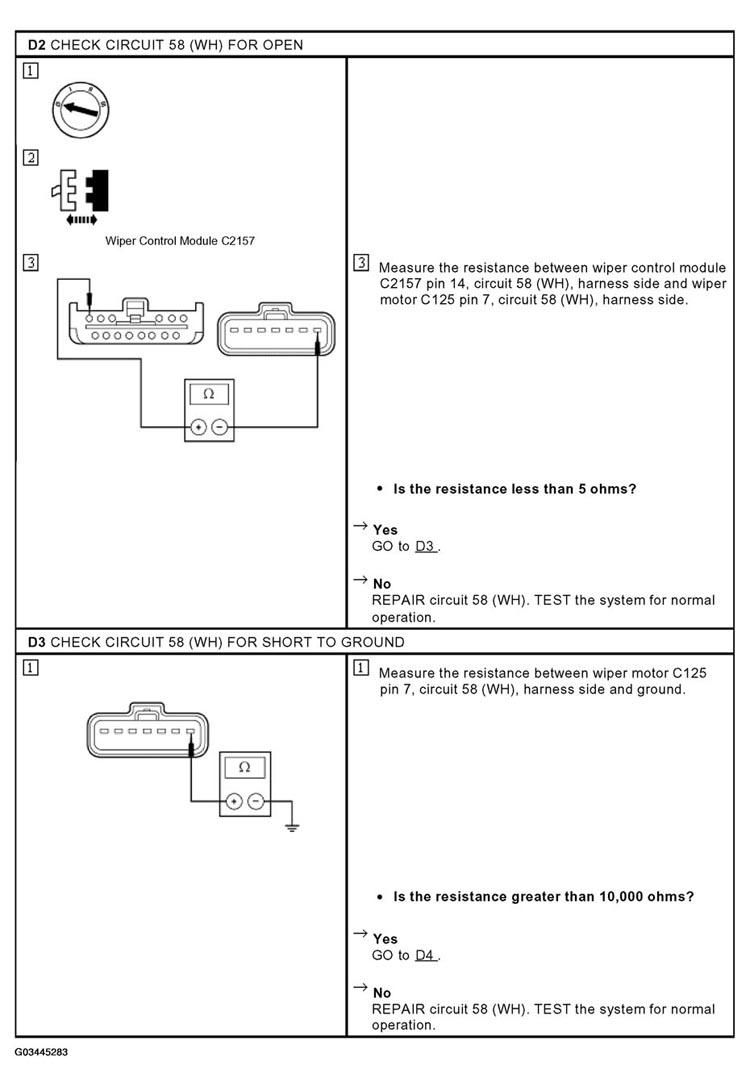

Fig 2: Pinpoint Test D: High Wiper Speeds Do Not Operate Correctly (D2 - D3)
G03445283Courtesy of FORD MOTOR CO.

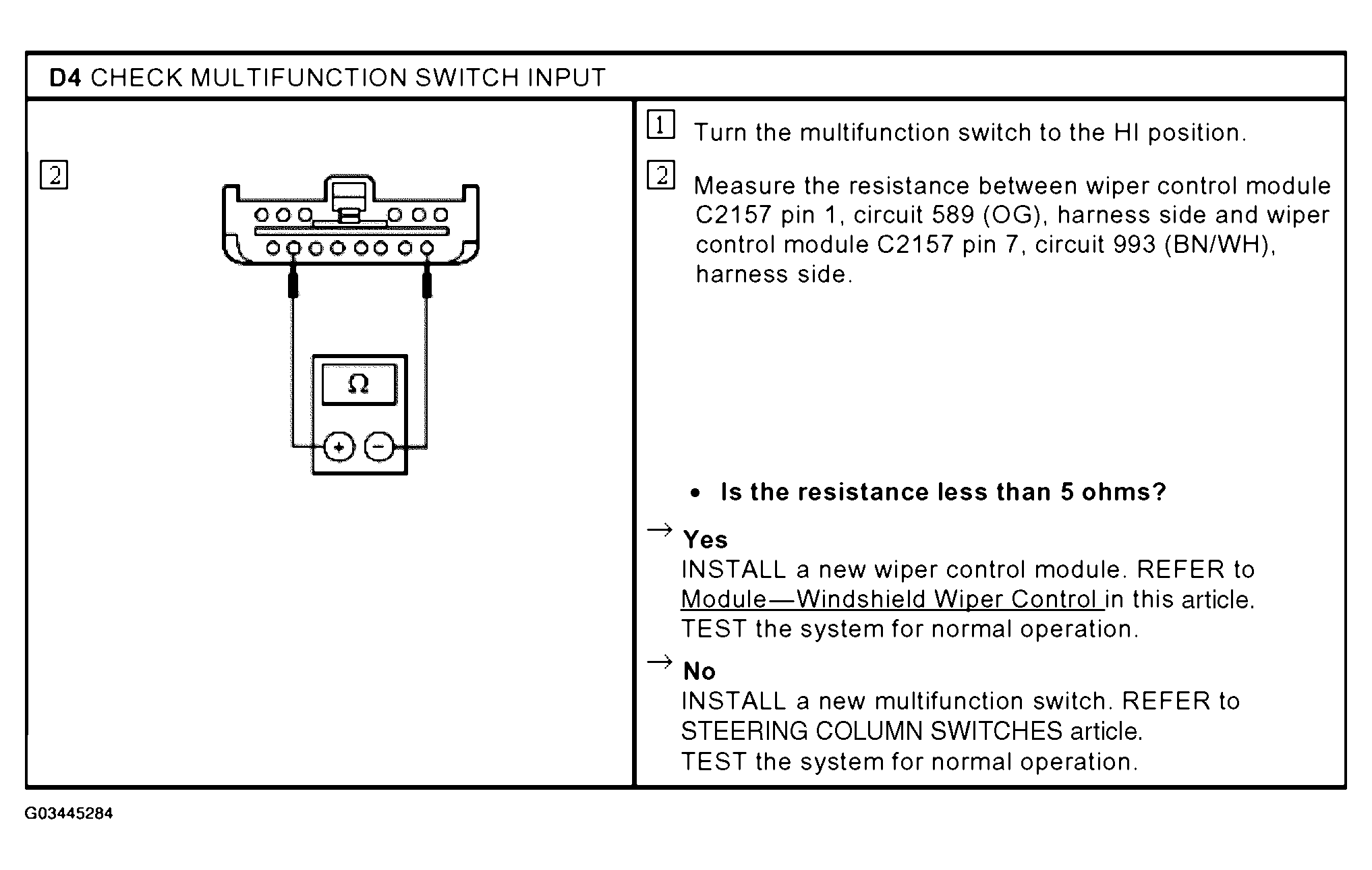

Fig 3: Pinpoint Test D: High Wiper Speeds Do Not Operate Correctly (D4)
G03445284Courtesy of FORD MOTOR CO.
