Pinpoint Test E: The Low Wiper Speeds Do Not Operate Correctly

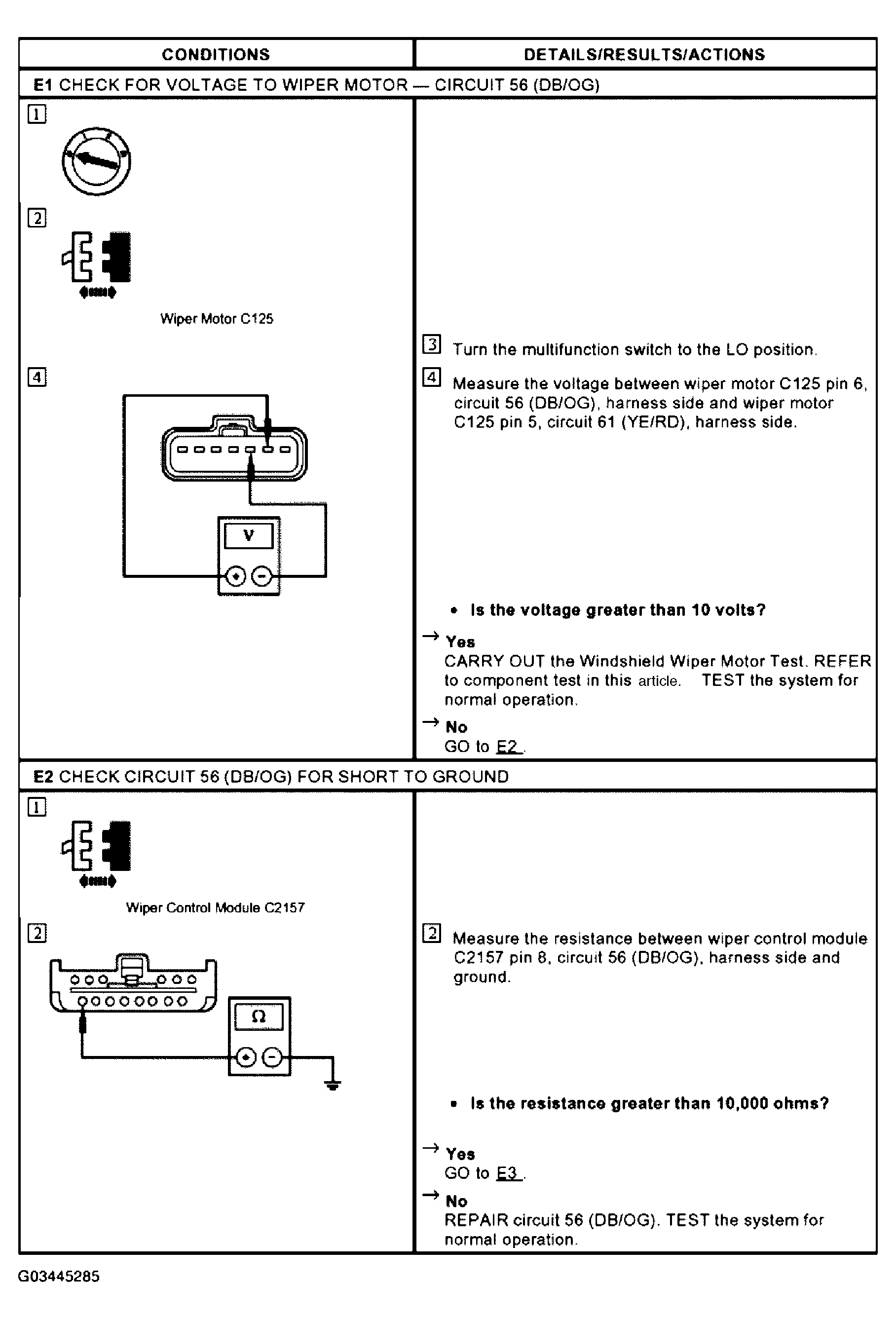

Fig 1: Pinpoint Test E: Low Wiper Speeds Do Not Operate Correctly (E1 - E2)
G03445285Courtesy of FORD MOTOR CO.

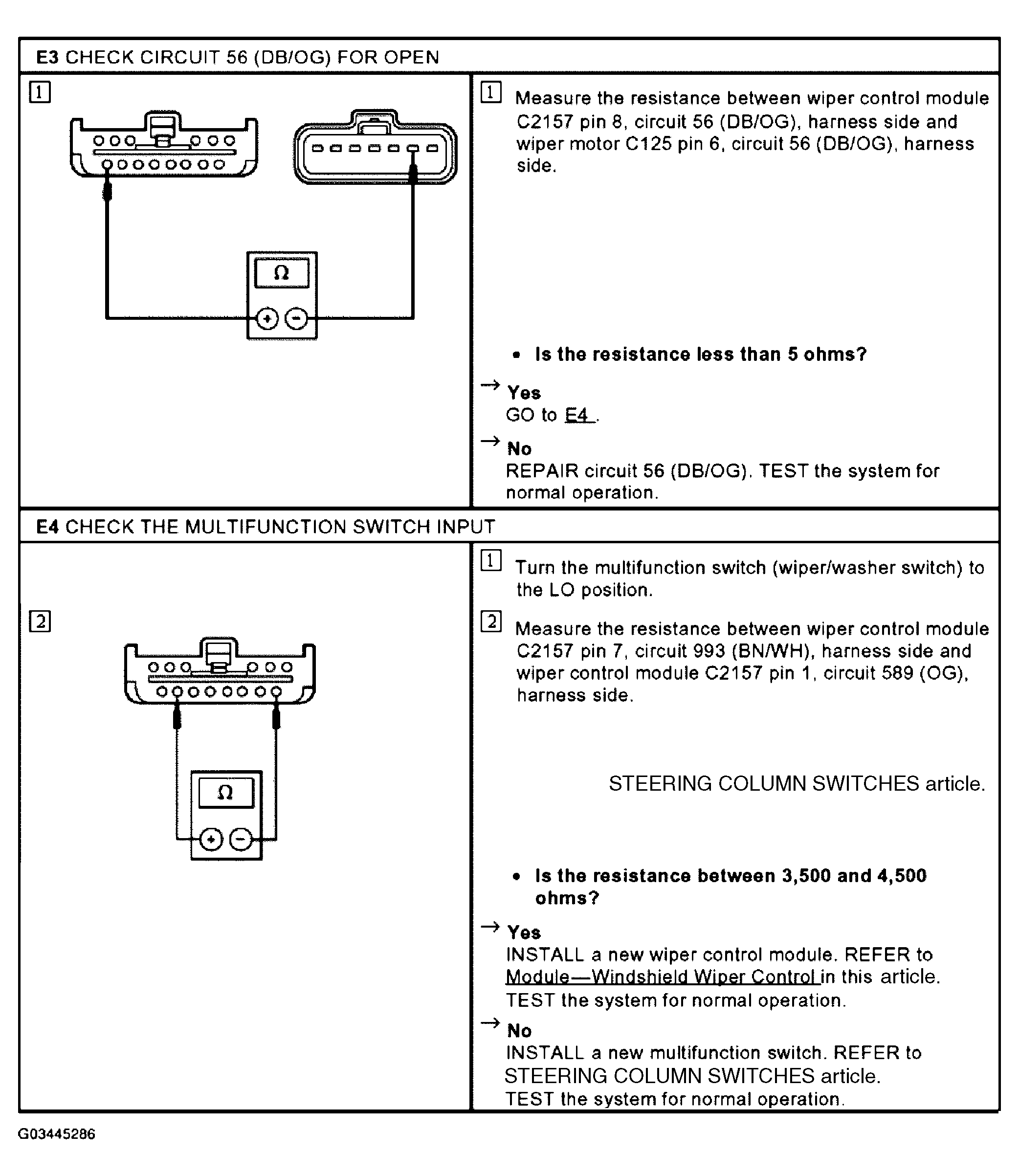

Fig 2: Pinpoint Test E: Low Wiper Speeds Do Not Operate Correctly (E3 - E4)
G03445286Courtesy of FORD MOTOR CO.
