Pinpoint Test G: The Wipers Will Not Park At The Correct Position

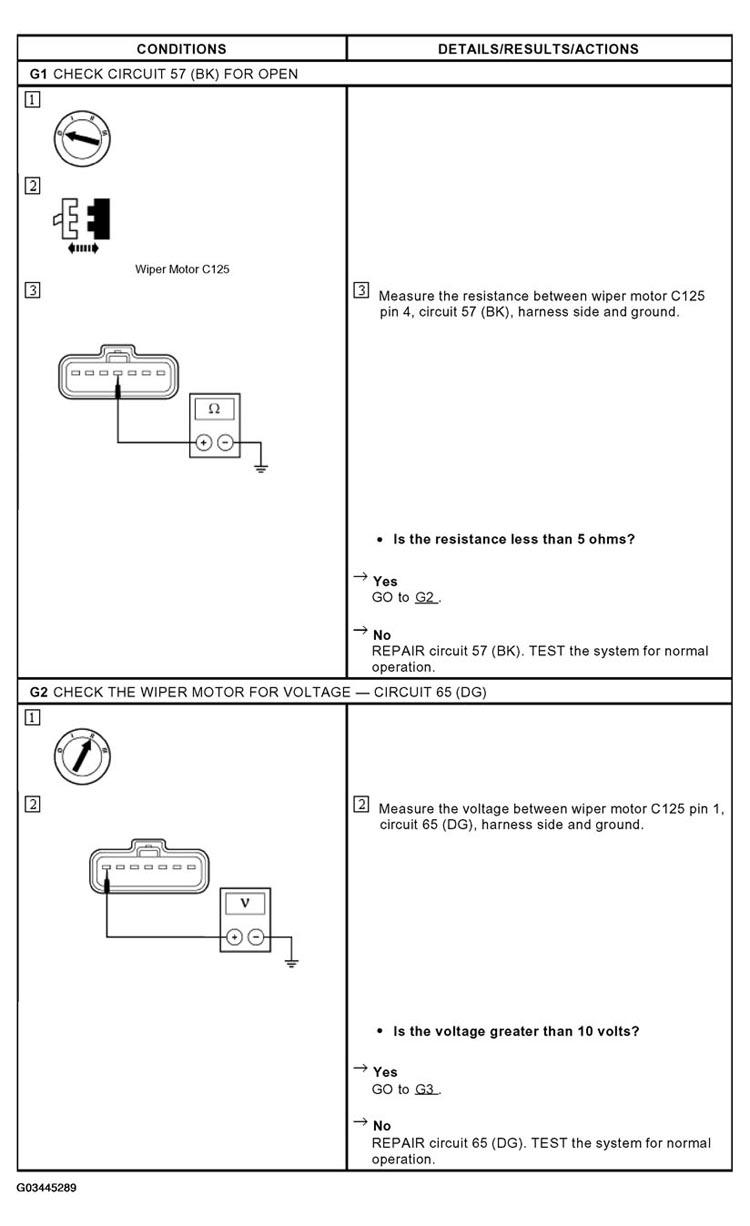

Fig 1: Pinpoint Test G: Wipers Will Not Park At The Correct Position (G1 - G2)

Courtesy of FORD MOTOR CO.

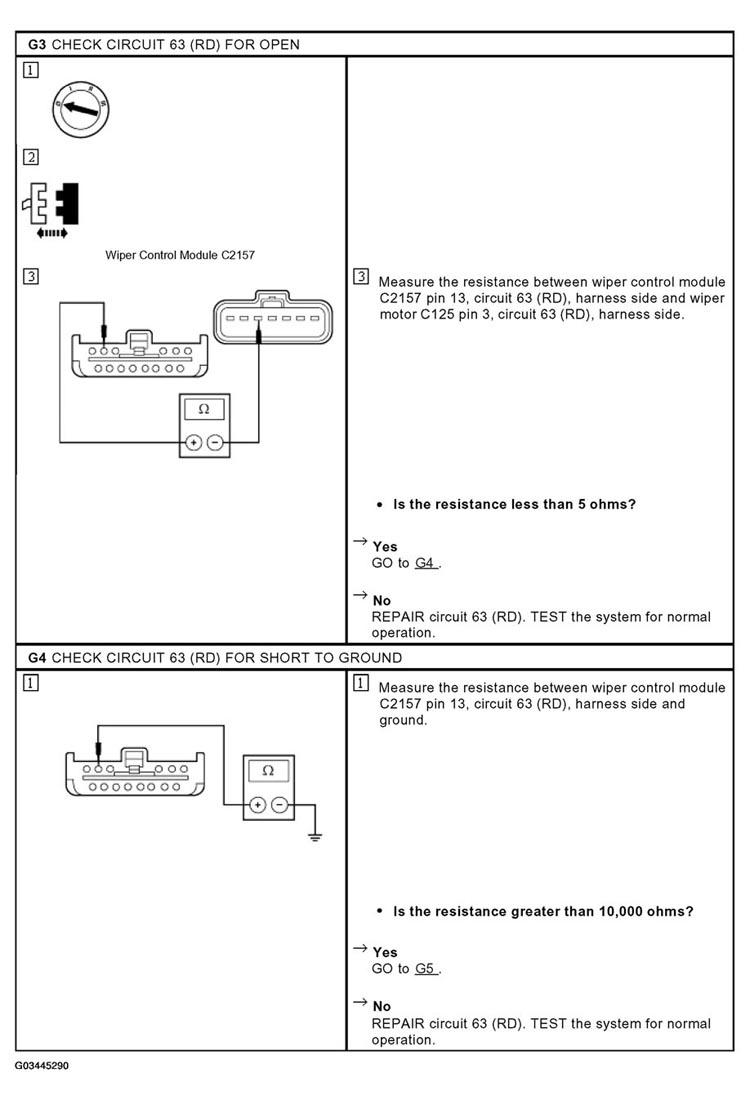

Fig 2: Pinpoint Test G: Wipers Will Not Park At The Correct Position (G3 - G4)

Courtesy of FORD MOTOR CO.

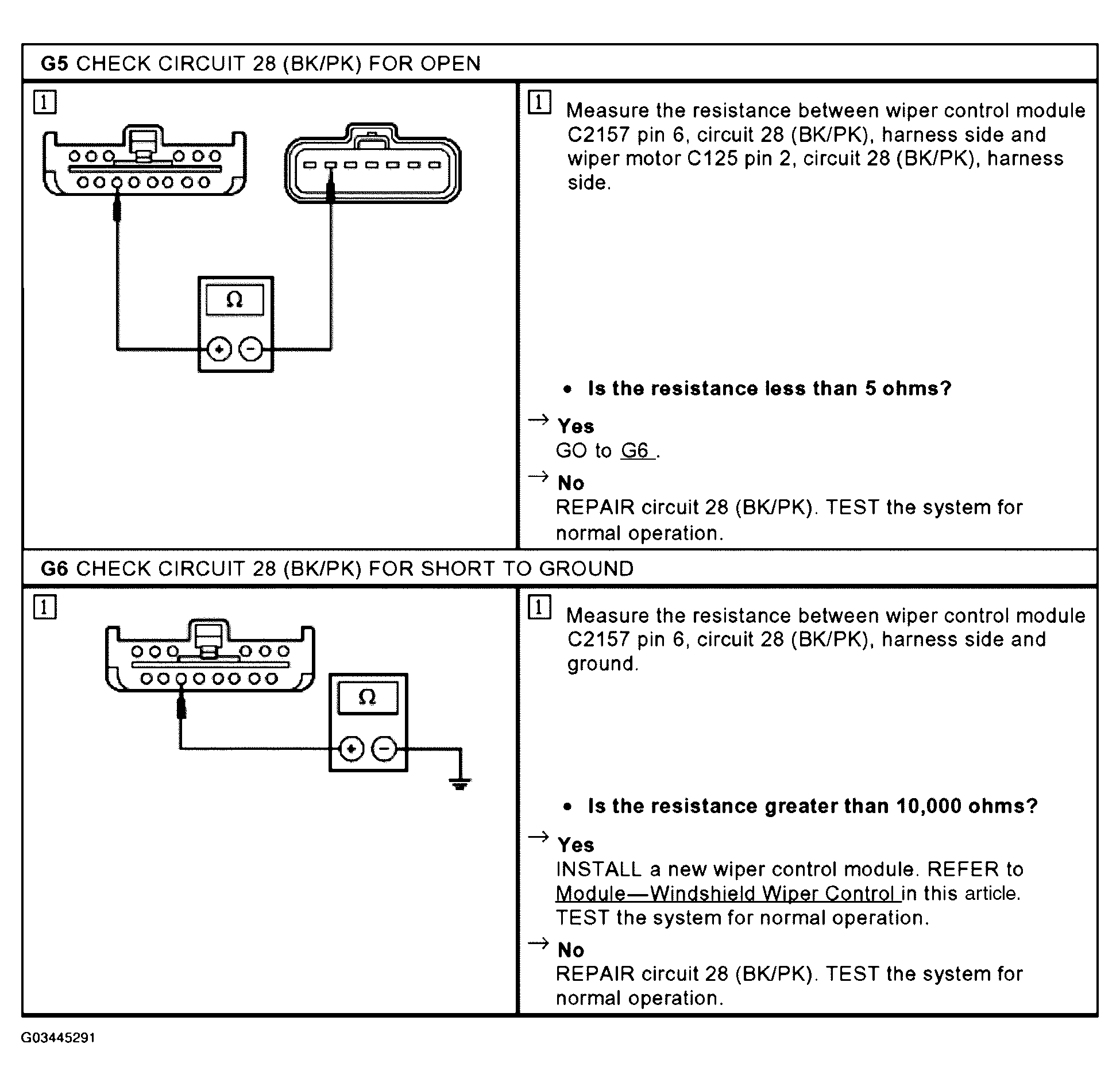

Fig 3: Pinpoint Test G: Wipers Will Not Park At The Correct Position (G5 - G6)

Courtesy of FORD MOTOR CO.
