Pinpoint Test H: The Wipers Stay On Continuously

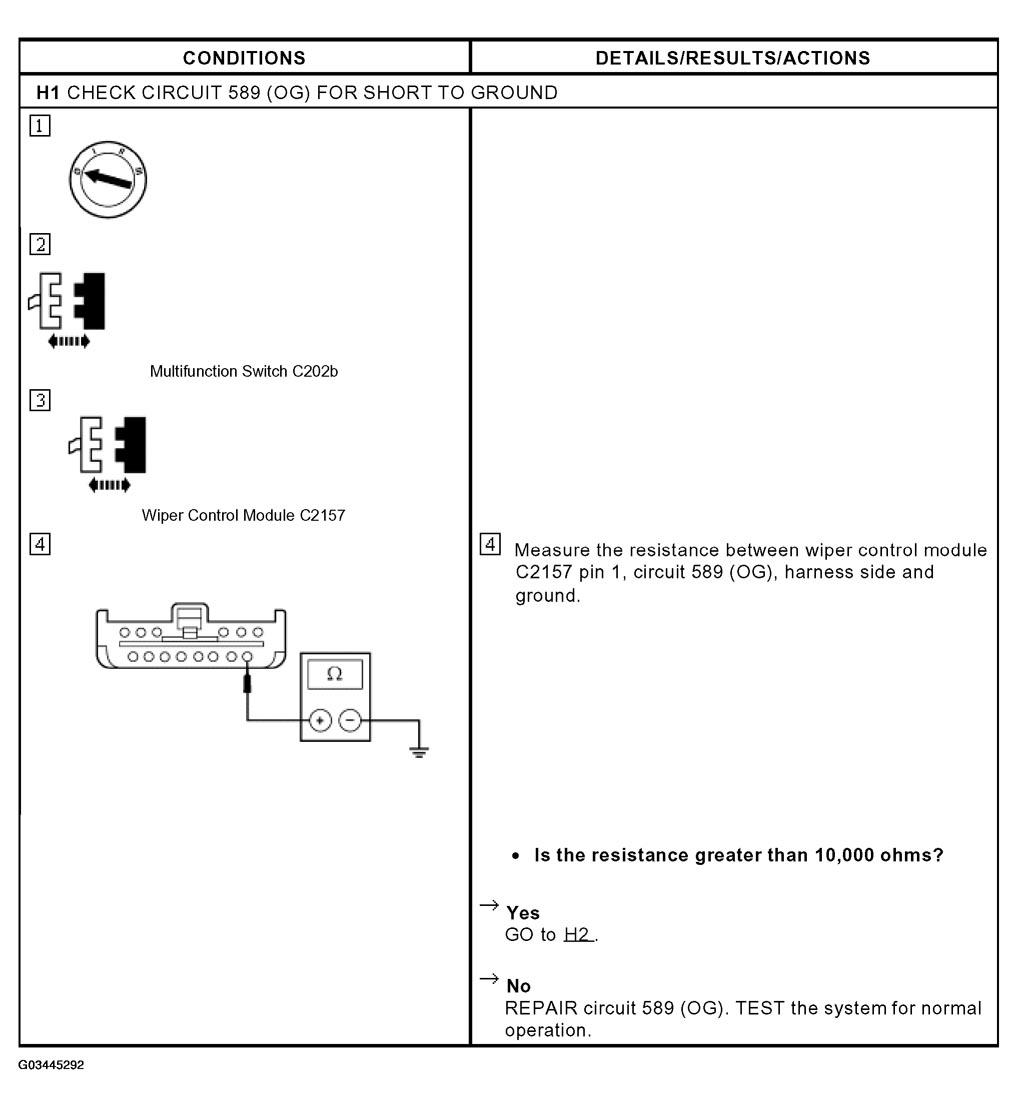

Fig 1: Pinpoint Test H: Wipers Stay On Continuously (H1)
G03445292Courtesy of FORD MOTOR CO.

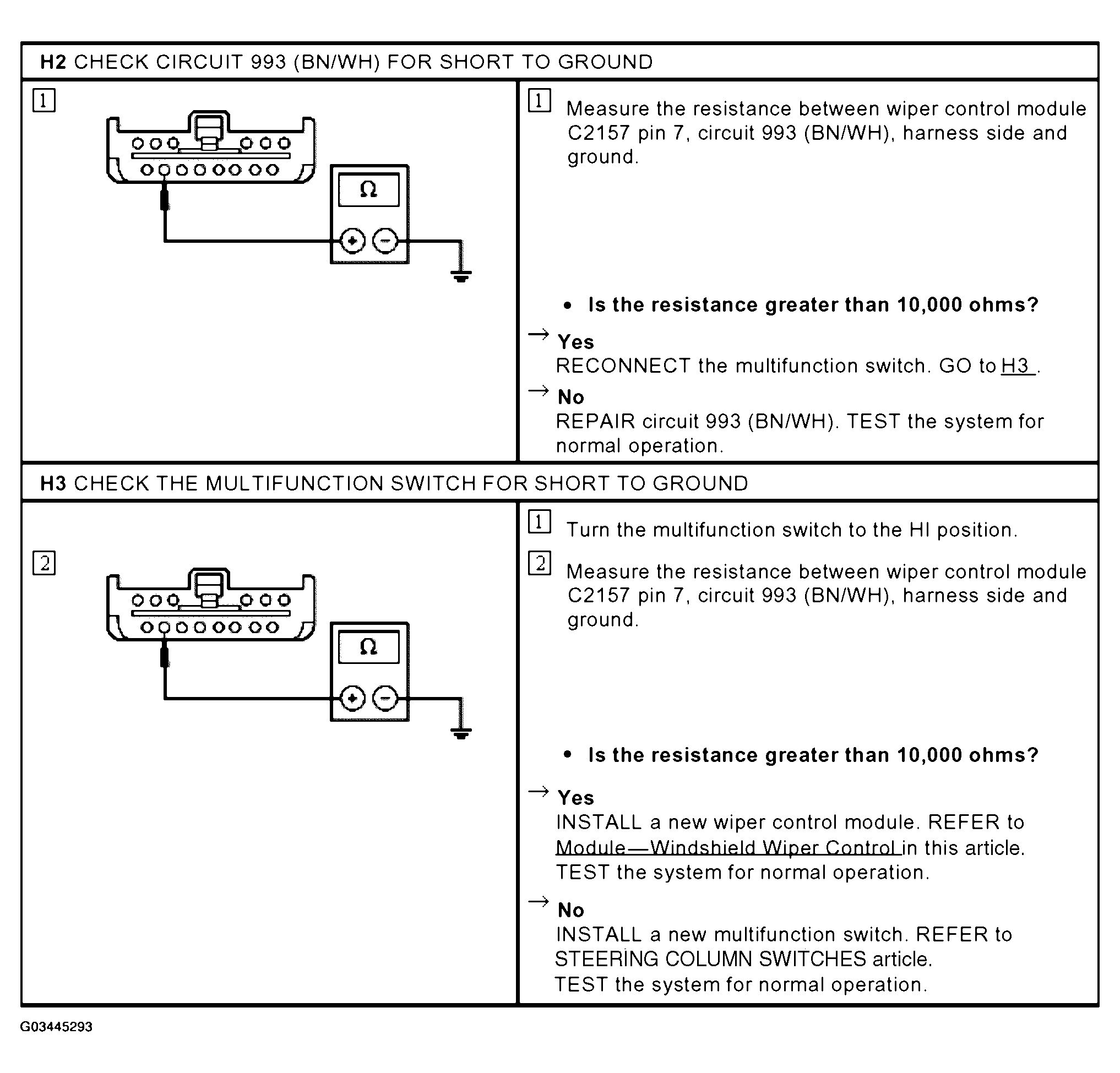

Fig 2: Pinpoint Test H: Wipers Stay On Continuously (Test H2 - H3)
G03445293Courtesy of FORD MOTOR CO.
