Removal and Installation

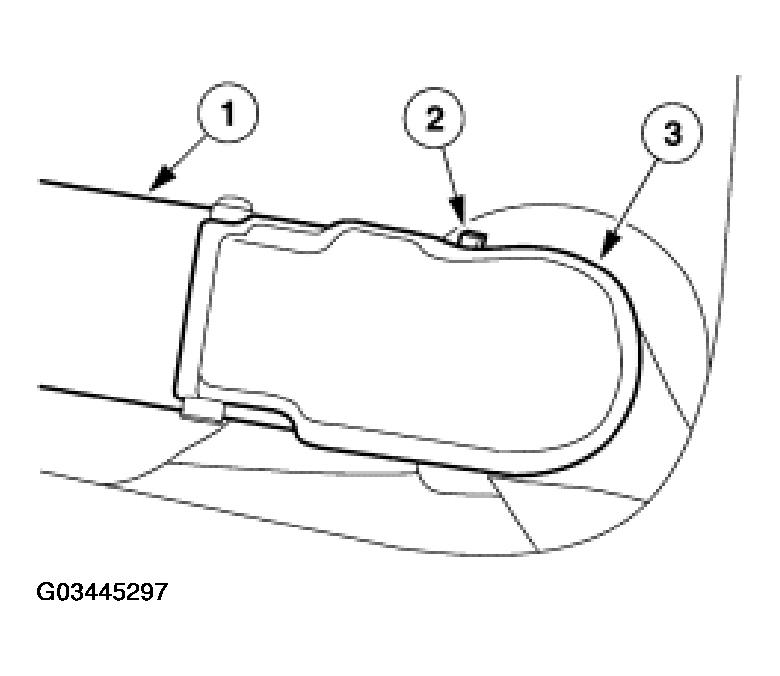

- Remove the pivot arm.
- Lift the pivot arm slightly off the glass.
- Release the locking tab and rest the pivot arm on the locking tab.
- Remove the pivot arm.
- To install, reverse the removal procedure.
- For additional information on pivot arm adjustment, refer to WIPER BLADE AND PIVOT ARM ADJUSTMENT .
NOTE:
When installing the pivot arm on the pivot shaft, it is necessary to align the key on the pivot arm with the key on the pivot shaft.
