Removal and Installation

Remove the cowl grille.
Position the evaporative emission canister purge valve aside.
1. Remove the nuts.
2. Position the valve aside.
Fig 1: Positioning Evaporative Emission Canister Purge Valve Aside
Courtesy of FORD MOTOR CO.
Position the mounting arm and pivot shaft aside.
1. Remove the bolts.
2. Position the mounting arm and pivot shaft aside.

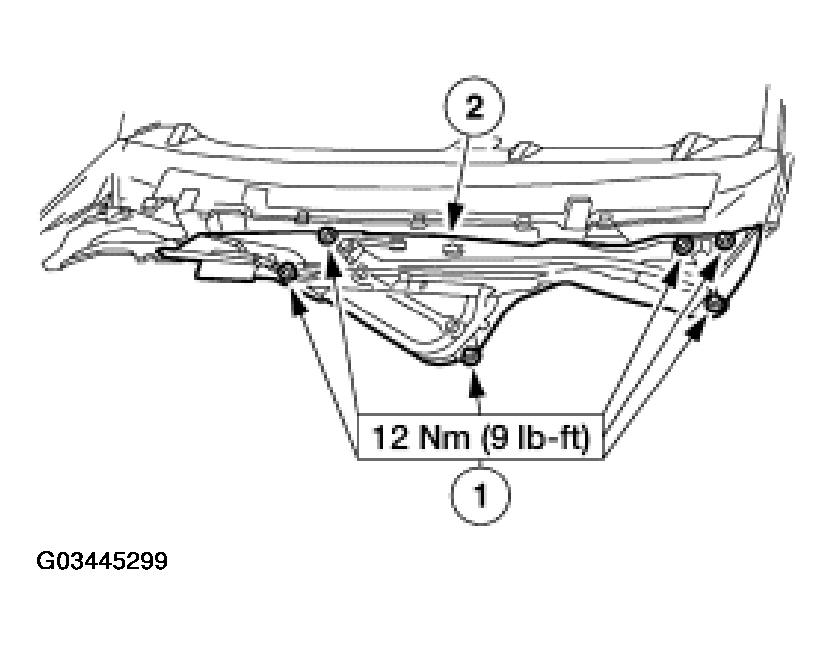

Fig 2: Positioning Mounting Arm And Pivot Shaft Aside
Courtesy of FORD MOTOR CO.
Remove the mounting arm and pivot shaft.
- Disconnect the electrical connector.
- Disconnect the windshield washer hose.

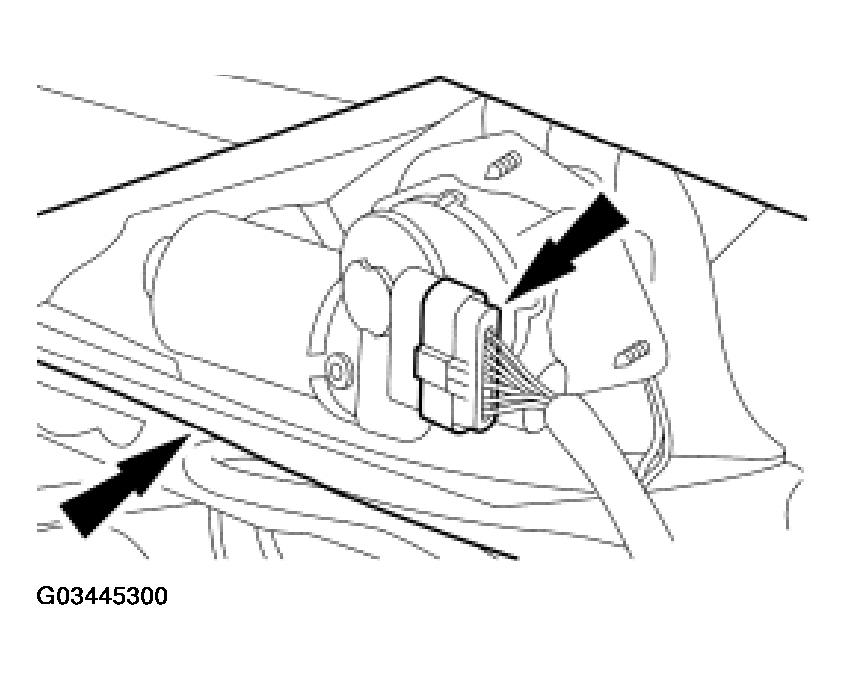

Fig 3: Removing Mounting Arm And Pivot Shaft
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
