Removal and Installation

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.
Remove the tunnel brace trim cover.
1. Remove the pin-type retainers.
2. Remove the tunnel brace trim cover.

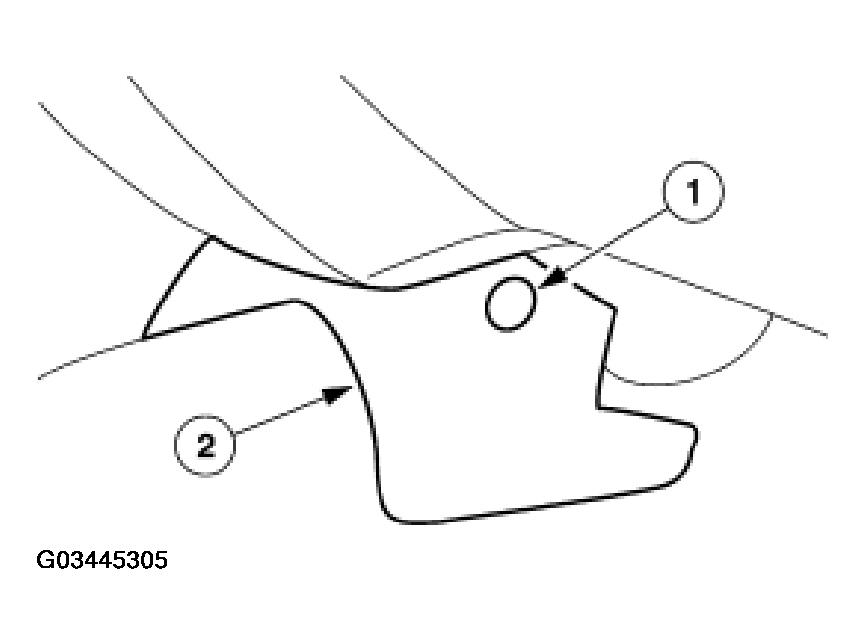

Fig 1: Removing Tunnel Brace Trim Cover
Courtesy of FORD MOTOR CO.
Remove the instrument panel ashtray.
1. Remove the bolts.
2. Remove the instrument panel ashtray.
  - Disconnect the electrical connector.

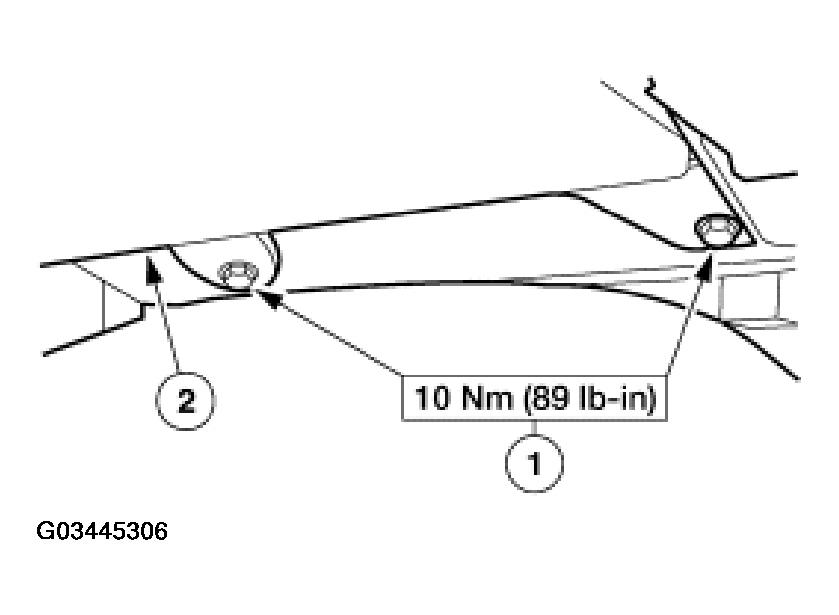

  Fig 2: Removing Instrument Panel Ashtray
  Courtesy of FORD MOTOR CO.
Remove the windshield wiper control module.
1. Remove the bolt.
2. Disconnect the electrical connector.
3. Remove the module.

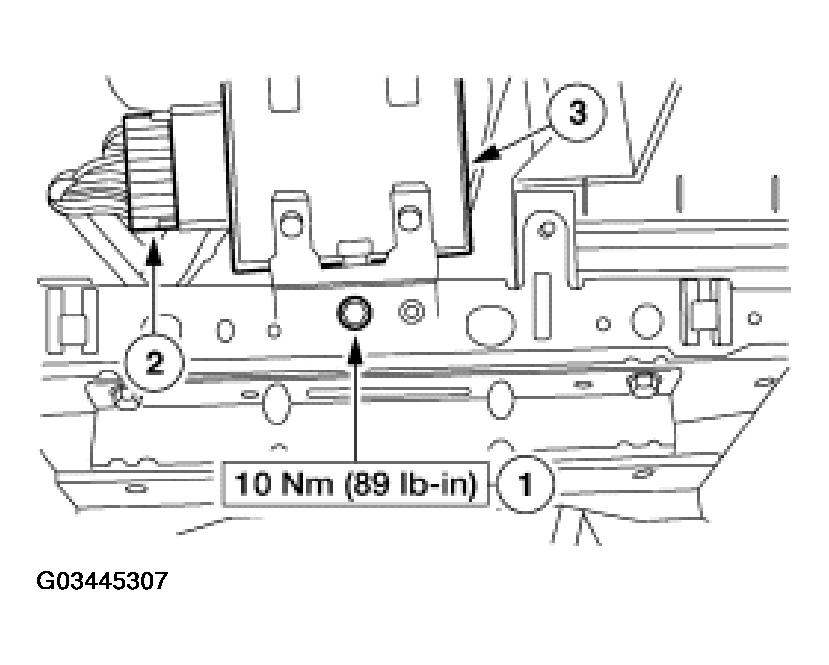

Fig 3: Removing Windshield Wiper Control Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
