Removal & Installation

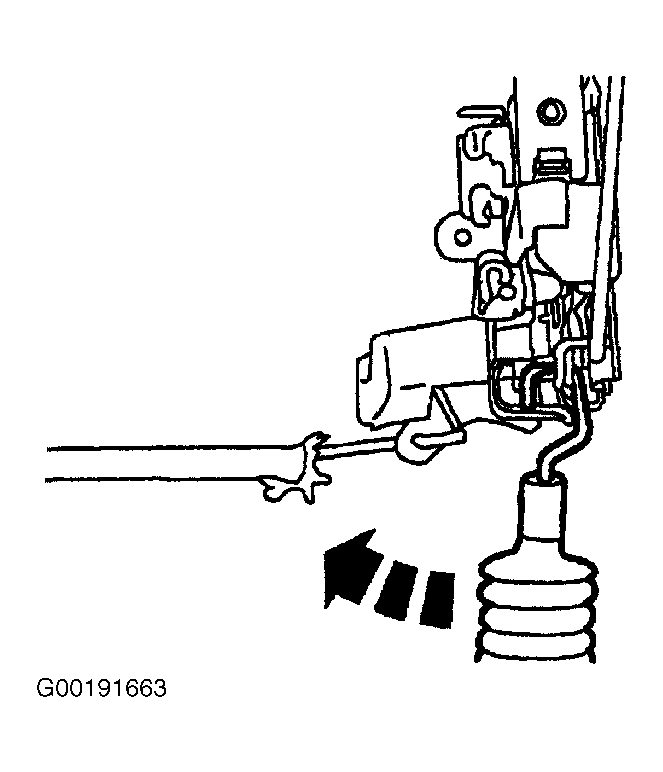

Remove door trim panel and watershield. See DOOR TRIM PANEL . Using a 1/4" drill bit and drill motor, remove rivet attaching actuator to door. Disconnect door lock actuator harness connector. Disengage link from door latch. Remove door lock actuator. See Fig 1. To install, reverse removal procedure.
