Removal & Installation (Passenger's Side)

Disconnect negative battery cable. Pry up door lock switch plate, unhook rear edge of housing and remove from armrest. See STEP 1 in Fig 2. Remove screws from harness connector and pry switch from connector with small screwdriver. See STEP 2 in Fig 2. To install, reverse removal procedure.

Fig 1: Removing & Installing Driver's Side Door Lock Switch

Courtesy of FORD MOTOR CO.

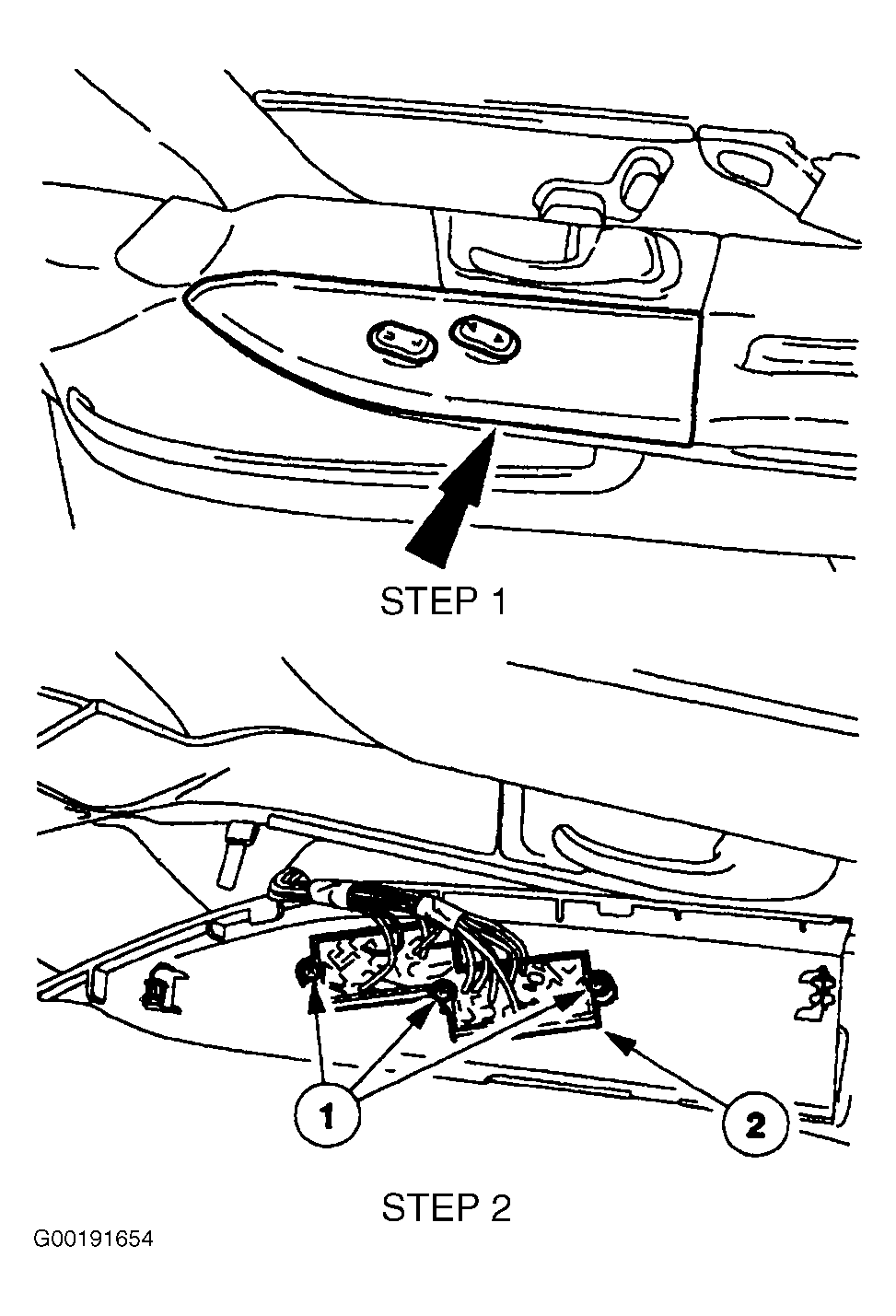

Fig 2: Removing & Installing Passenger's Side Door Lock Switch

Courtesy of FORD MOTOR CO.
