Battery Junction Box
NOTE:

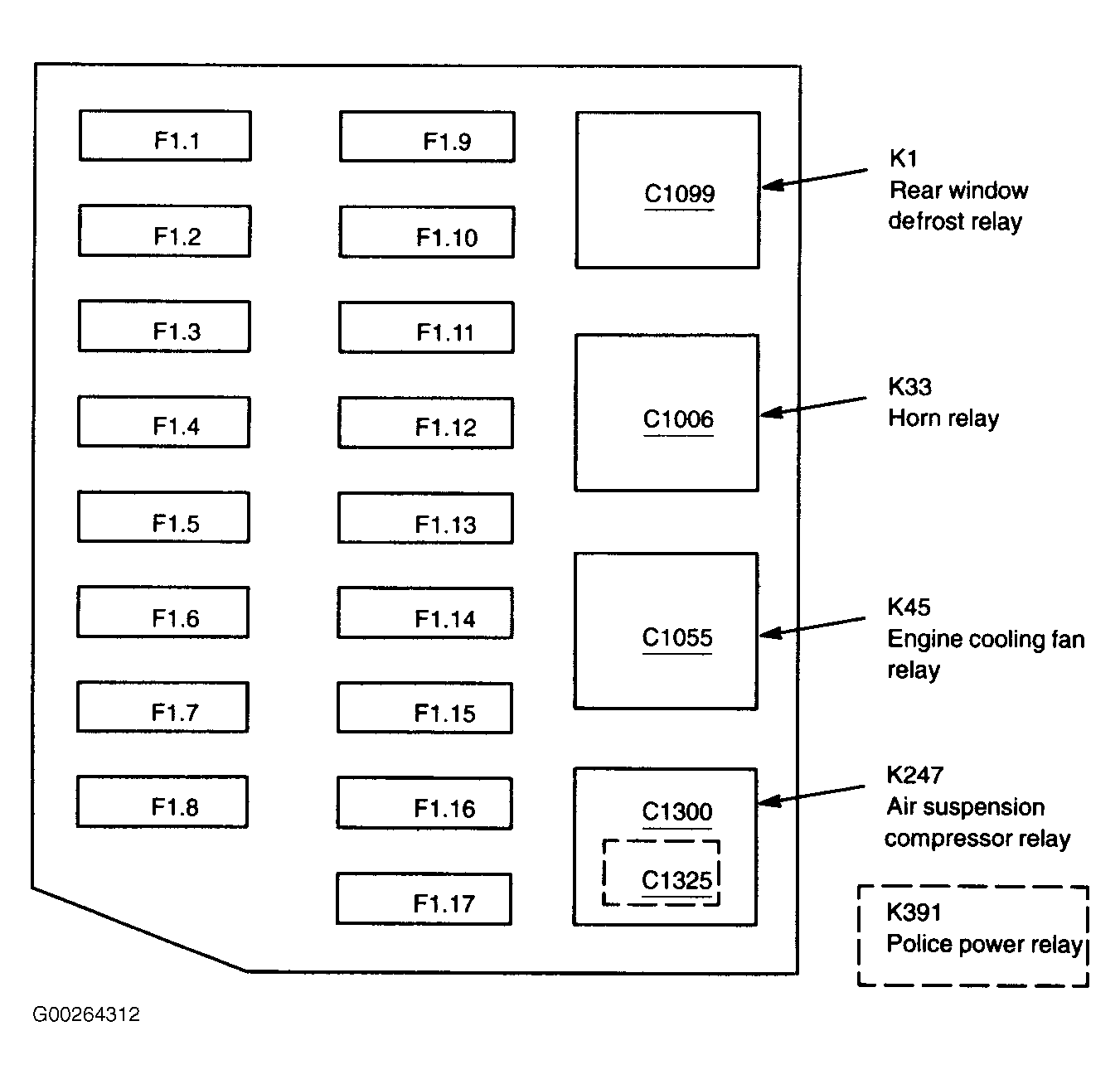

Battery junction box is located on passenger's side of engine compartment, near battery. See Fig 1.
BATTERY JUNCTION BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C1099 | K1 Rear window defrost relay |
| C1006 | K33 Horn relay |
| C1055 | K45 Engine cooling fan relay |
| C1300 | K247 Air Suspension compressor relay |
| C1325 | K391 Police power relay |
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Maxi-fuse | Amps | Circuits protected |
|---|---|---|
| F1.1 | 20 | Fuel pump relay |
| F1.2 | 30 | Starter relay (11450), Generator, Central Junction Box (CJB) (14A068) |
| F1.3 | 25 | CD changer (18D806), Subwoofer amplifier (18C804), Radio (18806) |
| F1.4 | 30 | Police power relay |
| F1.5 | 15 | Horn relay |
| F1.6 | 20 | Daytime Running Lamps (DRL) module |
| Fuse | Amps | Circuits protected |
| F1.8 | 30 | Air suspension compressor relay, Air suspension module (3C142), Shock absorber solenoid valve, left rear (5A891), Shock absorber solenoid valve, right rear (5A891), Air suspension compressor assembly, Instrument cluster |
| F1.9 | 50 | Ignition switch (11572), Central Junction Box (CJB) (14A068) |
| F1.10 | 50 | Central Junction Box (CJB) (14A068), Ignition switch (11572) |
| F1.11 | 50 | Central Junction Box (CJB) (14A068) |
| F1.12 | 30 | Powertrain Control Module (PCM) (12A650), PCM power relay, Data Link Connector (DLC) (14489), Natural Gas Vehicle (NGV) module |
| F1.13 | 50 | High speed fan control relay |
| F1.14 | 40 | Rear window defrost relay, Lighting control module, Antenna |
| F1.15 | 40 | ABS control module (2C219) |
| F1.16 | 50 | Police option fuse holder |
| Circuit breaker | Amps | Circuits protected |
| F1.7 | 20 | Seat adjust switch, driver side front (14A701), Power seat switch, left, Lumbar adjust switch, left front (14B691), Luggage compartment lid release switch 2, Adjustable pedal switch, Lumbar adjust switch, right front, Power seat switch, right, Driver Door Module, Master window/door lock/unlock switch, Luggage compartment lid release switch 1, Window adjust switch, passenger side |
| F1.17 | 30 | Engine cooling fan relay |
