Supplemental Restraint System (SRS) Deactivation and Reactivation: Reactivation

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the deactivation procedure.
  1. Disconnect the battery ground cable and wait at least one minute.
  2. Remove the restraint system diagnostic tool from the driver safety belt retractor pretensioner electrical connector.

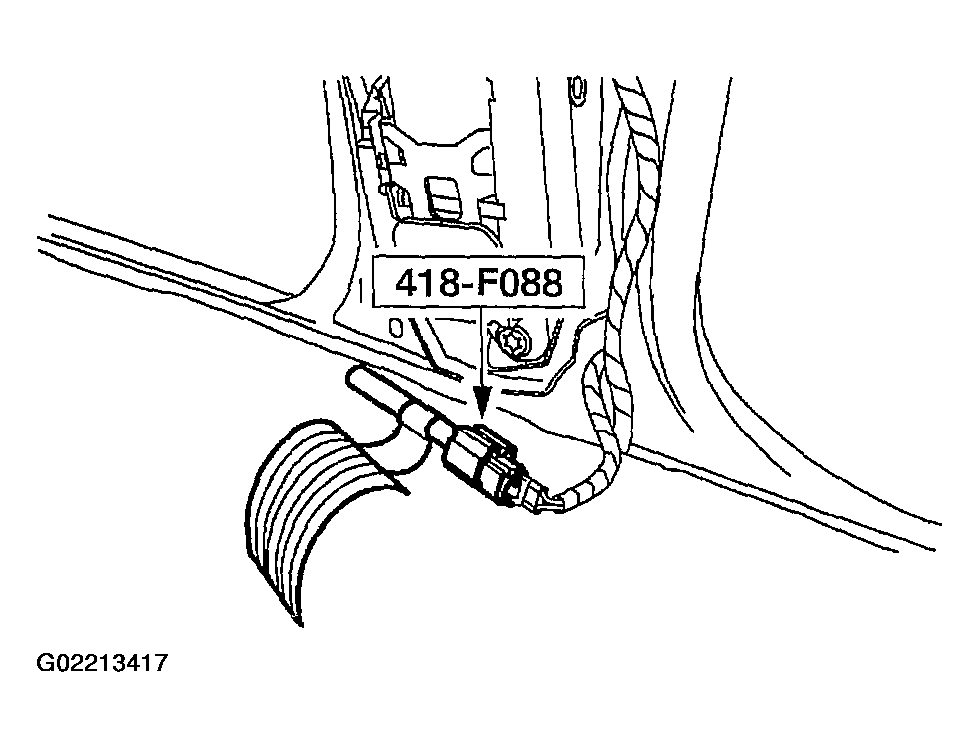

    Fig 1: Removing Restraint System Diagnostic Tool From Driver Safety Belt Retractor Pretensioner Electrical Connector
    G02213417Courtesy of FORD MOTOR CO.
  3. Connect the driver safety belt retractor pretensioner electrical connector.

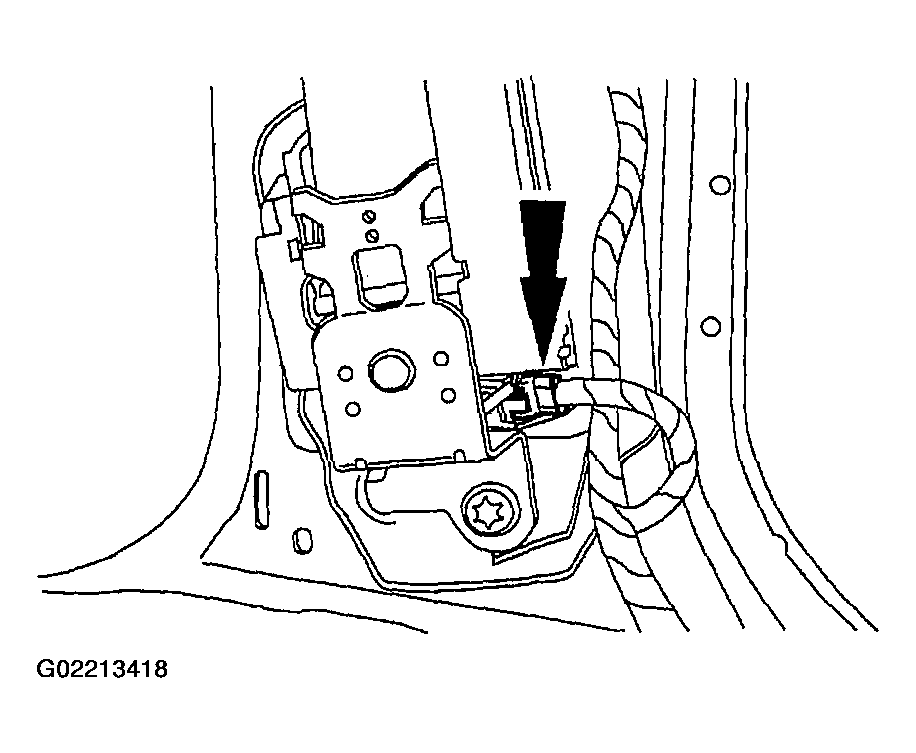

    Fig 2: Connecting Driver Safety Belt Retractor Pretensioner Electrical Connector
    G02213418Courtesy of FORD MOTOR CO.
  4. Align the driver side B-pillar lower trim panel and push in, seating the retaining clips.

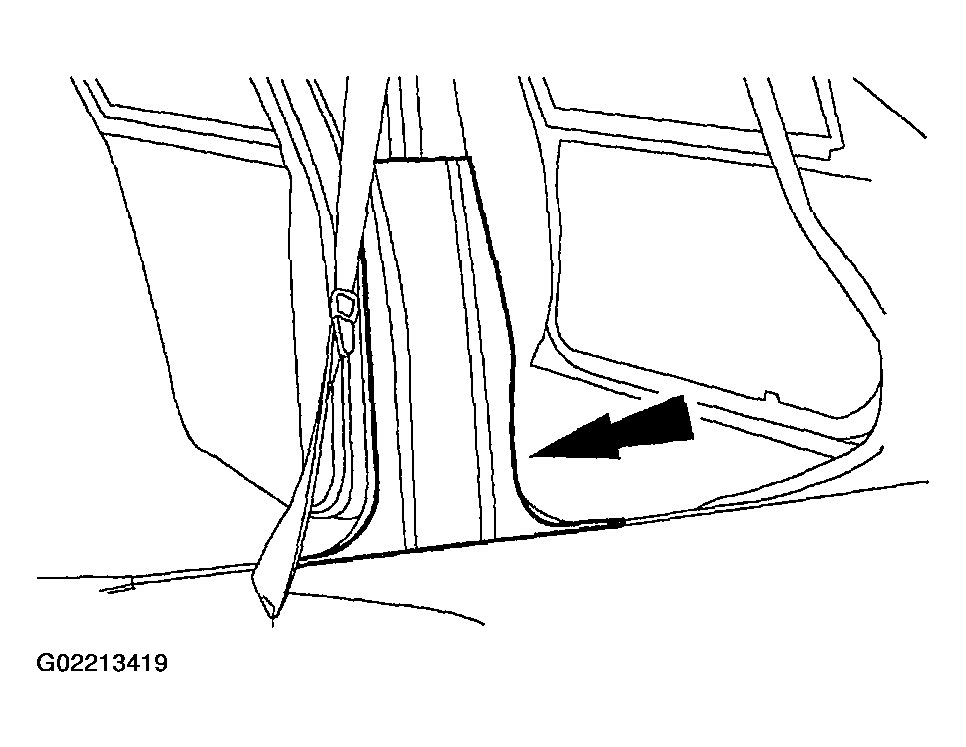

    Fig 3: Locating Driver Side B-Pillar Lower Trim Panel
    G02213419Courtesy of FORD MOTOR CO.
  5. Position the driver side safety belt anchor. Install the bolt.
    Fig 4: Positioning Driver Side Safety Belt Anchor Bolt
    G02213420Courtesy of FORD MOTOR CO.
  6. Install the driver side safety belt anchor bolt cover.

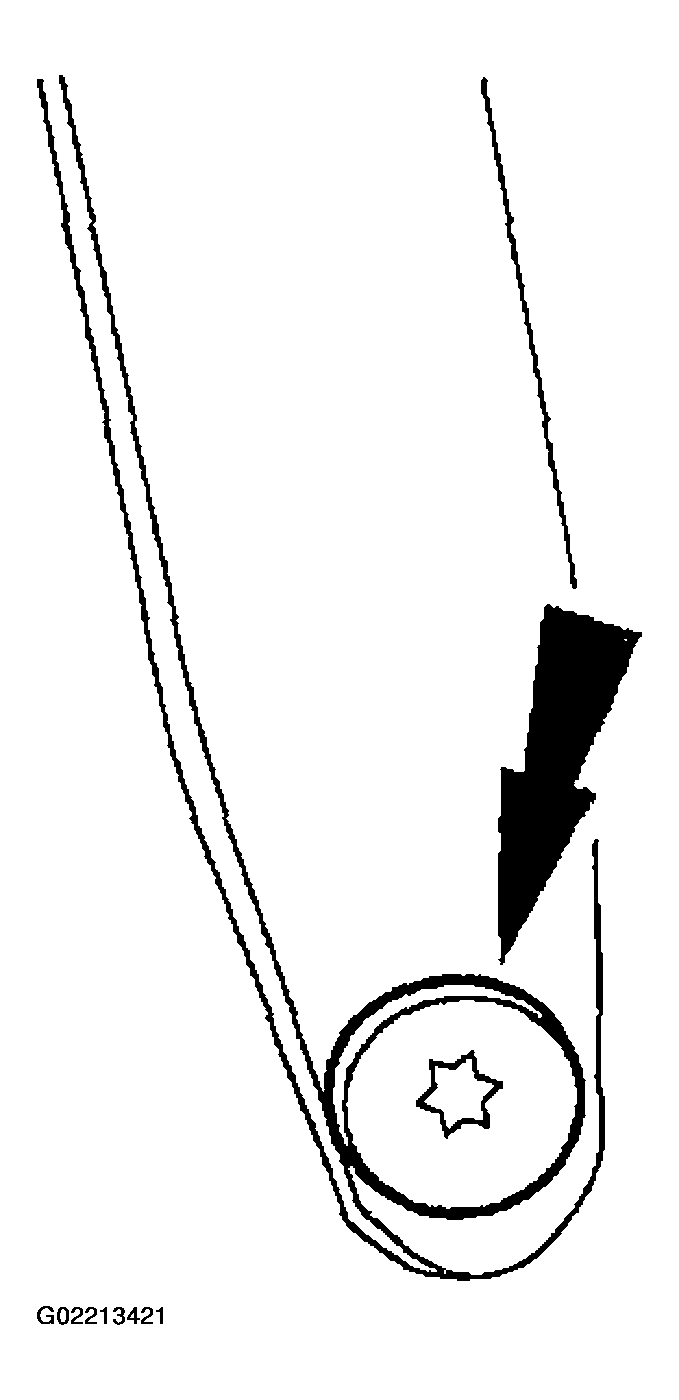

    Fig 5: Installing Driver Side Safety Belt Anchor Bolt Cover
    G02213421Courtesy of FORD MOTOR CO.
  7. Install the driver side B-pillar weather-stripping.

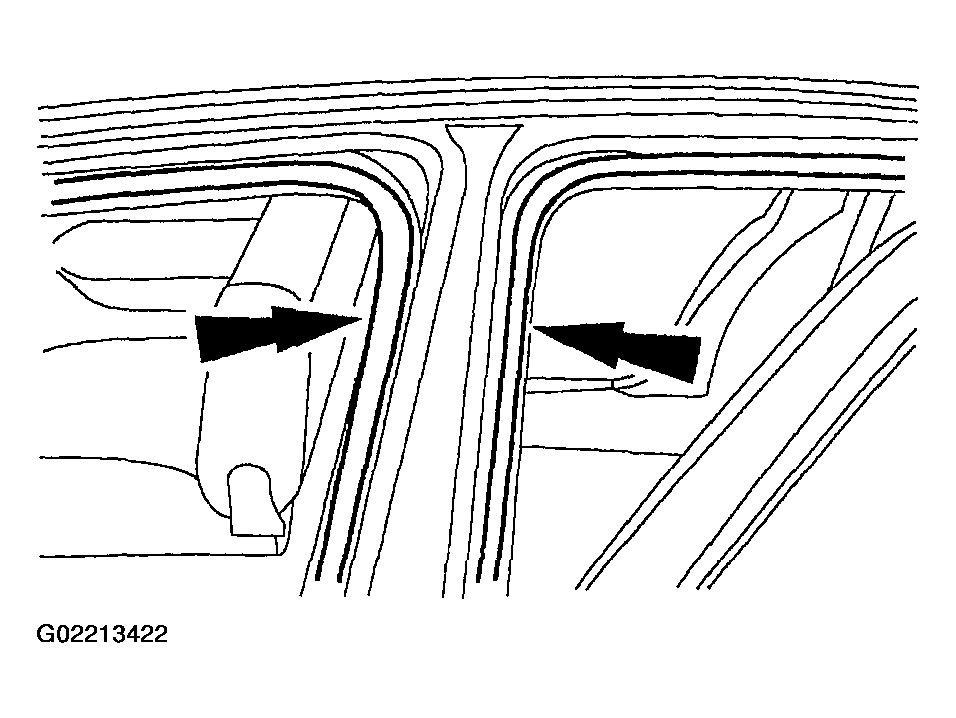

    Fig 6: Installing Driver Side B-Pillar Weather-stripping
    G02213422Courtesy of FORD MOTOR CO.
  8. Install the driver side rear door scuff plate.

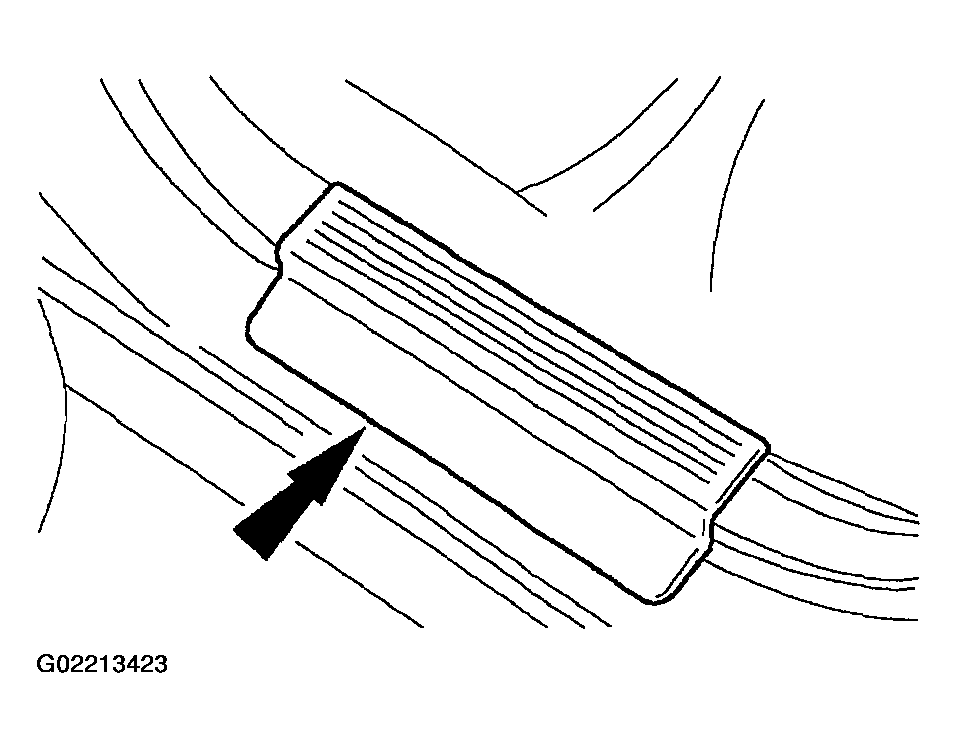

    Fig 7: Installing Driver Side Rear Door Scuff Plate
    G02213423Courtesy of FORD MOTOR CO.
  9. Install the driver side front door scuff plate.

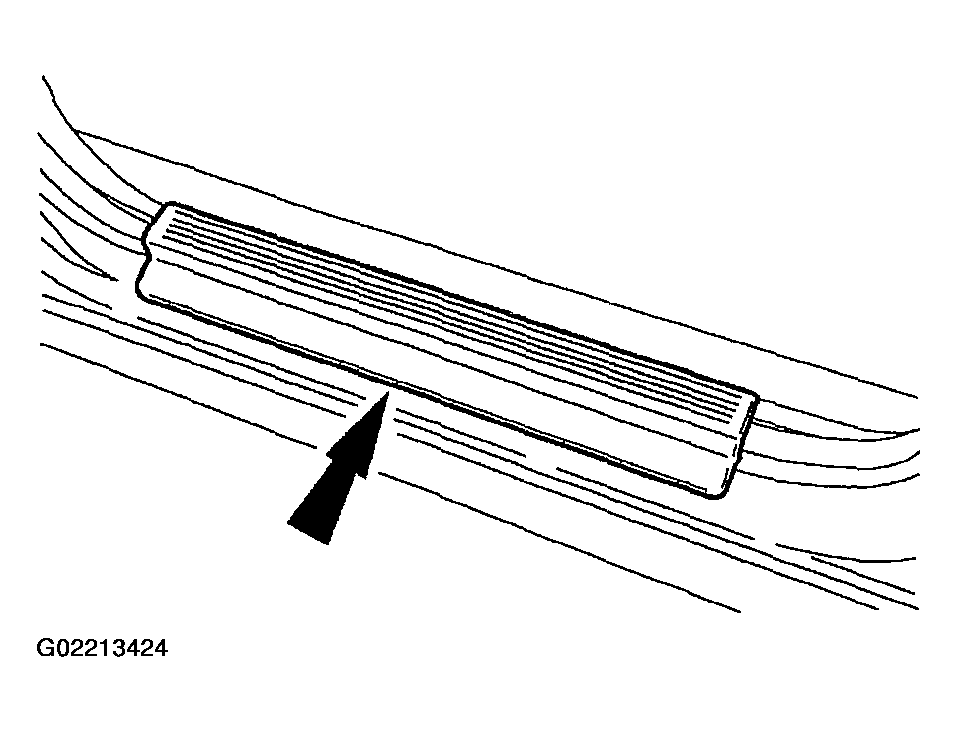

    Fig 8: Installing Driver Side Front Door Scuff Plate
    G02213424Courtesy of FORD MOTOR CO.
  10. Remove the restraint system diagnostic tool from the passenger safety belt retractor pretensioner electrical connector.

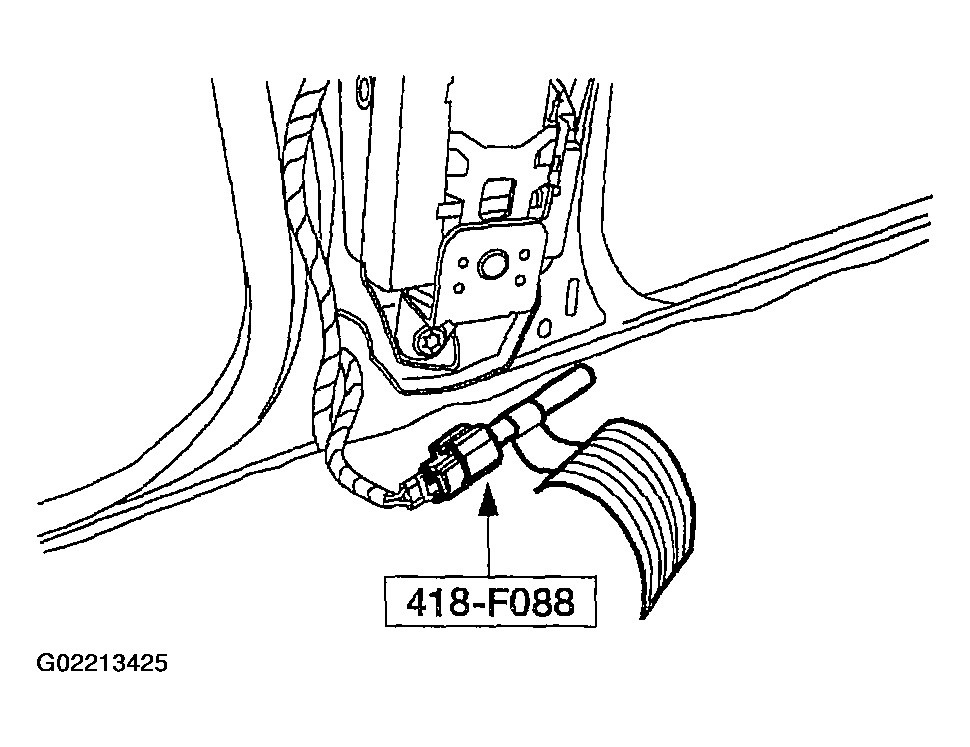

    Fig 9: Removing Restraint System Diagnostic Tool From Passenger Safety Belt Retractor Pretensioner Electrical Connector
    G02213425Courtesy of FORD MOTOR CO.
  11. Connect the passenger safety belt retractor pretensioner electrical connector.

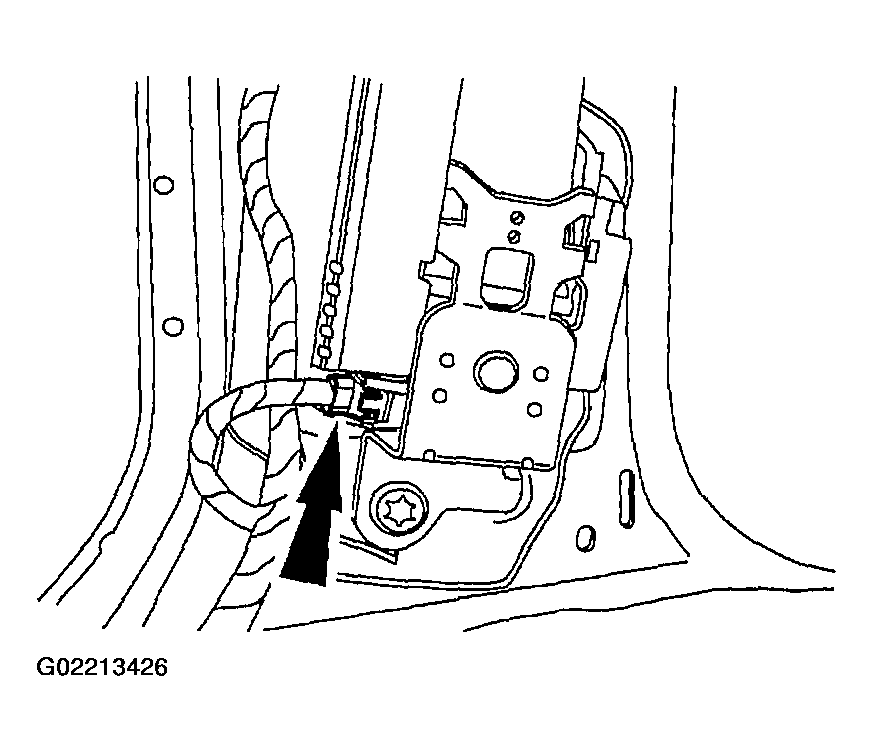

    Fig 10: Connecting Passenger Safety Belt Retractor Pretensioner Electrical Connector
    G02213426Courtesy of FORD MOTOR CO.
  12. Align the passenger side B-pillar lower trim panel and push in, seating the retaining clips.

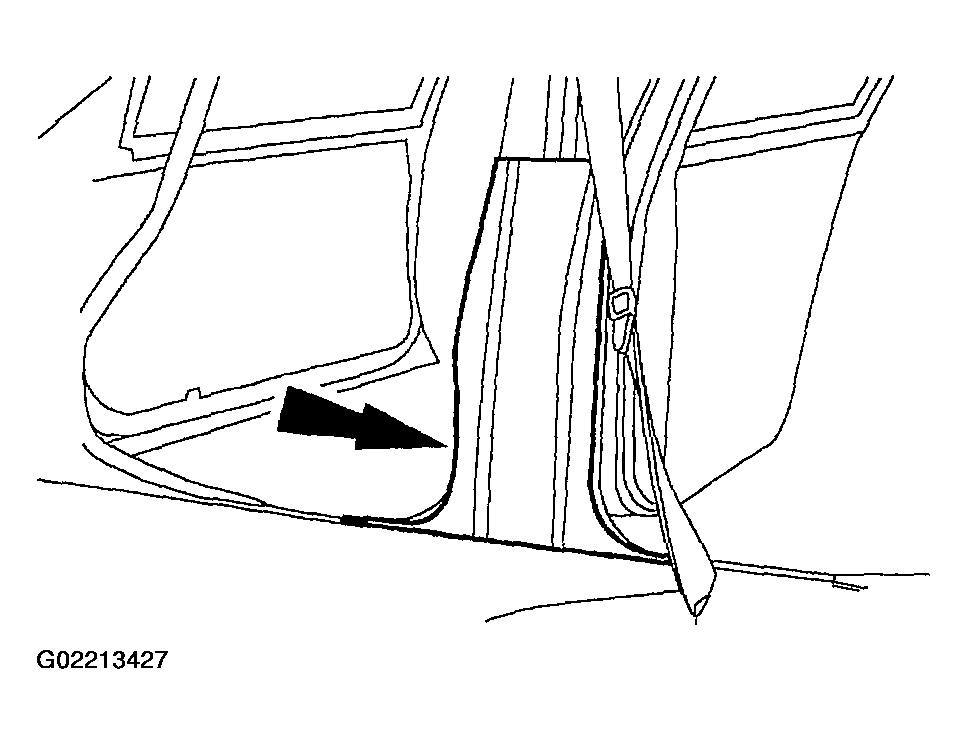

    Fig 11: Locating Passenger Side B-Pillar Lower Trim Panel
    G02213427Courtesy of FORD MOTOR CO.
  13. Position the passenger safety belt anchor. Install the bolt.

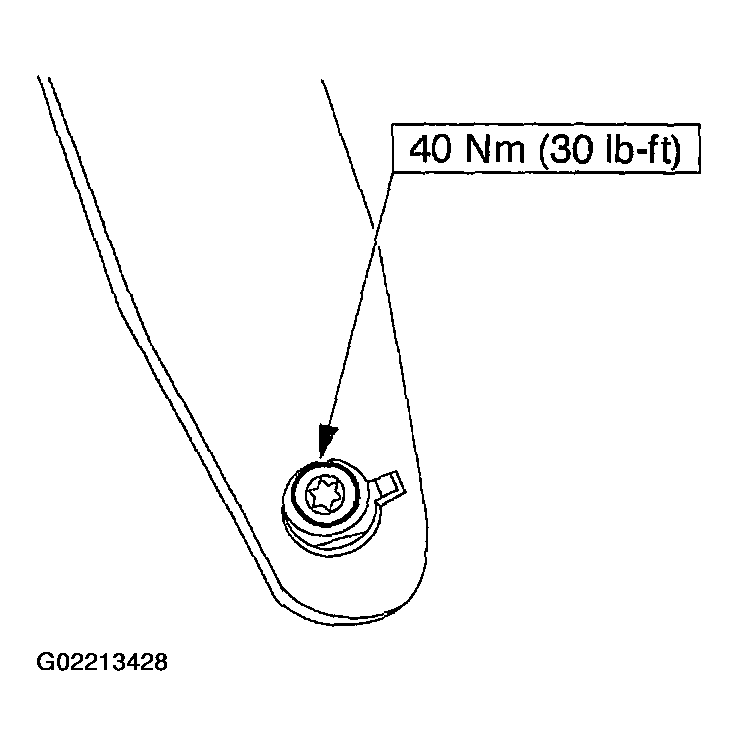

    Fig 12: Positioning Passenger Safety Belt Anchor
    G02213428Courtesy of FORD MOTOR CO.
  14. Install the passenger side safety belt anchor bolt cover.
    Fig 13: Installing Passenger Side Safety Belt Anchor Bolt Cover
    G02213429Courtesy of FORD MOTOR CO.
  15. Install the passenger side B-pillar weather-stripping.

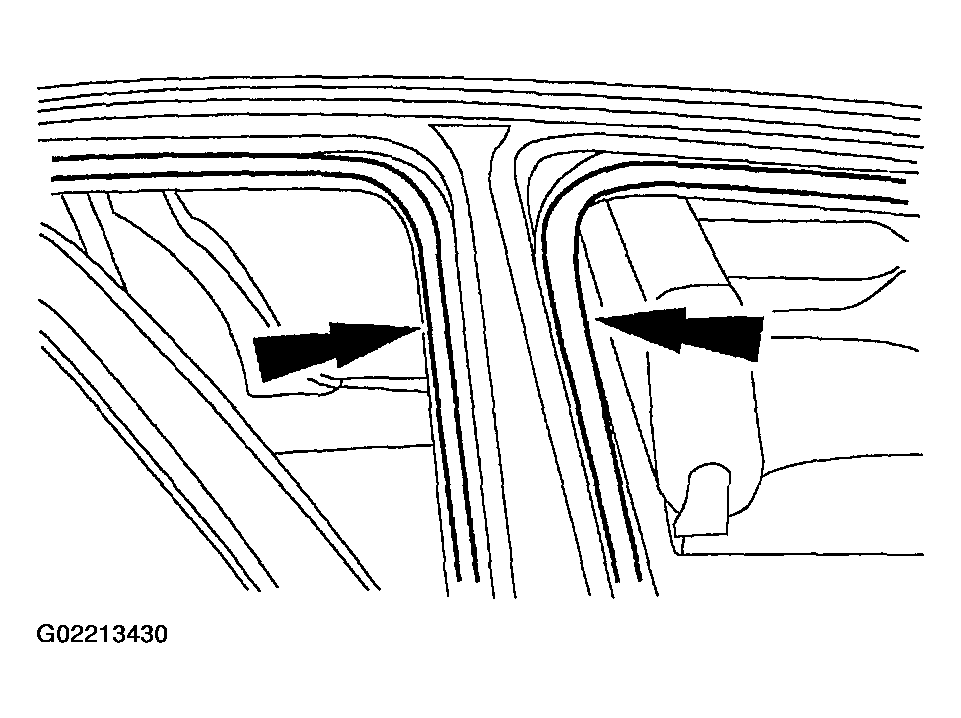

    Fig 14: Installing Passenger Side B-Pillar Weather-stripping
    G02213430Courtesy of FORD MOTOR CO.
  16. Install the passenger side rear door scuff plates.

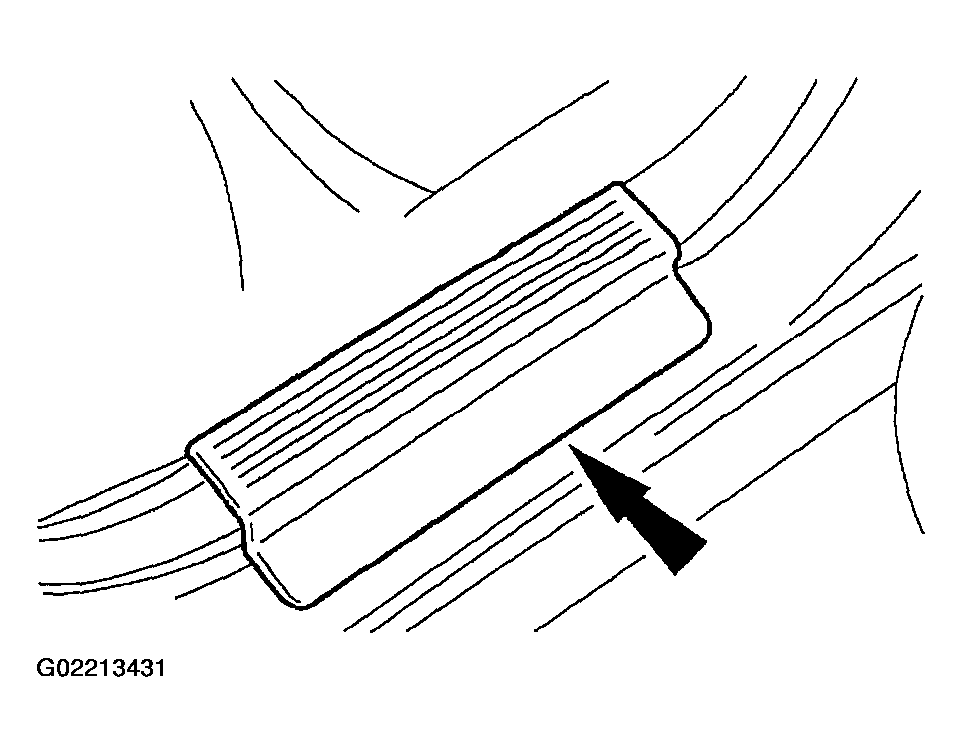

    Fig 15: Installing Passenger Side Rear Door Scuff Plates
    G02213431Courtesy of FORD MOTOR CO.
  17. Install the passenger side front door scuff plate.

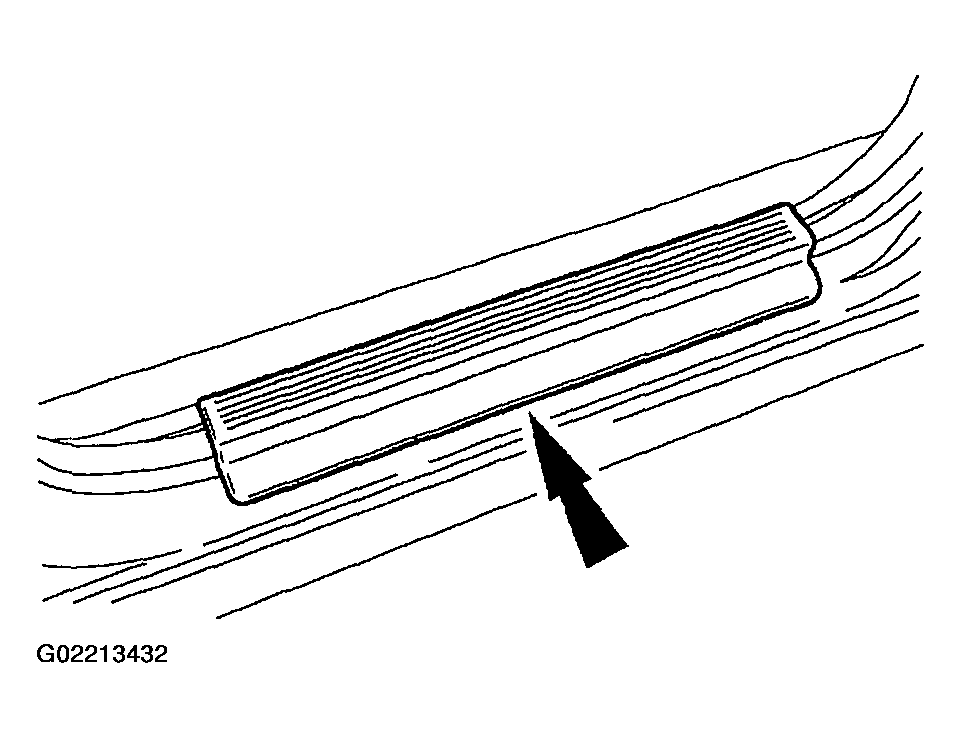

    Fig 16: Installing Passenger Side Front Door Scuff Plate
    G02213432Courtesy of FORD MOTOR CO.
  18. Connect the battery ground cable.
  19. Position the front seats rearward.
    20. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
    Please refer to AIR BAG RESTRAINT SYSTEMS to determine location of the front air bag sensors.
    The side air bag sensors are located at or near the base of the B-pillar.
    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
  20. Disconnect the battery ground cable and wait at least one minute.
  21. Remove the restraint system diagnostic tool from the passenger air bag module electrical connector.

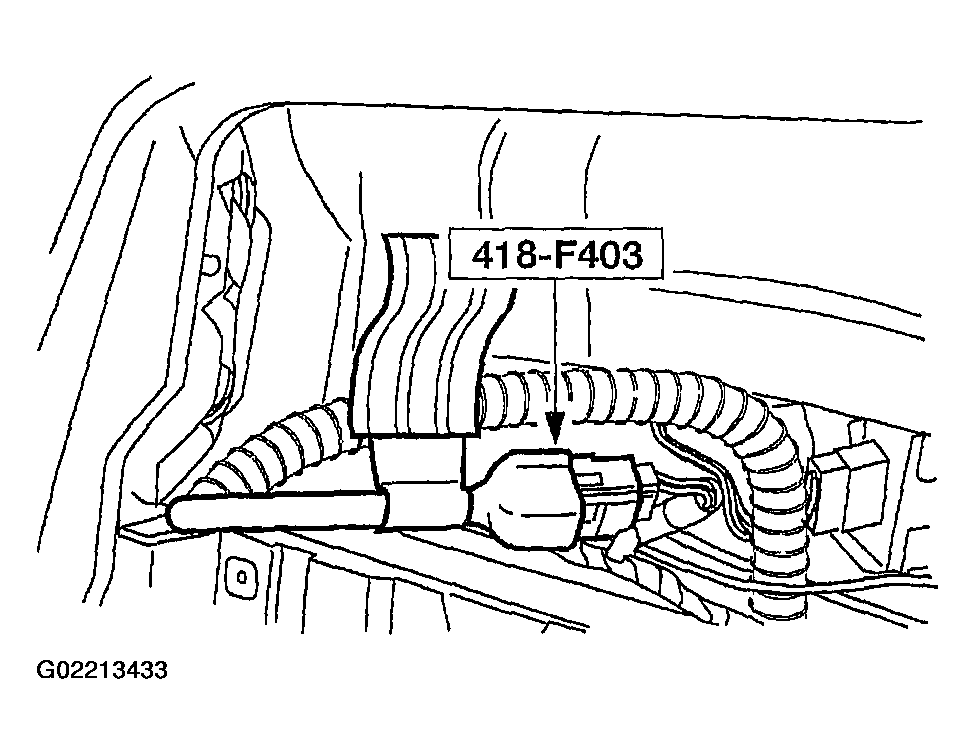

    Fig 17: Removing Restraint System Diagnostic Tool From Passenger Air Bag Module Electrical Connector
    G02213433Courtesy of FORD MOTOR CO.
  22. Make sure the J-clips on the back of the passenger air bag module are fully seated into the slots.
  23. Position the passenger air bag module to the instrument panel. Connect the passenger air bag module electrical connector.

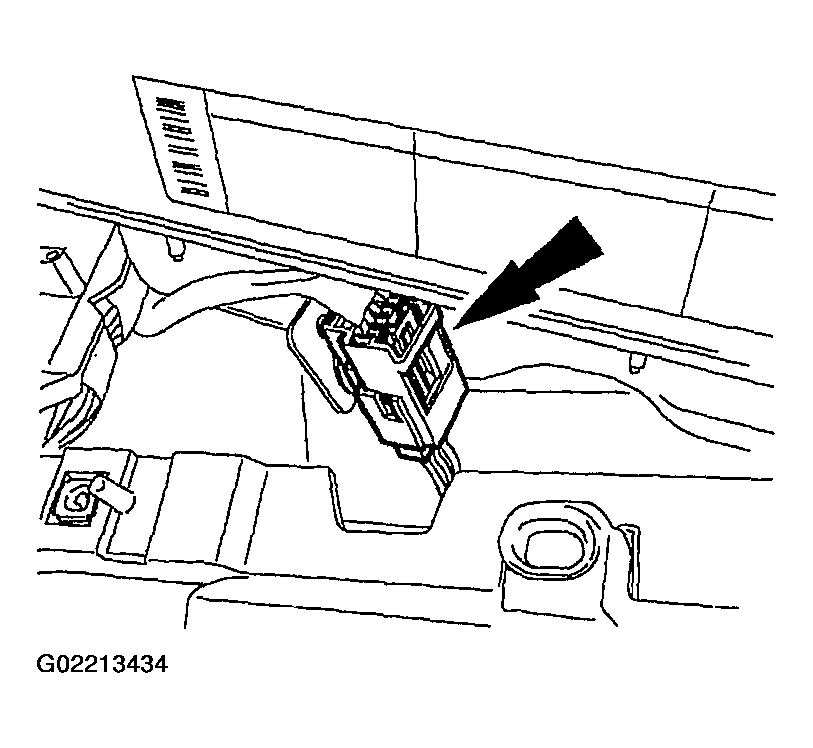

    Fig 18: Positioning Passenger Air Bag Module To Instrument Panel
    G02213434Courtesy of FORD MOTOR CO.
  24. Install the passenger air bag module into the instrument panel.
    1. Install the passenger air bag module into the instrument panel.
    2. Install the bolts.

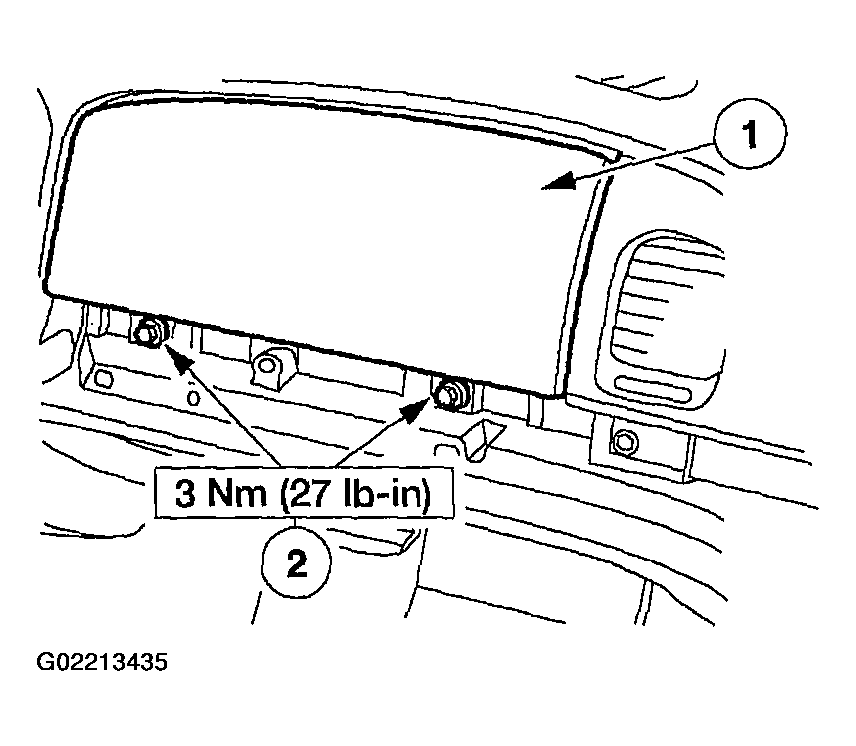

      Fig 19: Installing Passenger Air Bag Module Into Instrument Panel
      G02213435Courtesy of FORD MOTOR CO.
  25. Through the glove compartment opening, install the passenger air bag module bolts.

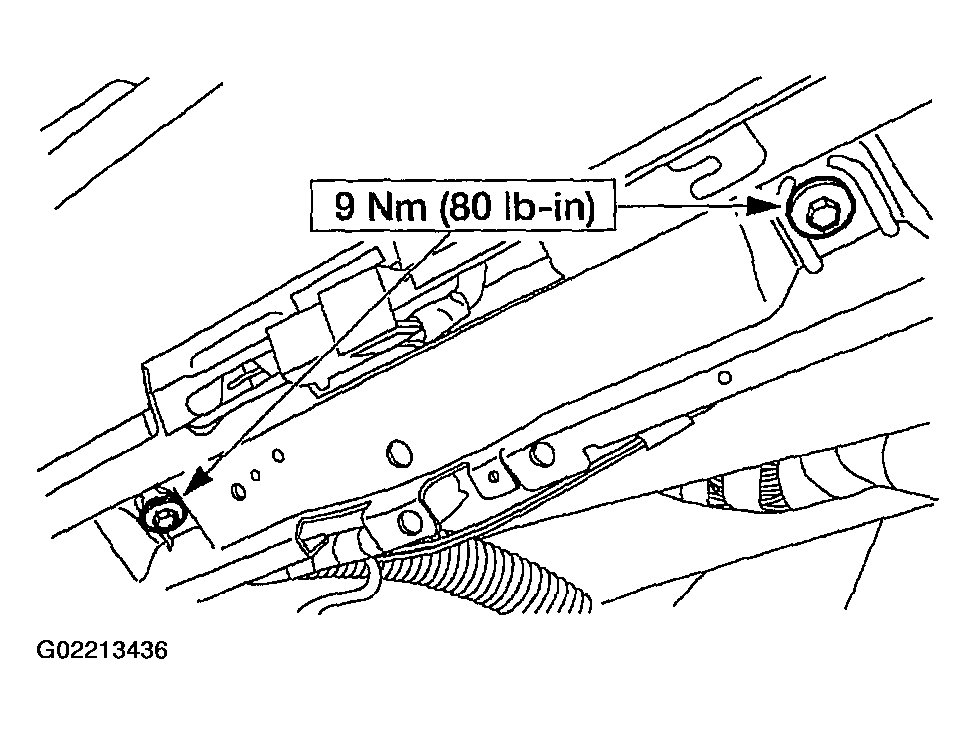

    Fig 20: Installing Passenger Air Bag Module Bolts
    G02213436Courtesy of FORD MOTOR CO.
  26. Install the trim panel.
    1. Connect the rear window defrost switch electrical connector.
    2. Connect the clock electrical connector.
    3. Align the retaining clips, slide the trim panel to the left and push in, seating the retaining clips.

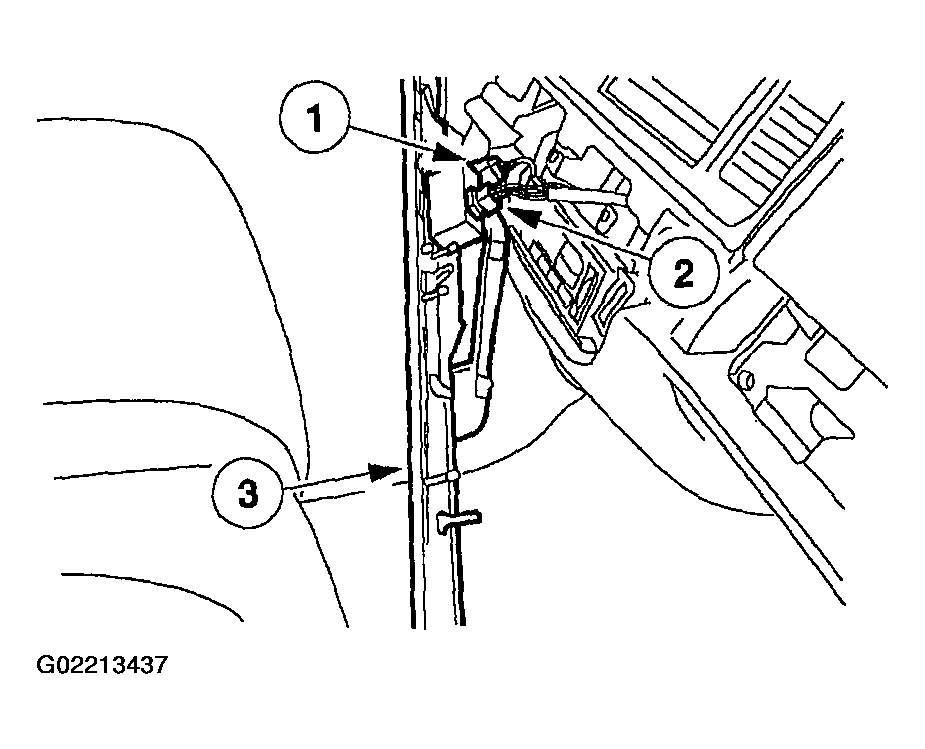

      Fig 21: Connecting Rear Window Defrost Switch Electrical Connector And Clock Electrical Connector
      G02213437Courtesy of FORD MOTOR CO.
  27. Connect the glove compartment isolator. Close the glove compartment.
  28. Remove the restraint system diagnostic tool from the clockspring electrical connector.

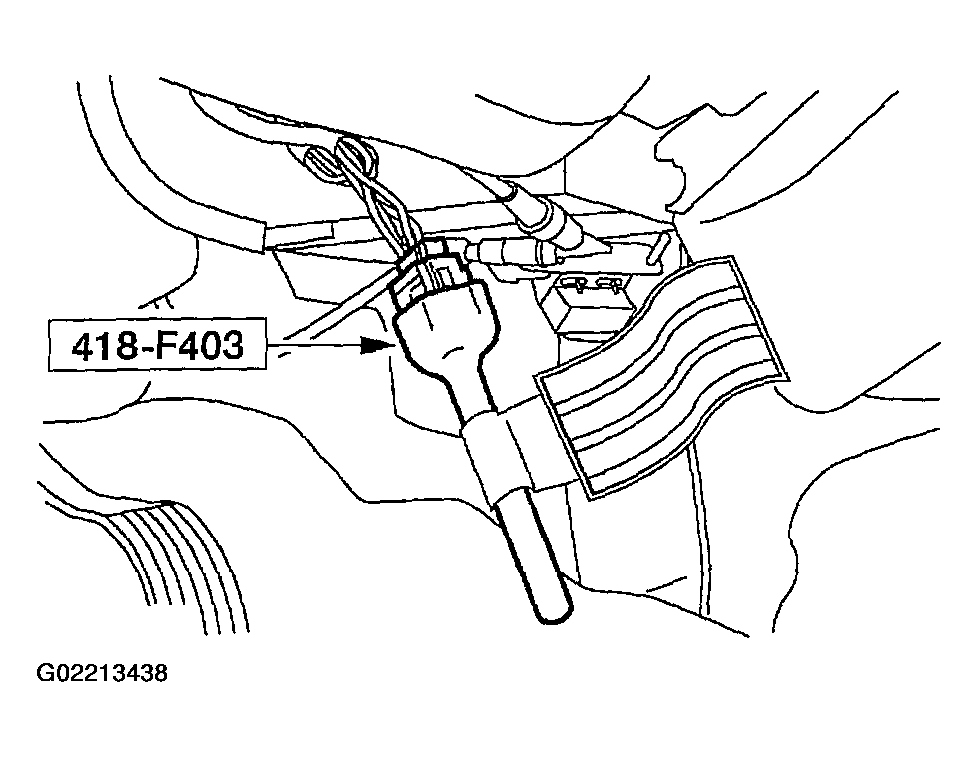

    Fig 22: Removing Restraint System Diagnostic Tool From Clockspring Electrical Connector
    G02213438Courtesy of FORD MOTOR CO.
  29. Connect the clockspring electrical connector at the base of the steering column.

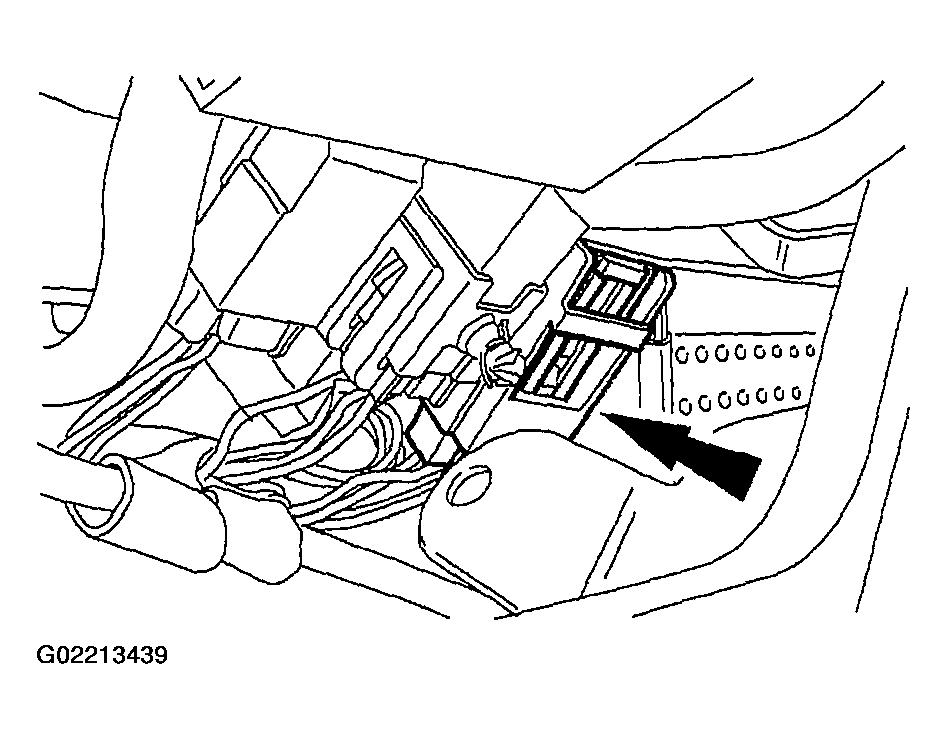

    Fig 23: Connecting Clockspring Electrical Connector At Base Of Steering Column
    G02213439Courtesy of FORD MOTOR CO.
  30. Install the LH lower instrument panel insulator.
    1. Install the courtesy lamp.
    2. Slide the LH lower instrument panel insulator into the front retaining bracket (not shown).
    3. Install the pin-type retainers.

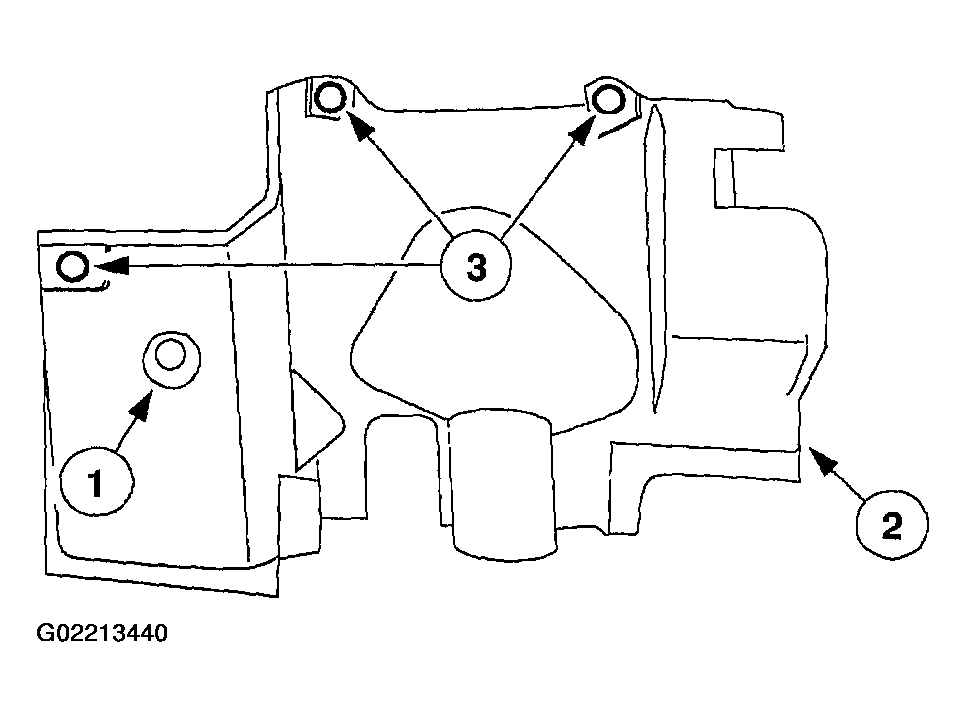

      Fig 24: Installing LH Lower Instrument Panel Insulator
      G02213440Courtesy of FORD MOTOR CO.
  31. Position the steering column opening lower reinforcement. Install the bolts.

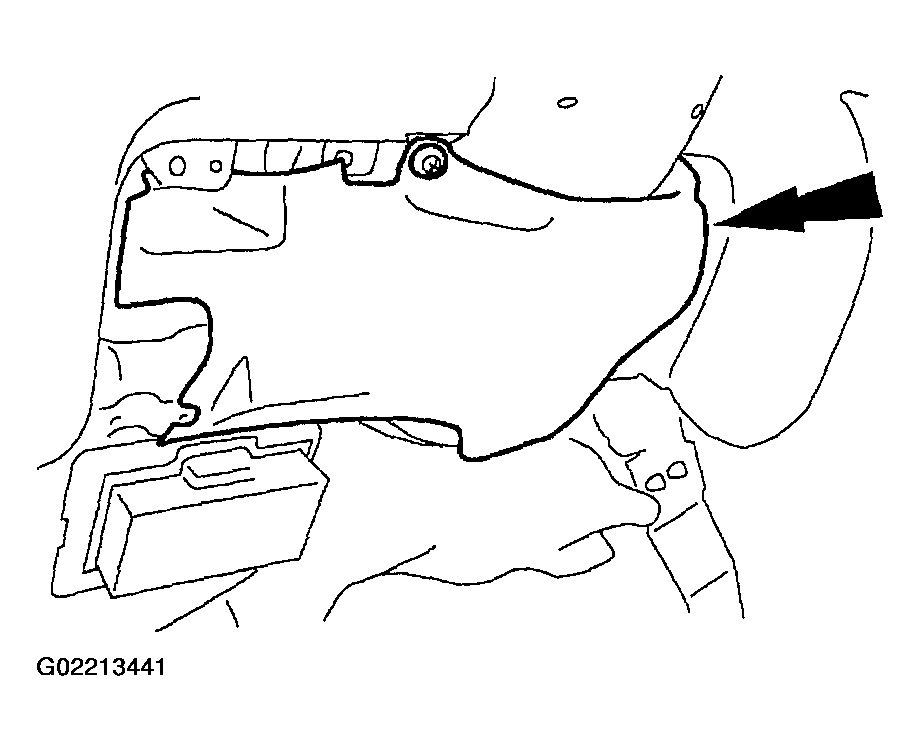

    Fig 25: Positioning Steering Column Opening Lower Reinforcement
    G02213441Courtesy of FORD MOTOR CO.
  32. Install the steering column opening lower finish panel.
    1. Align the steering column opening lower finish panel and push in, seating the retaining clips.
    2. Position the parking brake release assembly.
    3. Install the screws.

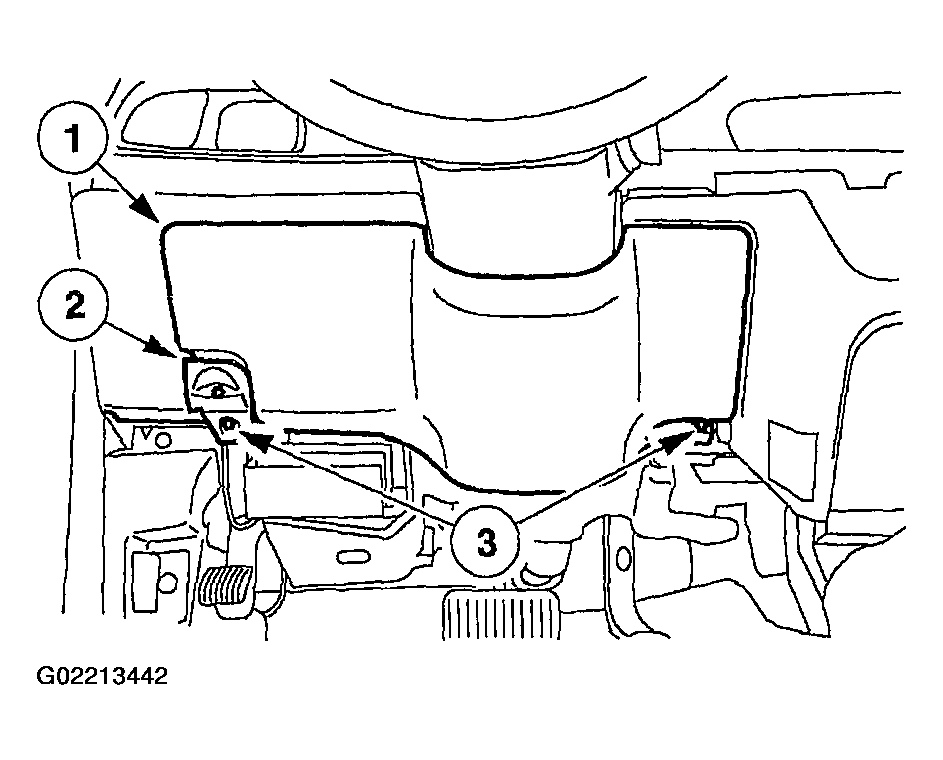

      Fig 26: Installing Steering Column Opening Lower Finish Panel
      G02213442Courtesy of FORD MOTOR CO.
  33. Connect the battery ground cable.
    34. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  34. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  35. Check the active restraint system for correct operation.
