Removal and Installation

NOTE: Driver side shown, passenger side similar.
  1. Move the seat fully forward.
  2. Remove the rear front seat track covers (17016).
    Fig 1: Removing Rear Front Seat Track Covers
    G02213443Courtesy of FORD MOTOR CO.
  3. Remove the nuts.

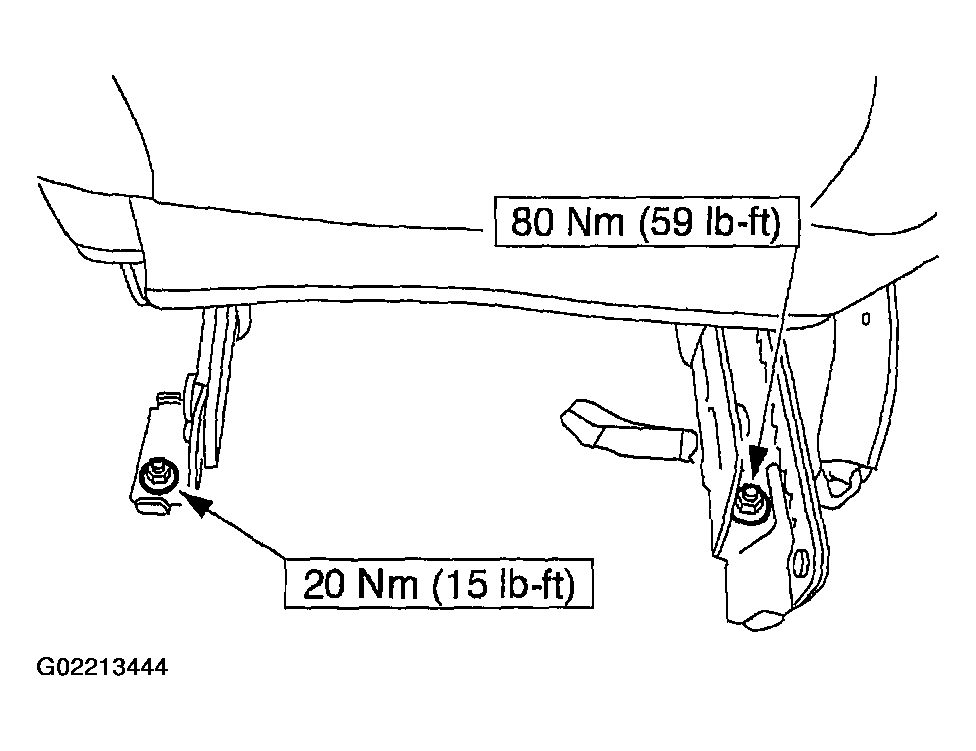

    Fig 2: Removing Nuts
    G02213444Courtesy of FORD MOTOR CO.
  4. Move the seat fully rearward.
  5. Remove the seat track front covers (61748).

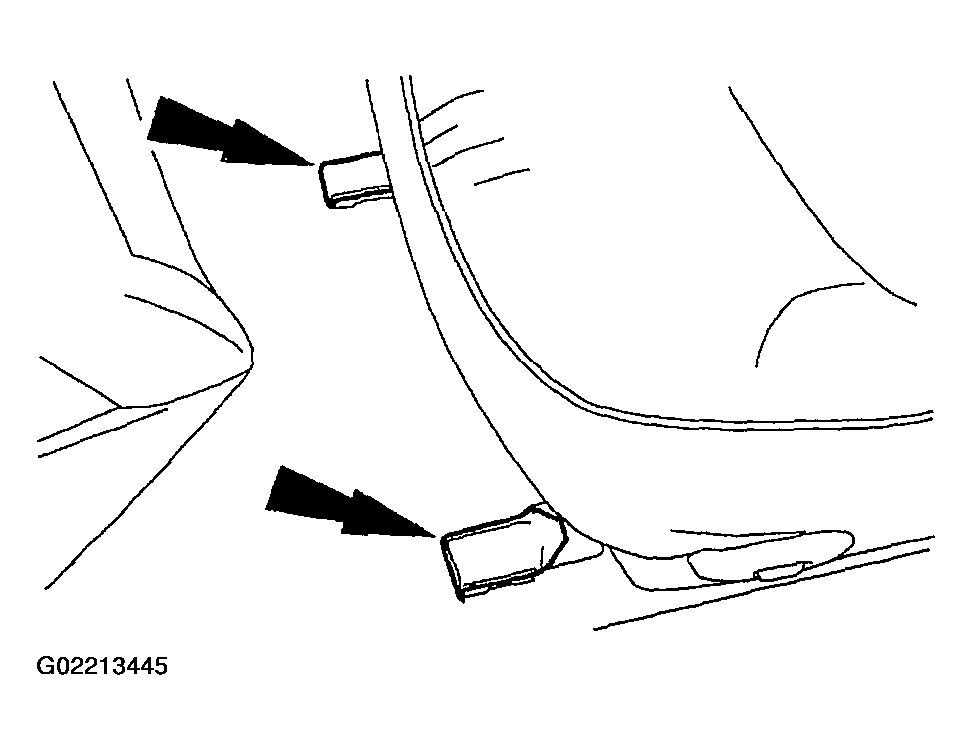

    Fig 3: Removing Seat Track Front Covers
    G02213445Courtesy of FORD MOTOR CO.
  6. Remove the bolts.

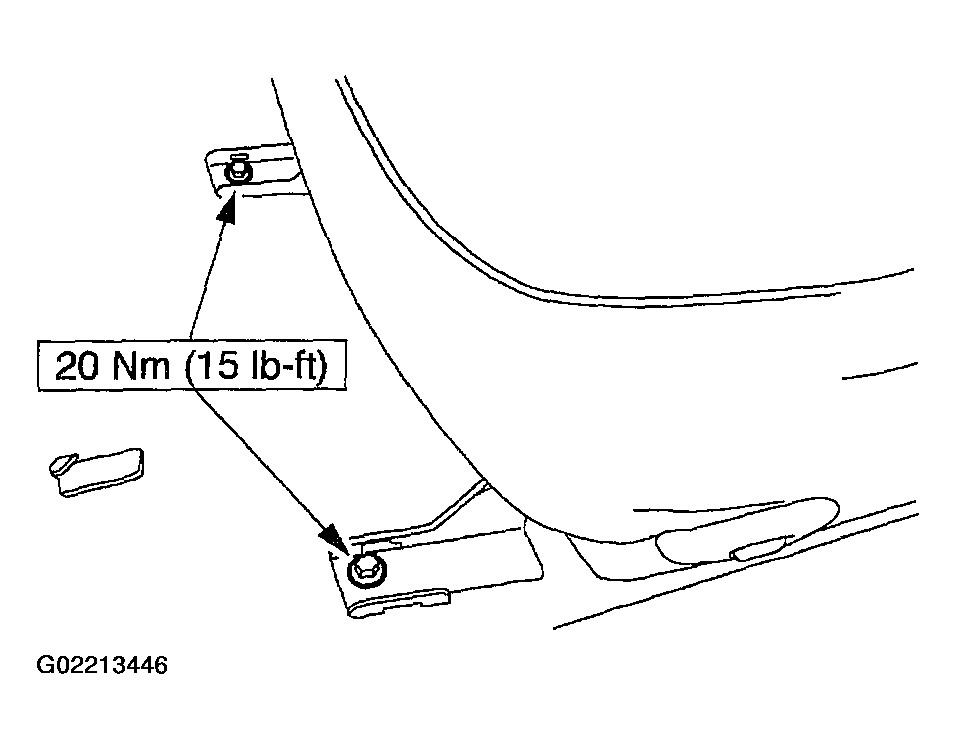

    Fig 4: Removing Bolts
    G02213446Courtesy of FORD MOTOR CO.
  7. Disconnect the battery (14301).
  8. Disconnect the electrical connector.

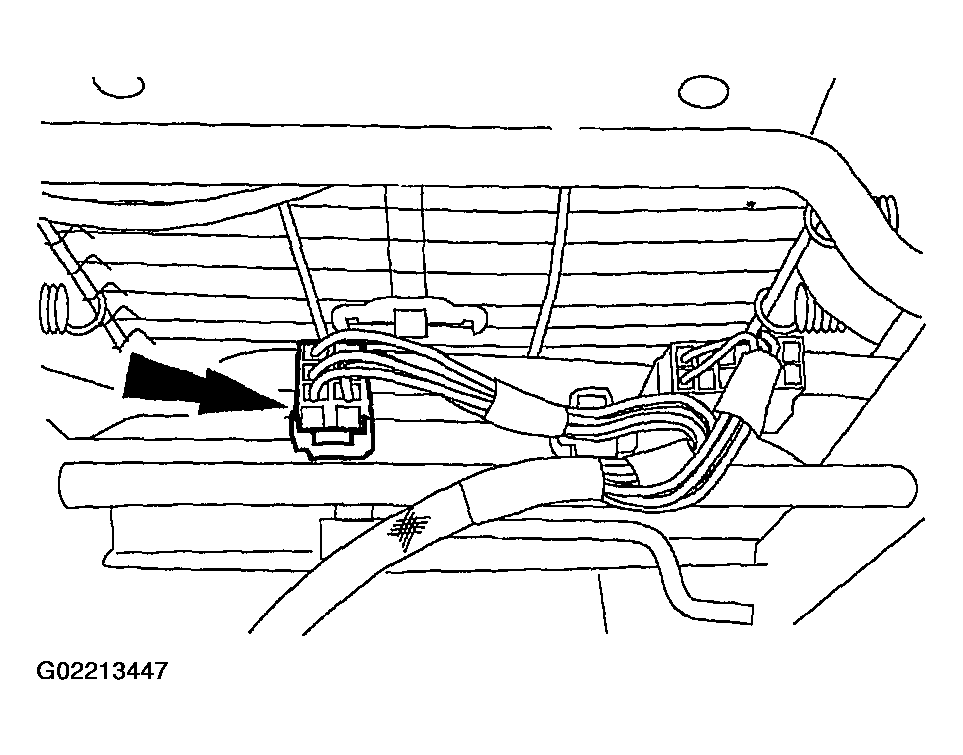

    Fig 5: Disconnecting Electrical Connector
    G02213447Courtesy of FORD MOTOR CO.
    9. CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.
  9. Remove the seat from the vehicle.
  10. To install, reverse the removal procedure.
  11. Check the active restraint system for correct operation.
