Removal & Installation

Disconnect the front anti-lock brake sensor electrical connector.

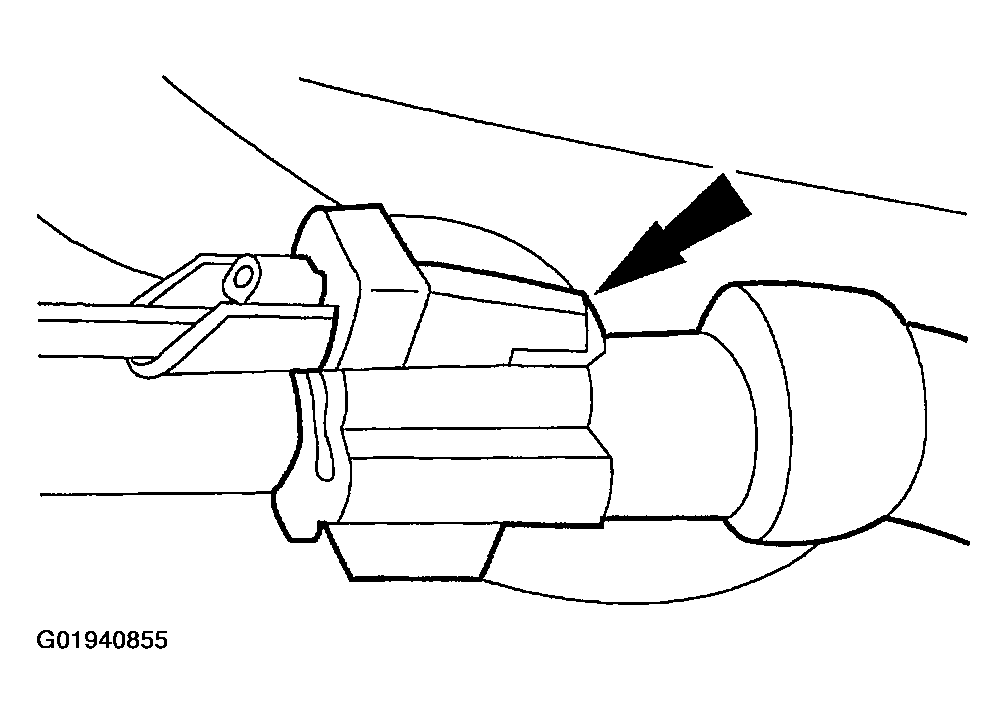

Fig 1: Identifying Front Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. For additional information, refer to Section
Remove the routing clips.

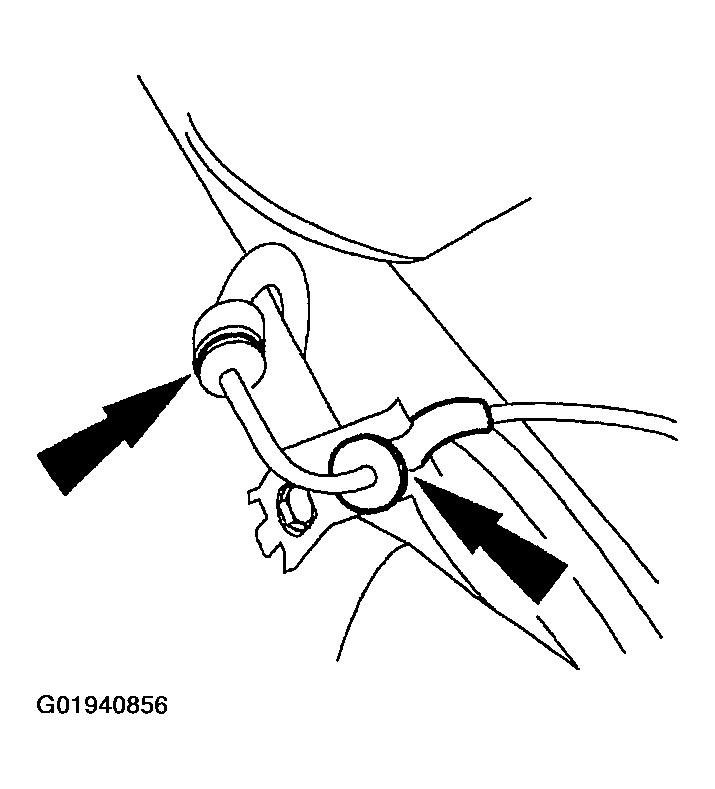

Fig 2: Identifying Front Routing Clips
Courtesy of FORD MOTOR CO.
Remove the front anti-lock brake sensor.
1. Remove the.
2. Remove the sensor.

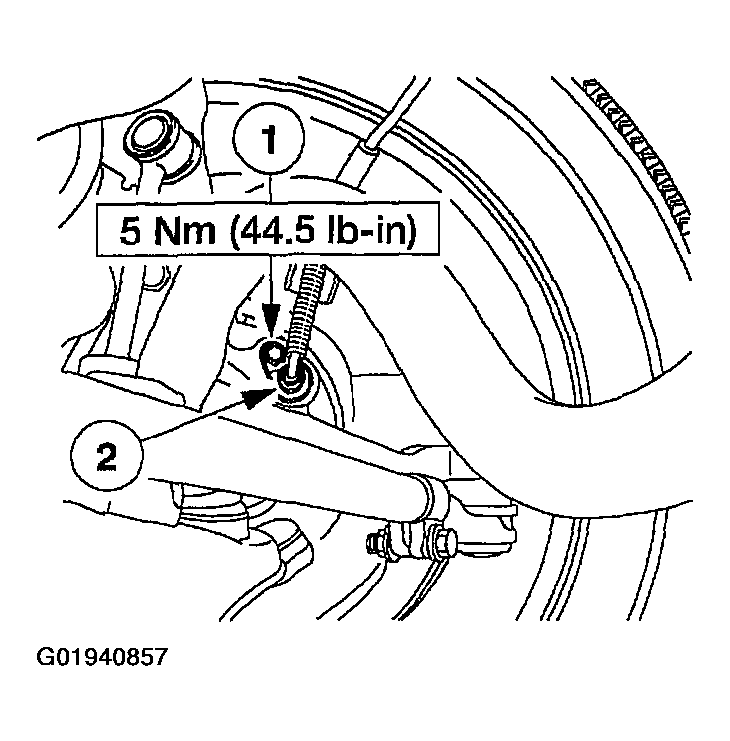

Fig 3: Identifying Front Anti-Lock Brake Sensor Bolt & Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
