Removal and Installation

  1. Disconnect the battery (14301).
  2. Remove the cover.

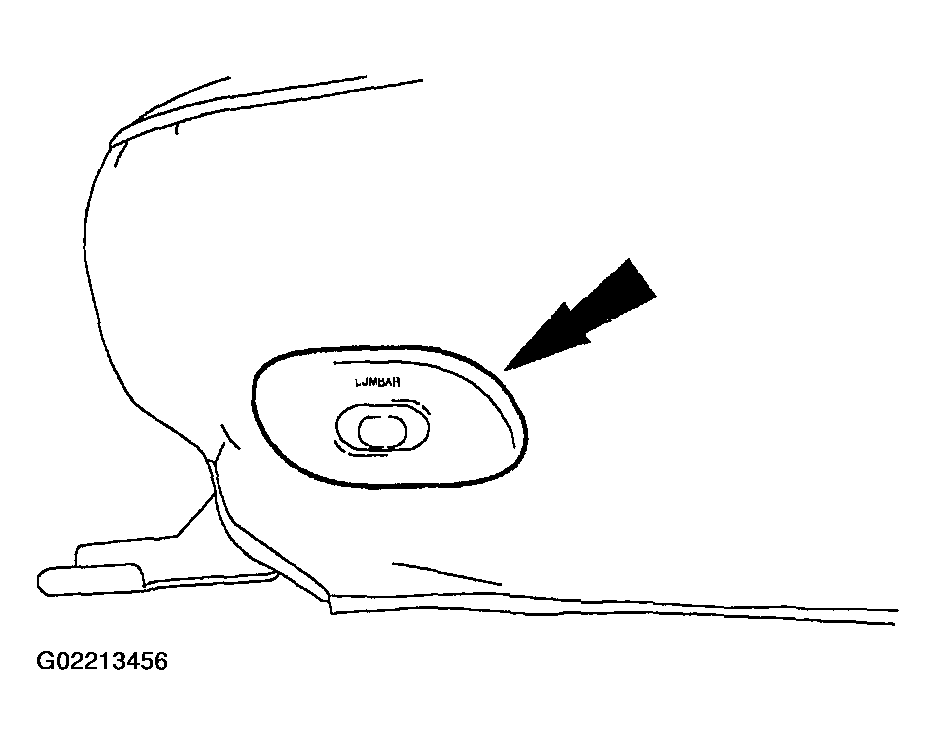

    Fig 1: Removing Cover
    G02213456Courtesy of FORD MOTOR CO.
  3. Disconnect the lumbar control switch electrical connector. Remove the lumbar control switch.

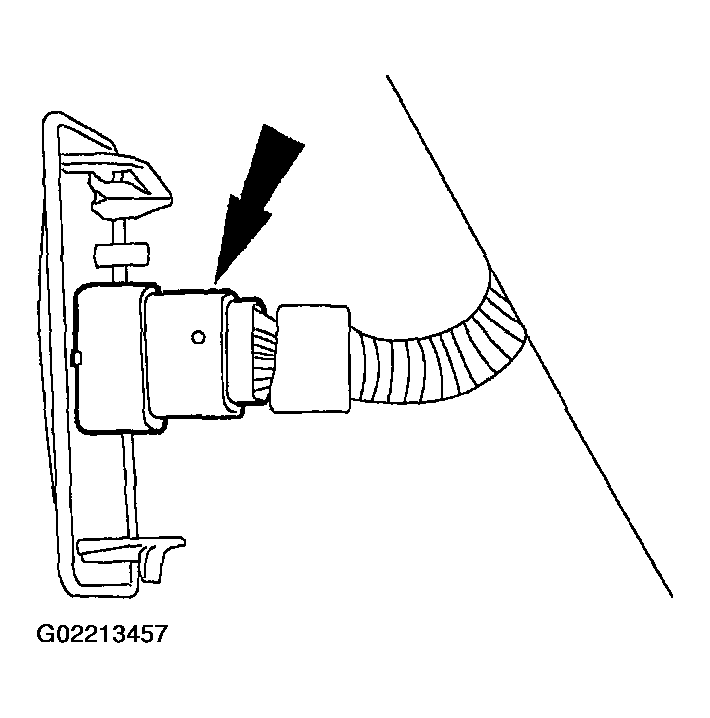

    Fig 2: Removing Lumbar Control Switch
    G02213457Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
