Removal & Installation (Front Door)
NOTE:
Ensure not to enlarge sheet metal holes in door inner panel when drilling rivets.
- Remove door trim panel and protective shield. See DOOR TRIM PANEL under REMOVAL & INSTALLATION in POWER DOOR LOCKS & TRUNK RELEASE - CROWN VICTORIA & GRAND MARQUIS article.

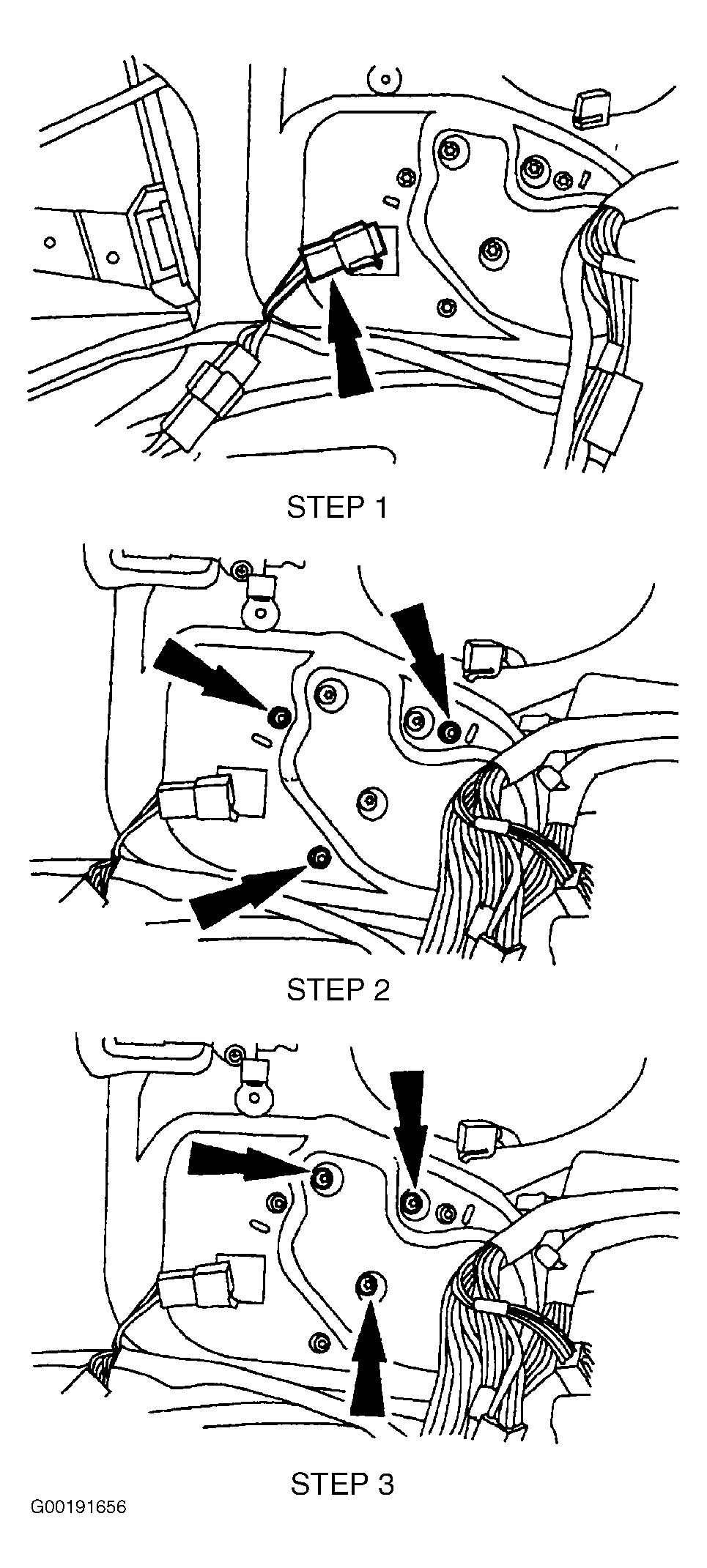

- Place window glass in full up position and tape window in place. Disconnect negative battery cable. Disconnect power window motor harness connector. See STEP 1 in Fig 1.
- Using a 1/4" drill, remove 3 window regulator motor bracket rivets from door. See STEP 2 in Fig 1. Move motor, with drive cables attached, so motor retaining screws can be accessed. Remove power window motor Torx retaining screws. See STEP 3 in Fig 1.
- Separate window motor from window regulator. Remove window motor through access hole in door. To install, reverse removal procedure. Tighten motor-to-regulator bolts to specification. See TORQUE SPECIFICATIONS . Check window glass for correct operation.
