Removal and Installation

  1. Disconnect the battery (14301).
  2. Remove the front door trim panel.
  3. Remove the seat control switch (14A701).
    1. Remove the screws.
    2. Remove the switch.

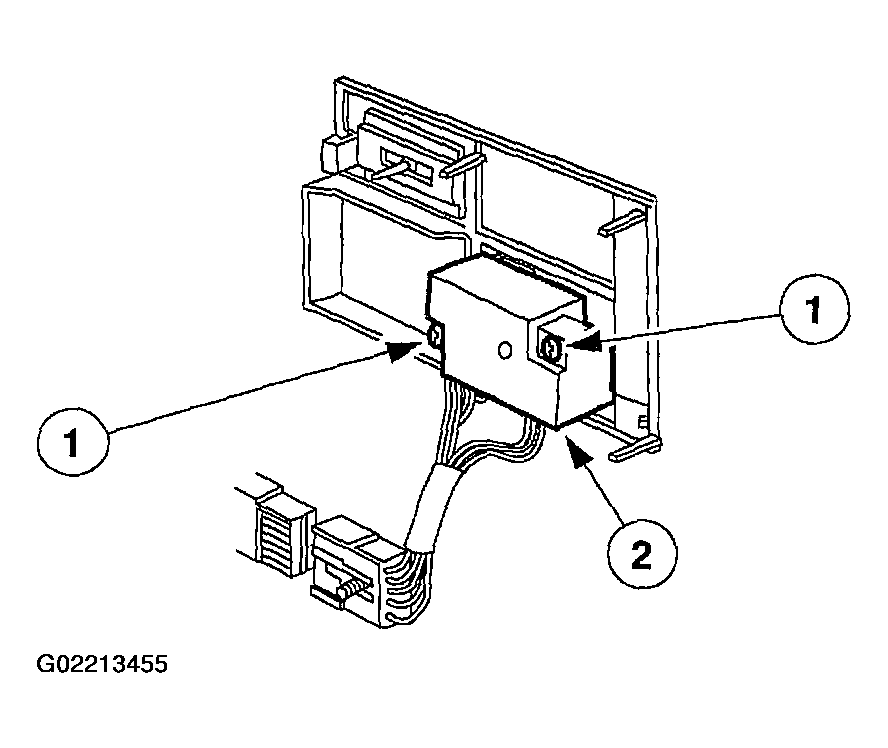

      Fig 1: Removing Seat Control Switch
      G02213455Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
