Pinpoint Test D: Incorrect Oil Pressure Gauge Indication

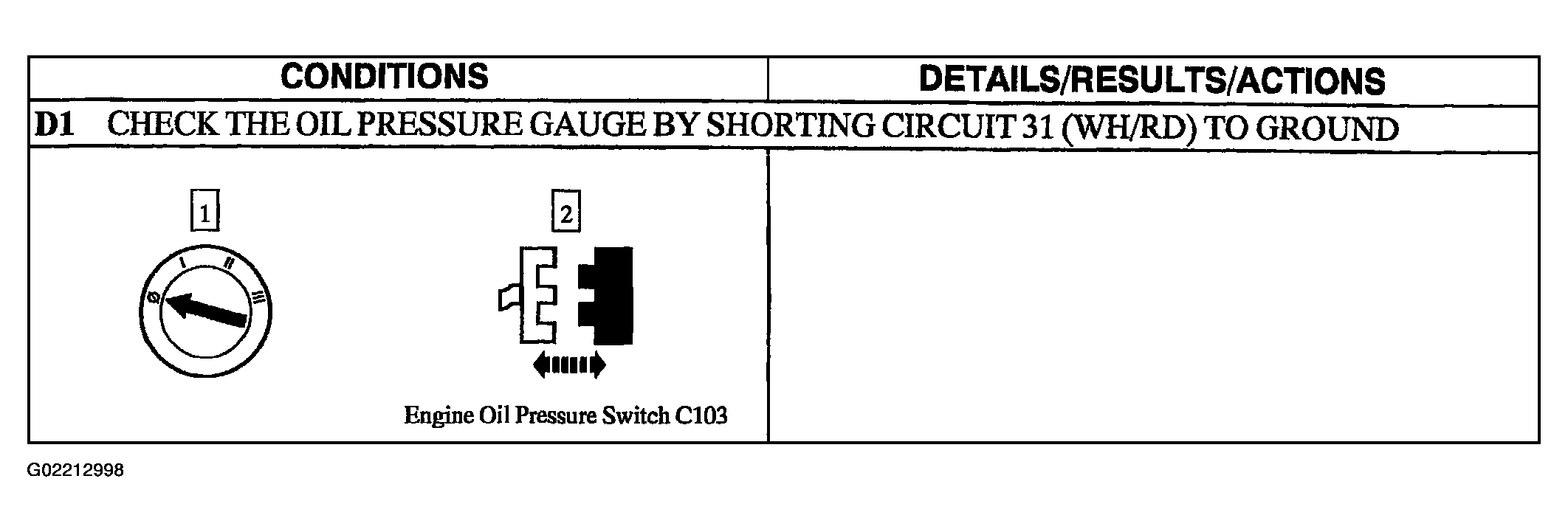

Fig 1: Pinpoint Test D: Incorrect Oil Pressure Gauge Indication (Step D1)
G02212998Courtesy of FORD MOTOR CO.

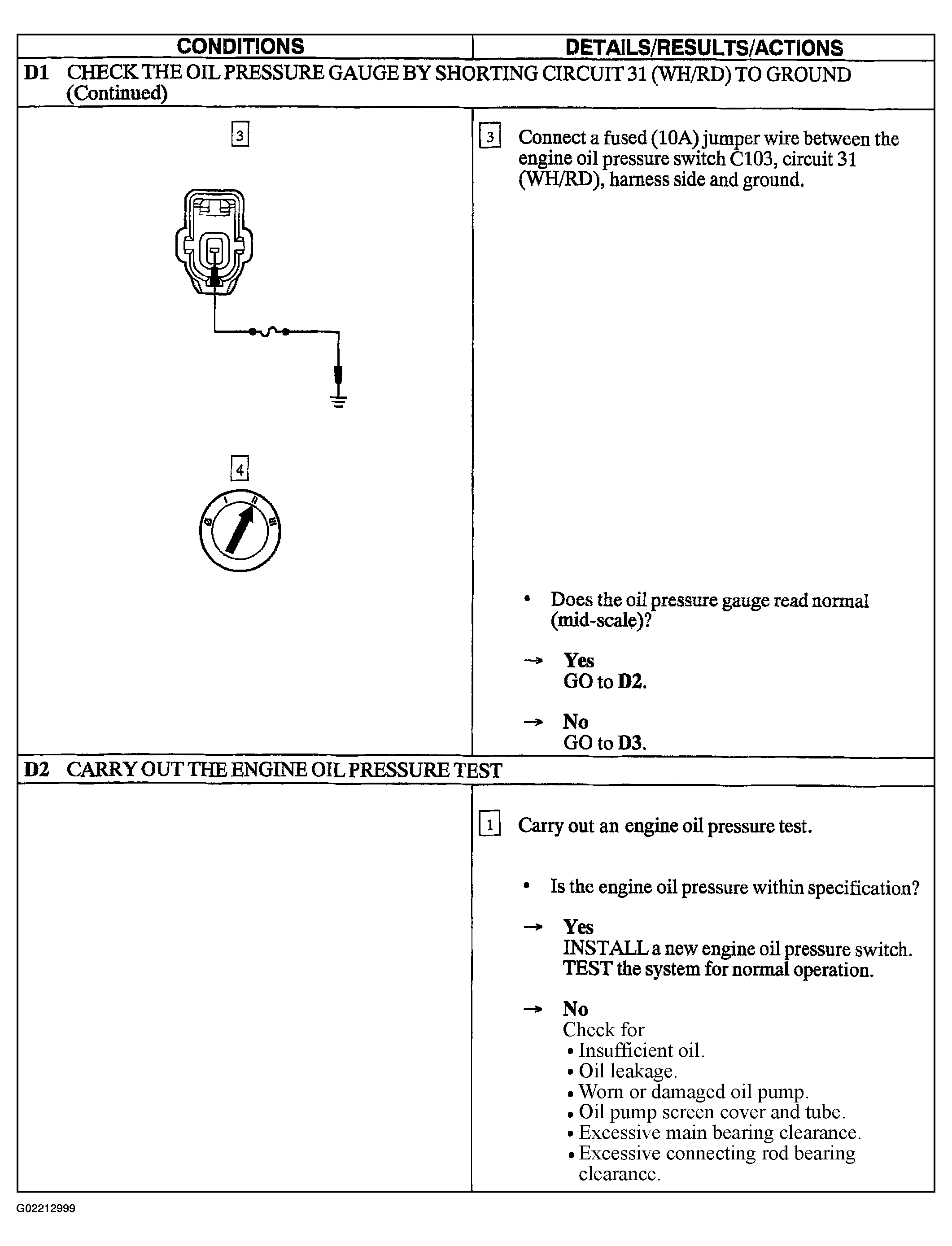

Fig 2: Pinpoint Test D: Incorrect Oil Pressure Gauge Indication (Steps D1 Cont.-D2)
G02212999Courtesy of FORD MOTOR CO.

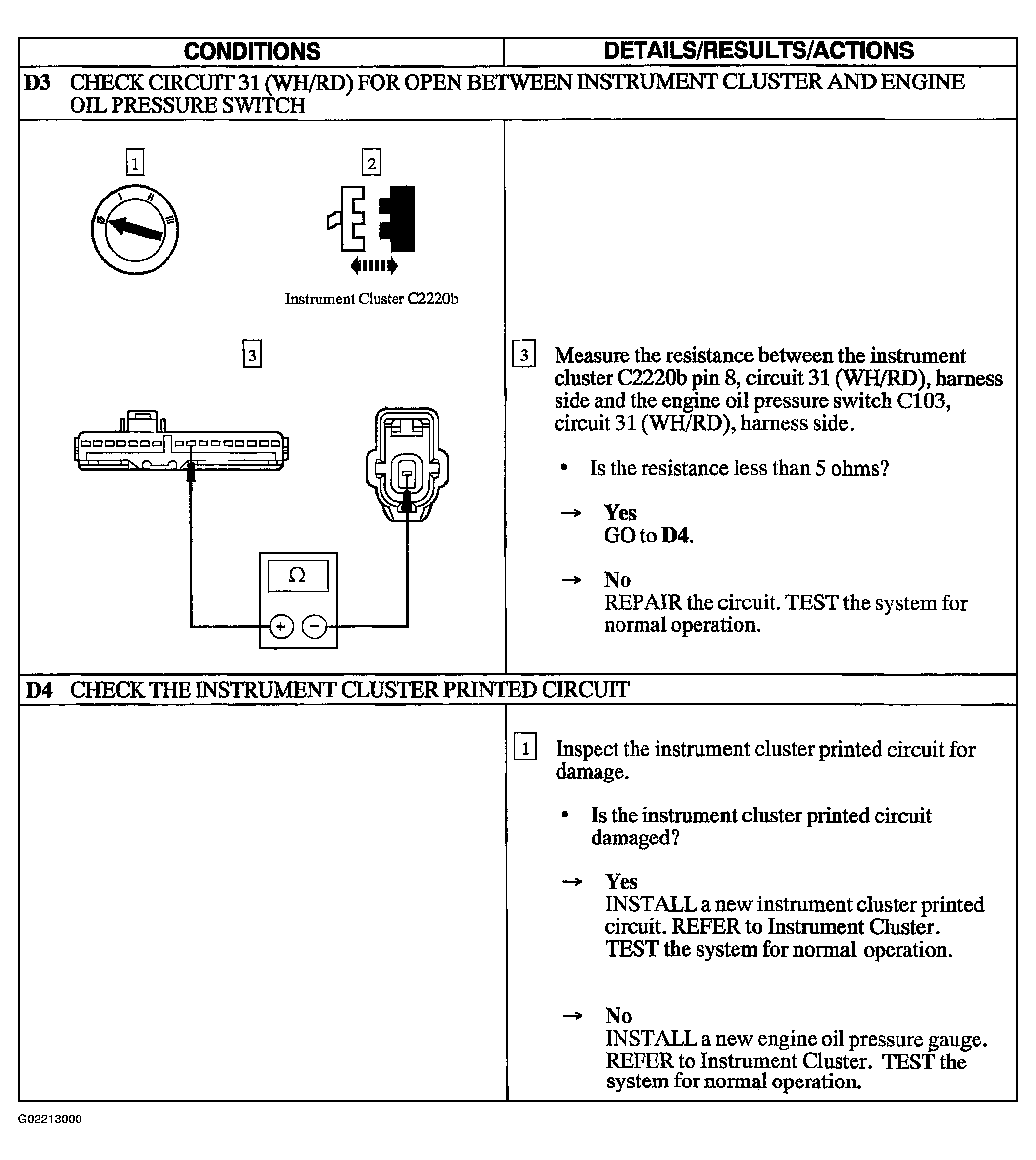

Fig 3: Pinpoint Test D: Incorrect Oil Pressure Gauge Indication (Steps D3-D4)
G02213000Courtesy of FORD MOTOR CO.
