Removal & Installation (Left Front)

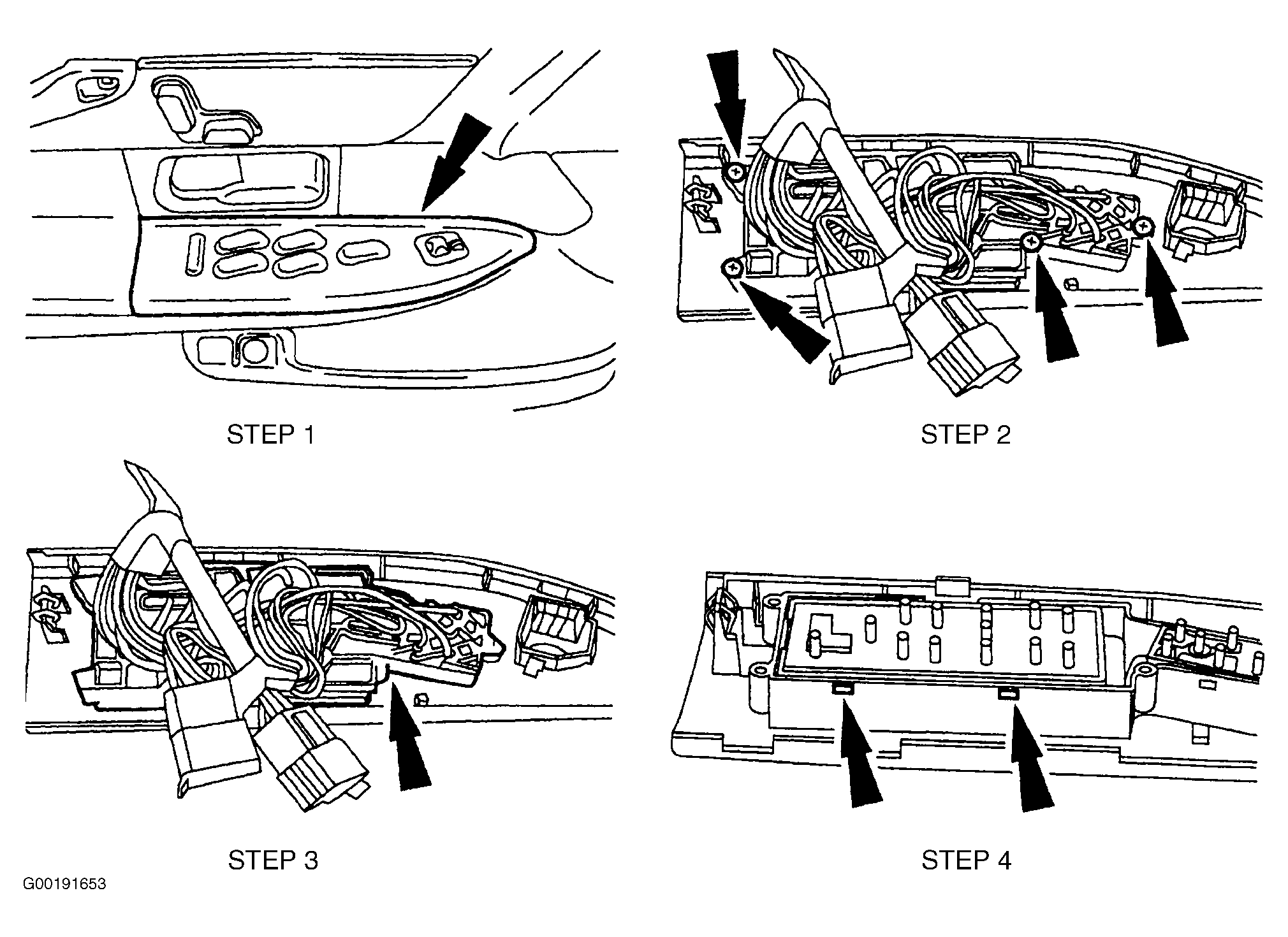

Disconnect negative battery cable. Pry up master power window switch plate, unhook rear edge of housing and remove from armrest. See STEP 1 in Figure. Remove screws from harness connector. See STEP 2 in Figure. Disconnect harness connectors. See STEP 3 in Figure. Pry switch from connector with small screwdriver. See STEP 4 in Figure. To install, reverse removal procedure.
