Pinpoint Test B1681-: Pats Transceiver Signal Is Not Received (Not Connected, Damaged, Or Wiring)

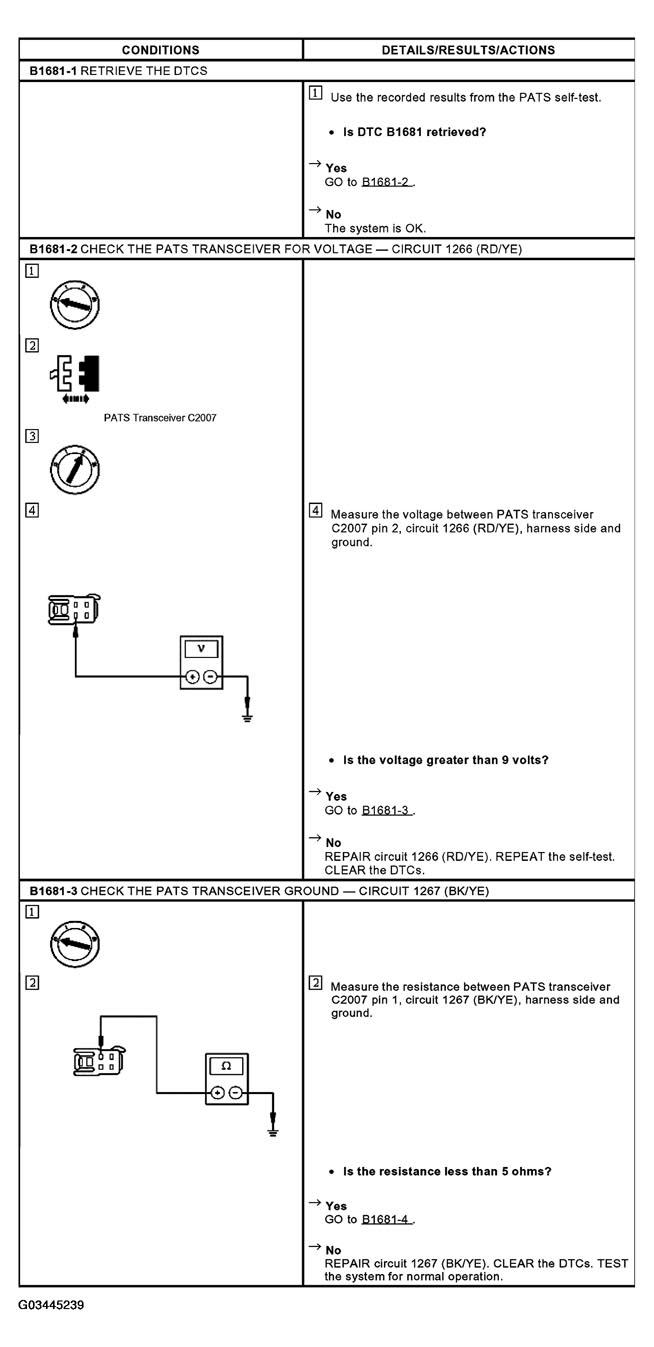

Fig 1: Pinpoint Test B1681-: Pats Transceiver Signal Is Not Received (Not Connected) (Test B1681-1 To 3)

Courtesy of FORD MOTOR CO.

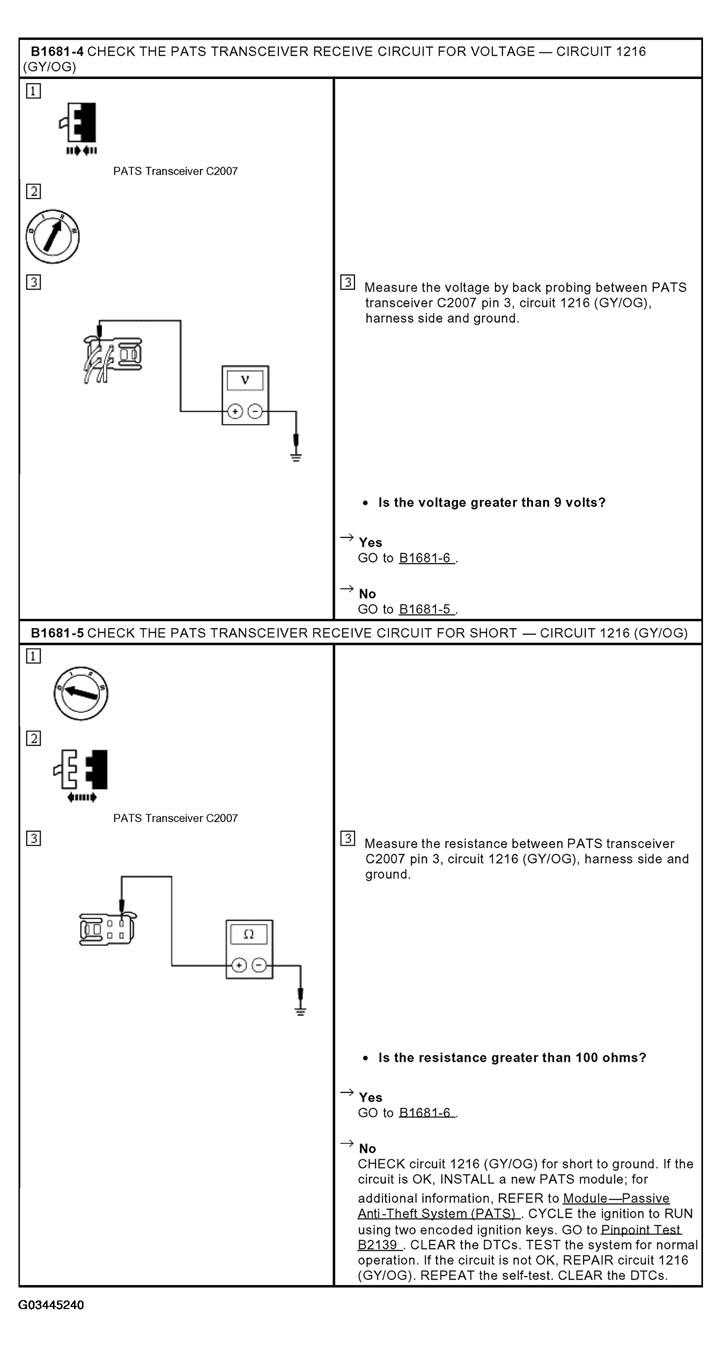

Fig 2: Pinpoint Test B1681-: Pats Transceiver Signal Is Not Received (Not Connected) (Test B1681-4 To 5)

Courtesy of FORD MOTOR CO.

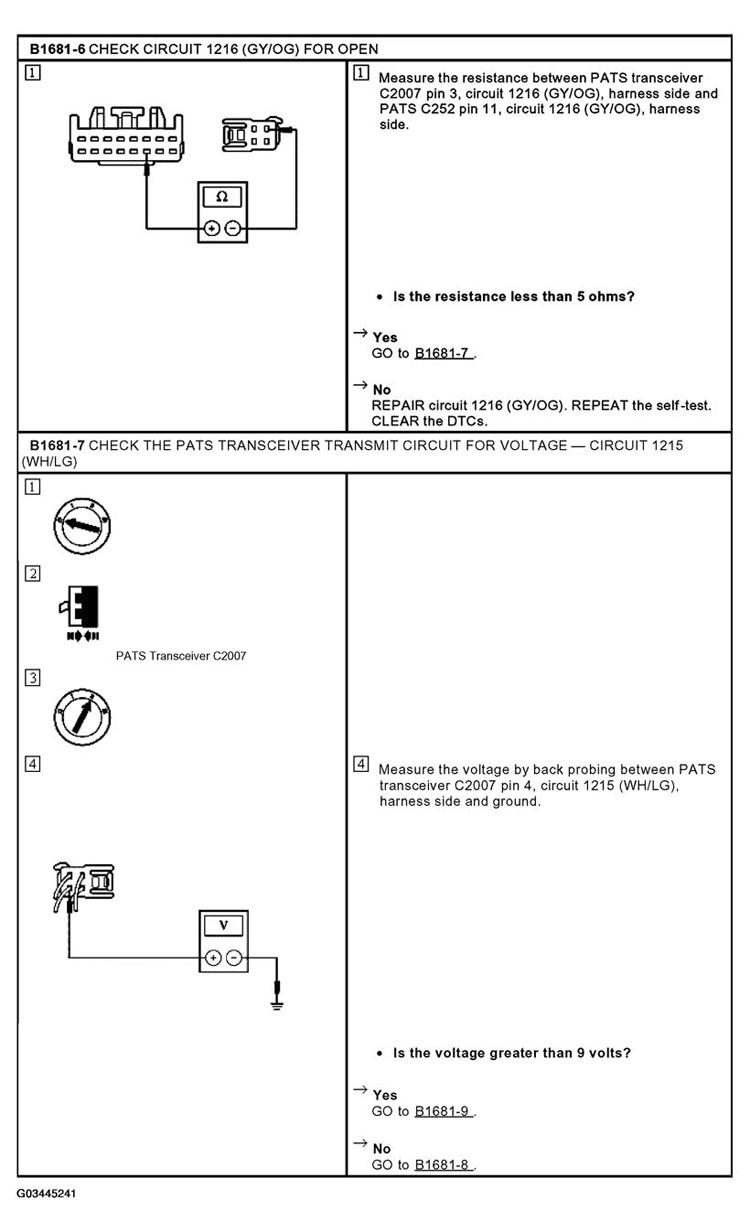

Fig 3: Pinpoint Test B1681-: Pats Transceiver Signal Is Not Received (Not Connected) (Test B1681-6 To 7)

Courtesy of FORD MOTOR CO.

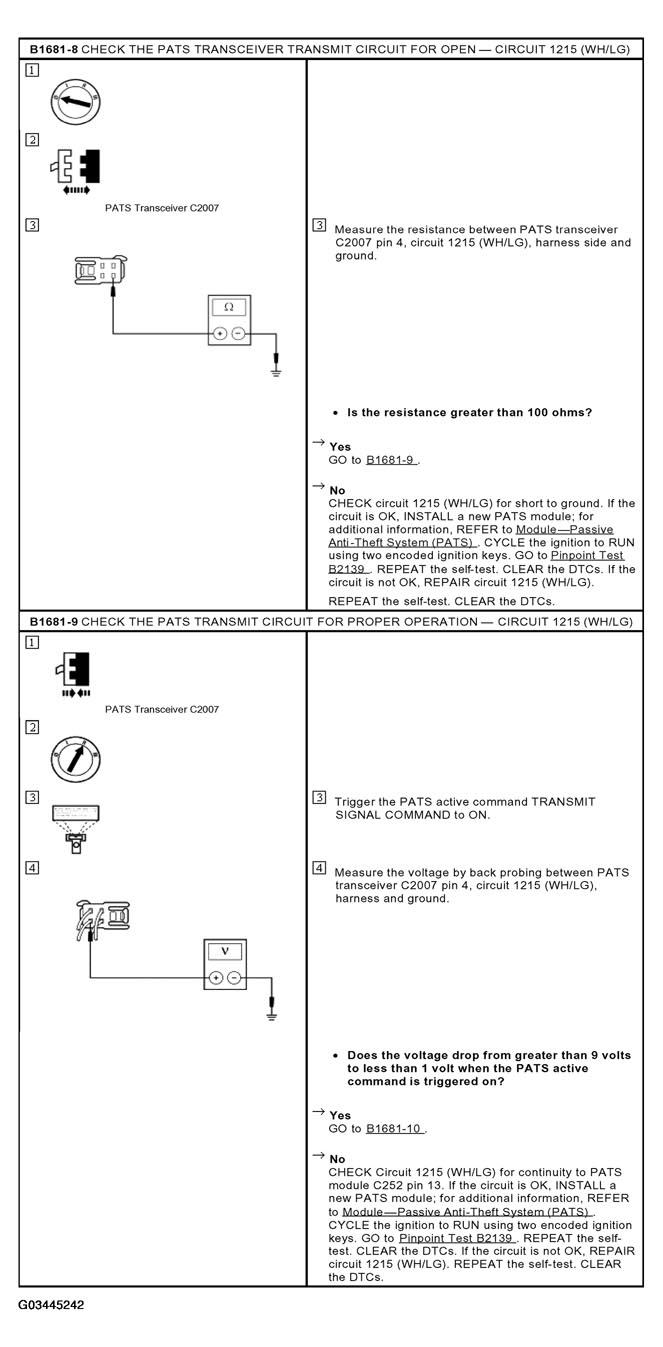

Fig 4: Pinpoint Test B1681-: Pats Transceiver Signal Is Not Received (Not Connected) (Test B1681-8 To 9)

Courtesy of FORD MOTOR CO.

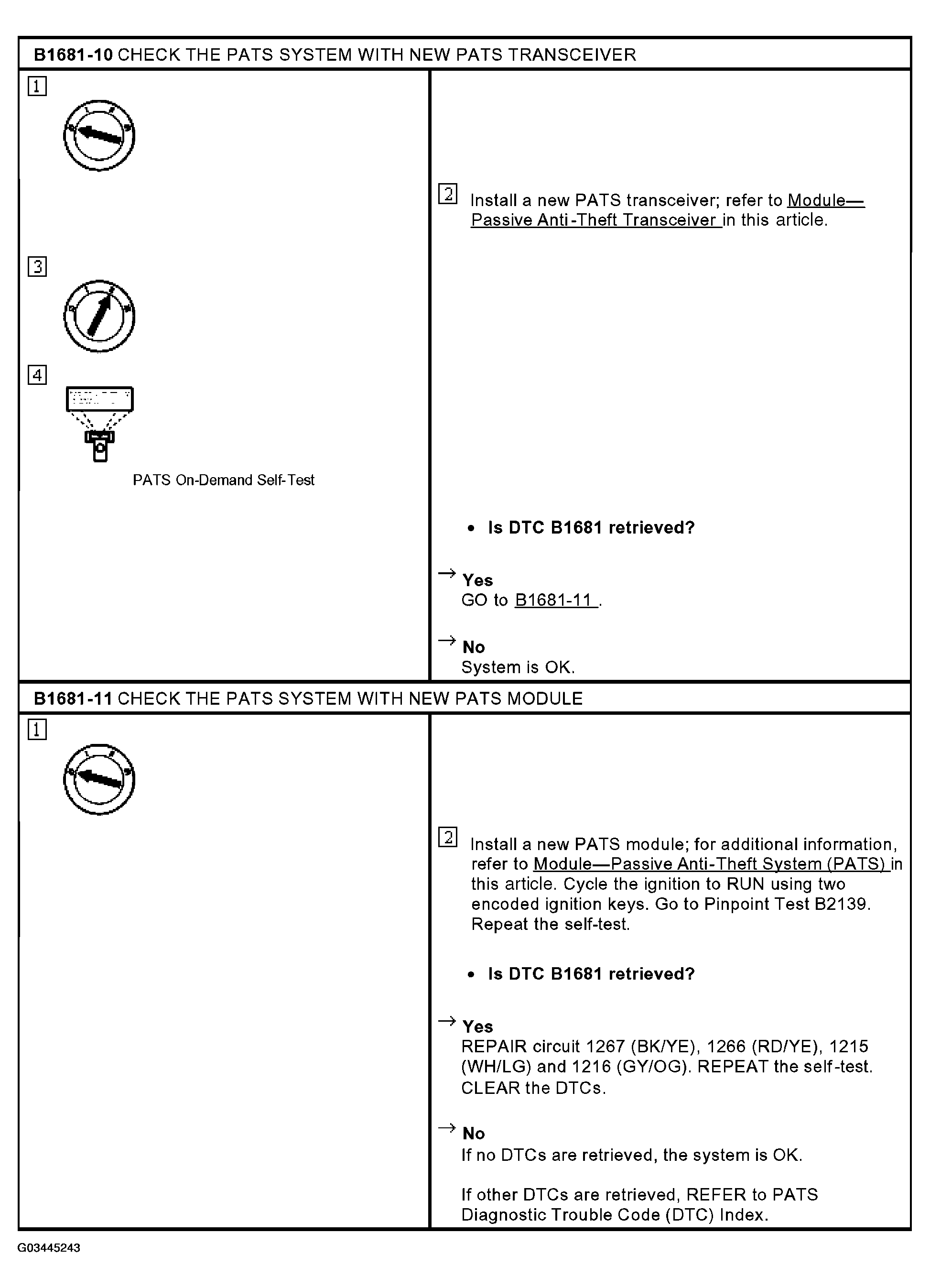

Fig 5: Pinpoint Test B1681-: Pats Transceiver Signal Is Not Received (Not Connected) (Test B1681-10 To 11)

Courtesy of FORD MOTOR CO.
