Pinpoint Test A: No Communication With The Module

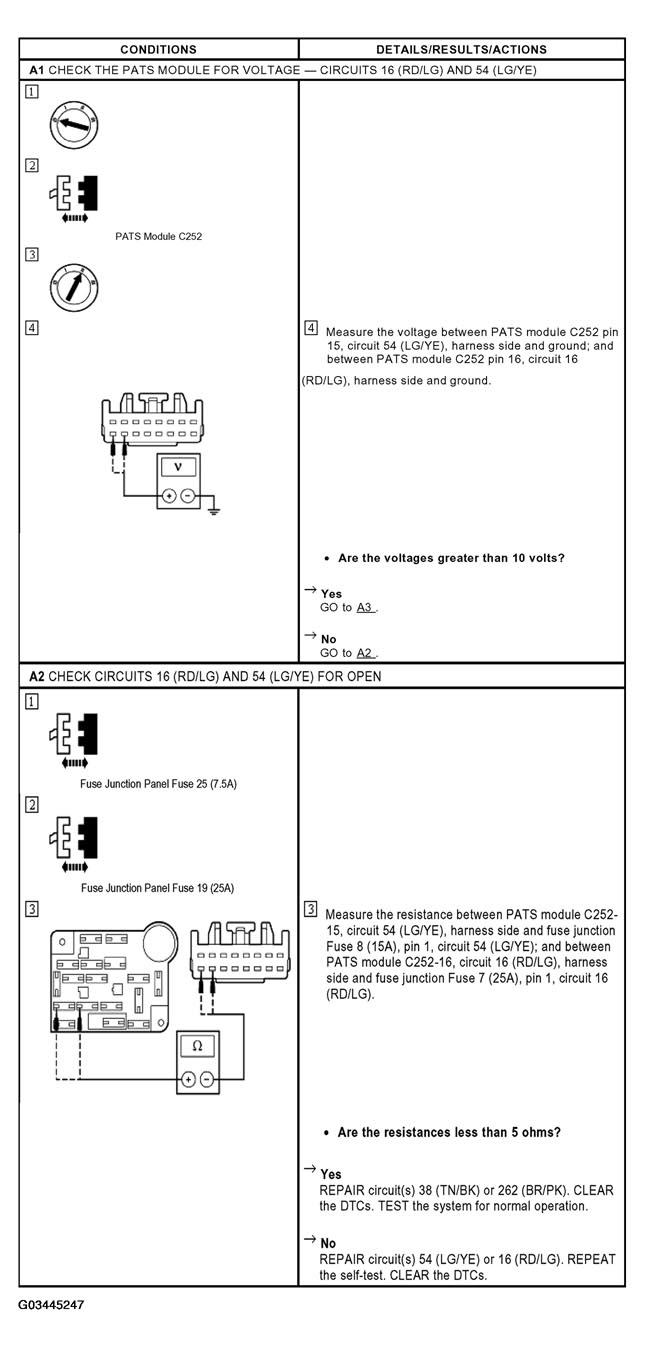

Fig 1: Pinpoint Test A: No Communication With Module (Test A1 - A2)

Courtesy of FORD MOTOR CO.

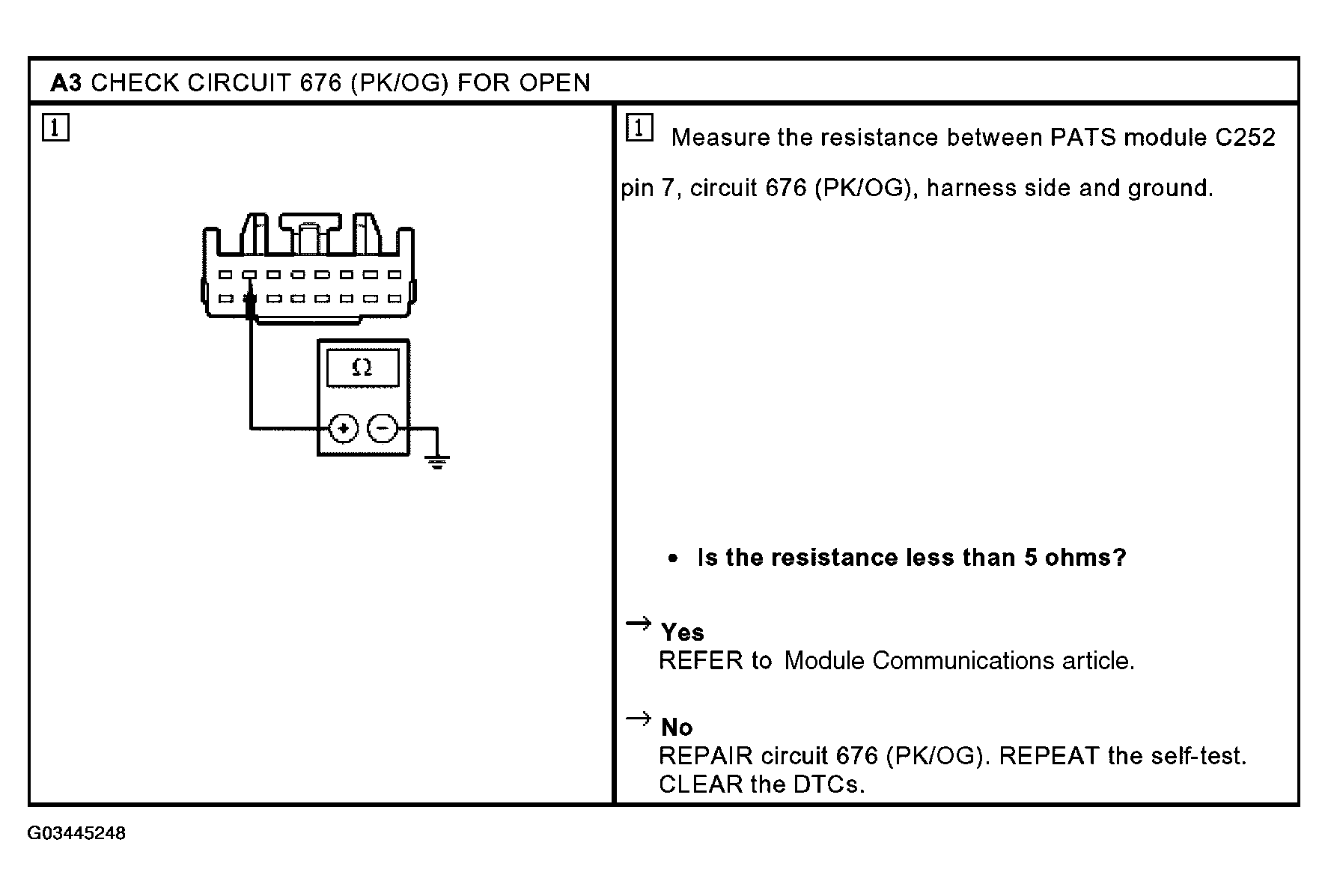

Fig 2: Pinpoint Test A: No Communication With Module (Test A3)

Courtesy of FORD MOTOR CO.
