4R70W - New Service Part - Number 5 Needle Bearing And Race Kit (03-26-1)

Publication date: 2004-01-12
Reference number: 03-26-1

4R70W - NEW SERVICE PART - NUMBER 5 NEEDLE BEARING AND RACE KIT

TECHNICAL SERVICE BULLETIN

Reference Number(s): 03-26-1, Date of Issue: January 12, 2004

FORD:	1994-97 THUNDERBIRD; 1994-2003 CROWN VICTORIA, MUSTANG, E SERIES; 1996-2001 EXPLORER; 1994-2003 F SERIES
LINCOLN:	1994-98 MARK VIII; 1994-2003 TOWN CAR
MERCURY:	1994-97 COUGAR; 1994-2003 GRAND MARQUIS; 1997-2001 MOUNTAINEER

DESCRIPTION

TRANSMISSION - 4R70W - NEW SERVICE PART - NUMBER 5 NEEDLE BEARING AND RACE KIT - SERVICE TIP

ISSUE

Should repairs become necessary on a 4R70W transmission involving replacement of the forward or reverse clutch sun gear, and/or the number five (#5) thrust bearing, these service parts all must be replaced in combination. A mismatch of service parts may cause an internal noise or a loss of forward and/or reverse. A new service kit has been produced to eliminate the mismatch of service parts. This new kit services all 4R70W transmissions built prior to the 2004 model.

ACTION

A new Service Kit 4L3Z-7D234-AA has been produced to eliminate the mismatch of service parts. The kit contains the following:

A new two (2) piece number five (#5) thrust bearing assembly (7D234 bearing and 7D235 race) (Fig 1 )
A forward clutch sun gear (7A399) (Fig 2 )
A reverse sun gear (7A019) (Fig 3 )

SERVICE TIP

To install, refer to the latest version Workshop Manual for disassembly and reassembly of the transmission.

CAUTION: ALL COMPONENTS IN THE KIT MUST BE INSTALLED OR THE REPAIR MAY NOT BE EFFECTIVE AND MAY CAUSE AN INTERNAL NOISE OR LOSS OF FORWARD AND/OR REVERSE.

PARTS INFORMATION

Part Number	Part Name
4L3Z-7D234-AA	Trans Service Kit

WARRANTY INFORMATION

WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage.

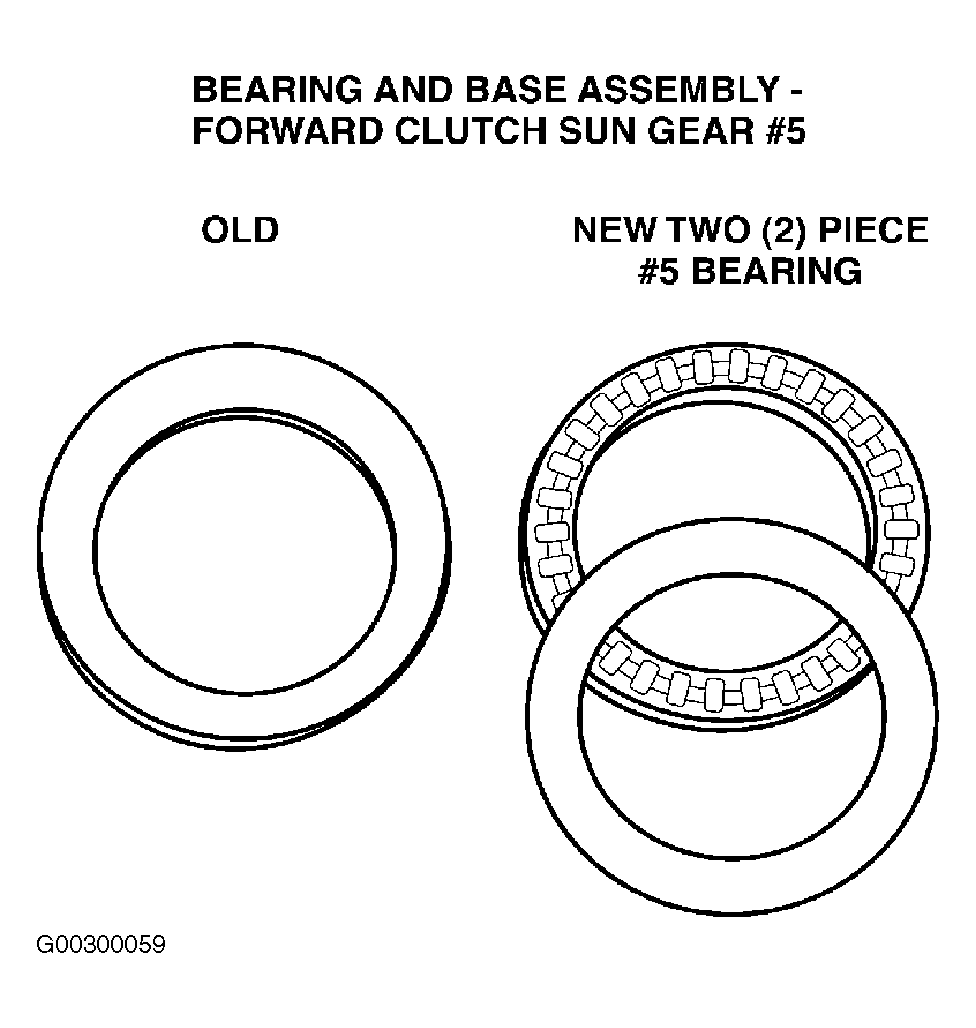

Fig 1: Bearing & Base Assembly - Forward Clutch Sun Gear No. 5

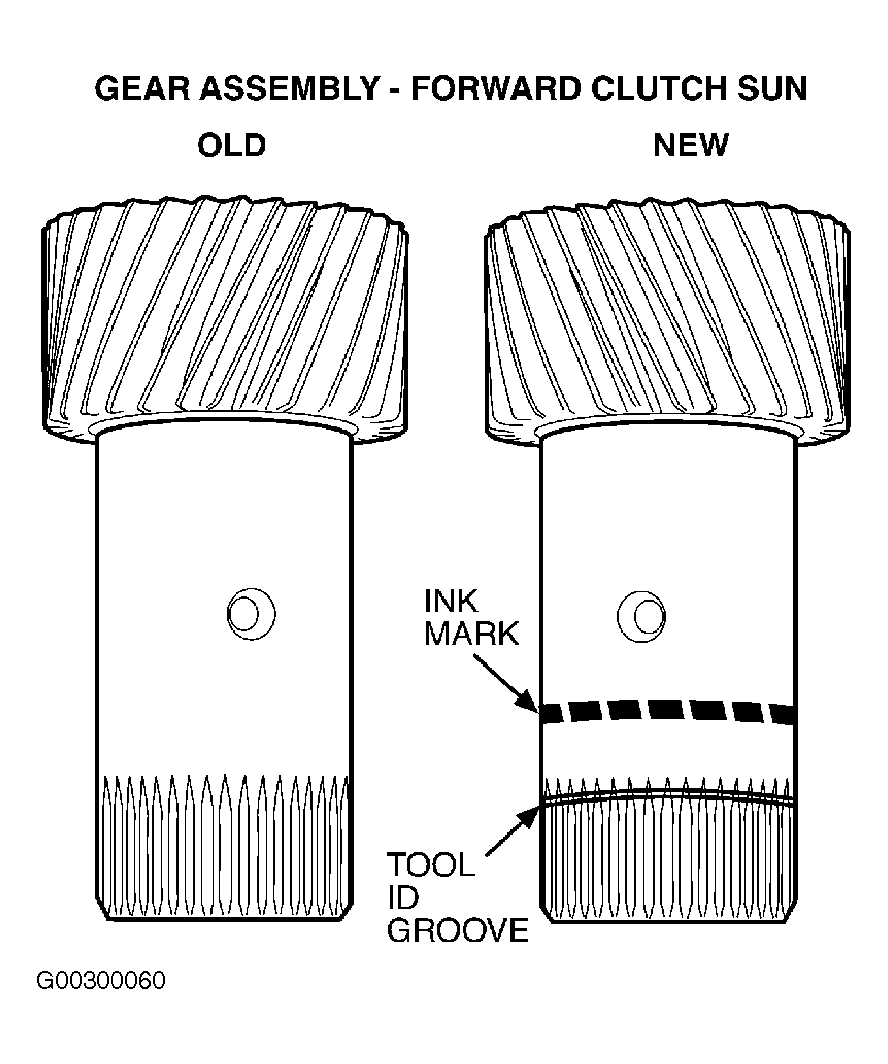

Fig 2: Gear Assembly - Forward Clutch Sun

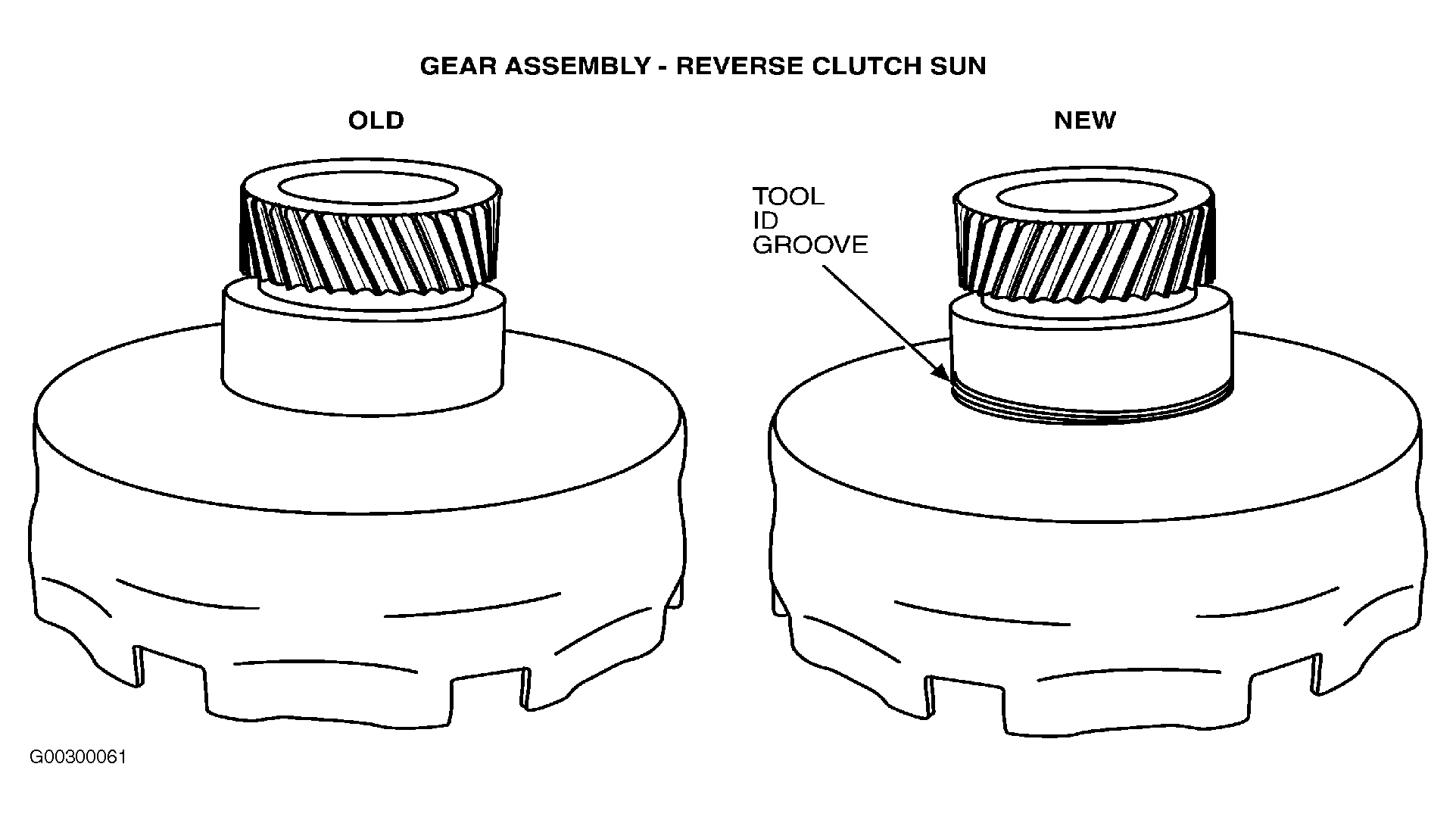

Fig 3: Gear Assembly - Reverse Clutch Sun
