Parking Brake Cable & Conduit: Installation

  1. Install the front parking brake cable and conduit through the dash panel from inside the wheel housing.
  2. Connect the front parking brake cable and conduit to the parking brake control. See Figure .
  3. Install the instrument close-out panel and the pushpins. See Figure .
  4. Raise the vehicle.
  5. Install the front parking brake cable and conduit through the frame. See Figure .
  6. Position the front fender apron, and install the retaining screw. See Figure .
  7. Install the front parking brake cable and conduit retainer to the frame. See Figure .
  8. Connect the front parking brake cable and conduit to the left parking brake rear cable and conduit at the cable connector. See Figure .
  9. Adjust the cable tension. See PARKING BRAKE  under ADJUSTMENTS.
  10. Turn the air suspension switch on.


  1. Install the parking brake rear cable and conduit.
  2. Connect the parking brake rear cable and conduit to the parking brake lever. See Fig 18 .
  3. Install the parking brake rear cable and conduit in the rear disc brake adapter plate. See Fig 17 .
  4. Clip the right parking brake rear cable and conduit to the axle housing. See Fig 19 .
  5. Install the right parking brake rear cable and conduit retainer bolts. See Fig 15 and Fig 16 .
  6. Install the right parking brake rear cable and conduit to the frame. See Fig 13 .
  7. Connect the left parking brake rear cable and conduit retainer to the cable adjuster. See Fig 14 .
  8. Connect the front parking brake cable and conduit to the parking brake rear cable and conduit at the cable connector. See Fig 4 .
  9. Adjust the cable tension. See PARKING BRAKE  under ADJUSTMENTS.
  10. Turn the air suspension switch on.
Fig 1: Locating Parking Brake Release Handle
G00297384Courtesy of FORD MOTOR CO.
Fig 2: Locating Parking Brake Adjuster Clip
G00297385Courtesy of FORD MOTOR CO.
Fig 3: Locking Parking Brake Adjuster
G00297386Courtesy of FORD MOTOR CO.
Fig 4: Identifying Parking Brake Cable & Conduit
G00297387Courtesy of FORD MOTOR CO.
Fig 5: Locating Front Parking Brake Cable & Conduit Retainer
G00297388Courtesy of FORD MOTOR CO.
Fig 6: Locating Fender Apron Retainer
G00297389Courtesy of FORD MOTOR CO.
Fig 7: Locating Parking Brake Cable Behind Front Fender Apron
G00297390Courtesy of FORD MOTOR CO.
Fig 8: Removing Parking Brake Cable From Behind Front Fender Apron
G00297391Courtesy of FORD MOTOR CO.
Fig 9: Removing Instrument Close-Out Panel Pushpins
G00297392Courtesy of FORD MOTOR CO.
Fig 10: Removing & Installing Front Parking Brake Cable & Conduit From Parking Brake Control
G00297393Courtesy of FORD MOTOR CO.
Fig 11: Removing Parking Brake Cable From Inside Wheel Housing
G00297394Courtesy of FORD MOTOR CO.

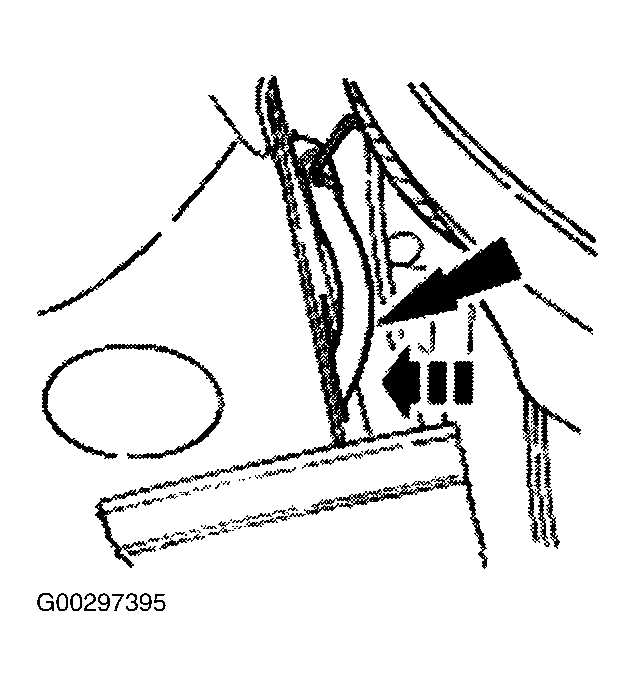

Fig 12: Installing Front Parking Brake Cable Through Frame
G00297395Courtesy of FORD MOTOR CO.

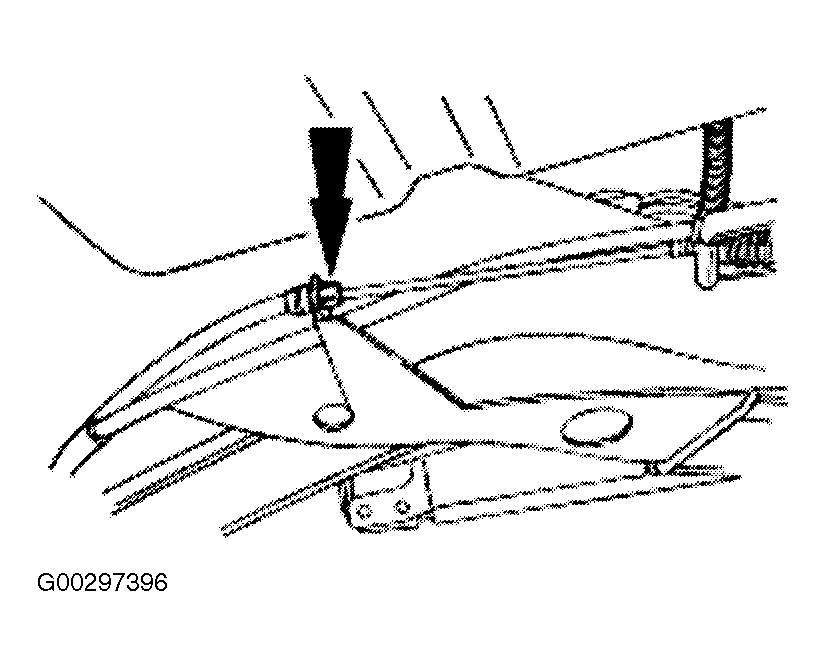

Fig 13: Removing & Installing Right Parking Brake Rear Cable & Conduit To Frame
G00297396Courtesy of FORD MOTOR CO.

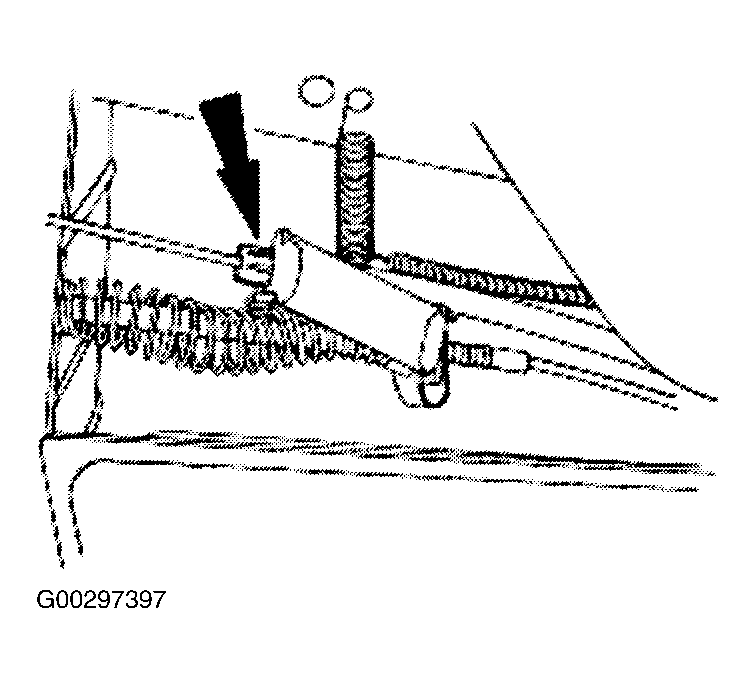

Fig 14: Removing & Installing Left Parking Brake Rear Cable & Conduit Retainer To Cable Adjuster
G00297397Courtesy of FORD MOTOR CO.

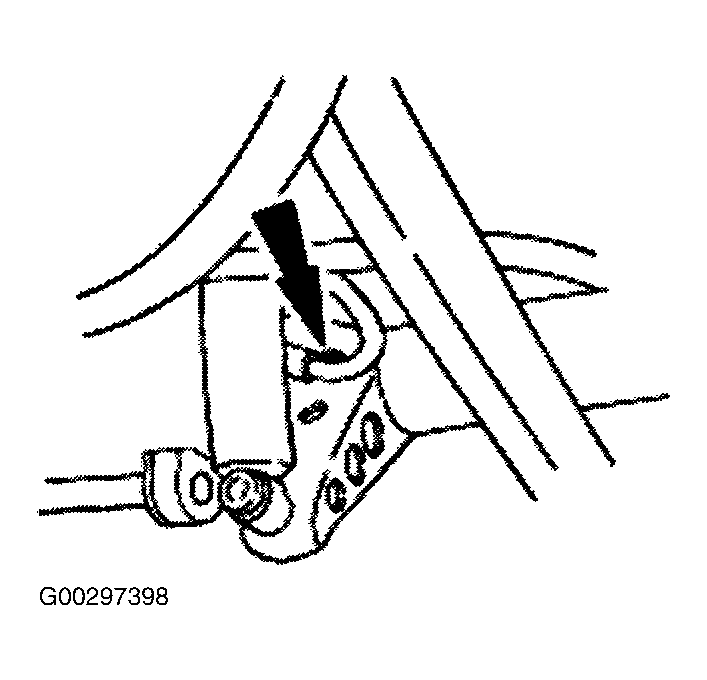

Fig 15: Removing & Installing Right Parking Brake Rear Cable & Conduit Retainer Bolts (1 Of 2)
G00297398Courtesy of FORD MOTOR CO.

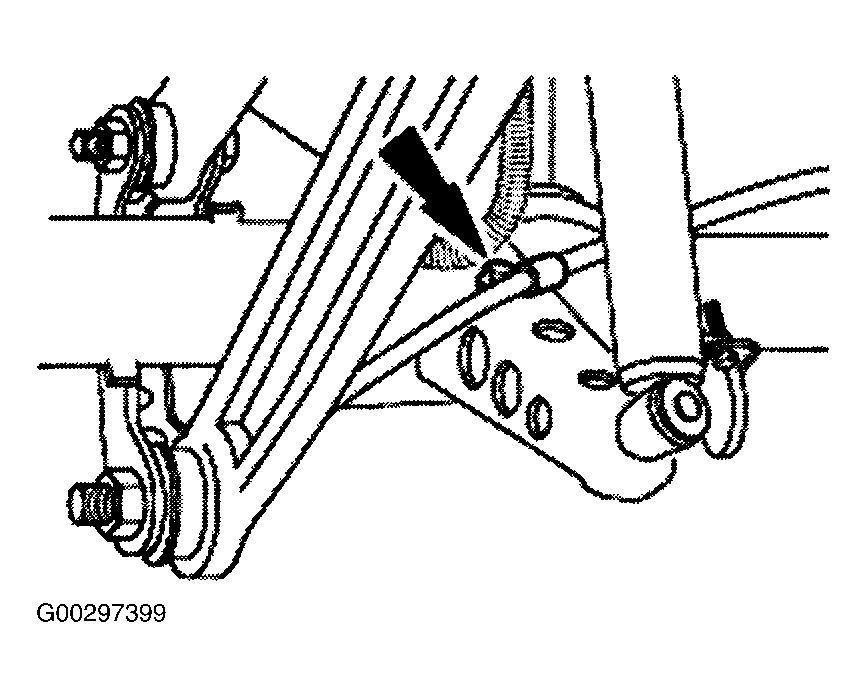

Fig 16: Removing & Installing Right Parking Brake Rear Cable & Conduit Retainer Bolts (2 Of 2)
G00297399Courtesy of FORD MOTOR CO.

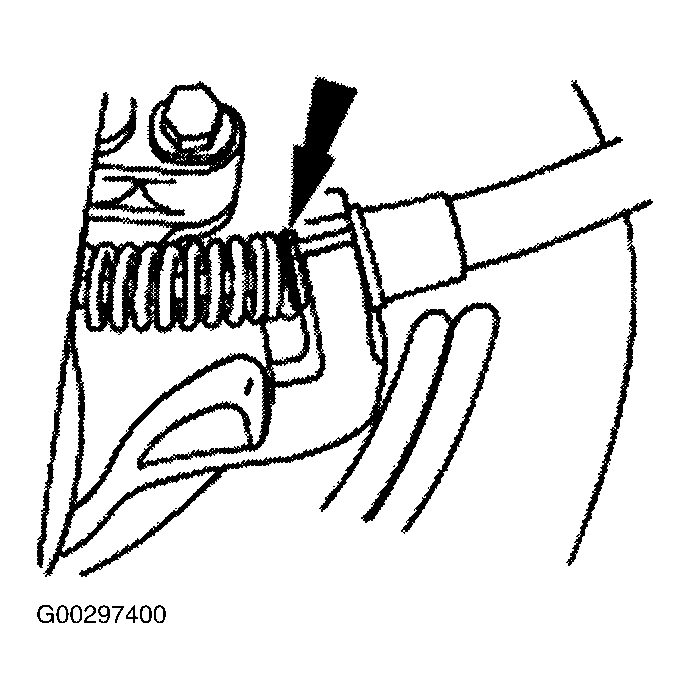

Fig 17: Removing & Installing Parking Brake Rear Cable & Conduit in Rear Disc Brake Adapter Plate
G00297400Courtesy of FORD MOTOR CO.

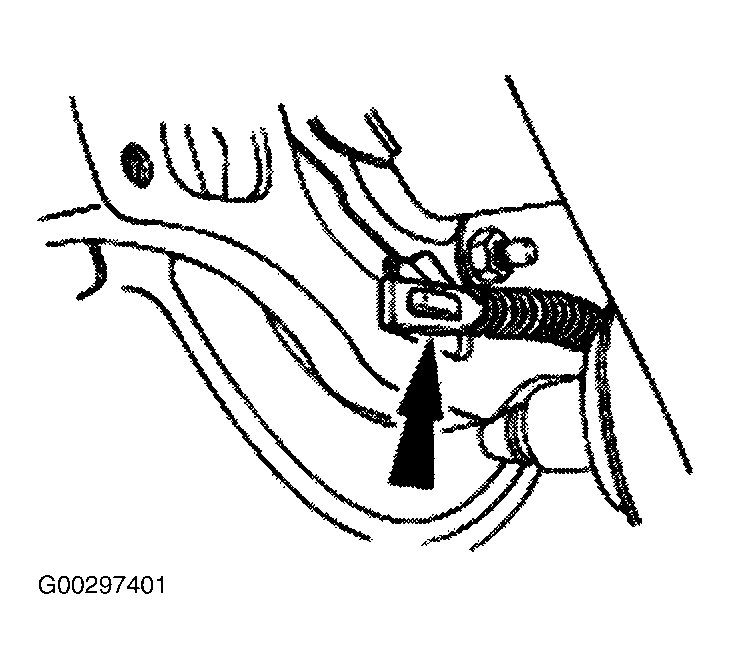

Fig 18: Removing & Installing Parking Brake Rear Cable & Conduit To Parking Brake Lever
G00297401Courtesy of FORD MOTOR CO.

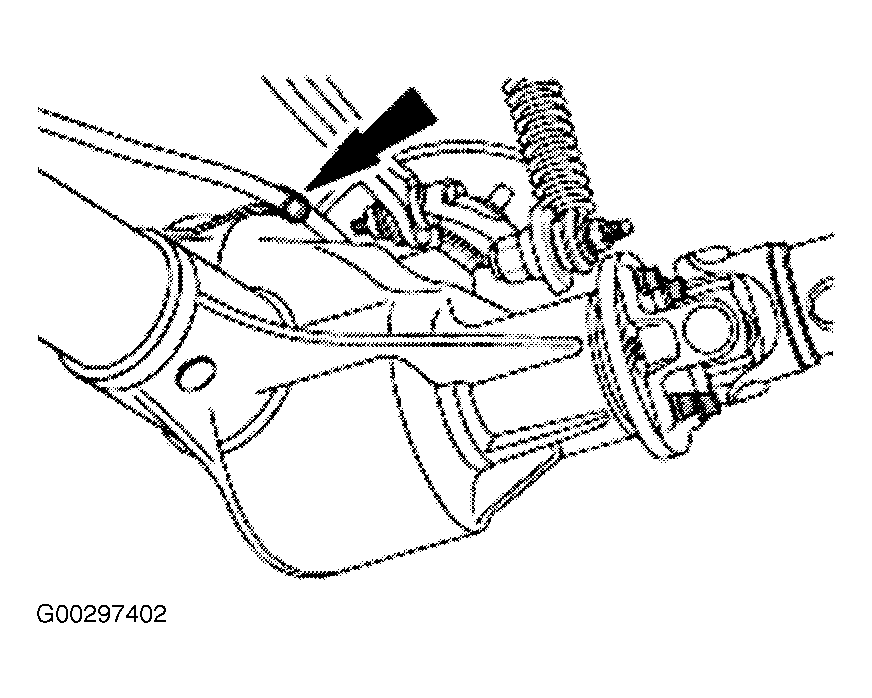

Fig 19: Removing & Installing Right Parking Brake Rear Cable & Conduit To Axle Housing
G00297402Courtesy of FORD MOTOR CO.
