Removal & Installation

Disconnect brake fluid level indicator connector. See Fig 1 . Disconnect hydraulic brakelines from master cylinder. See Fig 2 . Remove master cylinder attaching nuts, and remove master cylinder. See Fig 3 .

To install, reverse removal procedure. Bleed brake system. See BLEEDING BRAKE SYSTEM  .

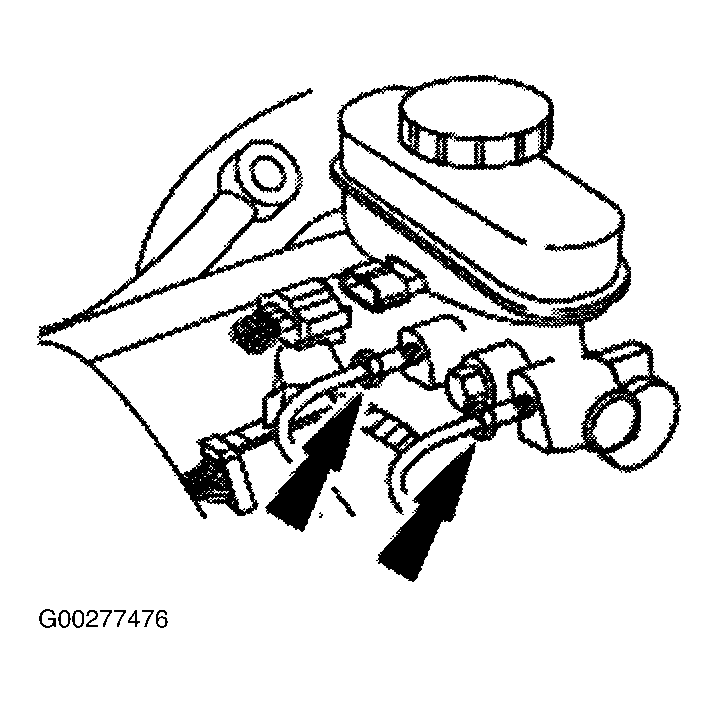

Fig 1: Locating Master Cylinder Brake Tubes

Courtesy of FORD MOTOR CO.

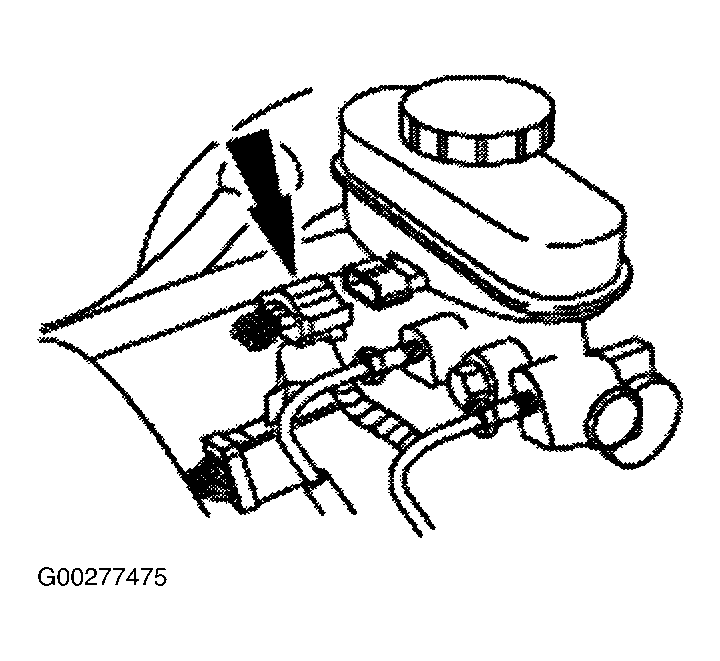

Fig 2: Locating Master Cylinder Fluid Level Switch Connector

Courtesy of FORD MOTOR CO.

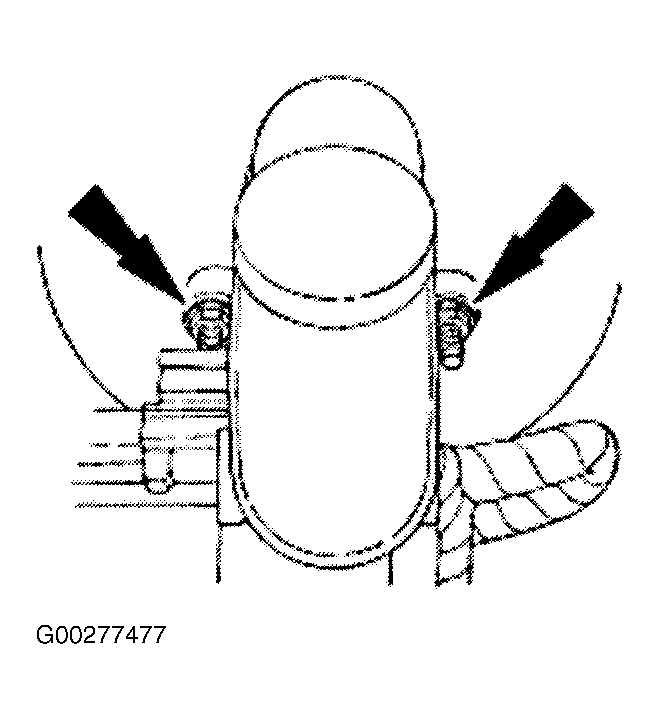

Fig 3: Locating Master Cylinder Nuts

Courtesy of FORD MOTOR CO.
