Front Brake Caliper: Reassembly

Apply a film of clean brake fluid to seal, bore and piston. Install piston seal and dust boot in caliper bore. Spread dust boot over piston, and install piston squarely into caliper bore. To complete assembly, reverse removal procedure. Bleed brakes. See BLEEDING BRAKE SYSTEM  .

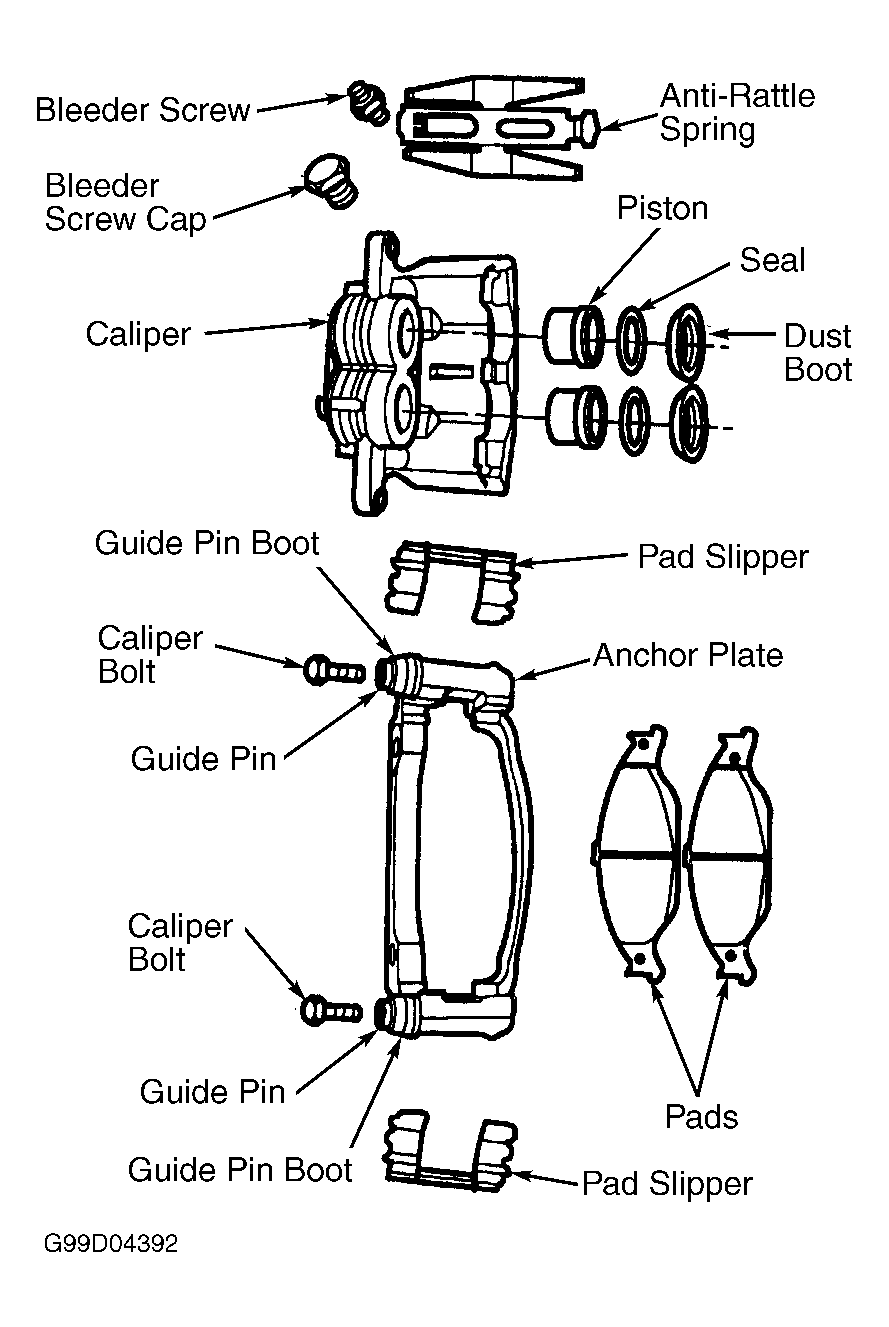

Fig 1: Exploded View Of Typical Front Caliper

Courtesy of FORD MOTOR CO.
