Pinpoint Test C: DTC C1296 (LF), DTC C1297 (RF), DTC C1298 (RR), DTC C1299 (LR) - Anti-Lock Brake Sensor Input Signal Missing

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

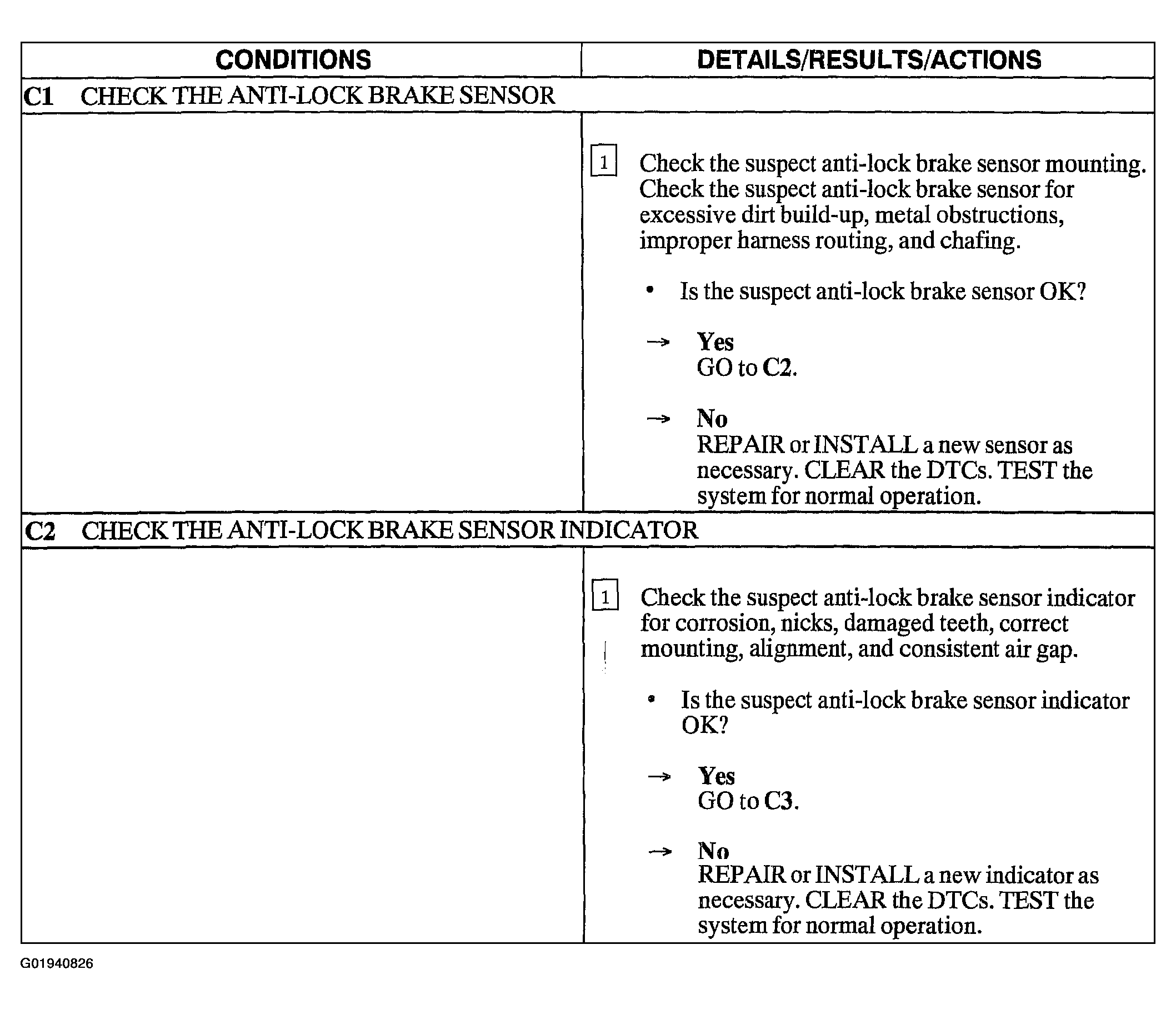

Fig 1: Pinpoint Test C: DTC C1296 (LF), DTC C1297 (RF), DTC C1298 (RR), DTC C1299 (LR) - Anti-Lock Brake Sensor Input Signal Missing (Steps C1-C2)

Courtesy of FORD MOTOR CO.

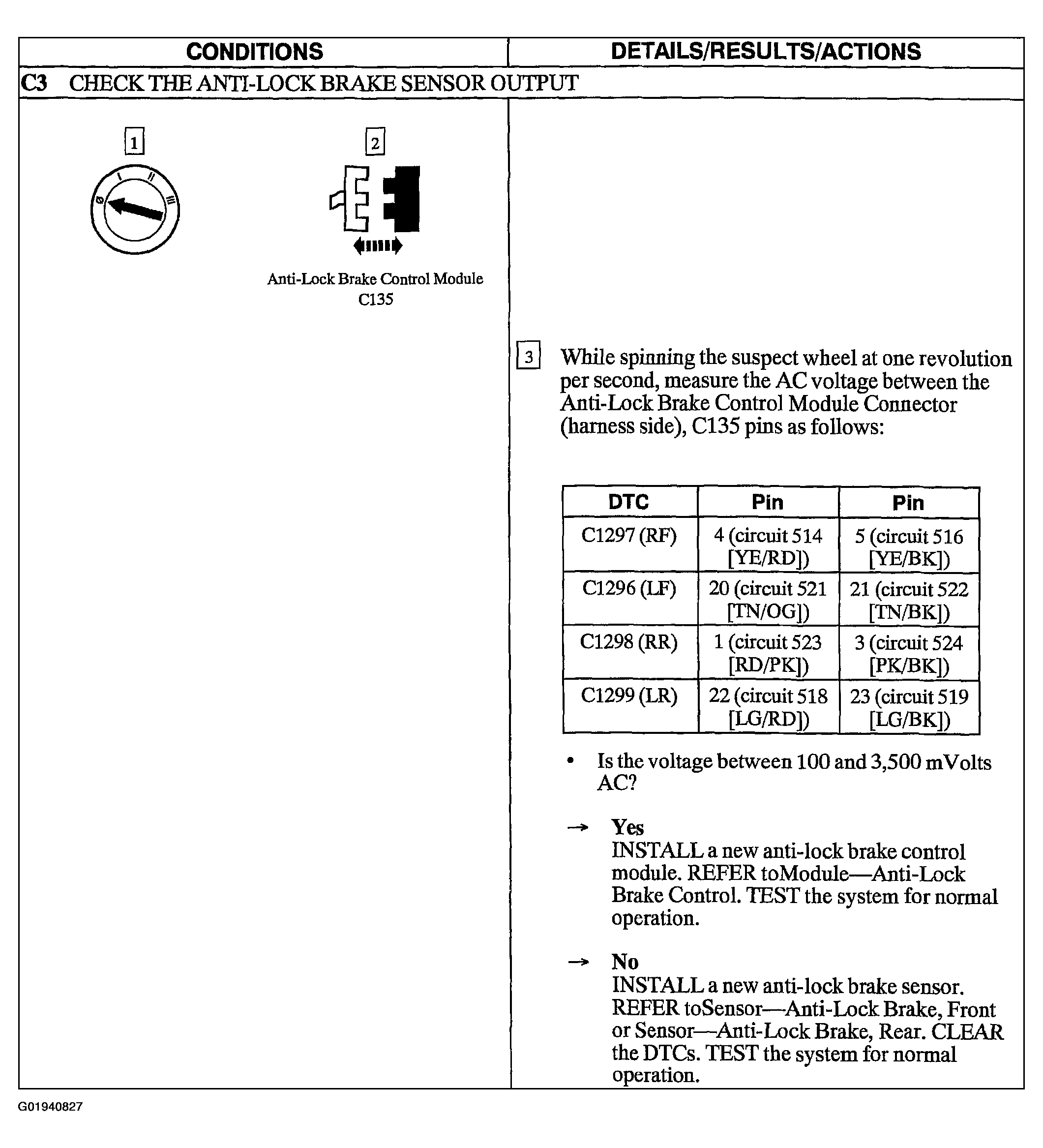

Fig 2: Pinpoint Test C: DTC C1296 (LF), DTC C1297 (RF), DTC C1298 (RR), DTC C1299 (LR) - Anti-Lock Brake Sensor Input Signal Missing (Step C3)

Courtesy of FORD MOTOR CO.
