Pinpoint Test H: Poor Vehicle Tracking During Anti-Lock Function

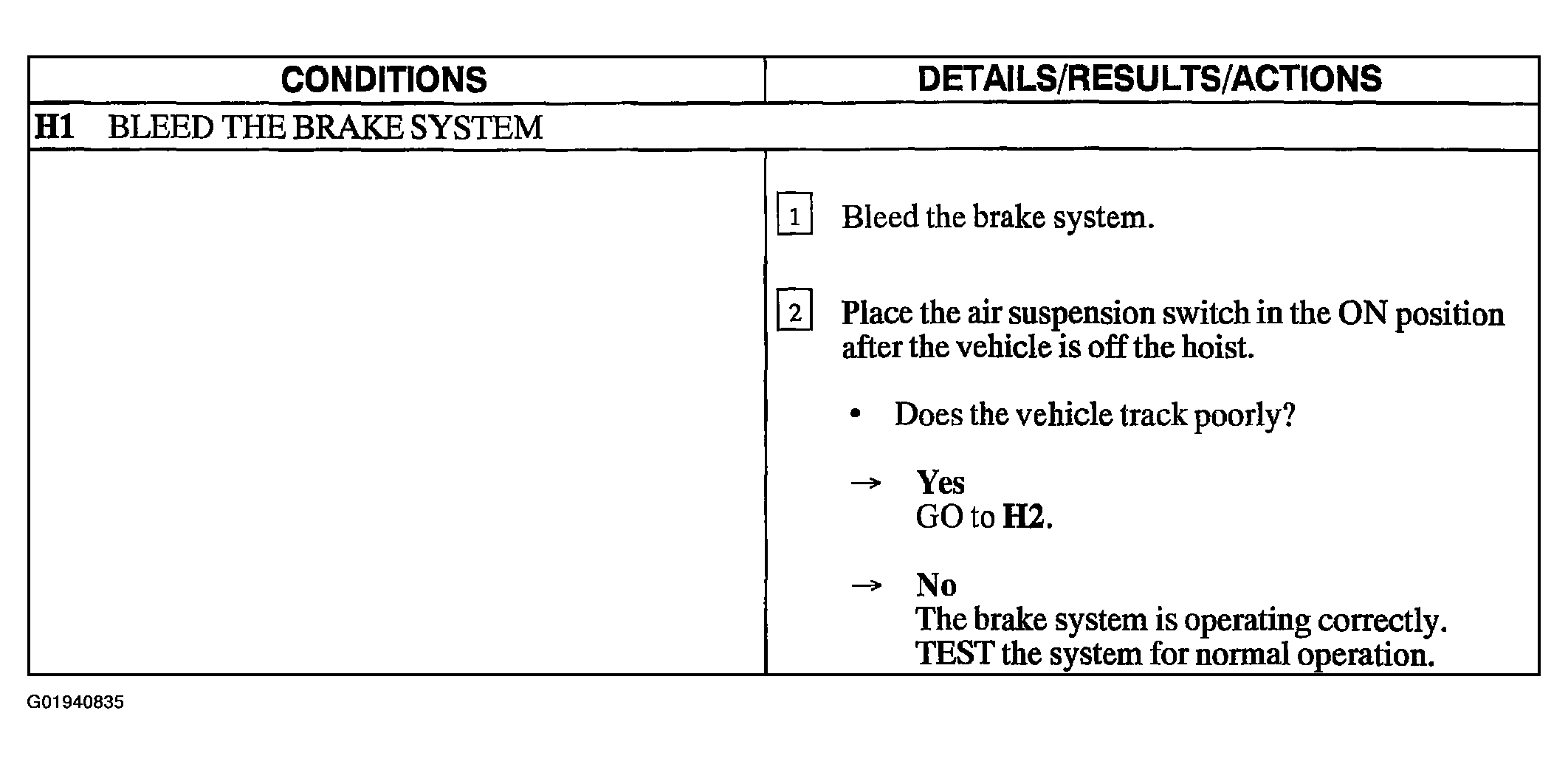

Fig 1: Pinpoint Test H: Poor Vehicle Tracking During Anti-Lock Function (Step H1)

Courtesy of FORD MOTOR CO.

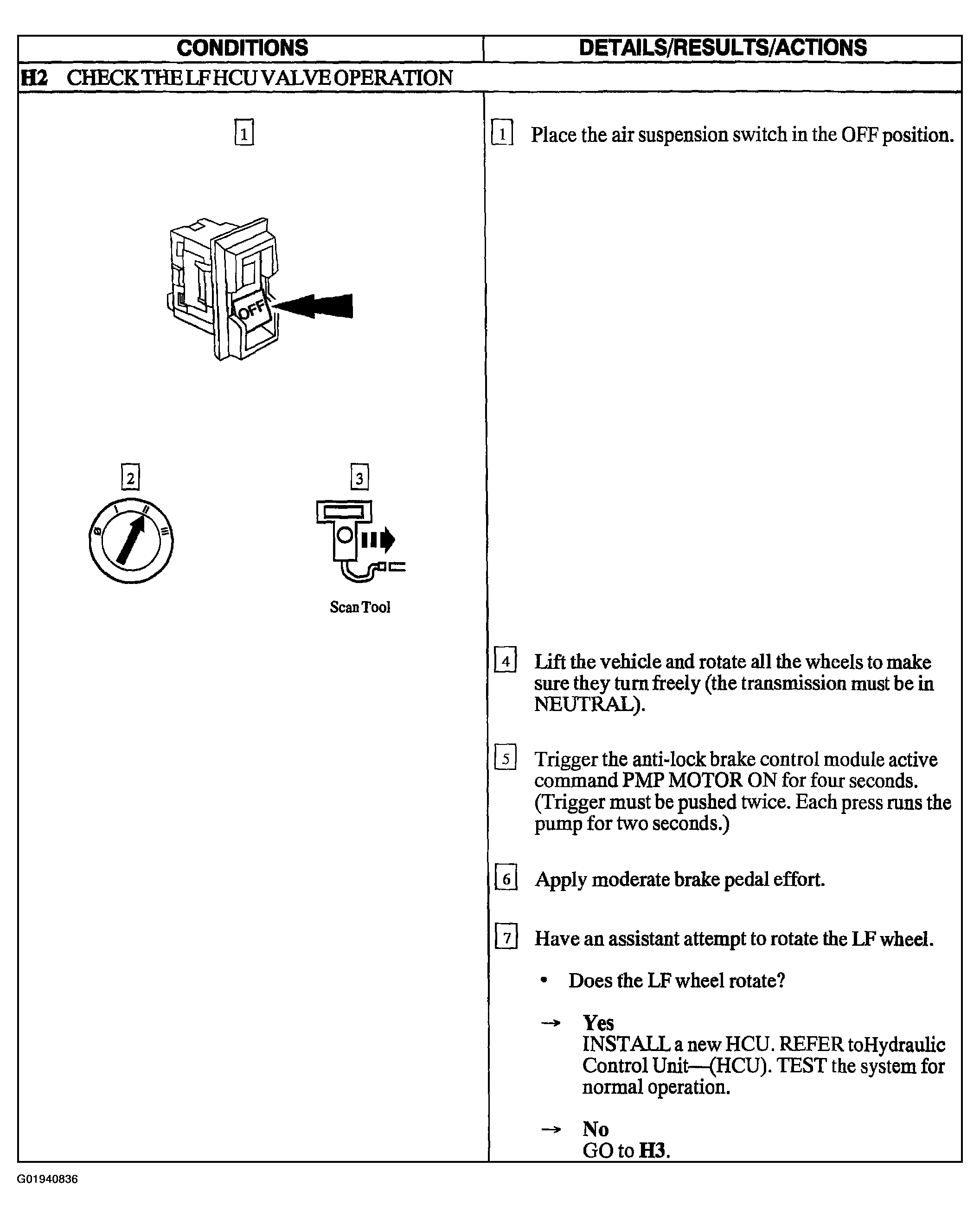

Fig 2: Pinpoint Test H: Poor Vehicle Tracking During Anti-Lock Function (Step H2)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test H: Poor Vehicle Tracking During Anti-Lock Function (Steps H3-H4)

Courtesy of FORD MOTOR CO.

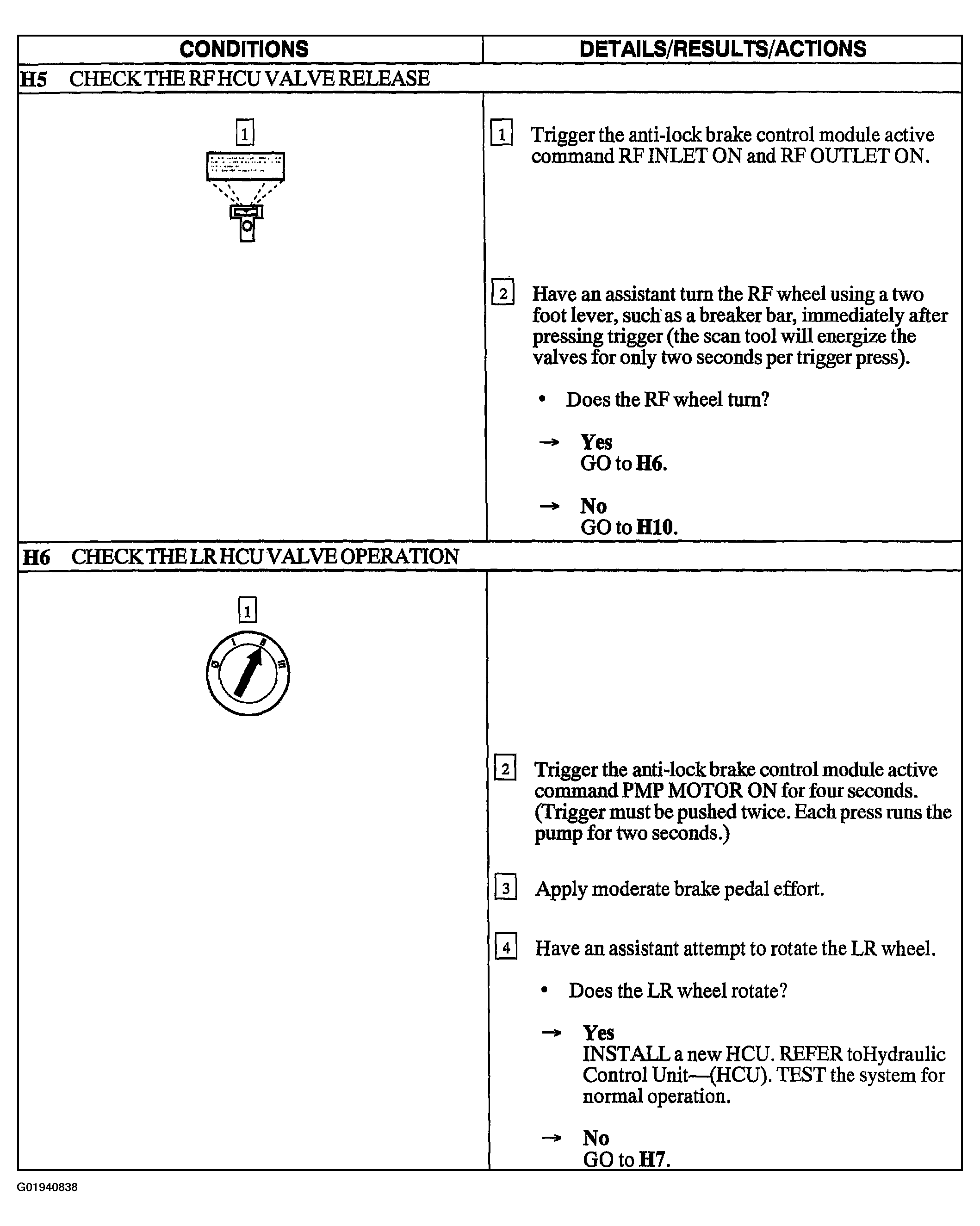

Fig 4: Pinpoint Test H: Poor Vehicle Tracking During Anti-Lock Function (Steps H5-H6)

Courtesy of FORD MOTOR CO.

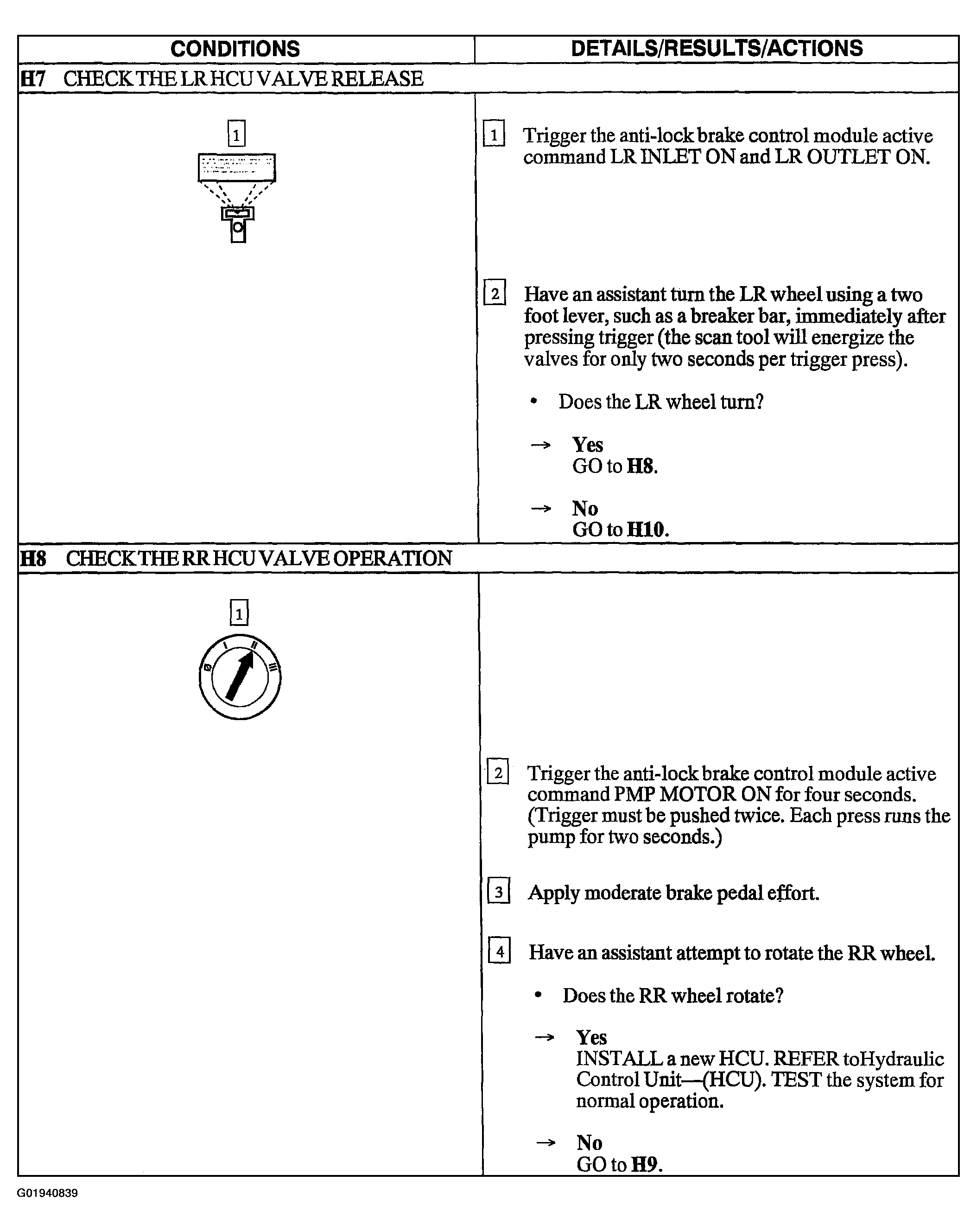

Fig 5: Pinpoint Test H: Poor Vehicle Tracking During Anti-Lock Function (Steps H7-H8)

Courtesy of FORD MOTOR CO.

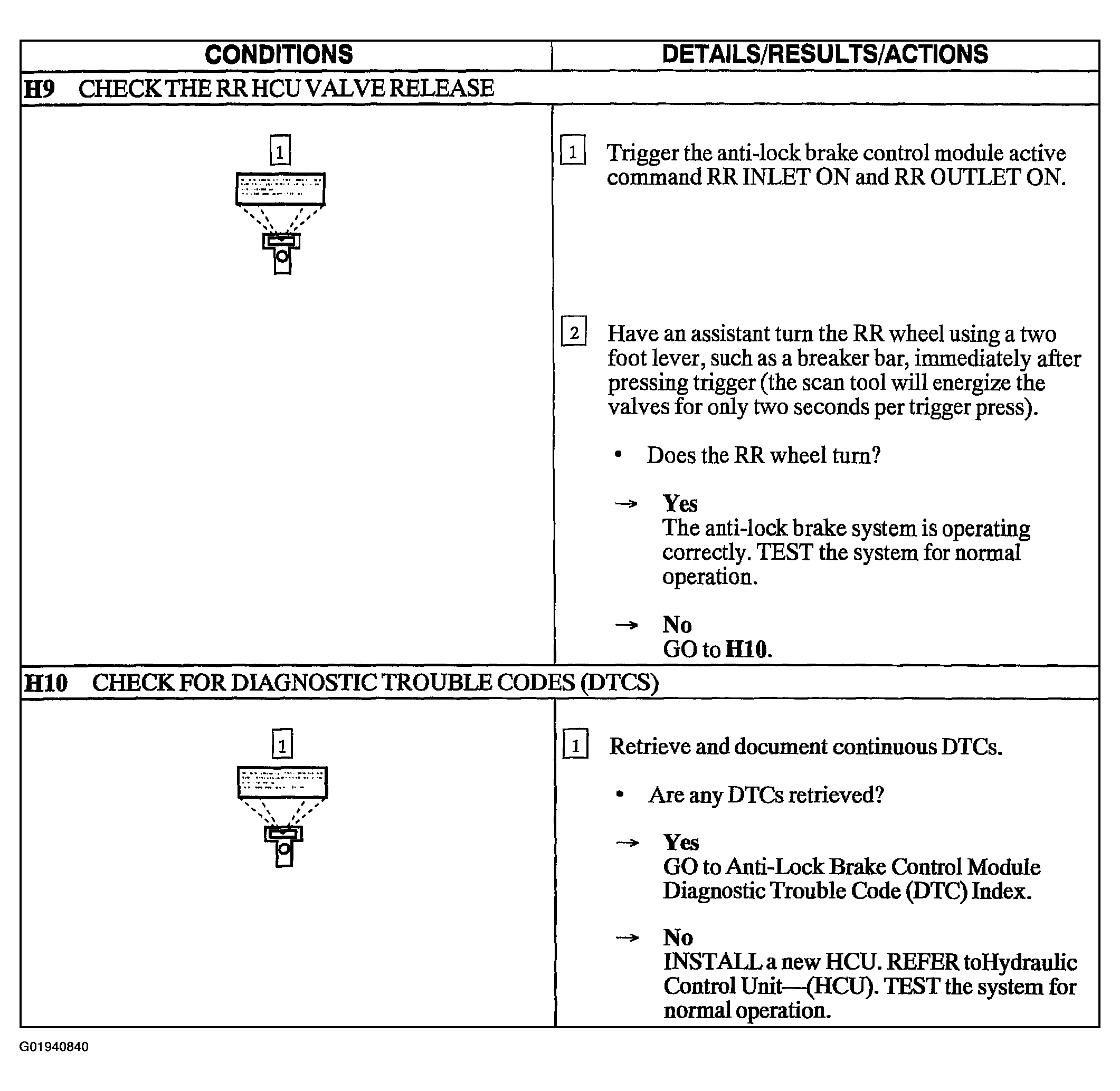

Fig 6: Pinpoint Test H: Poor Vehicle Tracking During Anti-Lock Function (Steps H9-H10)

Courtesy of FORD MOTOR CO.
