Removal & Installation

Remove rear seat bottom.
Disconnect the rear anti-lock brake sensor electrical connector.

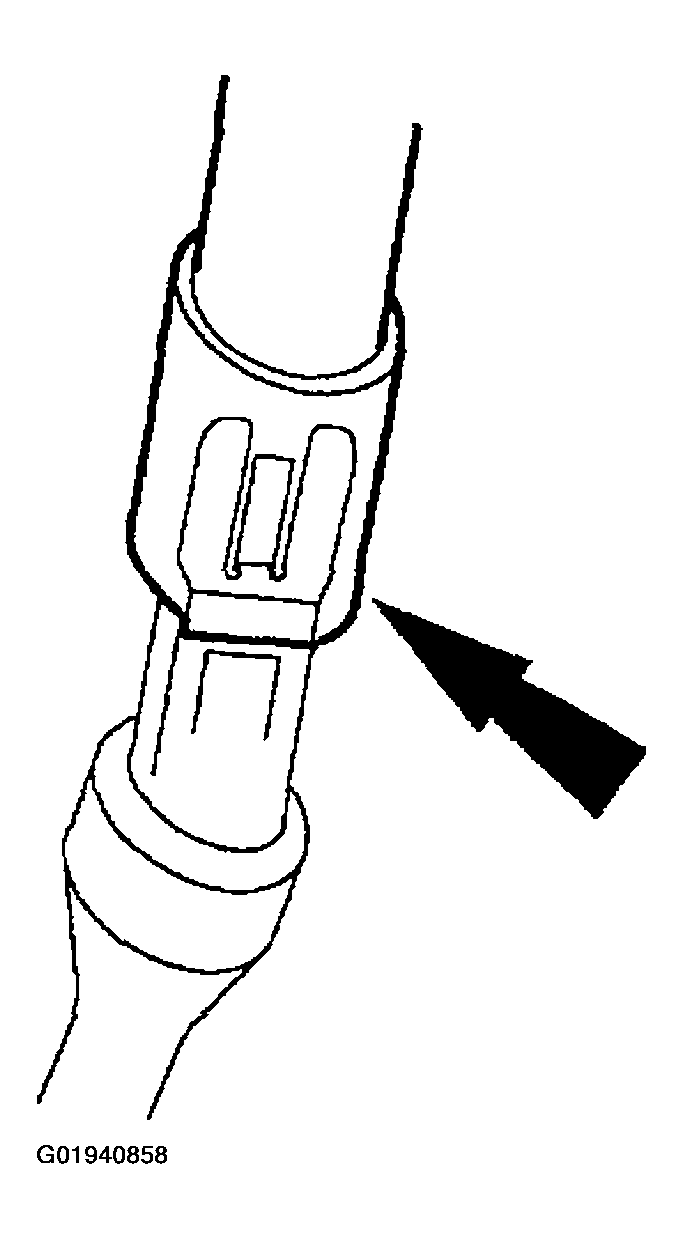

Fig 1: Identifying Rear Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Push the sensor harness grommet through the passenger compartment floor.

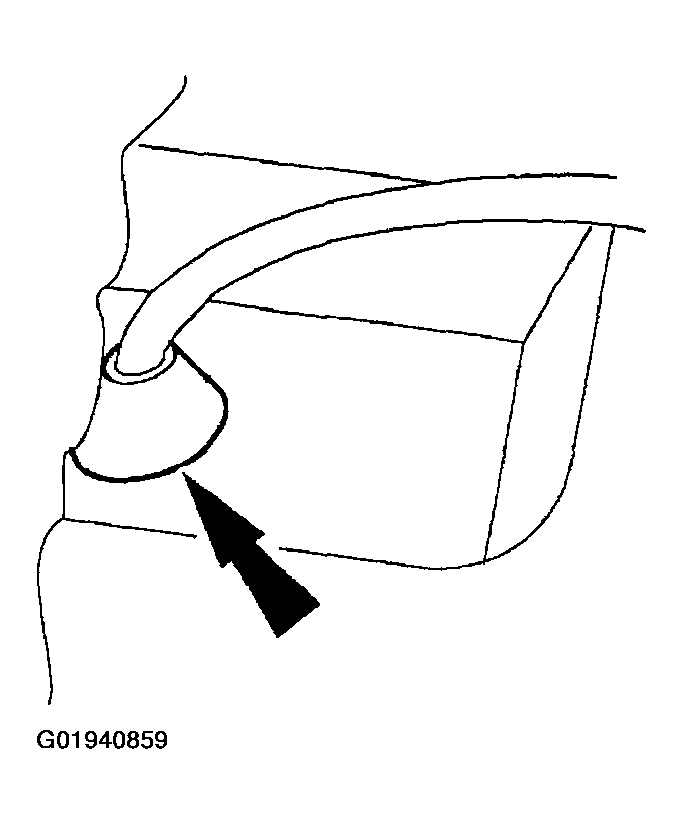

Fig 2: Identifying Sensor Harness Grommet
Courtesy of FORD MOTOR CO.
Raise and support the vehicle.
Disconnect the routing clips.

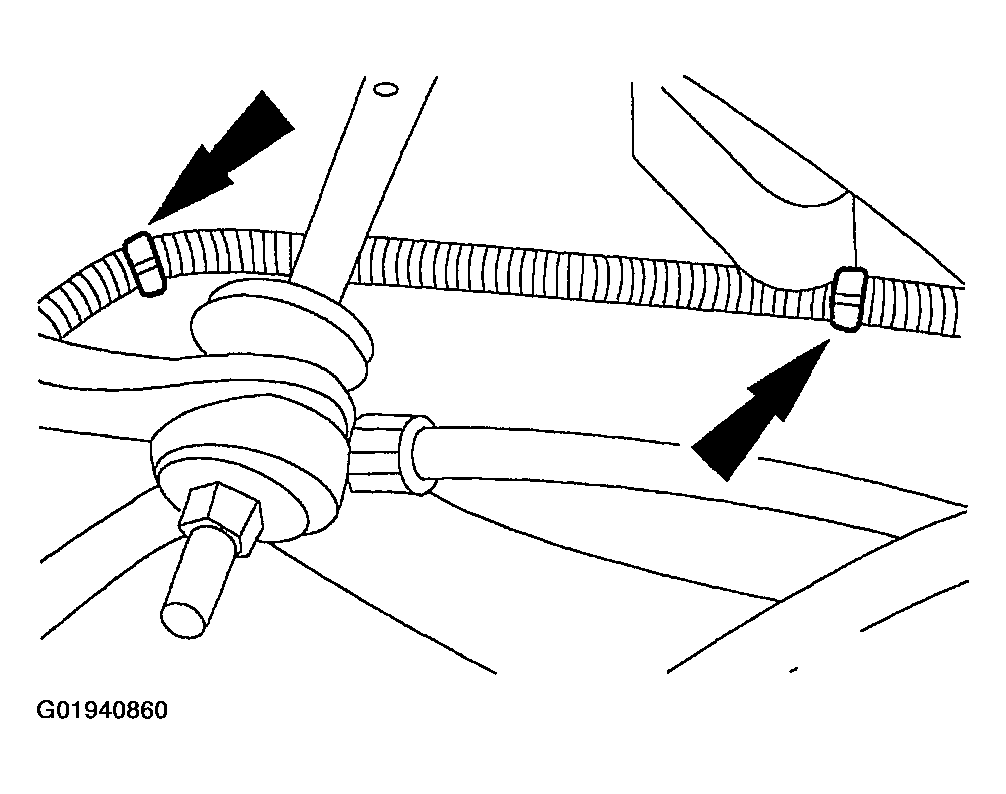

Fig 3: Identifying Rear Routing Clips
Courtesy of FORD MOTOR CO.
Remove the rear anti-lock brake sensor.
1. Remove the bolt.
2. Remove the sensor.

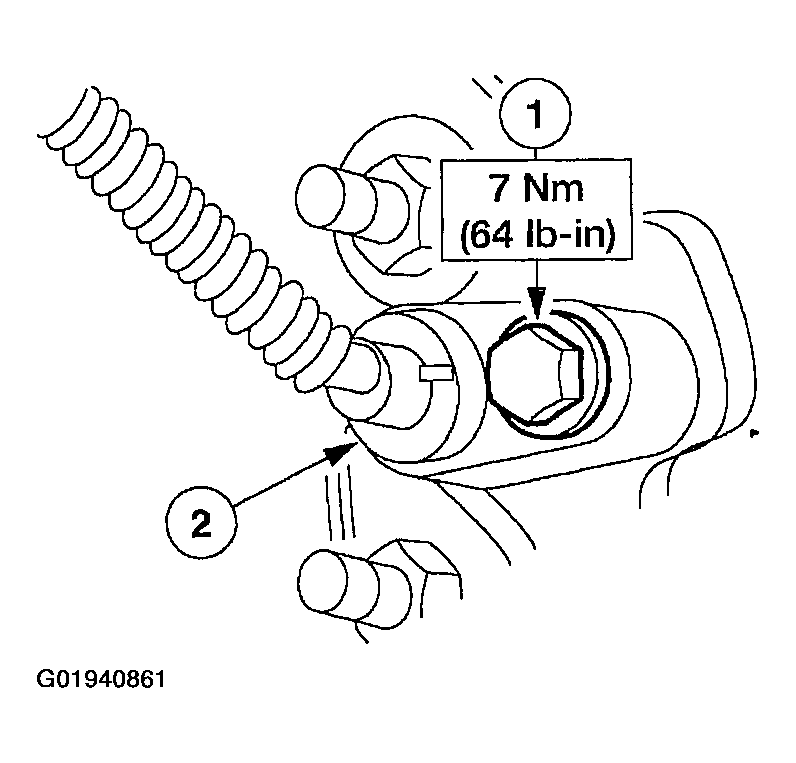

Fig 4: Identifying Rear Bolt & Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
