Differential Housing Cover: Removal

    WARNING: The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the RH kick panel area. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.
  1. Raise and support the vehicle.
    2. NOTE: Empty the lubricant into a clean container for reuse.

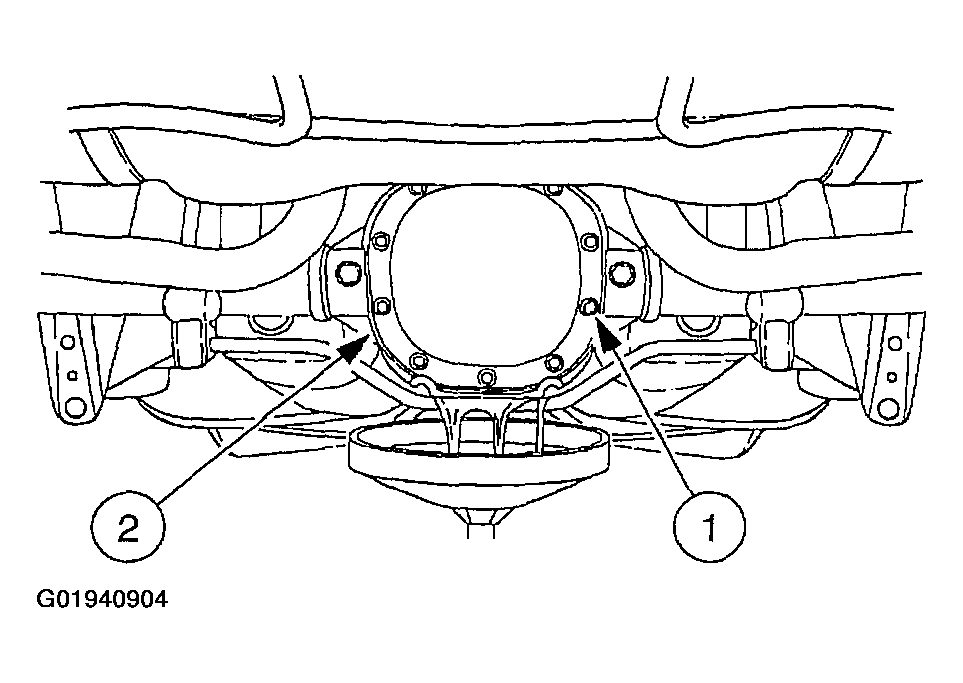

    Fig 1: Identifying Differential Housing Cover & Bolts
    G01940904Courtesy of FORD MOTOR CO.
  2. Remove the differential housing cover (4033).
    1. Remove the bolts and drain the lubricant from the differential housing (4010).
    2. Remove the differential housing cover.
