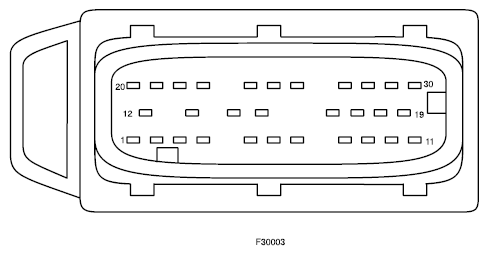

| 1 |
523 (RD/PK) |
Wheel speed sensor, right rear + |
| 2 |
... |
not used |
| 3 |
524 (PK/BK) |
Wheel speed sensor, right rear... |
| 4 |
514 (YE/RD) |
Wheel speed sensor, right front (2C204) + |
| 5 |
516 (YE/BK) |
Wheel speed sensor, right front (2C204)... |
| 6 |
511 (LG) |
Brake pedal position switch (13480), to stoplamps |
| 7 |
... |
not used |
| 8 |
88 (BK/WH) |
Voltage in Run (overload protected) |
| 9 |
939 (VT) |
traction assist, indicator, Lamp |
| 10 |
... |
not used |
| 11 |
... |
not used |
| 12 |
57 (BK) |
Ground |
| 13 |
601 (LB/PK) |
Voltage supplied at all times (overload protected) |
| 14 |
483 (RD) |
Voltage supplied at all times (overload protected) |
| 15 |
57 (BK) |
Ground |
| 16 |
977 (VT/WH) |
Brake indicator, control |
| 17 |
959 (GY) |
Traction assist switch, feed, to ABS control module |
| 18 |
... |
not used |
| 19 |
... |
not used |
| 20 |
521 (TN/OG) |
Wheel speed sensor, left front (2C205) + |
| 21 |
522 (TN/BK) |
Wheel speed sensor, left front (2C205)... |
| 22 |
518 (LG/RD) |
Wheel speed sensor, left rear + |
| 23 |
519 (LG/BK) |
Wheel speed sensor, left rear... |
| 24 |
70 (LB/WH) |
ISO Bus |
| 25 |
603 (DG) |
Anti... lock brake indicator, control |
| 26 |
... |
not used |
| 27 |
... |
not used |
| 28 |
... |
not used |
| 29 |
915 (PK/LB) |
SCP Bus... |
| 30 |
914 (TN/OG) |
SCP Bus + |
