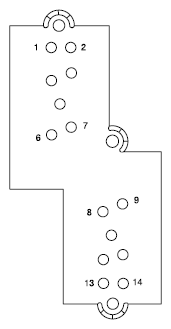

| 1 |
484 (OG/BK) |
Headlamp switch, on input |
| 2 |
57 (BK) |
Ground |
| 3 |
117 (PK/BK) |
Door lock, output... without keyless entry |
| 119 (PK/YE) |
Door lock switch, input |
| 4 |
120 (PK/LG) |
Door unlock, switch, input |
| 5 |
517 (BK/WH) |
Voltage supplied at all times (overload protected) |
| 54 (LG/YE) |
Voltage supplied at all times (overload protected) |
| 6 |
119 (PK/YE) |
Door lock switch, input... Hot in Start |
| 7 |
118 (PK/OG) |
Door unlock, output... Hot in Start, without keyless entry |
| |
120 (PK/LG) |
Door unlock, switch, input |
| 8 |
333 (YE/RD) |
Window motor, feed, Up |
| 9 |
313 (WH/YE) |
Window switch, feed, right front, Up |
| 10 |
170 (RD/LB) |
Window lockout, switched power, output |
| 11 |
314 (TN/LB) |
Window switch, feed, right front, Down |
| 12 |
334 (RD/YE) |
Window motor, feed, Down |
| 13 |
57 (BK) |
Ground |
| 14 |
484 (OG/BK) |
Headlamp witch, on input |
