Electronic - Instrument Cluster System
>>
Description & Operation
>>
Instrument Cluster
>>
Electronic Instrument Cluster
Electronic Instrument Cluster

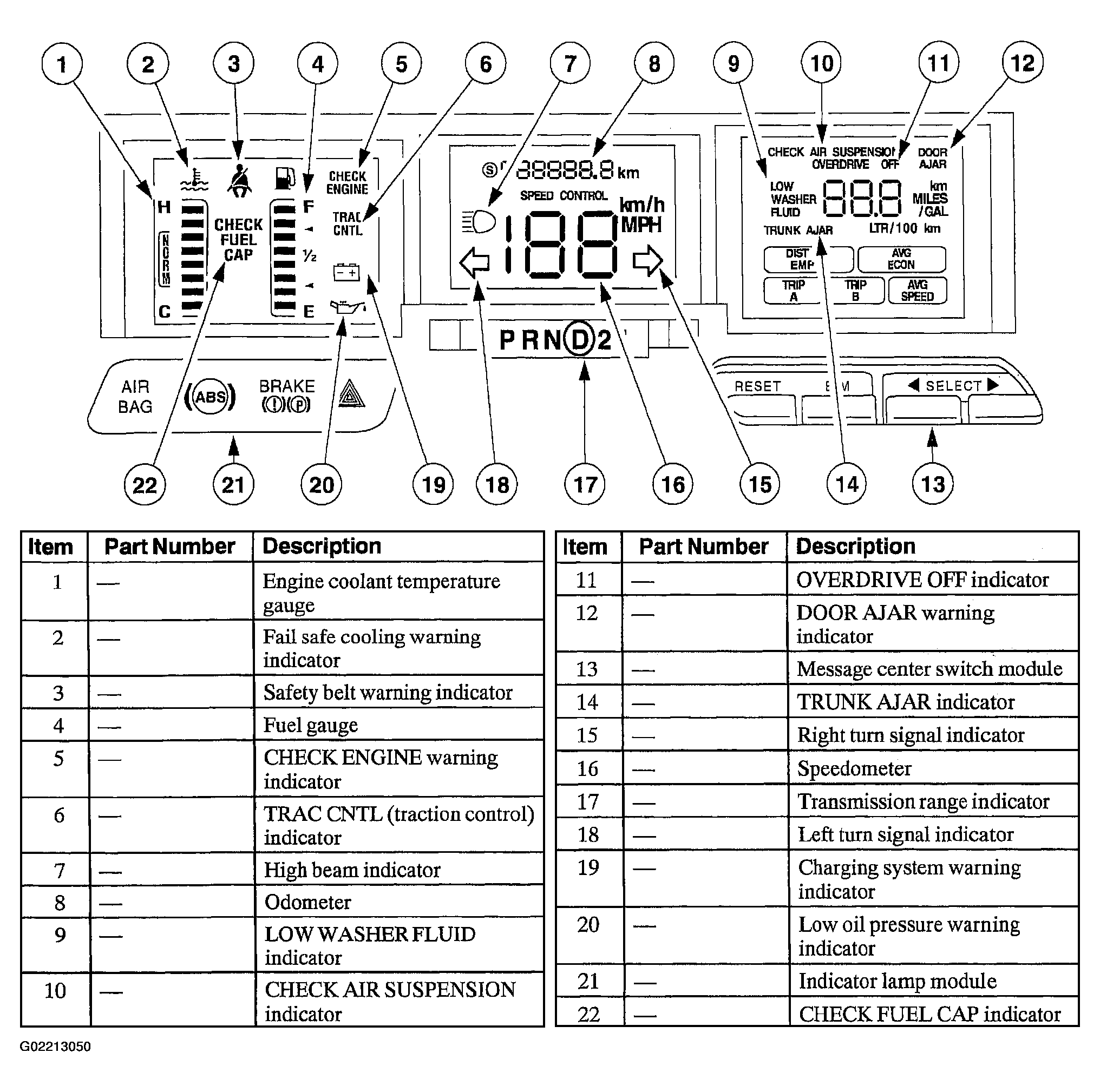

Fig 1: Identifying Electronic Instrument Cluster Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
