Pinpoint Test C: Incorrect Temperature Gauge Indication

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

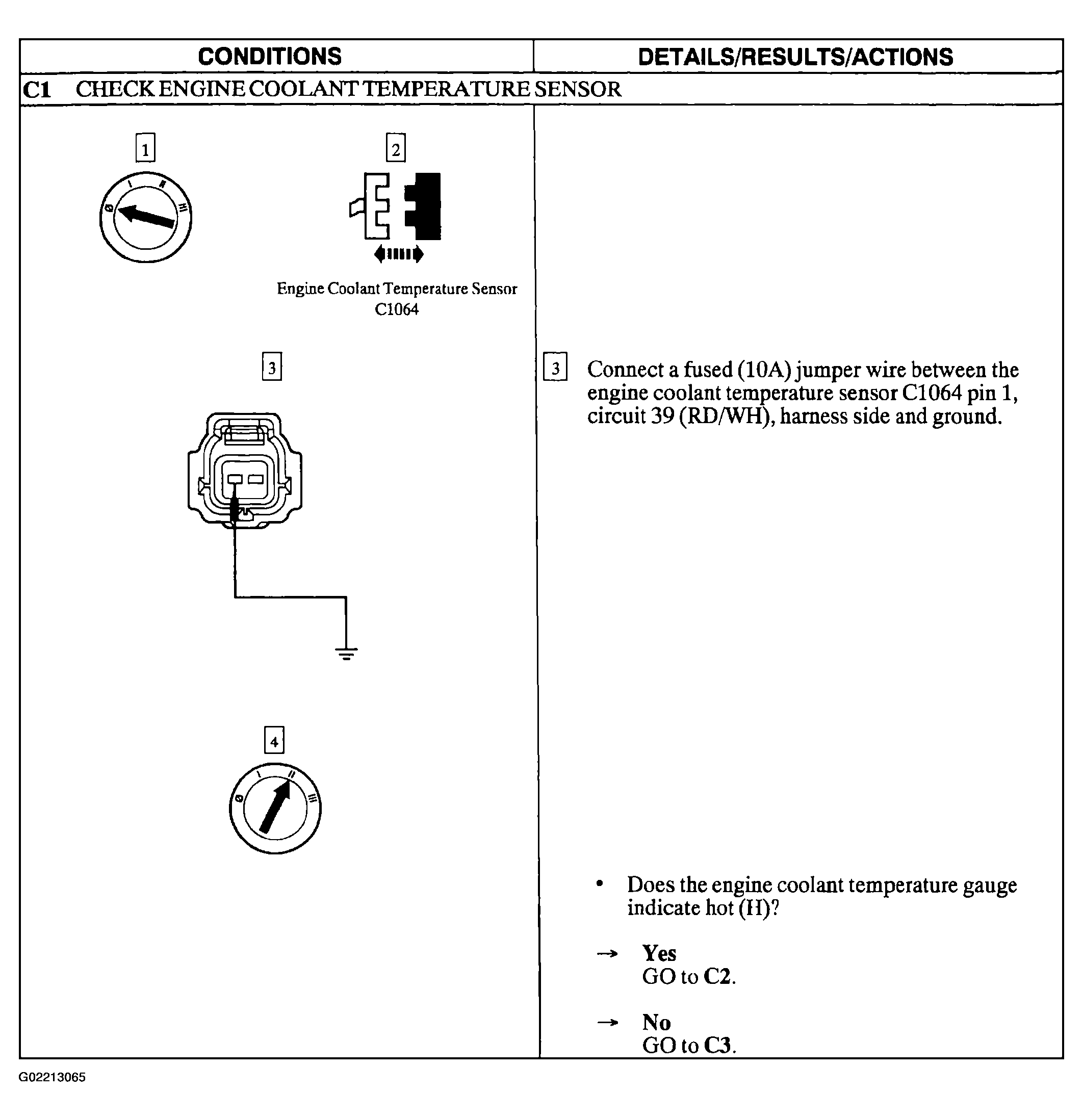

Fig 1: Pinpoint Test C: Incorrect Temperature Gauge Indication (Step C1)

Courtesy of FORD MOTOR CO.

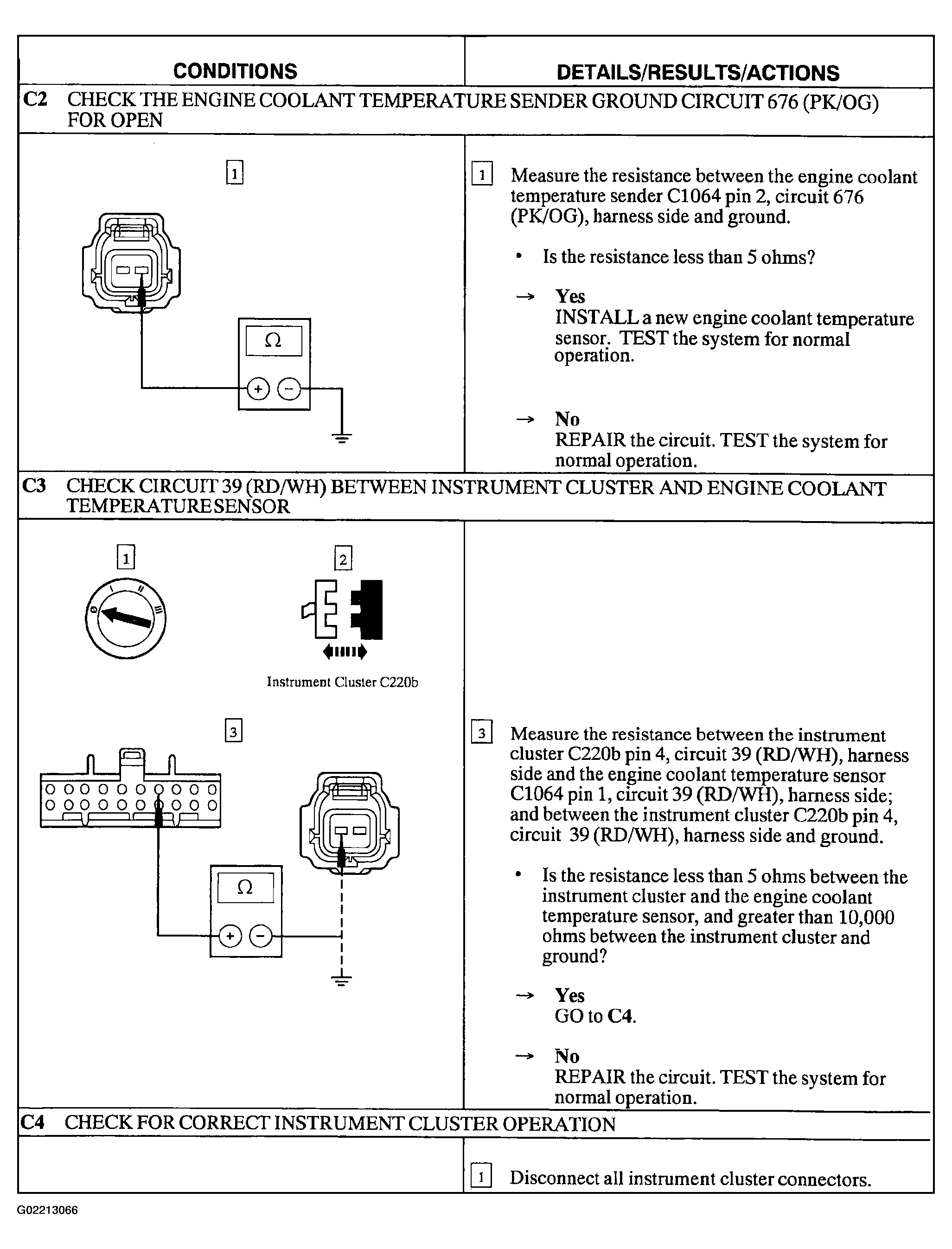

Fig 2: Pinpoint Test C: Incorrect Temperature Gauge Indication (Steps C2-C4)

Courtesy of FORD MOTOR CO.

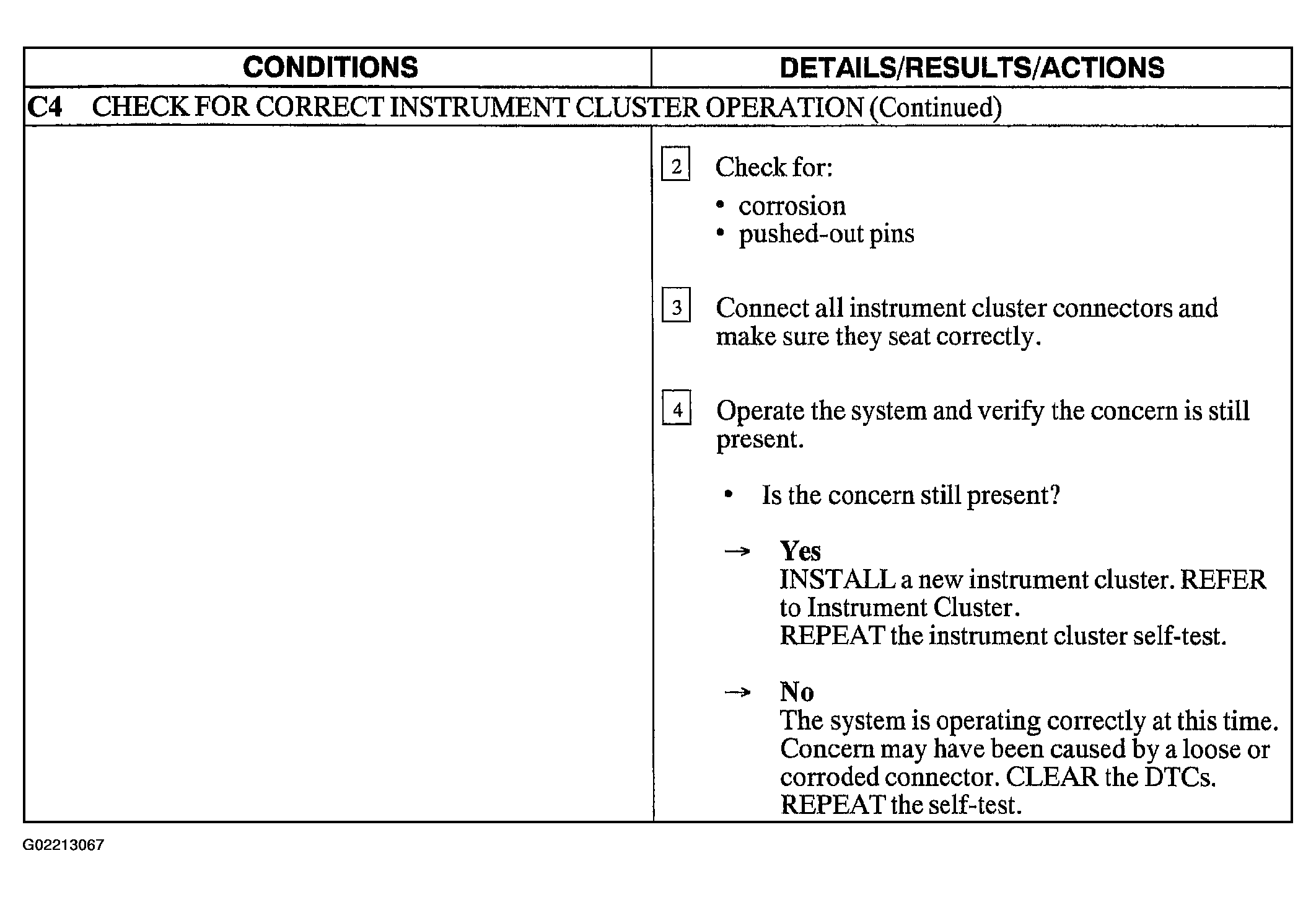

Fig 3: Pinpoint Test C: Incorrect Temperature Gauge Indication (Step C4 Cont.)

Courtesy of FORD MOTOR CO.
