Pinpoint Test E: The Speedometer/Odometer Is Inoperative

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

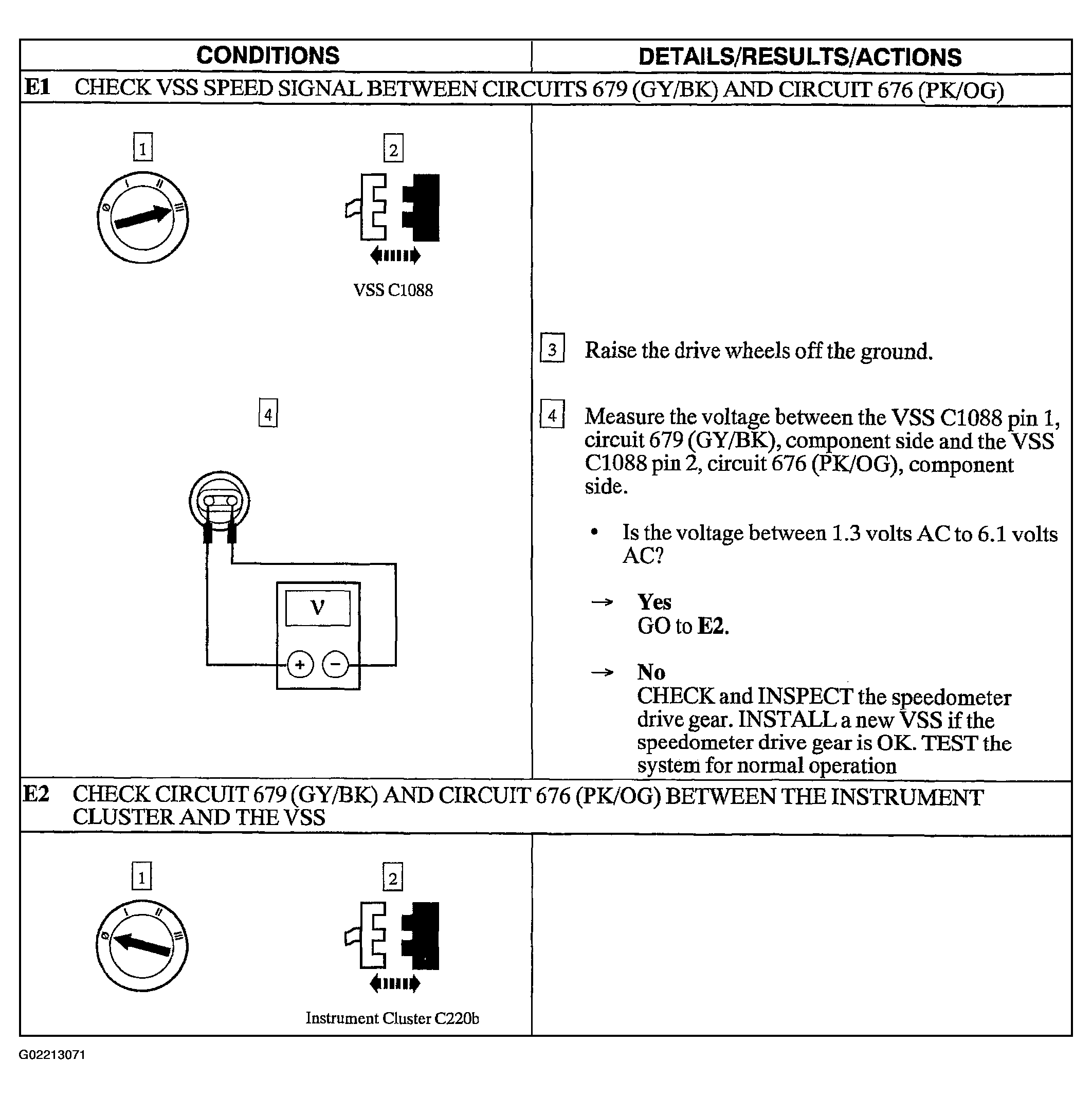

Fig 1: Pinpoint Test E: The Speedometer/Odometer Is Inoperative (Steps E1-E2)

Courtesy of FORD MOTOR CO.

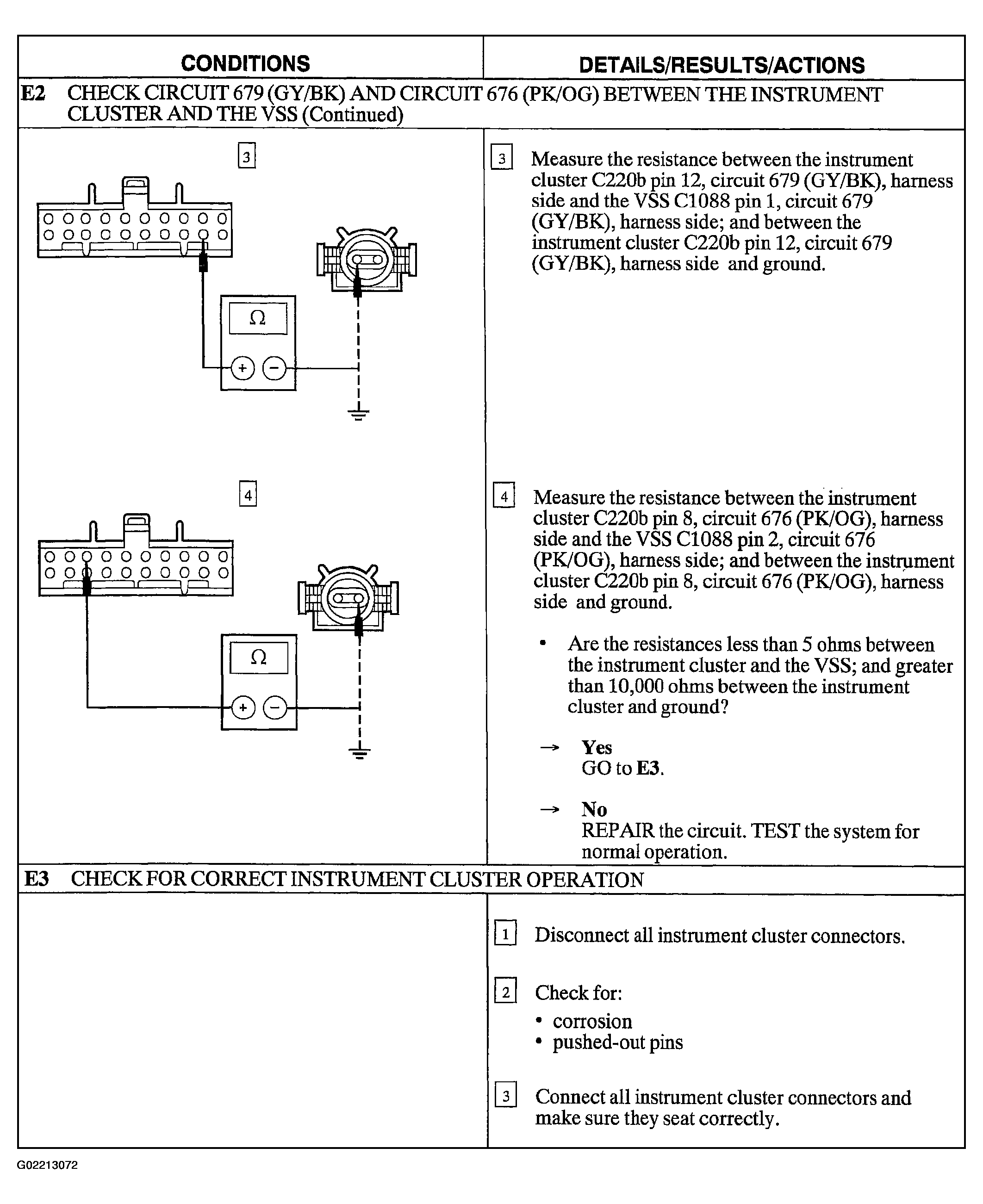

Fig 2: Pinpoint Test E: The Speedometer/Odometer Is Inoperative (Steps E2 Cont.-E3)

Courtesy of FORD MOTOR CO.

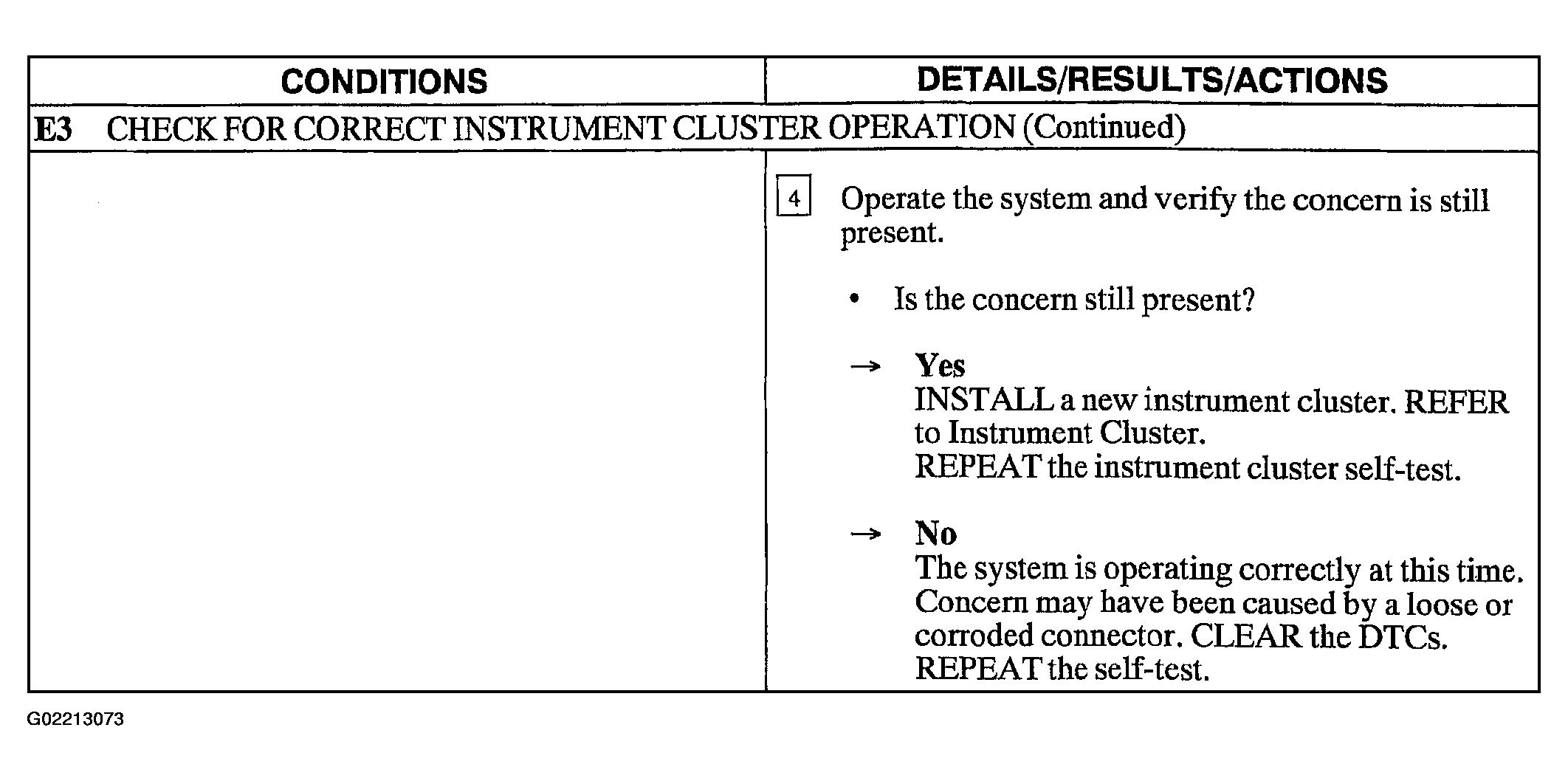

Fig 3: Pinpoint Test E: The Speedometer/Odometer Is Inoperative (Step E3 Cont.)

Courtesy of FORD MOTOR CO.
