Pinpoint Test F: The Low Fuel Warning Indicator Is Never/Always On

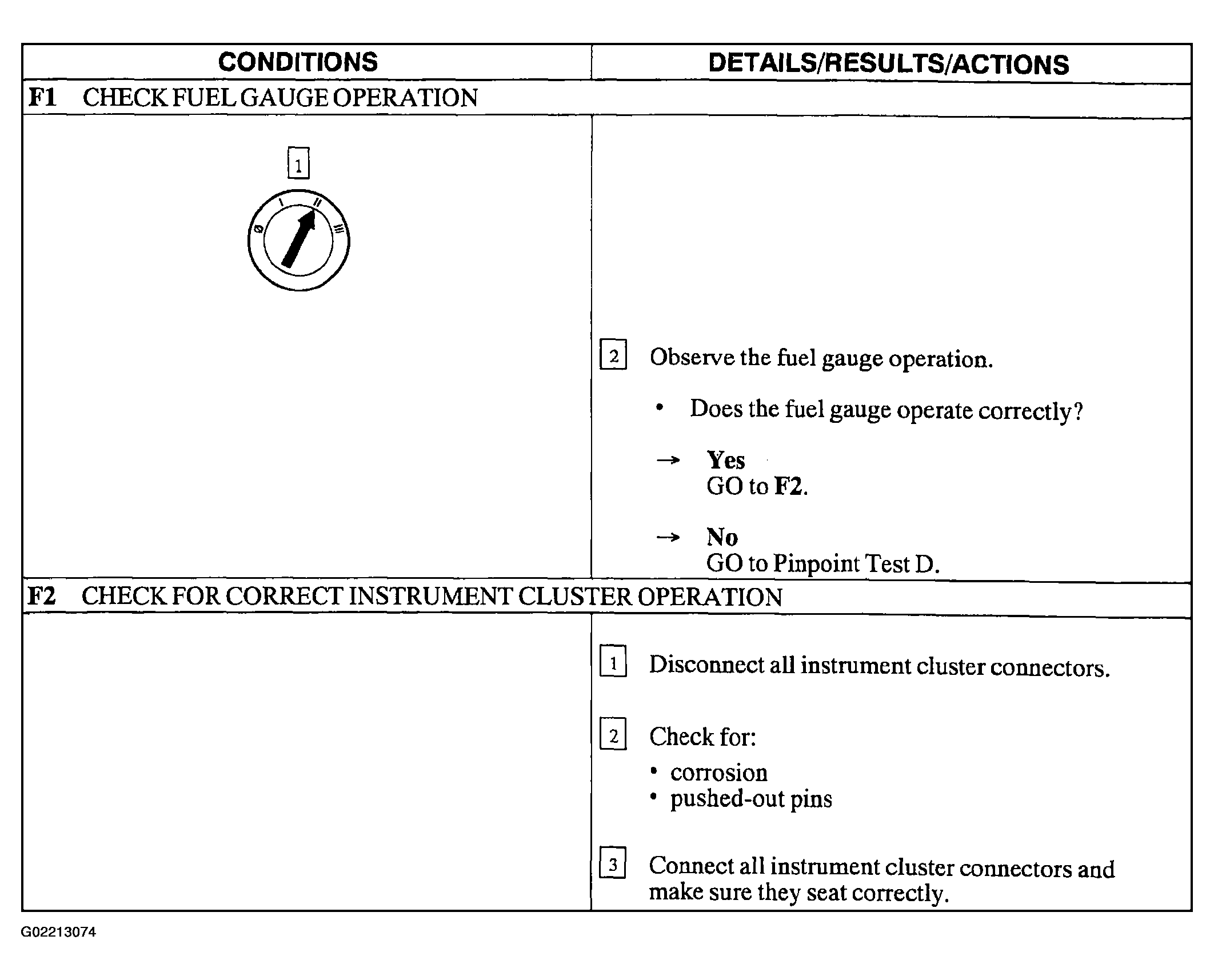

Fig 1: Pinpoint Test F: The Low Fuel Warning Indicator Is Never/Always On (Steps F1-F2)

Courtesy of FORD MOTOR CO.

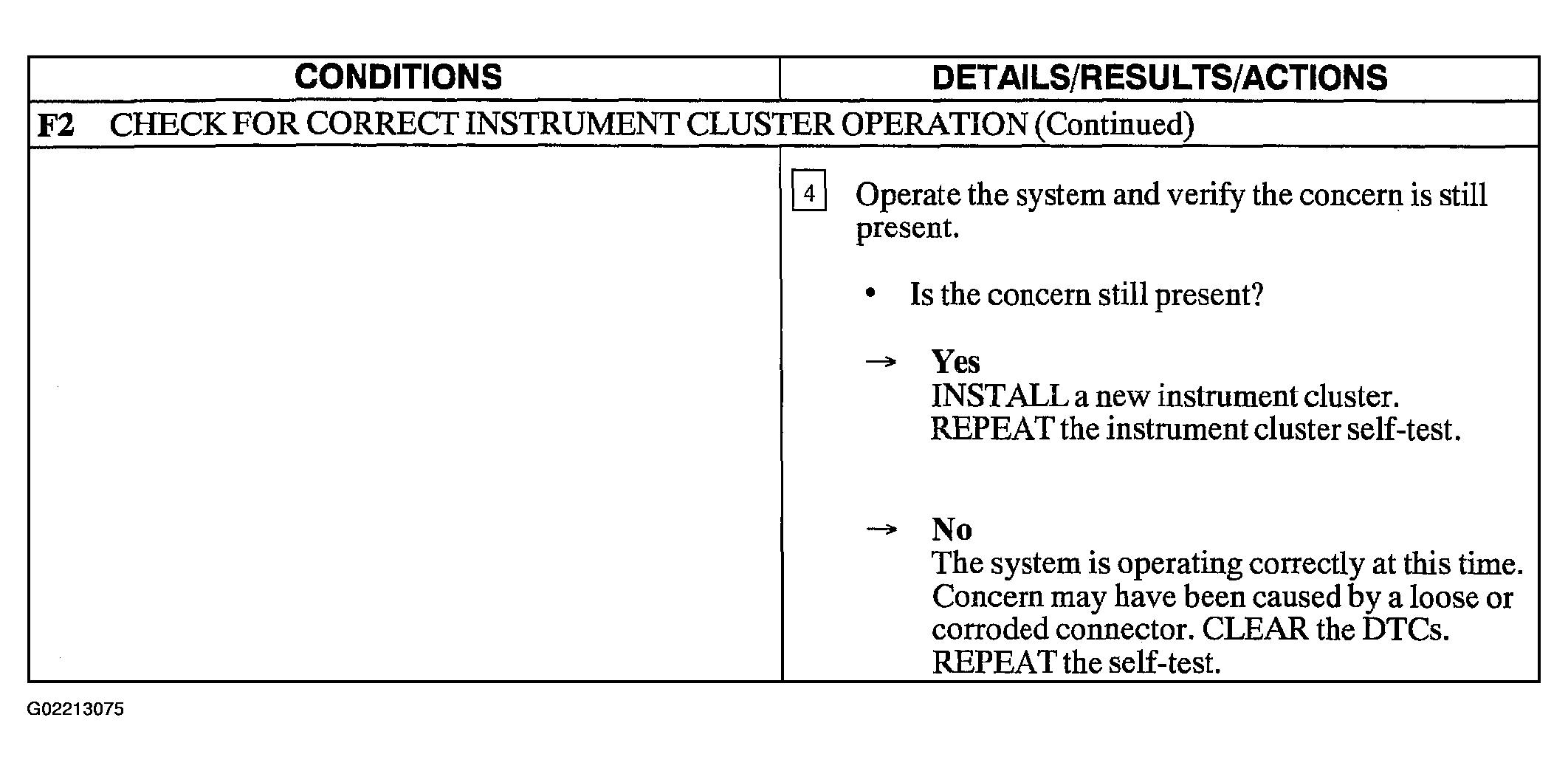

Fig 2: Pinpoint Test F: The Low Fuel Warning Indicator Is Never/Always On (Step F2 Cont.)

Courtesy of FORD MOTOR CO.
