Pinpoint Test M: The RH Turn Indicator Is Never/Always On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

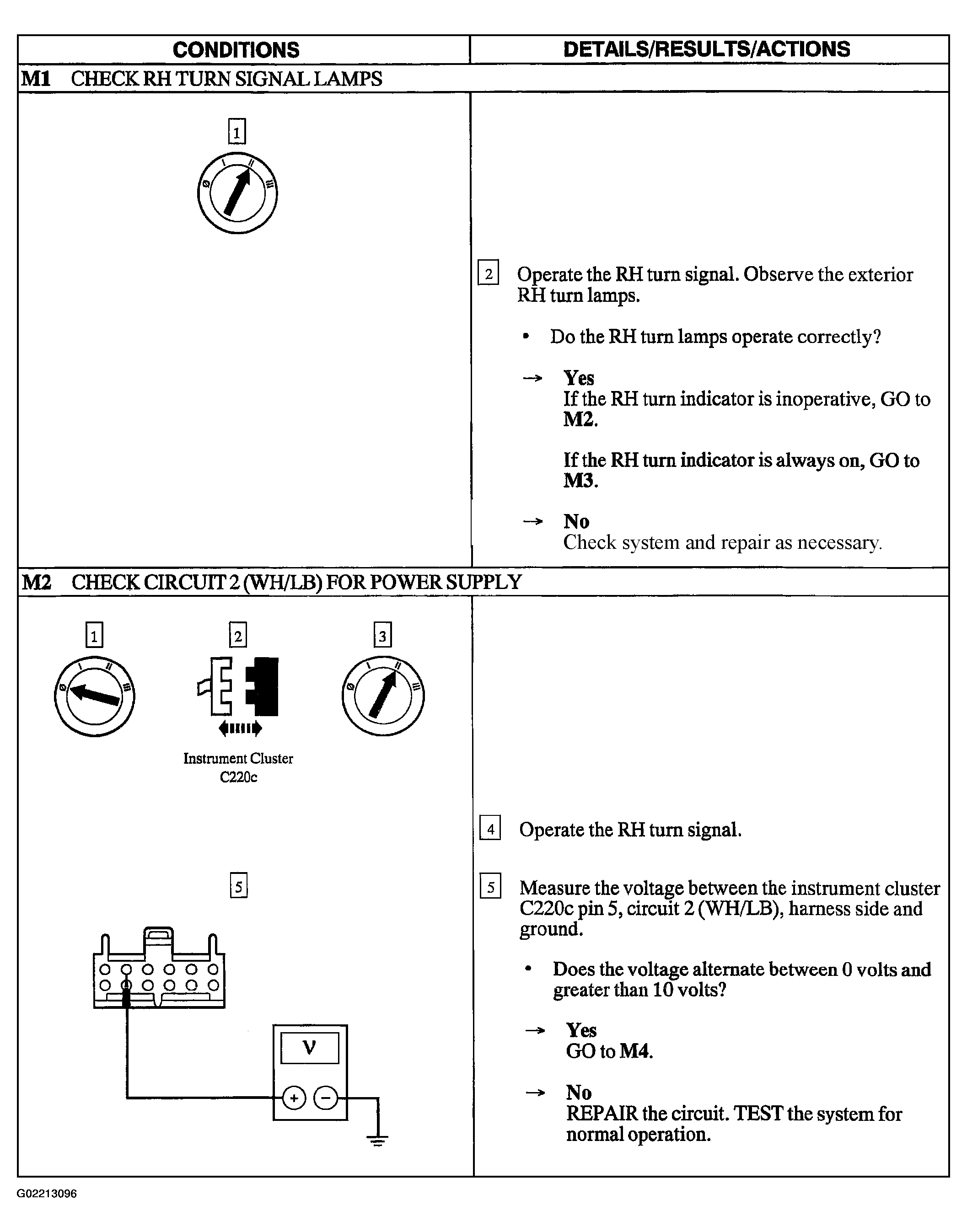

Fig 1: Pinpoint Test M: The RH Turn Indicator Is Never/Always On (Steps M1-M2)

Courtesy of FORD MOTOR CO.

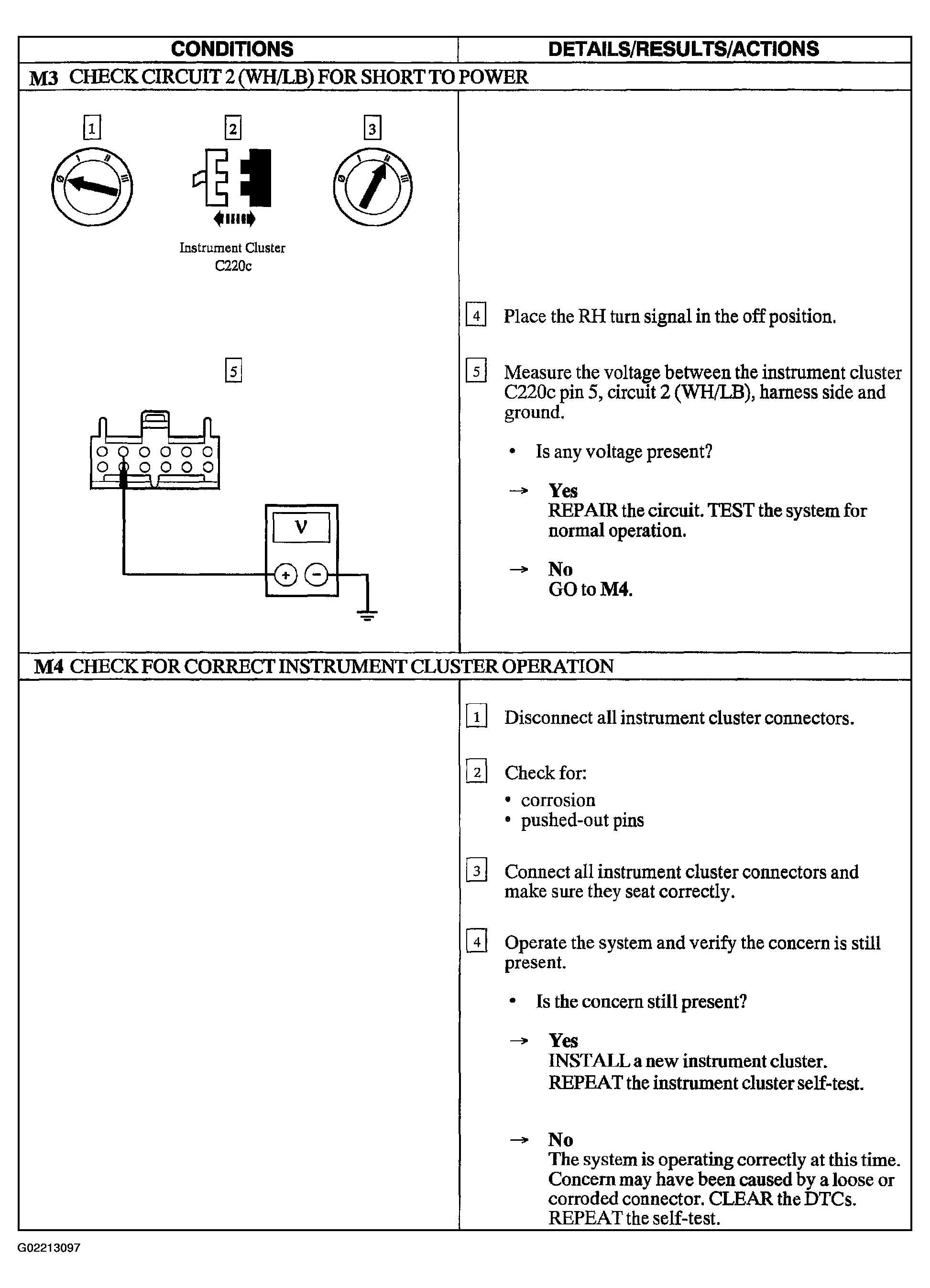

Fig 2: Pinpoint Test M: The RH Turn Indicator Is Never/Always On (Steps M3-M4)

Courtesy of FORD MOTOR CO.
