Pinpoint Test P: The Overdrive Off Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

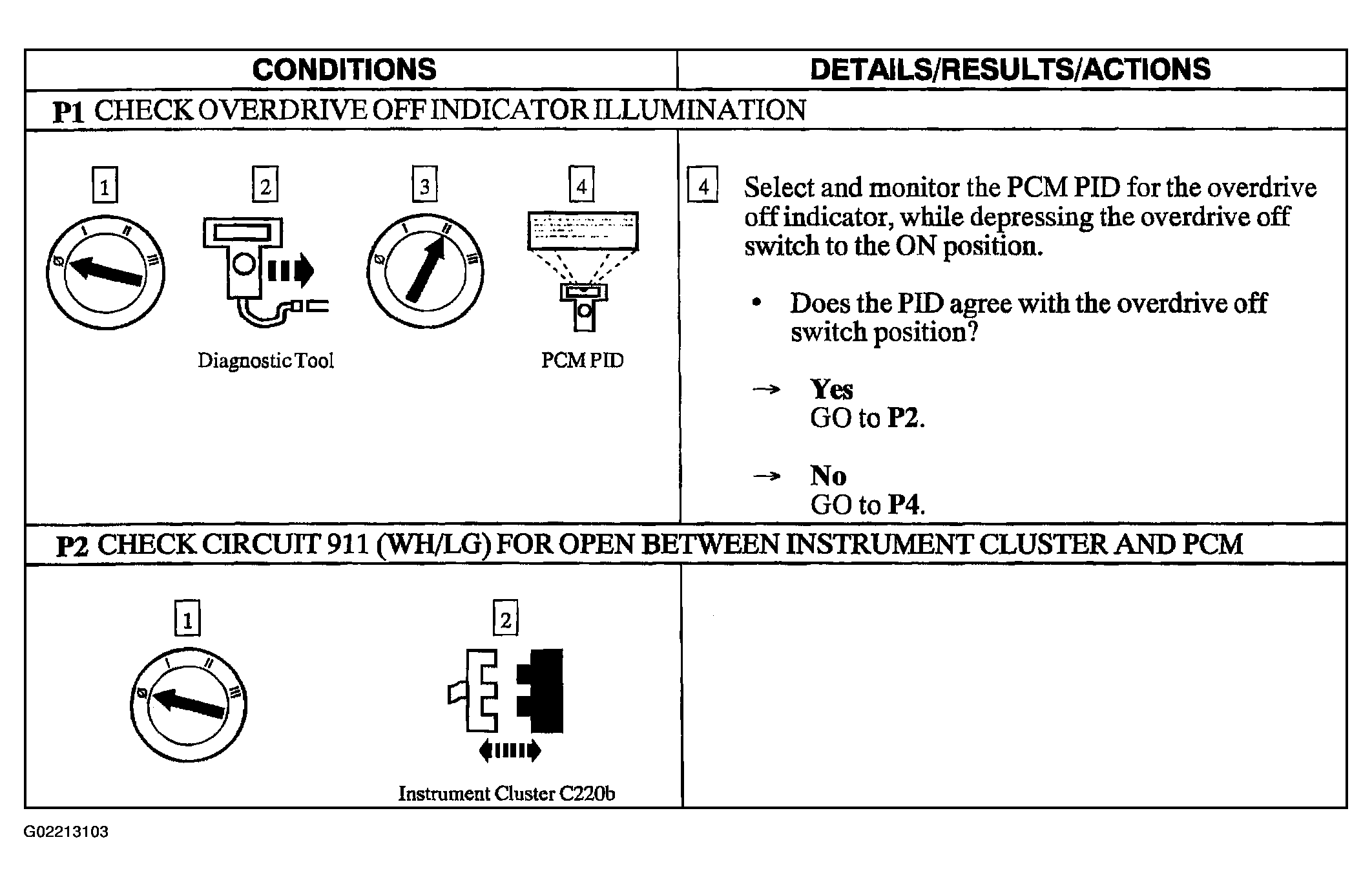

Fig 1: Pinpoint Test P: The Overdrive Off Indicator Is Never On (Steps P1-P2)

Courtesy of FORD MOTOR CO.

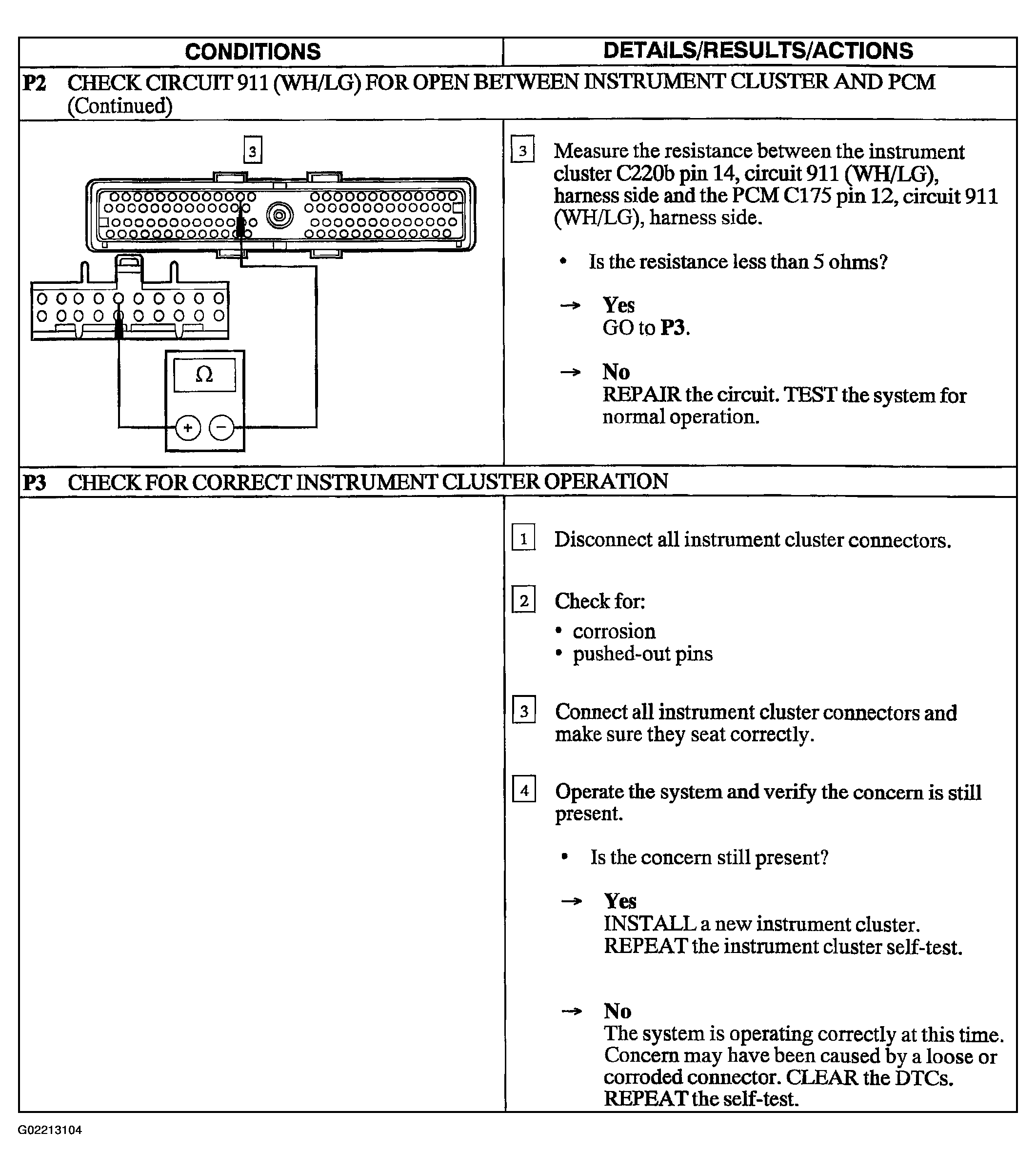

Fig 2: Pinpoint Test P: The Overdrive Off Indicator Is Never On (Steps P2 Cont.-P3)

Courtesy of FORD MOTOR CO.

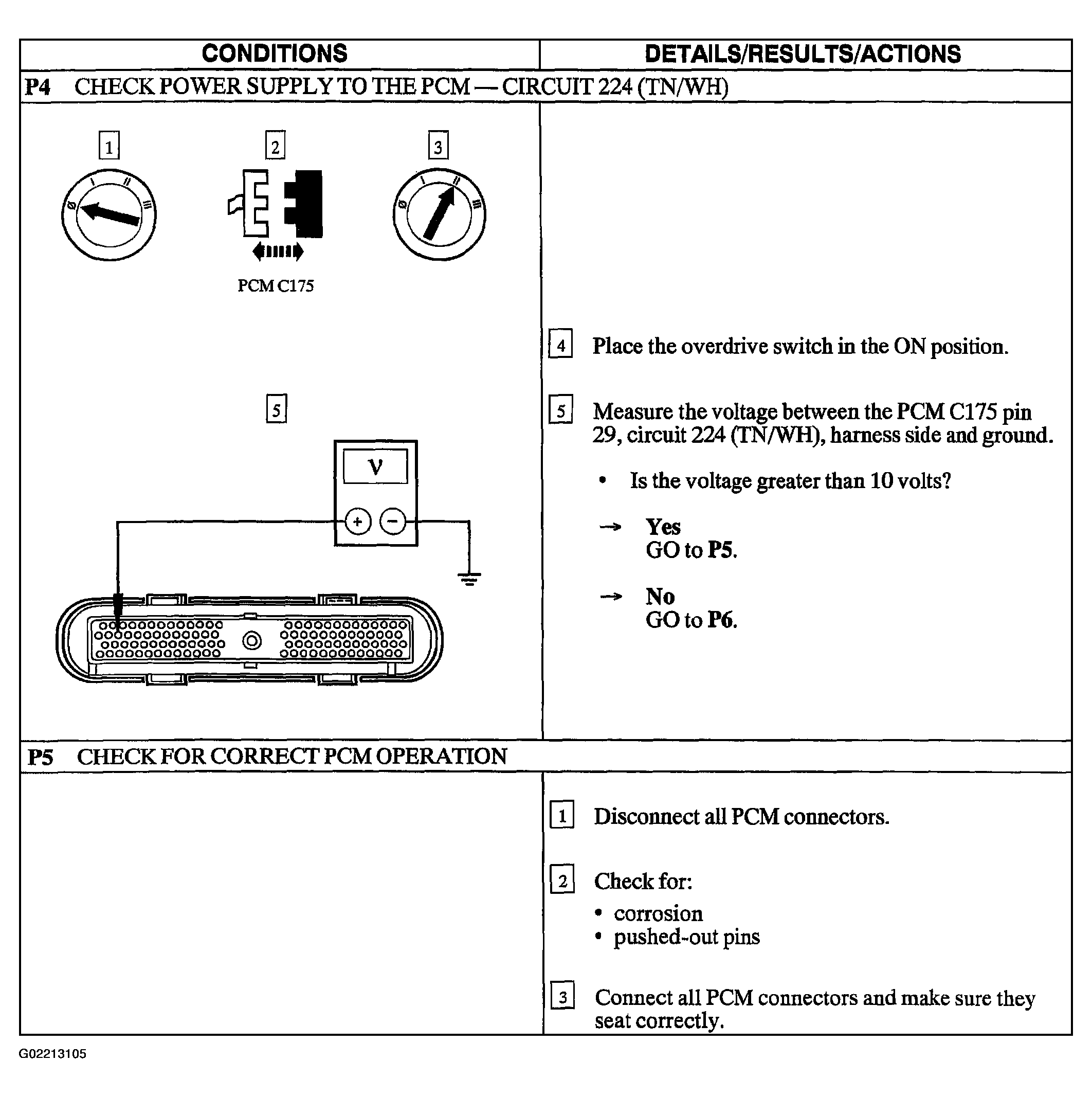

Fig 3: Pinpoint Test P: The Overdrive Off Indicator Is Never On (Steps P4-P5)

Courtesy of FORD MOTOR CO.

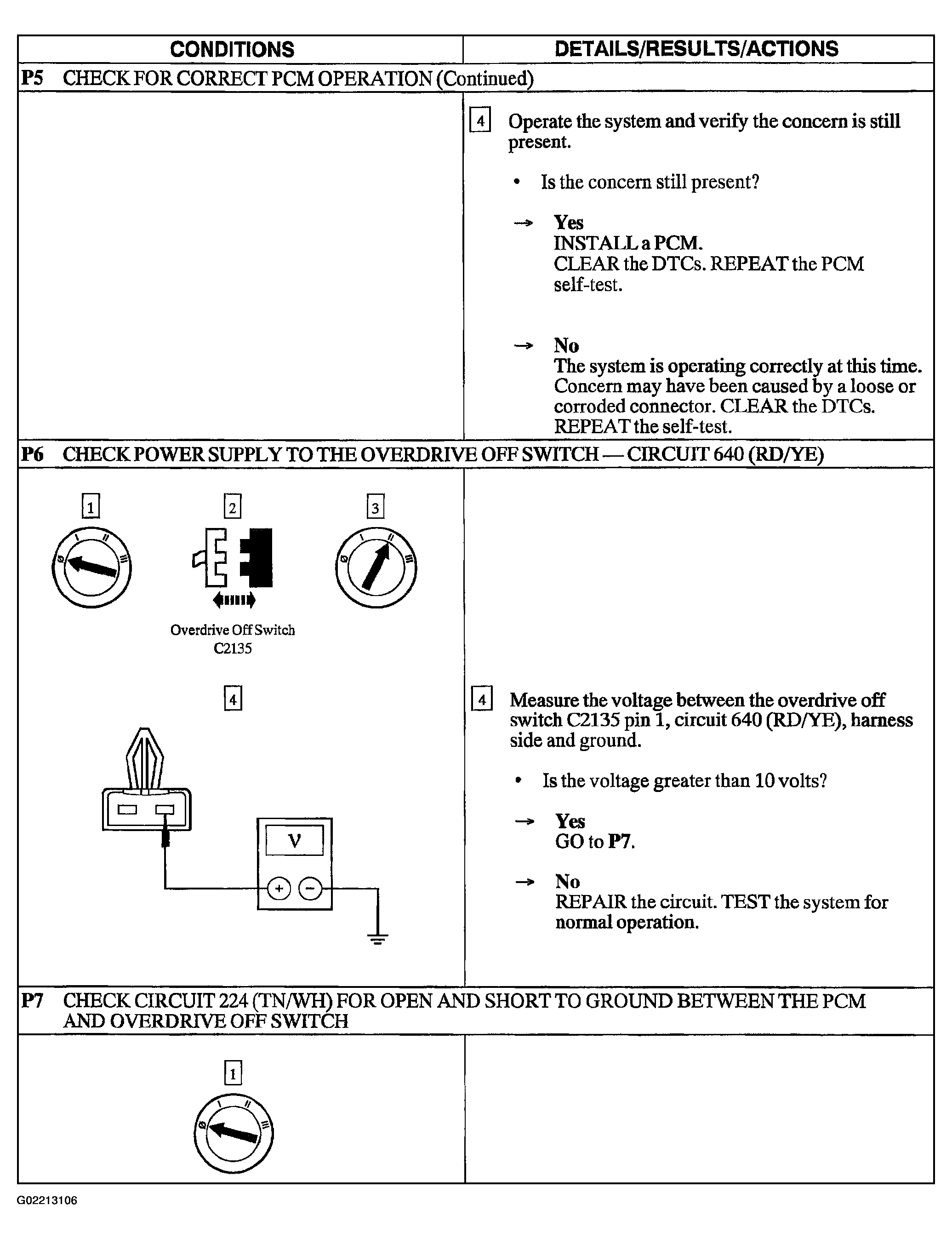

Fig 4: Pinpoint Test P: The Overdrive Off Indicator Is Never On (Steps P5 Cont.-P7)

Courtesy of FORD MOTOR CO.

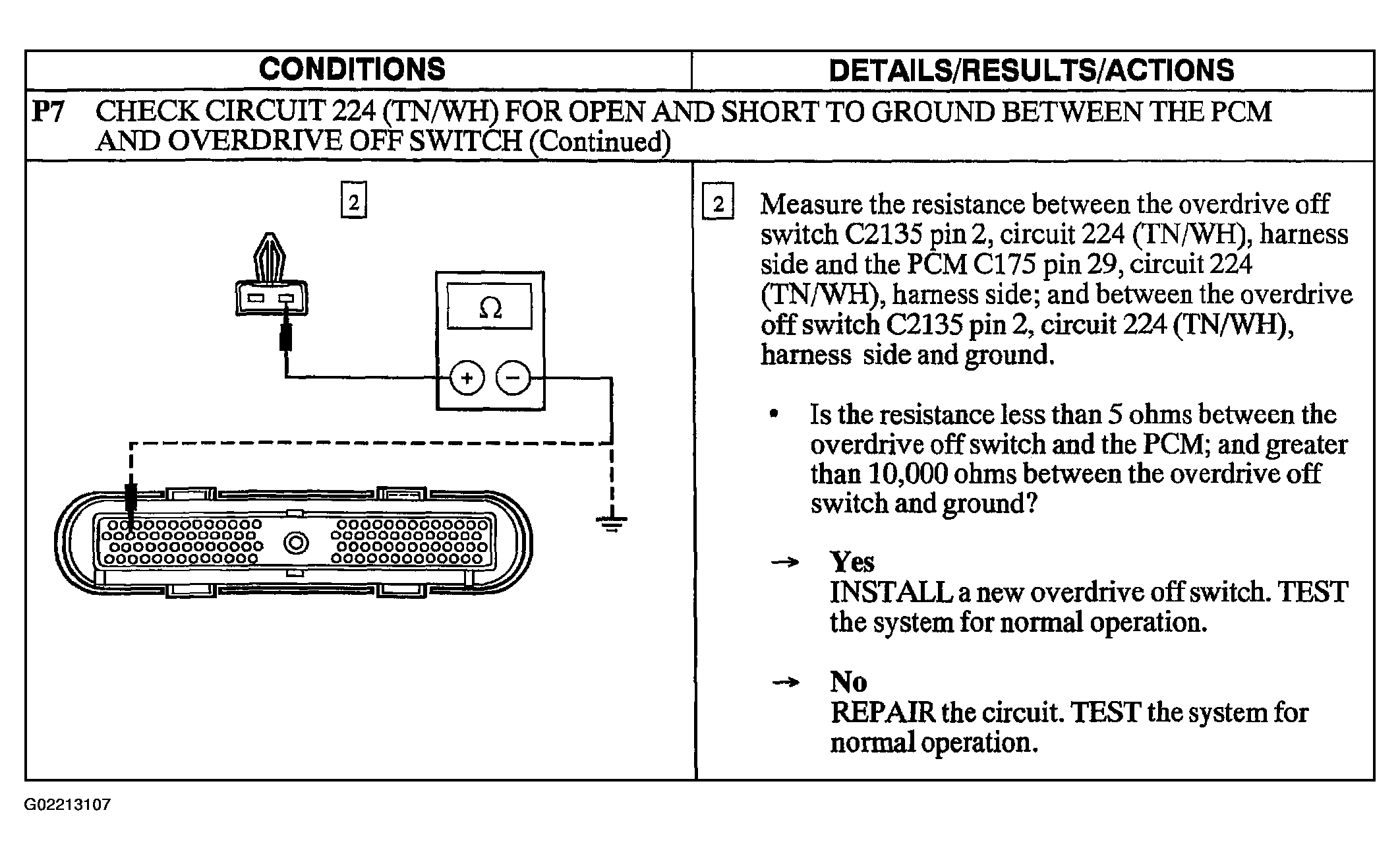

Fig 5: Pinpoint Test P: The Overdrive Off Indicator Is Never On (Step P7 Cont.)

Courtesy of FORD MOTOR CO.
